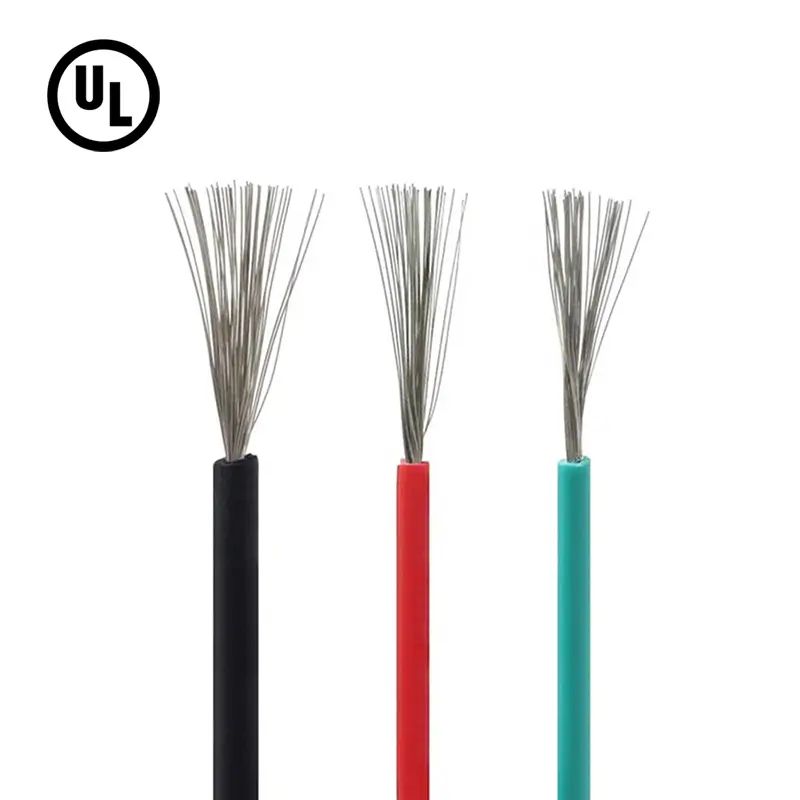

UL1015 PVC Hook Up Wire

Geritel Wire is a professional wires and cables manufacturer. We supply wires and cables for projects worldwide, including universities, airports, commercial buildings, hospitals, and more.

Conductor：

Tinned copper wire

Insulation：

PVC

Rated Voltage：

300V

Standard：

UL Certified

Temperature range : 105℃：

Whatsapp: +86 13510784550

manager01@greaterwire.com

Add To Inquiry

Description

Download

PVC Hook Up Wire

Conductor

Tinned copper wire

PVC Hook Up Wire

Insulation

PVC

PVC Hook Up Wire

No. of Conductor

Single Core

PVC Hook Up Wire

Temperature Rating

105°C

PVC Hook Up Wire

UL1015 wires are typically rated for 600V and can withstand temperatures up to 105°C. PVC insulation offers good abrasion resistance, aging resistance, and some oil resistance, allowing the wires to be used in complex industrial environments.

automotive hookup wire

PVC Hook Up Wire

UL1015 hook-up wire typically passes the UL VW-1 or CSA FT1 vertical burn test and can be reliably used in internal wiring of equipment.

PVC hook-up wire

Conductors ：Tinned copper wire

PVC hook-up wire

Insulated：PVC

PVC hook-up wire

Standard：UL Certified

PVC hook-up wire

Rated voltage:600V

PVC hook-up wire

Temperature range : 105℃

Advantages of PVC hook-up wire

UL1015 wire uses high-conductivity bare copper or tinned copper conductors, available in solid or stranded configurations. The outer insulation is high-quality PVC, with insulation thickness meeting UL 1015 standards, and possesses good mechanical strength, electrical insulation properties, and flame-retardant characteristics.

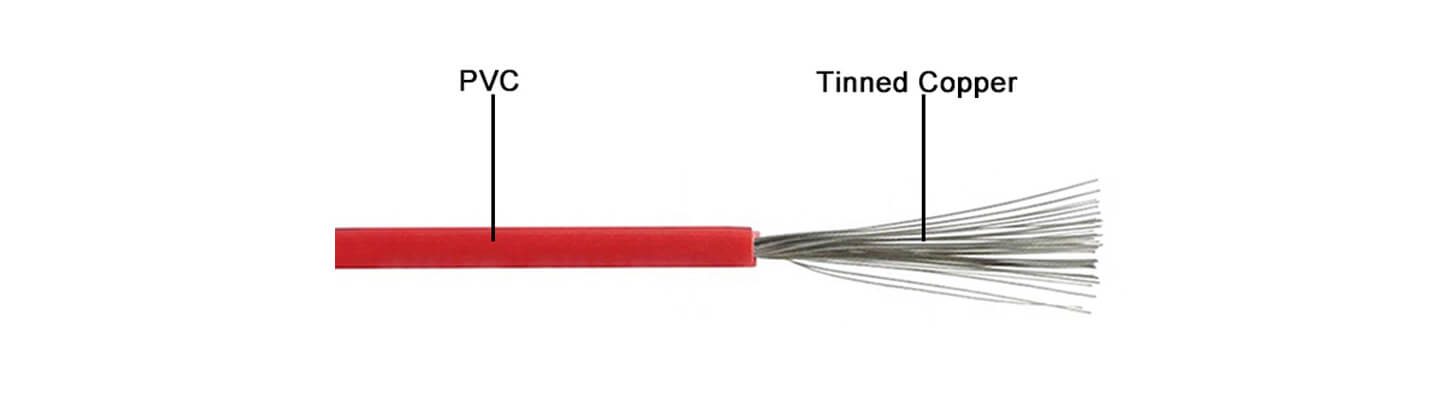

flexible hook up wire

Cable		Nom. Insulation Wall Thickness	Cable		Max. Conductor Resistance at 20°C
Conductor Size	No.of strands/Wire Diameter	Nom. Insulation Wall Thickness	Nom. Overall Diameter	Weight Approx.	Max. Conductor Resistance at 20°C
AWG	Nos./mm	mm	mm	Kg/km	Ω/km
26	7/0.160	0.762	2.17	6.5	140
24	7/0.193	0.762	2.22	7.21	87.6
22	7/0.254	0.762	2.38	9.01	55.4
20	10/0.254	0.762	2.54	10.96	34.8
18	16/0.254	0.762	2.78	14.64	21.8
16	26/0.254	0.762	3.11	20.45	13.7
14	41/0.254	0.762	3.49	28.8	8.59
12	65/0.254	0.762	3.98	41.7	5.41
10	105/0.254	0.762	4.69	62.79	3.41
8	168/0.254	1.143	6.19	104.01	2.18
6	266/0.254	1.524	7.96	170.17	1.38

Certification

PVC hook-up wire is typically designed and manufactured according to multiple international wire and cable standards, and is certified by authoritative bodies such as UL, meeting international market requirements for the safety and compliance of internal wiring in equipment.

electric hook up wire

Flexibility

wear resistance

Temperature Resistant

UL Certified

hook up cable certification

UL approval hook up cable

APPLICATIONS

UL1015 wire is widely used for internal connections in various electrical and electronic equipment, such as distribution cabinets, control cabinets, industrial equipment, household appliances, lighting equipment, power systems, and automated control systems.

hook-up wire for Internal Wiring Of Home Appliances

Home Appliances

Used for connecting power and control circuits inside household appliances such as televisions, refrigerators, and washing machines to ensure stable operation.

hook-up wire for Commercial Building

Industrial Automation Equipment

It serves as power and signal lines in PLC control cabinets, sensor wiring, and servo device internal connections, adapting to frequent installation and maintenance.

hook-up wire for Power Distribution Systems

Power Distribution Systems

Used in indoor lighting, power wiring and power distribution modules, it supports low-voltage power distribution and equipment power supply.

hook-up wire for Office Equipment

Office Equipment

This includes wiring harnesses for printers, scanners, and production line equipment, supporting the internal connection needs of complex electromechanical systems.

Customer Photos

Exporting to 80+ countries and regions, we bring proven global export experience and trusted wires & cables to customers worldwide.

hook-up wire manufacturer

plant equipment

Geritel Wire is a professional wire manufacturer. Our factory is equipped with complete extrusion, stranding, annealing, and testing production lines, enabling us to stably mass-produce various specifications of PVC, XLPE, and silicone insulated hook-up wires to meet the diverse needs of electronic, electrical, and industrial equipment.

PVC hook-up wire manufacturer

Packaging Information

Hook-up Cable packaging has been optimized over time, with common options including coil packaging, plastic reel, and box packaging.

Hook Up Wire coiled package

Coiled

Hook Up Wire plastic reel package

Plastic Reel

Hook Up Wire box packaging

Box

Global Certification

Geritel Wire Manufacturer holds 50+ international certifications, including UL, cUL, SAA, TUV, CE, VDE, ISO, and others. Our cables meet the highest global quality and safety standards.

Geritel Wire's VDE certification

VDE

Geritel Wire's UL certification

UL

Geritel Wire's SAA certification

SAA

Geritel Wire's TUV certification

TUV

Geritel Wire's ISO certification

ISO
