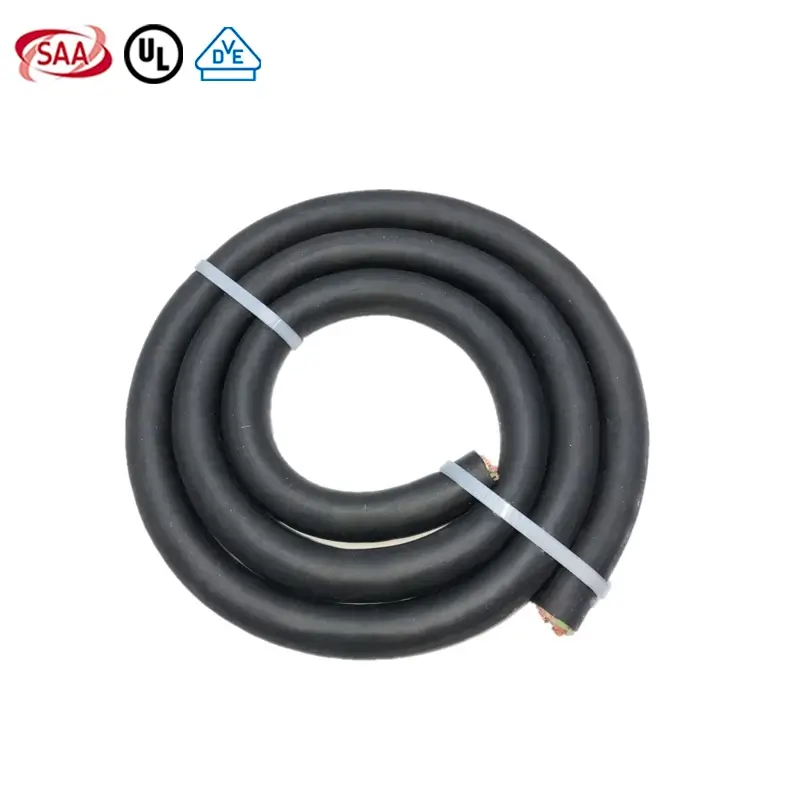

SVT Cable
Conductor:
Stranded Bare Copper Conductor
Insulation:
Polyvinylchloride (PVC)
Jacket:
Polyvinylchloride (PVC)
Rated Voltage:
300V
Temperature range:
–20 °C ~ +105 °C
Standard:
UL62
Description
Download


Conductor
Stranded Bare Copper Conductor

Insulation and Sheath
PVC Insulation & PVC Jacket

No. of Conductor
2 Core / 3 Core

Temperature Rating
–20 °C ~ +105 °C

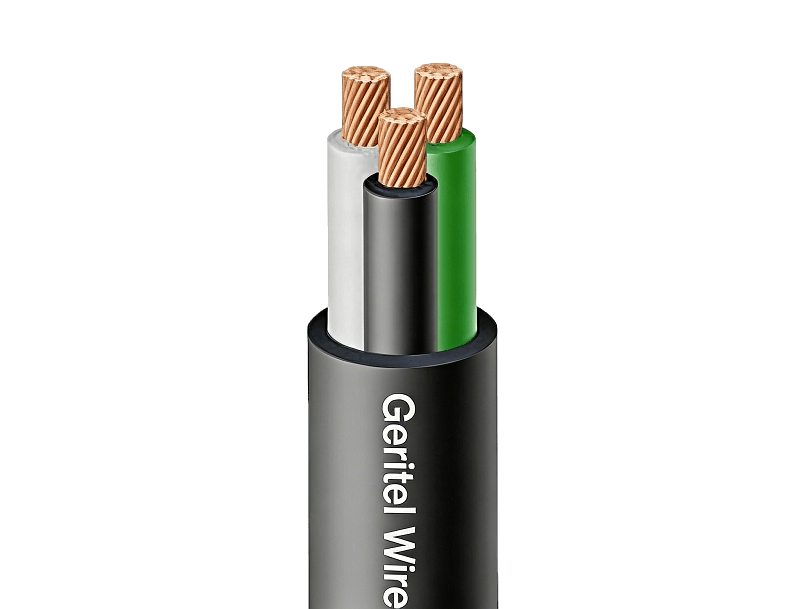

SVT Cable
SVT cable stands for Service Vacuum Thermoplastic cable, and it is a standard, lightweight power cord designed for powering light-duty appliances and portable equipment.

SVT Cable
SVT cable is a common type of lightweight, flexible power cord and portable cable widely used in electrical equipment and small household appliances.

Conductors : 99.99% high-purity oxygen-free copper

Rated Voltage Uo/U (Um) : 300 V

Insulated : Polyvinylchloride (PVC)

Standards : UL 62

Outer Jacket : Polyvinylchloride (PVC)

Temperature range :–20 °C ~ +105 °C
Advantages of flexible cable

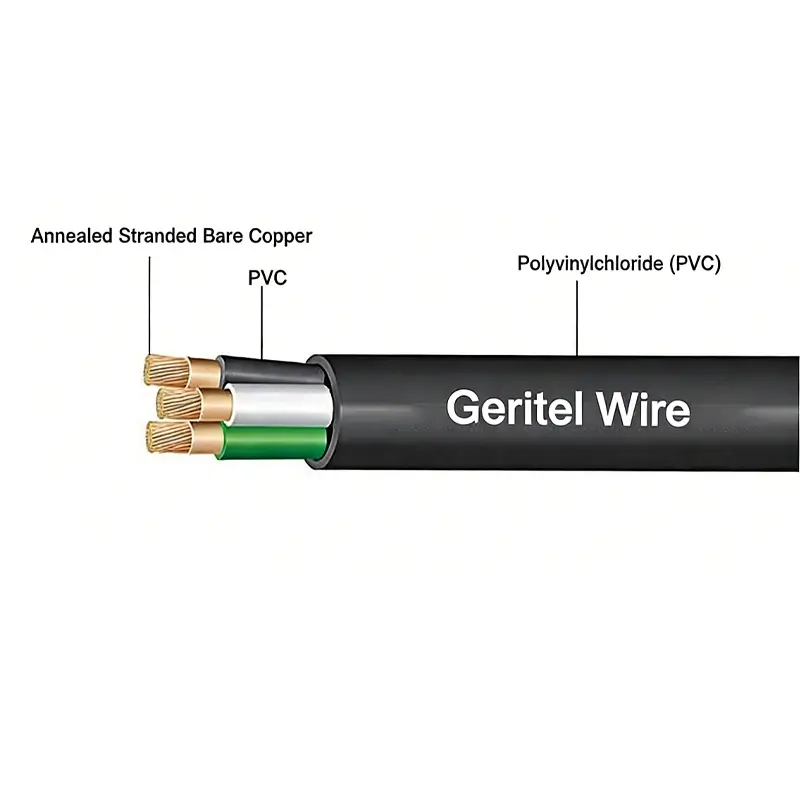

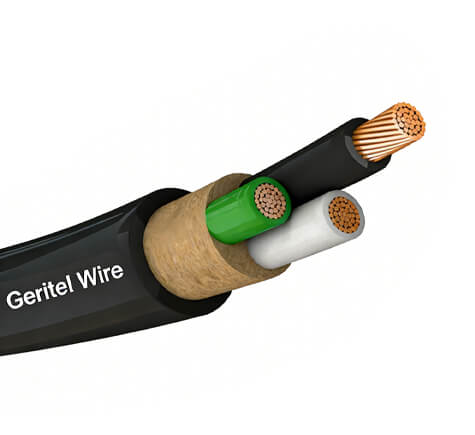

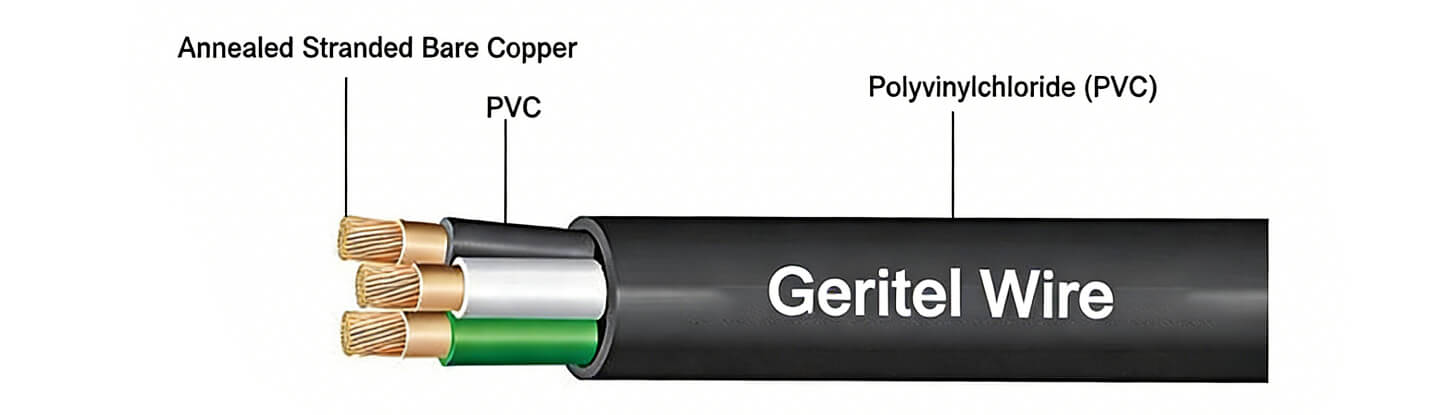

SVT cable is constructed with fine-stranded copper conductors, individually insulated with PVC and bundled in a flexible PVC outer jacket, for light-duty power applications.

| Size (AWG) | No. Of. Conds | No. Of. Strands | Insulation Thickness | Jacket Thickness | Overall Diameter | Ampacity (Amperes) | Net Weight | ||||
| (mm) | (in) | (mm) | (in) | (mm) | (in) | (kg/km) | lbs/Mft.) | ||||
| 18 | 2 | 41 | 0.38 | 0.015 | 0.76 | 0.03 | 6.1 | 0.24 | 10 | 47 | 31 |
| 18 | 3 | 41 | 0.38 | 0.015 | 0.76 | 0.03 | 6.48 | 0.255 | 10 | 56 | 38 |
| 17 | 2 | 52 | 0.38 | 0.015 | 0.76 | 0.03 | 6.15 | 0.242 | 10 | 53 | 36 |
| 17 | 3 | 52 | 0.38 | 0.015 | 0.76 | 0.03 | 7.11 | 0.28 | 10 | 62 | 42 |
| 16 | 2 | 65 | 0.38 | 0.015 | 0.76 | 0.03 | 7.11 | 0.28 | 13 | 55 | 37 |
| 16 | 3 | 65 | 0.38 | 0.015 | 0.76 | 0.03 | 7.37 | 0.29 | 13 | 71 | 48 |
Certification
SVT cable is UL certified. Passing UL testing confirms the cable’s resistance to heat, aging, and mechanical stress, and helps reduce electrical risks such as overheating and insulation failure.

High Flexibility
Wear Resistance
Oil Resistant
UL 62 Certified


APPLICATIONS
SVT cable is widely used to supply power to light-duty portable appliances and household equipment such as lamps, fans, and small electrical devices in dry indoor environments.

Lamps
SVT cables can be used as power cords for lamps, providing stable low-voltage power while remaining flexible for easy lamp movement and indoor wiring.

Fan
For power connections in household or office fans, SVT cables are soft and durable, able to withstand repeated bending without damaging the conductors.

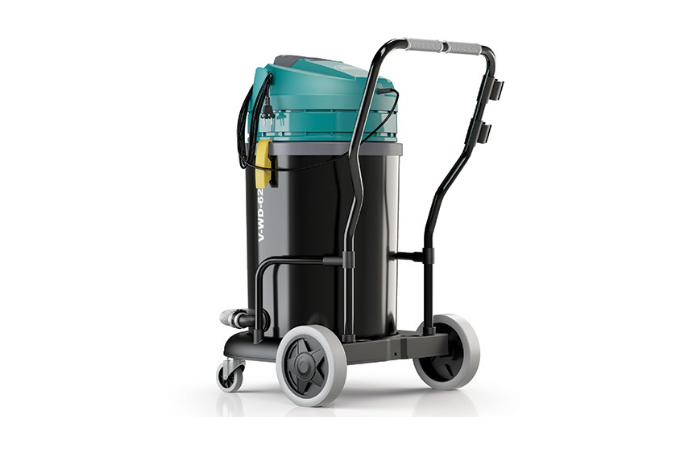

Vacuum Cleaner
As power cords for lightweight cleaning equipment, SVT cables are wear-resistant and safe, UL certified to ensure long-term safety.

Office Equipment
Connecting office appliances such as printers, scanners, or monitors, providing reliable power and ensuring a tidy work environment.
Customer Photos
Exporting to 80+ countries and regions, we bring proven global export experience and trusted wires & cables to customers worldwide.

plant equipment
Geritel Wire is a professional wire and cable manufacturer. We support a wide range of customization options, including conductor structure, insulation materials, color, printing content, and packaging methods, to flexibly meet different national standards and project applications.






Packaging Information
SVT cables come in three standard packaging options: coiled, plastic reel, and wooden reel.

Coiled

Plastic Reel

Wooden Reel
Global Certification
Geritel Wire Manufacturer holds 50+ international certifications, including UL, cUL, SAA, TUV, CE, VDE, ISO, and others. Our cables meet the highest global quality and safety standards.

VDE

UL

SAA

TUV

ISO
