STW Cord

Geritel Wire is a professional wires and cables manufacturer. We supply wires and cables for projects worldwide, including universities, airports, commercial buildings, hospitals, and more.

Conductor：

Stranded Bare Copper Conductor

Insulation：

Polyvinylchloride (PVC)

Jacket：

Polyvinylchloride (PVC)

Rated Voltage：

600V

Temperature range：

-40℃ to 105℃

Standard：

UL62

Whatsapp: +86 13510784550

manager01@greaterwire.com

Add To Inquiry

Description

Download

Multicore Fexible Cable Manufacturer

3 Core Royal Cord

Conductor

Stranded Bare Copper Conductor

3 Core Royal Cord

Insulation and Sheath

PVC Insulation & PVC Jacket

3 Core Royal Cord

No. of Conductor

2 Core / 3 Core / 4 Core

2 Core Royal Cord

Temperature Rating

-40℃ to 105℃

STW Cord

STW Cord is a heavy-duty, weather-resistant power cord that UL standards and withstands 600V. It features thermoplastic insulation and sheathing, is suitable for temperatures ranging from -40℃ to 105℃, and is flexible, moisture-proof, and abrasion-resistant. It is designed for temporary power supply of portable devices in outdoor and industrial settings.

STW Cord

STW Cord is a 600V heavy-duty mobile power cord, with a withstand voltage of 600V, featuring PVC insulation and a weather-resistant sheath, suitable for powering outdoor/industrial portable devices.

3 Core Royal Cord

Conductors ： 99.99% high-purity oxygen-free copper

3 Core Royal Cord

Rated Voltage Uo/U (Um) : 600 V

3 Core Royal Cord

Insulated : Polyvinylchloride (PVC)

3 Core Royal Cord

Standards : UL 62

3 Core Royal Cord

Outer Jacket : Polyvinylchloride (PVC)

3 Core Royal Cord

Temperature range ：-40℃ to 105℃

Advantages of flexible cable

STW cord is a multi-strand soft copper core, a colored thermoplastic insulation layer, and is filled with a non-hygroscopic material before being covered with a weather-resistant thermoplastic sheath, resulting in a heavy-duty power cord structure.

STW

No. of Conductors	AWG	Conductor Strand	Nominal Insulation Thickness		Nominal Overall Diameter		Current Amps	Weight LBS/M'
No. of Conductors	AWG	Conductor Strand	Inches	mm	Inches	mm	Current Amps	Weight LBS/M'
2	18	16/30	0.03	0.76	0.35	8.89	10	51
3	18	16/30	0.03	0.76	0.375	9.53	10	75
4	18	16/30	0.03	0.76	0.4	10.16	7	87
2	16	26/30	0.03	0.76	0.37	9.4	13	73
3	16	26/30	0.03	0.76	0.4	10.16	13	89
4	16	26/30	0.03	0.76	0.42	10.67	10	105
5	16	26/30	0.03	0.76	0.5	12.7	8	125
2	14	41/30	0.045	1.14	0.505	12.83	18	128
3	14	41/30	0.045	1.14	0.53	13.46	18	153
4	14	41/30	0.045	1.14	0.58	14.73	15	180
2	12	65/30	0.045	1.14	0.58	14.73	25	170
3	12	65/30	0.045	1.14	0.61	15.49	25	201
4	12	65/30	0.045	1.14	0.66	16.76	20	255
5	12	65/30	0.045	1.14	0.715	18.16	16	285
2	10	104/30	0.045	1.14	0.625	15.88	30	212
3	10	104/30	0.045	1.14	0.655	16.64	30	267
4	10	104/30	0.045	1.14	0.725	18.42	25	325
5	10	104/30	0.045	1.14	0.775	19.69	24	385
3	8	65/26	0.06	1.52	0.82	20.83	40	383
4	8	65/26	0.06	1.52	0.93	23.62	35	511
3	6	133/27	0.06	1.52	0.99	25.15	55	550
4	6	133/27	0.06	1.52	1.105	28.07	45	657
3	4	259/28	0.06	1.52	1.135	28.83	70	710
4	4	259/28	0.06	1.52	1.275	32.39	60	916

Certification

STW cord is UL certificated. This certification covers comprehensive product performance testing, including core items such as weather resistance-related dielectric performance testing, low-temperature bending testing, carbon arc irradiation environmental resistance testing, and VW-1 vertical burning flame retardancy testing.

STW Cords

High Flexibility

Wear Resistance

Oil Resistant

UL 62 Certified

multicore flexible cable certification

APPLICATIONS

STW cord is suitable for mobile power supply needs below 600V in outdoor engineering, industrial portable equipment, and various commercial temporary scenarios.

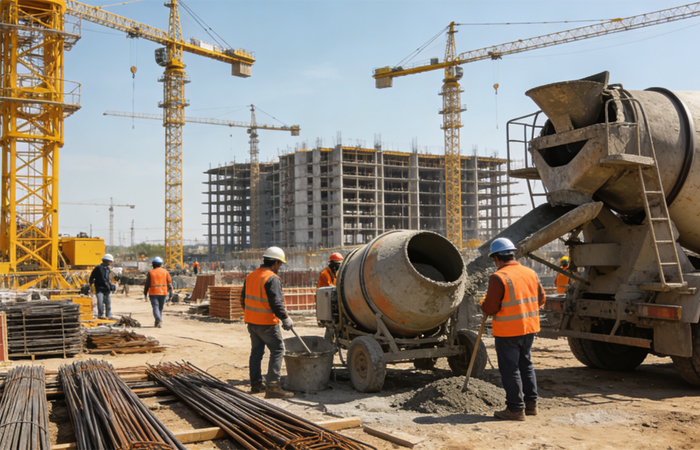

STW Cord for Construction

Construction

Temporary mobile power supply for various power tools (electric drills, angle grinders, cutting machines, etc.) on construction sites, adapting to the frequent movement requirements of multiple working conditions in outdoor construction sites.

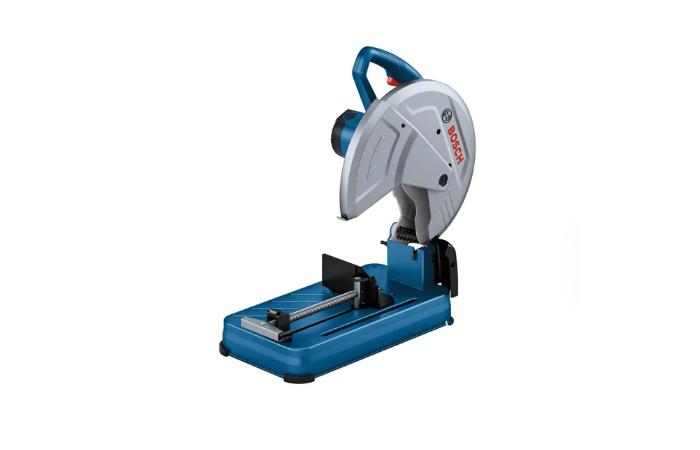

STW Cord for Industrial Workshops

Industrial Workshops

Power supply for portable testing instruments, mobile operating platforms, and small mobile motors in industrial plants, with 600V voltage resistance to meet industrial voltage requirements in workshops.

STW Cord for Outdoor Activities

Outdoor Activities

Power supply for audio, lighting, and display equipment at outdoor exhibitions, temporary stages, and cultural and tourism markets, meeting the needs of temporary mobile wiring.

STW Cord for Agricultural

Agricultural

Power supply for small irrigation pumps, plant protection equipment, and electric farm tools in fields and orchards, adapting to the moisture-proof requirements of outdoor agricultural operations.

Customer Photos

Exporting to 80+ countries and regions, we bring proven global export experience and trusted wires & cables to customers worldwide.

multicore flexible cable manufacturer

plant equipment

Geritel Wire is a professional wire and cable manufacturer. We have built a wire and cable factory integrating R&D, production, and export, enabling us to quickly respond to order demands from different regions.

multicore flexible cable manufacturer

Packaging Information

STW cables come in three standard packaging options: coiled, plastic spool, and wooden spool.

flexible multicore cable coiled package

Coiled

flexible multicore cable plastic reel package

Plastic Reel

flexible multicore cable wooden reel Package

Wooden Reel
