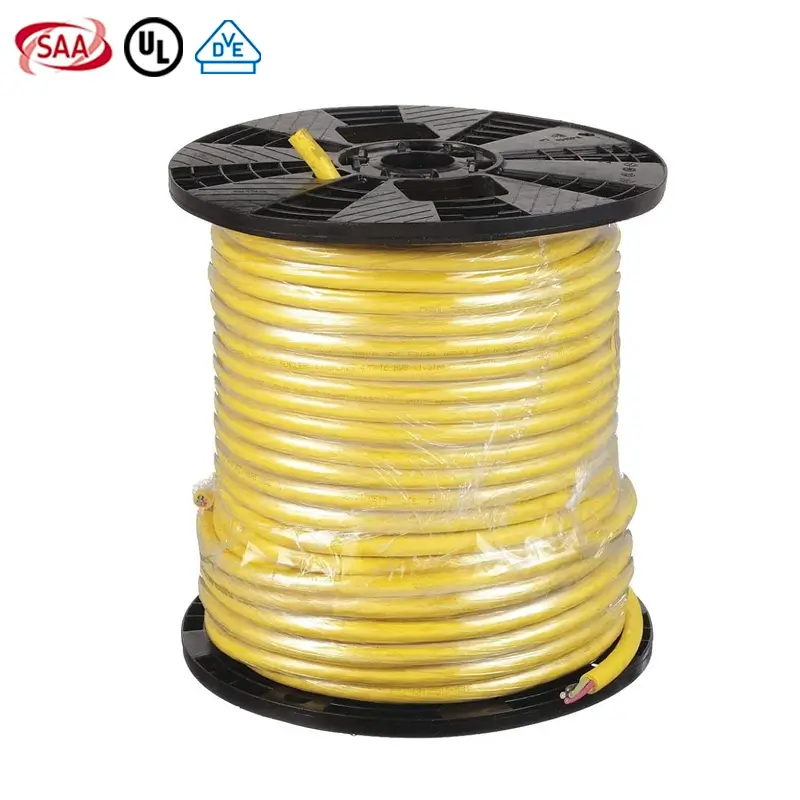

SOOW Flexible Cord

Geritel Wire is a professional wires and cables manufacturer. We supply wires and cables for projects worldwide, including universities, airports, commercial buildings, hospitals, and more.

Conductor：

Stranded Bare Copper Conductor

Insulation：

EPDM Rubber Insulation

Jacket：

CPE Jacket

Rated Voltage：

600V

Temperature range：

-40°C to 90°C

Standard：

UL62

Whatsapp: +86 13510784550

manager01@greaterwire.com

Add To Inquiry

Description

Download

Multicore Fexible Cable Manufacturer

3 Core Royal Cord

Conductor

Stranded Bare Copper Conductor

3 Core Royal Cord

Insulation and Sheath

EPDM Rubber Insulation & CPE Jacket

3 Core Royal Cord

No. of Conductor

2 Core / 3 Core / 4 Core

2 Core Royal Cord

Temperature Rating

-40°C to 90°C

SOOW Cable

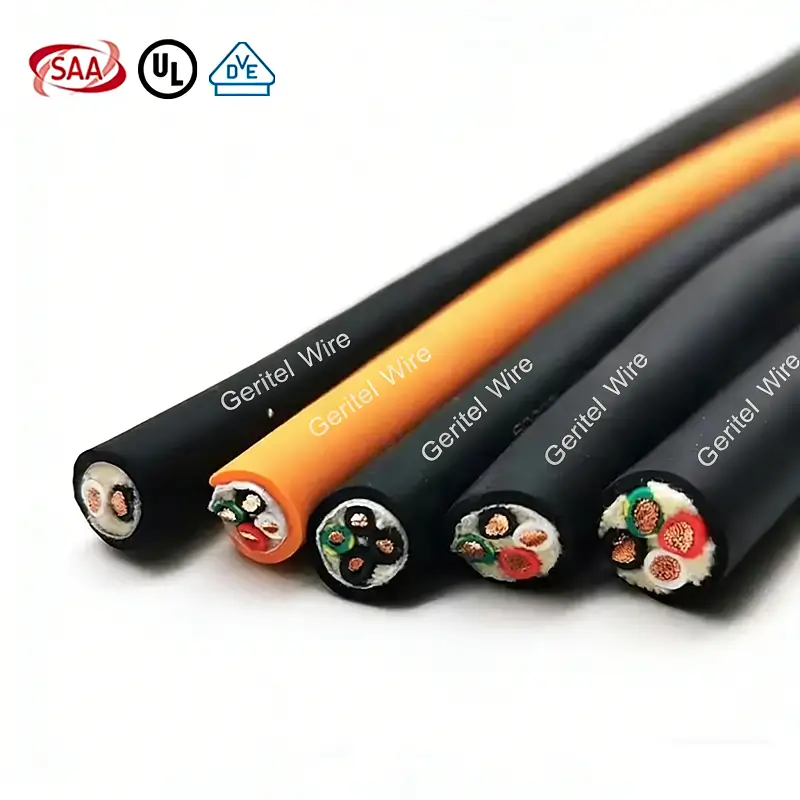

SOOW cords are heavy-duty rubber-sheathed flexible cables rated at 600V. These cables offer excellent flexibility and durability, allowing for long-term stable use under conditions of frequent bending, dragging, and movement, and reliable operation over a wide temperature range of -40°C to +90°C.

SJOOW Cable

SOOW

SOOW cables also possess oil resistance, water resistance, weather resistance, and mechanical abrasion resistance, suitable for both indoor and outdoor environments.

3 Core Royal Cord

Conductors ： 99.99% high-purity oxygen-free copper

3 Core Royal Cord

Rated Voltage Uo/U (Um) : 600 V

3 Core Royal Cord

Insulated : EPDM Rubber Insulation

3 Core Royal Cord

Standards : UL 62

3 Core Royal Cord

Outer Jacket : CPE Jacket

3 Core Royal Cord

Temperature range ：-40°C to 90°C

Advantages of flexible cable

SOOW cords utilize multi-stranded bar copper conductors, maintaining excellent conductivity and flexibility during bending and movement. Each conductor is insulated with EPDM rubber, and the overall outer sheath is made of CPE (chlorinated polyethylene) rubber, giving the cable superior resistance to oil, abrasion, chemicals, and moisture.

SOOW

Size	No of conductor	Conductor strand	Nominal insulation thickness		Nominal jacket thickness		Nominal overall diameter		Weight	Ampacity at 30℃ in air
Size	No of conductor	Conductor strand	Inches	mm	Inches	mm	Inches	mm	lbs/1000ft	A
18	2	16/30	0.03	0.76	0.06	1.52	0.34	8.6	63	10
18	3	16/30	0.03	0.76	0.06	1.52	0.36	9.1	74	10
18	4	16/30	0.03	0.76	0.06	1.52	0.39	9.8	87	7
18	5	16/30	0.03	0.76	0.08	2.03	0.46	11.7	123	5.6
16	2	26/30	0.03	0.76	0.06	1.52	0.37	9.3	76	13
16	3	26/30	0.03	0.76	0.06	1.52	0.39	10.1	90	13
16	4	26/30	0.03	0.76	0.06	1.52	0.42	10.6	107	10
16	5	26/30	0.03	0.76	0.08	2.03	0.49	12.5	149	8
14	2	41/30	0.045	1.14	0.08	2.03	0.5	12.6	137	18
14	3	41/30	0.045	1.14	0.08	2.03	0.52	13.3	161	18
14	4	41/30	0.045	1.14	0.08	2.03	0.57	14.4	192	15
14	5	41/30	0.045	1.14	0.095	2.41	0.64	16.4	251	12
12	2	65/30	0.045	1.14	0.095	2.41	0.57	14.4	184	25
12	3	65/30	0.045	1.14	0.095	2.41	0.59	15.2	217	25
12	4	65/30	0.045	1.14	0.095	2.41	0.64	16.5	261	20
12	5	65/30	0.045	1.14	0.095	2.41	0.7	17.8	319	16
10	2	103/30	0.045	1.14	0.095	2.41	0.62	15.6	230	30
10	3	103/30	0.045	1.14	0.095	2.41	0.65	16.5	281	30
10	4	103/30	0.045	1.14	0.095	2.41	0.7	17.8	336	25
10	5	103/30	0.045	1.14	0.095	2.41	0.76	19.3	409	20
8	2	67/0.0156	0.06	1.52	0.11	2.79	0.78	19.8	367	40
8	3	67/0.0156	0.06	1.52	0.11	2.79	0.83	21.1	452	40
8	4	67/0.0156	0.06	1.52	0.125	3.18	0.93	23.5	577	35
8	5	67/0.0156	0.06	1.52	0.125	3.18	1	25.4	683	28
8	6	67/0.0156	0.06	1.52	0.14	3.56	1.106	28.1	804	28
6	2	184/0.0117	0.06	1.52	0.125	3.18	0.92	23.4	525	55
6	3	184/0.0117	0.06	1.52	0.125	3.18	0.97	24.6	641	55
6	4	184/0.0117	0.06	1.52	0.14	3.56	1.05	26.7	785	45
6	5	184/0.0117	0.06	1.52	0.14	3.56	1.18	30	983	36
4	2	165/0.0156	0.06	1.52	0.14	3.56	1.06	26.9	728	70
4	3	165/0.0156	0.06	1.52	0.14	3.56	1.13	28.7	913	70
4	4	165/0.0156	0.06	1.52	0.155	3.94	1.25	31.8	1156	60
4	5	165/0.0156	0.06	1.52	0.155	3.94	1.31	33.2	1318	48
2	2	262/0.0156	0.06	1.52	0.155	3.94	1.21	30.7	1000	95
2	3	262/0.0156	0.06	1.52	0.155	3.94	1.3	33.1	1287	95
2	4	262/0.0156	0.06	1.52	0.17	4.32	1.45	36.8	1644	80
2	5	262/0.0156	0.06	1.52	0.17	4.32	1.53	38.8	1900	64

Certification

SOOW flexible cord is UL Listed. The cable has undergone rigorous testing and verification in terms of electrical safety, material performance, and structural reliability.

SOOW Cable

High Flexibility

Wear Resistance

Oil Resistant

UL 62 Certified

multicore flexible cable certification

APPLICATIONS

SOOW cords are primarily used for portable devices and temporary power supply applications, and are widely used in industrial, commercial, and outdoor sectors.

SOOW Cable for Industrial Machinery

Mobile Equipment

SOOW cables are commonly used to power mobile machinery and portable equipment in factories, such as portable compressors, hydraulic equipment, or production line auxiliary devices. Their high flexibility and abrasion-resistant sheath can withstand frequent movement and dragging.

SOOW Cable for Heavy-Duty Power Tool

Heavy-Duty Power Tool

SOOW cable is suitable as a power connection for heavy-duty power tools such as cutting machines, drilling machines, and concrete vibrators, meeting high current load requirements and maintaining stable performance under repeated bending.

SOOW Cable for Mining

Mining

SOOW cable is suitable for high-abrasion environments such as mines and quarries, used to connect pumps, conveying equipment, and temporary lighting systems, possessing excellent impact resistance and resistance to mechanical damage.

SOOW Cable for Temporary Power Systems

Temporary Power Systems

SOOW cable can be used as a temporary power connection in exhibitions, outdoor events, or temporary facilities. Its waterproof and weather-resistant properties ensure safe operation in rainy or high-humidity environments.

Customer Photos

Exporting to 80+ countries and regions, we bring proven global export experience and trusted wires & cables to customers worldwide.

multicore flexible cable manufacturer

plant equipment

Geritel Wire is a professional wire and cable manufacturer. We implement a strict screening system for raw materials. The conductors are made of high-purity copper or aluminum, and the insulation and sheathing materials are sourced from a stable and reliable supply system, ensuring the electrical performance, durability, and safety of wires and cables from the source.

multicore flexible cable manufacturer

Packaging Information

SOOW cables come in three standard packaging options: coiled, plastic spool, and wooden spool. The specific packaging method will depend on the specific cable size and dimensions.
