NYM-O Cable
Conductor：
Class 1 Solid or Class 2 Stranded Copper
Insulation：
PVC (Polyvinyl Chloride)
Jacket：
PVC (Polyvinyl Chloride)
Rated Voltage：
300/500V
Temperature range：
+5 °C to +70 °C
Standard：
DIN VDE 0281-1, IEC 60227-4, VDE 0250-204
Description
Download
Conductor
Class 1 Solid or Class 2 Stranded Copper
Insulation and Sheath
PVC & PVC
No. of Conductor
2 core / 3 core / 4 core / 5 core
Temperature Rating
Flexible: -5 °C to +70 °C
Fixed: -40 °C to +70 °C

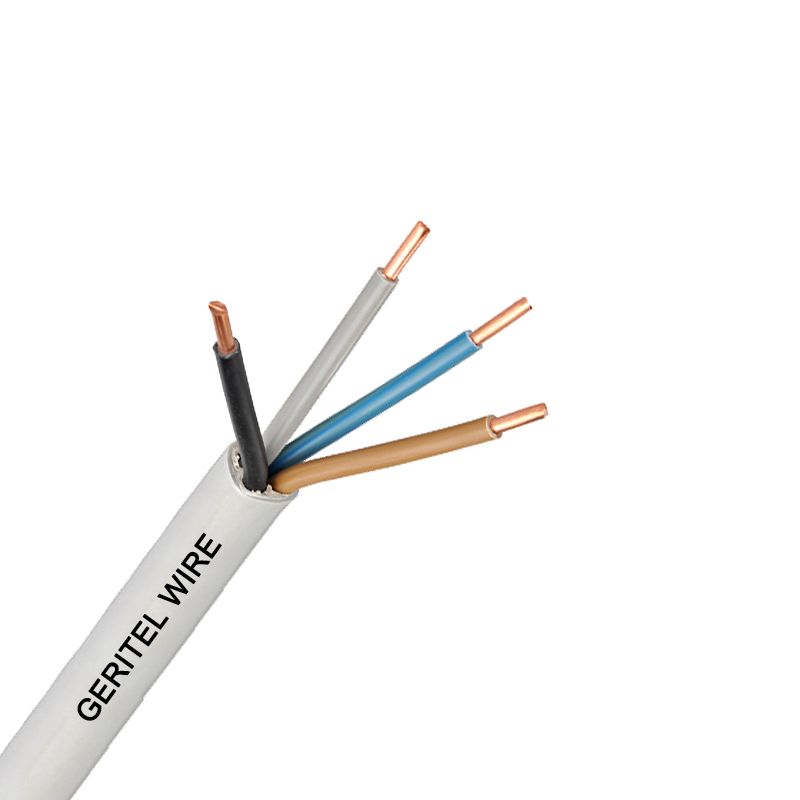

NYM-O Cable
NYM-O cable is a low-voltage power cable for fixed installations, rated at 300/500V. The cable features a copper conductor, PVC insulation and outer sheath, offering stable electrical performance and good mechanical strength. Unlike NYM-J cable, NYM-O cable does not include a green/yellow protective earth conductor; it is suitable for fixed wiring applications where a separate protective earth wire is not required.
NYM-O
NYM-O cables are primarily used for fixed installations within buildings and are suitable for installation in walls, ceilings, floors, conduits, or cable trays. They can be used in dry, damp, or wet environments.
Conductors ： 99.99% high-purity oxygen-free copper
Rated Voltage Uo/U (Um) : 300/500V
Insulated : PVC (Polyvinyl Chloride)
Standards : DIN VDE 0281-1, IEC 60227-4, VDE 0250-204
Outer Jacket : PVC (Polyvinyl Chloride)
Temperature range ：+5 °C to +70 °C
Advantages of flexible cable

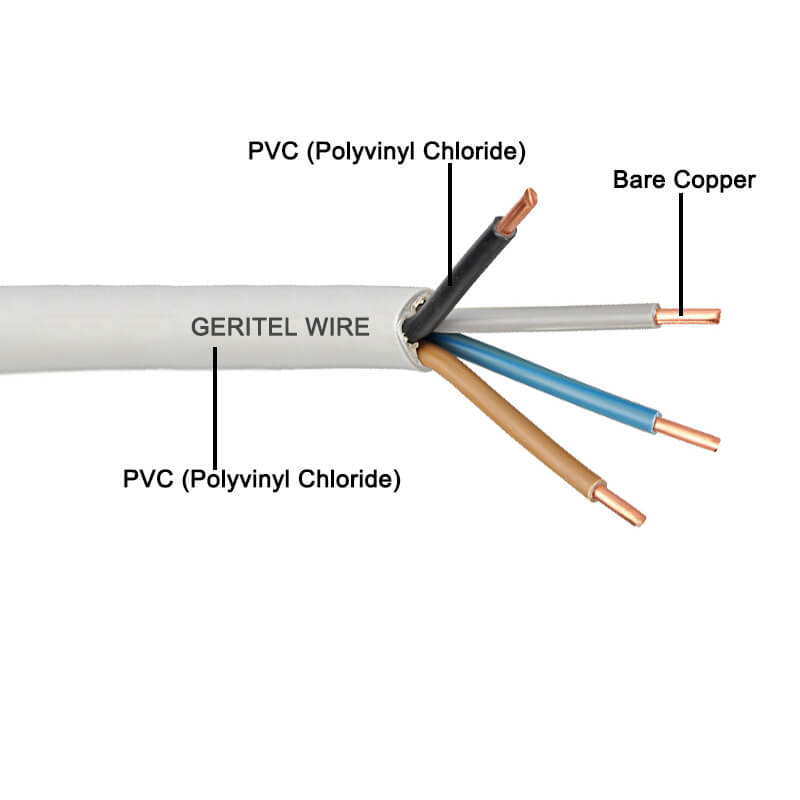

NYM-O cables utilize solid or stranded bare copper conductors (Class 1 or Class 2), with each conductor insulated with a PVC layer. The multi-core conductors are then twisted together, and an outer gray PVC sheath is extruded over them, providing effective mechanical protection and environmental resistance. NYM-O cables do not include a protective earth conductor.
| No. Of Cores | Nominal Cross Sectional Area mm2 |
Nominal Thickness Of Insulation mm |
Nominal Overall Diameter mm |
Nominal Weight KG/KM |
| 2 | 0.75 | 0.6 | 6.3 | 57 |
| 2 | 1 | 0.6 | 6.6 | 65 |
| 2 | 1.5 | 0.7 | 7.4 | 84 |
| 2 | 2.5 | 0.8 | 9 | 130 |
| 2 | 4 | 0.8 | 10.4 | 180 |
| 3 | 0.75 | 0.6 | 6.7 | 68 |
| 3 | 1 | 0.6 | 7 | 78 |
| 3 | 1.5 | 0.7 | 8 | 107 |
| 3 | 2.5 | 0.8 | 9.9 | 163 |
| 3 | 4 | 0.8 | 11.1 | 212 |
| 4 | 0.75 | 0.6 | 7.3 | 83 |
| 4 | 1 | 0.6 | 7.9 | 100 |
| 4 | 1.5 | 0.7 | 9 | 134 |
| 4 | 2.5 | 0.8 | 10.8 | 201 |
| 4 | 4 | 0.8 | 12.2 | 290 |
| 5 | 0.75 | 0.6 | 8.1 | 103 |
| 5 | 1 | 0.6 | 8.3 | 130 |
| 5 | 1.5 | 0.7 | 10.4 | 170 |
| 5 | 2.5 | 0.8 | 12.1 | 255 |
| 5 | 4 | 0.8 | 15 | 360 |
Certification
NYM-O cables has received multiple international certifications. NYM-O cables have passed the IEC/EN 60332-1-2 flame-retardant test, demonstrating excellent flame-retardant properties. This helps reduce the risk of flame spread and meets the basic fire safety requirements for electrical installations in buildings.
Highly Flexible
Flame Retardant
Mechanical Durability
Multiple Certificated
APPLICATIONS
NYM-O cables can be directly embedded in concrete (not suitable for applications subject to continuous mechanical stress or vibration). Because it does not include a protective earth conductor, NYM-O is typically used in systems that do not require a separate PE wire, such as specific lighting or control circuits.
Indoor Lighting
Used for lighting circuits in residential or commercial buildings that do not require separate protective grounding, such as power supply for pendant lights or downlights.
Building Control Systems
Suitable for auxiliary power lines in building control, access control, or automation systems.
Distribution Boxes
Used for control or signal circuit wiring inside distribution boxes, and does not provide equipment grounding.
Cable Trays
Suitable for fixed wiring in cable conduits or trays for non-main power circuits.
Customer Photos
Exporting to 80+ countries and regions, we bring proven global export experience and trusted wires & cables to customers worldwide.
plant equipment
Geritel Wire is a professional wire and cable manufacturer. Our factory boasts a comprehensive and complete international certification system, a strong testament to our overall capabilities and product reliability. We can manufacture wire and cable products that meet multiple international standards, including UL, cUL, CSA, TUV, VDE, CE, SAA, IEC, and ISO, to suit different market and application requirements.
Packaging Information
NYM-O cables are typically offered in three packaging options: coiled, plastic reel, and wooden reel.
Coiled
Plastic Reel
Wooden Reel
Global Certification
Geritel Wire Manufacturer holds 50+ international certifications, including UL, cUL, SAA, TUV, CE, VDE, ISO, and others. Our cables meet the highest global quality and safety standards.
VDE
UL
SAA
TUV
ISO
