NYM-J Cable
Conductor：
Class 1 Solid or Class 2 Stranded Copper
Insulation：
PVC (Polyvinyl Chloride)
Jacket：
PVC (Polyvinyl Chloride)
Rated Voltage：
300/500V
Temperature range：
-5 °C to +70 °C
Standard：
DIN VDE 0281-1, VDE 0250-204, IEC 60227-4
Description
Download
Conductor
Class 1 Solid or Class 2 Stranded Copper
Insulation and Sheath
PVC (Polyvinyl Chloride) & PVC (Polyvinyl Chloride)
No. of Conductor
2 Core / 3 Core / 4 Core / 5 Core
Temperature Rating
Flexible: -5ºC to +70ºC
Fixed: -40ºC to +70ºC

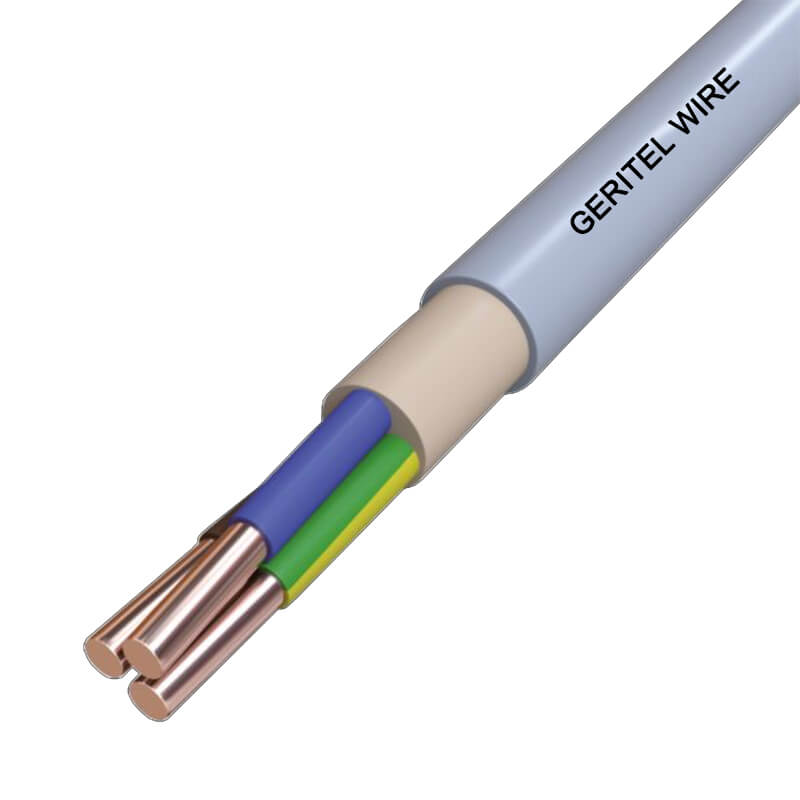

NYM-J Cable
NYM-J cable is a low-voltage power cable for fixed installation, with a rated voltage of 300/500V. NYM-J cables possess excellent electrical insulation properties and reliable mechanical strength, with a maximum long-term operating temperature of 70°C for the conductor.
NYM-J
NYM-J cables utilize copper conductors, PVC insulation and sheath, offering good electrical performance and mechanical stability, suitable for long-term fixed installation within buildings.
Conductors ： 99.99% high-purity oxygen-free copper
Rated Voltage Uo/U (Um) : 300/500V
Insulated : PVC (Polyvinyl Chloride)
Standards : DIN VDE 0281-1, VDE 0250-204, IEC 60227-4
Outer Jacket : PVC (Polyvinyl Chloride)
Temperature range ：-5 °C to +70 °C
Advantages of flexible cable

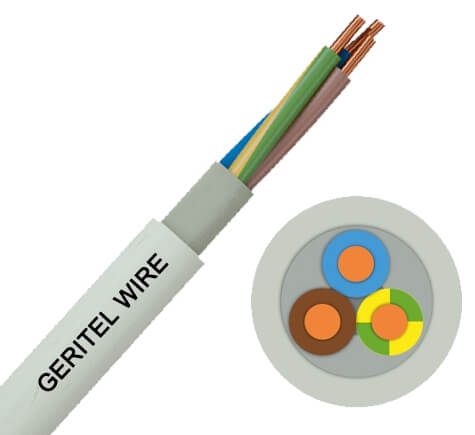

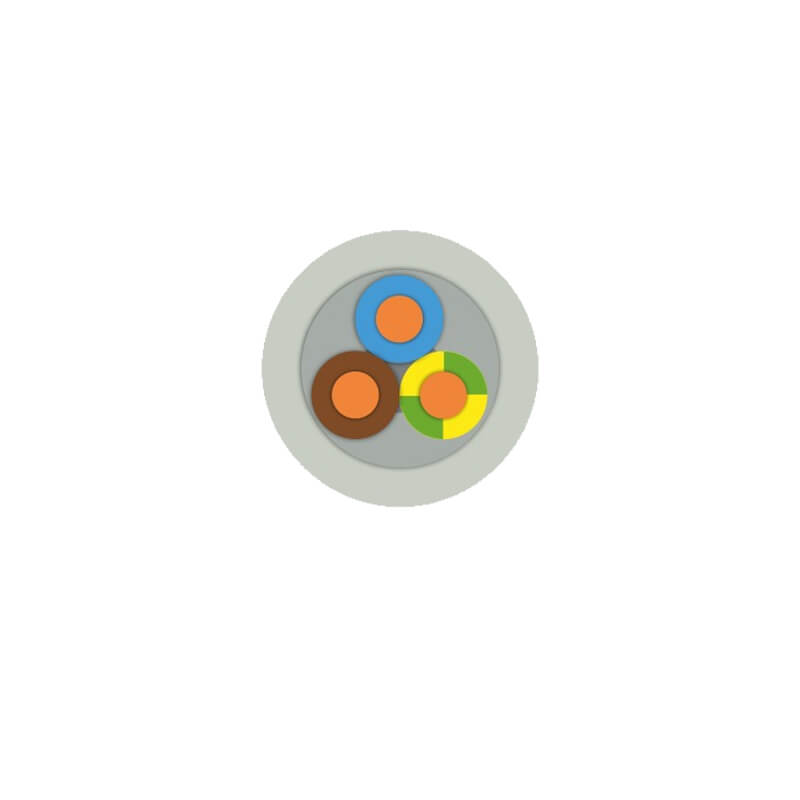

NYM-J cables use solid or stranded bare copper conductors (Class 1 or Class 2), providing stable conductivity and good current carrying capacity. Each conductor is insulated with a PVC layer, color-coded according to VDE and IEC standards for easy installation and identification. After the multi-core conductors are twisted together, a gray PVC outer sheath is extruded over them, providing additional mechanical protection and environmental resistance.
| No. Of Cores | Nominal Cross Sectional Area mm2 |
Nominal Overall Diameter mm |
Nominal Weight Kg/Km |
| 1 | 1.5 | 5.3 | 44 |
| 1 | 2.5 | 5.8 | 57 |
| 1 | 4 | 6.5 | 79 |
| 1 | 6 | 7.05 | 101 |
| 1 | 10 | 8.2 | 152 |
| 1 | 16 | 9.25 | 213 |
| 1 | 25 | 10.95 | 310 |
| 1 | 35 | 12 | 411 |
| 2 | 1.5 | 8.2 | 106 |
| 2 | 2.5 | 9.5 | 148 |
| 2 | 4 | 11.2 | 215 |
| 2 | 6 | 12.3 | 277 |
| 2 | 10 | 15 | 429 |
| 2 | 25 | 20.5 | 873 |
| 3 | 1.5 | 8.5 | 121 |
| 3 | 2.5 | 9.95 | 174 |
| 3 | 4 | 11.8 | 258 |
| 3 | 6 | 13 | 337 |
| 3 | 10 | 15.85 | 528 |
| 3 | 16 | 18.1 | 731 |
| 3 | 25 | 22.2 | 1.115 |
| 3 | 35 | 24.45 | 1.462 |
| 4 | 1.5 | 9.8 | 160 |
| 4 | 2.5 | 11.05 | 218 |
| 4 | 4 | 13.7 | 341 |
| 4 | 6 | 14.7 | 431 |
| 4 | 10 | 17.4 | 654 |
| 4 | 16 | 19.8 | 907 |
| 4 | 25 | 24.3 | 1383 |
| 4 | 35 | 26.85 | 1825 |
| 5 | 1.5 | 10.6 | 187 |
| 5 | 2.5 | 11.95 | 255 |
| 5 | 4 | 14.2 | 379 |
| 5 | 6 | 15.7 | 501 |
| 5 | 10 | 18.8 | 771 |
| 5 | 16 | 22.05 | 1110 |
| 5 | 25 | 26.65 | 1661 |
| 5 | 35 | 30.4 | 2276 |
| 7 | 1.5 | 12.5 | 269 |
| 7 | 2.5 | 12.8 | 320 |
| 10 | 1.5 | 12.85 | 302 |
| 12 | 1.5 | 13.55 | 344 |
Certification
NYM-J cables have received multiple international certifications. The cable conforms to the IEC 60227-4 international standard, and its structure, electrical performance, and safety meet the general specifications for European and international low-voltage cables.
Highly Flexible
Flame Retardant
Mechanical Durability
Multiple Certifications
APPLICATIONS
NYM-J cables are primarily used for fixed installation inside buildings, suitable for installation in walls, ceilings, under floors, in conduits or cable trays, and can be used in dry, damp, or wet environments. Typical applications include lighting circuits, socket circuits, and power distribution lines in residential and commercial buildings.
Residential Sockets
NYM-J is commonly used for power supply circuits to sockets within residential walls, running from the distribution box to sockets in various rooms. It includes a green/yellow ground wire to meet safety grounding requirements.
Distribution Box
Connects from the main distribution box to various lighting or socket branch circuits, serving as fixed power distribution cables within the building.
Commercial Buildings
Used in office workstations, conference room power outlets, and other locations to meet the grounding and safe power supply needs of office equipment.
Public Buildings
Used for lighting circuits in corridors and public areas of schools, hospitals, and office buildings, installed in ceilings or cable trays.
Customer Photos
Exporting to 80+ countries and regions, we bring proven global export experience and trusted wires & cables to customers worldwide.
plant equipment
Geritel Wire is a professional wire and cable manufacturer. Our factory boasts an experienced and well-structured professional team. The production team strictly adheres to standardized operating procedures, ensuring stable and controllable processes at every stage. The technical team provides customers with precise product selection advice and customized solutions.
Packaging Information
NYM-J cables are typically offered in three packaging options: coiled, plastic reel, and wooden reel.
