H07ZZ-F Cable
Conductor：
Class 5 Flexible Stranded Copper
Insulation：
LSZH
Jacket：
LSZH
Rated Voltage：
450 / 750 V
Temperature range ：
-20°C to +90°C
Standard：
EN 50525-3-21, HD 22-13, CEI 20-19 Part 13, EN 60228
Description
Download
Conductor
Class 5 Flexible Stranded Copper
Insulation and Sheath
LSZH & LSZH
No. of Conductor
1 Core / 2 Core / 3 Core / 4 Core / 5 Cores / 6 Cores
Temperature Rating
-20 °C to +90 °C

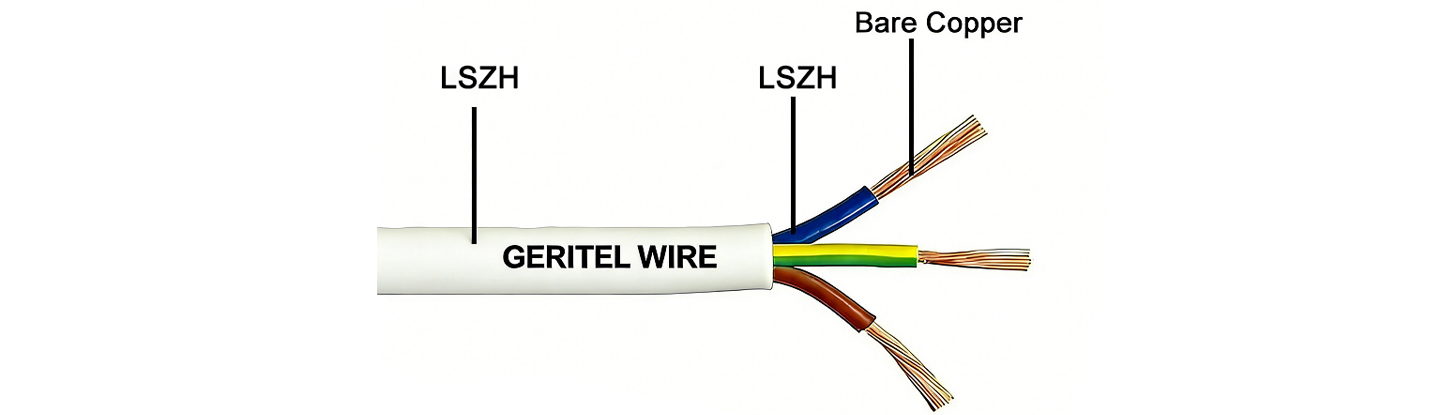

H07ZZ-F Cable
H07ZZ-F is a low-smoke halogen-free (LSZH) rubber flexible cable conforming to BS EN 50525-3-21 standards, designed for power and control circuits under moderate mechanical stress. It releases very little smoke and harmful gases in the event of a fire.
H07ZZ-F
H07ZZ-F cable is suitable for locations with high safety and environmental requirements, such as public buildings, data centers, stage equipment, and industrial plants.
Conductors ： 99.99% high-purity oxygen-free copper
Rated Voltage Uo/U (Um) : 450/750 V
Insulated : LSZH
Standards : EN 50525-3-21, HD 22-13, CEI 20-19 Part 13, EN 60228
Outer Jacket : LSZH
Temperature range ：Fixed: -20°C to +90°C Flexed: -5°C to +50°C
Advantages of flexible cable

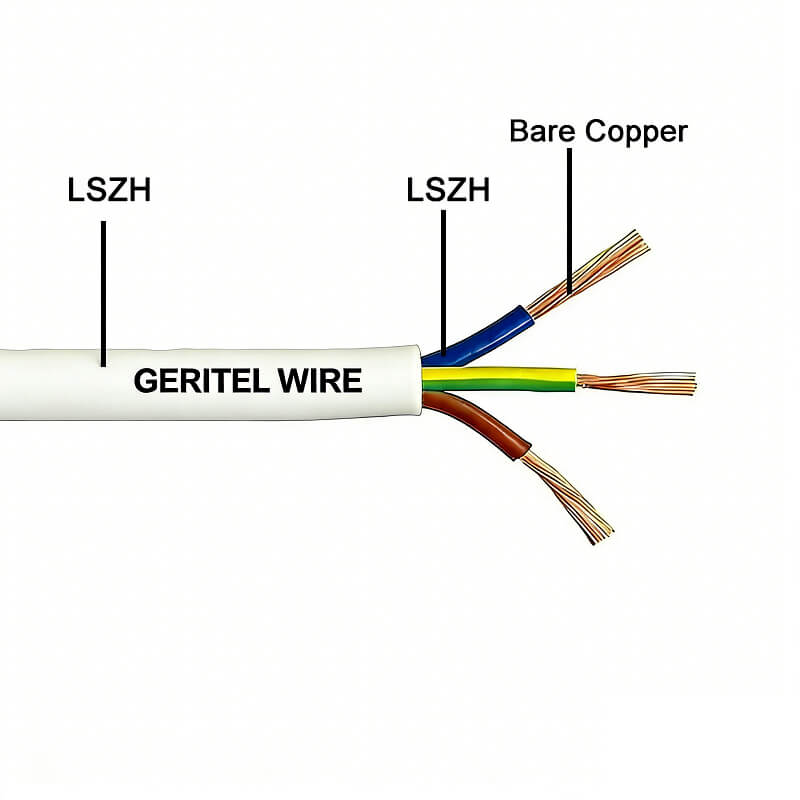

H07ZZ-F cable uses a class 5 stranded copper conductor. Both the conductor insulation and outer sheath use low-smoke halogen-free (LSZH) cross-linked rubber materials, enhancing the cable's fire resistance while producing no corrosive gases or large amounts of smoke during combustion.
| No. of Cores | Nominal Cross Sectional Area | Nominal Overall Diameter | Nominal Weight |
| mm2 | mm | kg/km | |
| 1 | 1.5 | 6.4 | 63 |
| 1 | 2.5 | 7.1 | 76 |
| 1 | 4 | 8.1 | 107 |
| 1 | 6 | 8.85 | 140 |
| 1 | 10 | 10.7 | 213 |
| 1 | 16 | 12.1 | 291 |
| 1 | 25 | 14.25 | 415 |
| 1 | 35 | 16.1 | 539 |
| 1 | 50 | 18.55 | 740 |
| 1 | 70 | 20.95 | 989 |
| 1 | 95 | 23.4 | 1290 |
| 1 | 120 | 25.7 | 1592 |
| 1 | 150 | 28.3 | 1957 |
| 1 | 185 | 31 | 2350 |
| 1 | 240 | 34.45 | 3099 |
| 1 | 300 | 37.7 | 3687 |
| 1 | 400 | 42.1 | 4850 |
| 1 | 500 | 46.65 | 5998 |
| 2 | 1 | 8.85 | 112 |
| 2 | 1.5 | 9.75 | 135 |
| 2 | 2.5 | 11.65 | 190 |
| 2 | 4 | 13.45 | 255 |
| 2 | 6 | 14.95 | 335 |
| 2 | 10 | 20.15 | 590 |
| 2 | 16 | 22.95 | 821 |
| 2 | 25 | 27.5 | 1172 |
| 3 | 1 | 9.5 | 125 |
| 3 | 1.5 | 10.55 | 129 |
| 3 | 2.5 | 12.45 | 250 |
| 3 | 4 | 14.45 | 330 |
| 3 | 6 | 16.05 | 440 |
| 3 | 10 | 21.65 | 800 |
| 3 | 16 | 24.7 | 1150 |
| 3 | 25 | 29.55 | 1680 |
| 3 | 35 | 33.2 | 2170 |
| 4 | 1 | 10.55 | 170 |
| 4 | 1.5 | 11.65 | 196 |
| 4 | 2.5 | 13.8 | 275 |
| 4 | 4 | 15.95 | 388 |
| 4 | 6 | 17.85 | 515 |
| 4 | 10 | 23.7 | 882 |
| 4 | 16 | 26.95 | 1234 |
| 4 | 25 | 32.75 | 1811 |
| 4 | 35 | 36.8 | 2365 |
| 4 | 50 | 42.6 | 3212 |
| 4 | 70 | 48.35 | 4320 |
| 4 | 95 | 54.7 | 5572 |
| 4 | 120 | 59.5 | 6930 |
| 4 | 150 | 65.5 | 8419 |
| 4 | 185 | 72 | 10165 |
| 4 | 240 | 81.5 | 13420 |
| 5 | 1 | 11.65 | 205 |
| 5 | 1.5 | 12.8 | 242 |
| 5 | 2.5 | 15.15 | 341 |
| 5 | 4 | 17.75 | 495 |
| 5 | 6 | 19.85 | 642 |
| 5 | 10 | 26 | 1090 |
| 5 | 16 | 29.85 | 1534 |
| 5 | 25 | 36.2 | 2291 |
| 5 | 35 | 39.5 | 2700 |
| 5 | 50 | 44.2 | 3730 |
| 5 | 70 | 50.4 | 5022 |
| 5 | 95 | 56.2 | 6520 |
| 5 | 120 | 64.1 | 8080 |
| 5 | 150 | 70.1 | 8660 |
| 7 | 1.5 | 16.7 | 355 |
| 12 | 1.5 | 20 | 660 |
| 19 | 1.5 | 27.5 | 788 |
| 27 | 1.5 | 31.5 | 1077 |
| 37 | 1.5 | 36.5 | 1358 |
Certification
H07ZZ-F cable is manufactured in strict accordance with European harmonized standards such as BS EN 50525-3-21 and has passed numerous international authoritative certifications and tests, fully demonstrating its outstanding advantages in safety, reliability, and compliance.
Flexibility
Wear Resistance
Aging resistance
BPS Certified
APPLICATIONS
H07ZZ-F cable is widely used in public buildings, industrial plants, data centers, stage lighting, and audio-visual equipment power supply. It is suitable for environments with moderate mechanical stress, such as mobile power supplies, UPS system connections, temporary stage power supplies, and control equipment wiring.
Stage Lighting
H07ZZ-F cable is used to supply power to stage lighting rigs and audiovisual equipment, where flexibility, frequent handling, and low smoke emission are essential for public safety.
Public Buildings
H07ZZ-F cable is installed in schools, hospitals, and airports to provide power and control connections, meeting strict LSZH fire safety requirements.
Industrial Machinery
For medium mechanical stress environments, H07ZZ-F cable connects motors, control panels, and portable machinery, offering flexibility and flame-retardant performance.
Control Panels
Inside control cabinets and switchgear assemblies, H07ZZ-F cable provides flexible wiring with reduced fire risk and compliance with EN 50525 standards.
Customer Photos
Exporting to 80+ countries and regions, we bring proven global export experience and trusted wires & cables to customers worldwide.
plant equipment
Geritel Wire is a professional wire and cable manufacturer. Our factory has an experienced engineering and technical team that can provide structural optimization, material selection and standard matching suggestions according to the customer's application environment, especially in the fields of high temperature, oil resistance, weather resistance and new energy cables, with mature technical solutions.
Packaging Information
H07ZZ-F cables are typically offered in three packaging options: coiled, plastic reel, and wooden reel. Custom packaging options are also available.
Coiled
Plastic Reel
Wooden Reel
