H07VV-F Cable
Conductor ：
Class 5 Flexible Stranded Copper
Insulation：
PVC
Jacket：
PVC
Rated Voltage：
450/750V
Temperature range：
-5 °C to +70 °C
Standard：
BS EN 50525‑2‑11
Description
Download
Conductor
Class 5 Flexible Stranded Copper
Insulation and Sheath
PVC (Polyvinyl Chloride) & PVC
No. of Conductor
2 core / 3 core / 4 core / 5 core
Temperature Rating
‑5 °C ~ +70 °C
H07VV-F Cable
H07VV-F is a multi-purpose flexible low-voltage cable primarily used for powering stationary or lightly mobile electrical equipment. The cable features high flexibility, easy installation, and a long lifespan, making it a reliable choice for low-voltage electrical wiring.
H07VV-F
H07VV-F cable conforms to EN 50525-2-2 standards and is suitable for indoor or light industrial environments, widely used in homes, offices, and light industrial equipment.
Conductors ： 99.99% high-purity oxygen-free copper
Rated Voltage Uo/U (Um) : 450/750 V
Insulated : PVC
Standards : BS EN 50525‑2‑11
Outer Jacket : PVC
Temperature range ：‑5 °C ~ +70 °C
Advantages of flexible cable

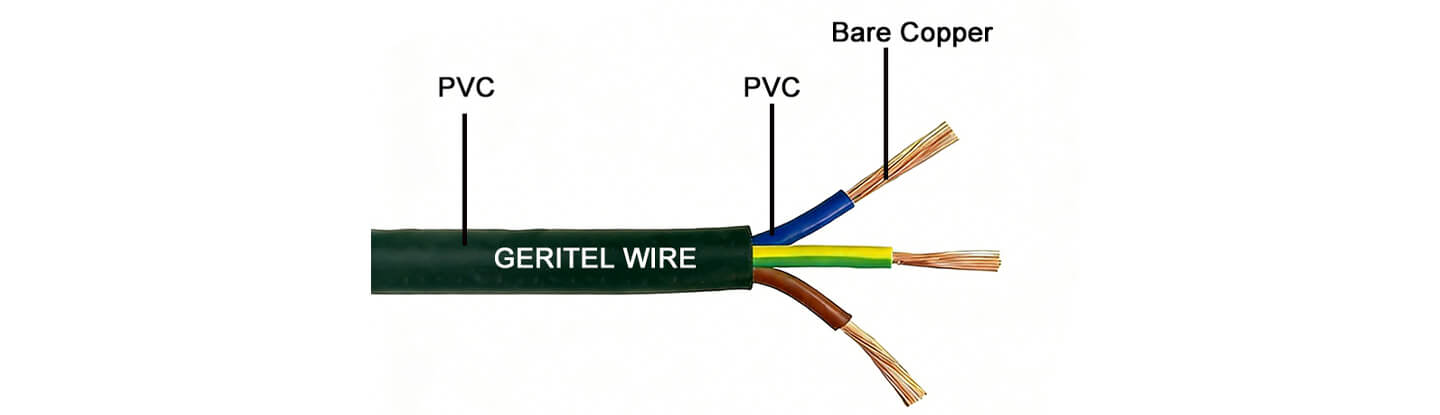

H07VV-F cable uses multi-strand bare copper wire (Class 5), offering high flexibility and excellent breakage resistance. PVC material provides electrical insulation for each conductor, ensuring safe current transmission. The PVC outer sheath provides moisture, dust, and abrasion resistance.
| No. Of Cores | Nominal Cross Sectional Area mm2 |
Nominal Thickness Of Insulation mm |
Nominal Thickness Of Sheath mm |
Nominal Overall Diameter mm |
Nominal Weight Kg/Km |
| 2 | 0.75 | 0.6 | 0.8 | 6.3 | 63 |
| 3 | 0.75 | 0.6 | 0.8 | 6.7 | 74 |
| 3 | 1 | 0.6 | 0.8 | 7 | 86 |
| 3 | 1.5 | 0.7 | 0.9 | 8.1 | 115 |
| 3 | 2.5 | 0.8 | 1 | 9.7 | 170 |
| 4 | 0.75 | 0.6 | 0.8 | 7.3 | 78 |
| 4 | 1 | 0.6 | 0.9 | 7.9 | 110 |
| 4 | 1.5 | 0.7 | 1 | 9 | 140 |
| 4 | 2.5 | 0.8 | 1.1 | 10.8 | 210 |
| 5 | 0.75 | 0.6 | 0.9 | 8.1 | 105 |
Certification
H07VV-F cable has undergone multiple international certifications. It is guaranteed in terms of heat resistance, pressure resistance, fire resistance, and insulation performance, significantly reducing the risk of electrical fires and short circuits.
Flexibility
Wear Resistance
Aging resistance
BPS Certified
APPLICATIONS
H07VV-F cable is suitable for 450/750V rated, low-voltage power transmission, such as household appliances, office equipment, light industrial machinery, building electrical installations, extension cords, and mobile power supply.
Washing Machine
H07VV-F is used for power connections between the motor and control module inside washing machines, accommodating slight vibrations and periodic bending during equipment operation.
Refrigerators
In supermarkets or catering equipment, H07VV-F serves as the main power connection cable for refrigerators, providing stable power supply and withstanding movement and bending during routine maintenance.
Air Conditioners
H07VV-F is suitable for internal wiring or power input in air conditioner indoor units, meeting the requirements of long-term power supply and flexible installation in limited spaces.
Office Equipment
Used as external power cords for office equipment such as printers and photocopiers, ensuring electrical stability under frequent power on/off cycles.
Customer Photos
Exporting to 80+ countries and regions, we bring proven global export experience and trusted wires & cables to customers worldwide.
plant equipment
We strictly control every aspect of the cable manufacturing process. All finished cables must undergo inspections for appearance, electrical performance, dimensions, and markings before leaving the factory, and must be kept in good condition during transportation and installation.
Packaging Information
H07VV-F cables are typically offered in three packaging options: coiled, plastic reel, and wooden reel.
Coiled
Plastic Reel
Wooden Reel
Global Certification
Geritel Wire Manufacturer holds 50+ international certifications, including UL, cUL, SAA, TUV, CE, VDE, ISO, and others. Our cables meet the highest global quality and safety standards.
VDE
UL
SAA
TUV
ISO
