H07V2-K Cable
Conductor：
Flexible Class 5 Copper Conductor
Insulation：
PVC (Polyvinyl Chloride)
Rated Voltage：
450/750 V
Standard：
EN 50525-2-31, BS 6231
Temperature Rating：
−15 °C to +90 °C
Description
Download
Copper Conductor
Flexible Class 5 Copper Conductor
Insulation
PVC (Polyvinyl Chloride)
No. of Conductor
Single Core
Temperature Rating
−15 °C to +90 °C

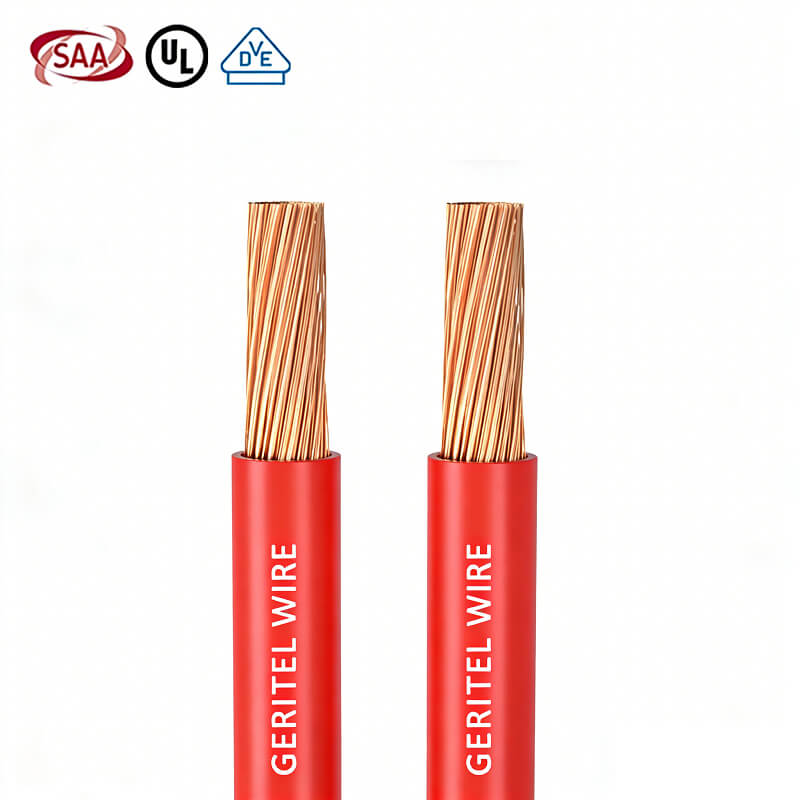

H07V2-K Cable
H07V2-K cable is a heat-resistant, flexible single-core PVC insulated cable for fixed installation in electrical equipment and control systems. With a maximum conductor temperature of 90 °C.
H07V2-K
H07V2-K is an upgraded version of standard H07V-K, widely used in industrial and commercial electrical installations.
Copper Conductors
Rated Voltage Uo/U (Um) : 450/750 V
PVC (Polyvinyl Chloride) Insulated
EN 50525-2-31, BS 6231 Standards
Color Options: Green/yellow (earth), blue, brown, black, grey, and other phase colors
Temperature range
−15 °C to +90 °C
Advantages of H07V2-K
H07V2-K cable is a class 5 flexible annealed copper conductor, with heat-resistant PVC (V2 compound) insulation, designed to withstand higher operating temperatures while maintaining good mechanical and electrical stability.
| Type | No. Of Cores |
Nominal Cross Sectional Area mm2 |
Approximate AWG |
Nominal Thickness Of Insulation mm |
Nominal Overall Diameter mm |
Nominal Weight kg/km |
Maximum Diameter Of Wires In Conductor mm |
Maximum Resistance Of Conductor At 20°C ohms/km Plain Wires |
| H05V2-K | 1 | 0.5 | 21 | 0.8 | 2.7 | 11 | 0.21 | 39 |
| H05V2-K | 1 | 0.75 | 19 | 0.8 | 2.85 | 15 | 0.21 | 26 |
| H05V2-K | 1 | 1 | 18 | 0.8 | 3 | 18 | 0.21 | 19.5 |
| H07V2-K | 1 | 1.5 | 16 | 0.8 | 3.3 | 23 | 0.26 | 13.3 |
| H07V2-K | 1 | 2.5 | 14 | 0.8 | 3.75 | 35 | 0.26 | 7.98 |
| H07V2-K | 1 | 4 | 12 | 0.8 | 4.35 | 48 | 0.31 | 4.95 |
| H07V2-K | 1 | 6 | 10 | 0.8 | 4.85 | 69 | 0.31 | 3.3 |
| H07V2-K | 1 | 10 | 8 | 1 | 6.3 | 117 | 0.41 | 1.91 |
| H07V2-K | 1 | 16 | 6 | 1 | 8.1 | 191 | 0.41 | 1.21 |
| H07V2-K | 1 | 25 | 4 | 1.2 | 9.4 | 281 | 0.41 | 0.78 |
| H07V2-K | 1 | 35 | 2 | 1.2 | 10.9 | 389 | 0.41 | 0.554 |
| H07V2-K | 1 | 50 | 1 | 1.4 | 13.1 | 560 | 0.41 | 0.386 |
| H07V2-K | 1 | 70 | 2/0 | 1.4 | 15.1 | 774 | 0.51 | 0.272 |
| H07V2-K | 1 | 95 | 3/0 | 1.6 | 16.1 | 991 | 0.51 | 0.206 |
| H07V2-K | 1 | 120 | 4/0 | 1.6 | 17.9 | 1231 | 0.51 | 0.161 |
| H07V2-K | 1 | 150 | 250 MCM | 1.8 | 20.2 | 1534 | 0.51 | 0.129 |
| H07V2-K | 1 | 185 | 350 MCM | 2 | 22.85 | 1878 | 0.51 | 0.106 |
| H07V2-K | 1 | 240 | 450 MCM | 2.2 | 24.4 | 2381 | 0.51 | 0.0801 |
Certification
H07V2-K cable has obtained multiple international certifications. Certified cables have a longer lifespan, lower failure rates, and require less maintenance, significantly reducing total life cycle costs.
Heat-Resistant
Flame-Retardant
Highly Flexible
UL Certified
APPLICATIONS
H07V2-K cable is mainly used for fixed internal wiring in environments where higher temperatures may occur, such as Control panels and switchgear assemblies, distribution boards and power panels, and others.
Rail Transit
H07V2-K cable can be used for internal wiring (non-main power supply lines) in rail transit control cabinets, signal auxiliary equipment, etc., emphasizing safety and heat resistance.
Control Cabinets
In industrial automation control cabinets, H07V2-K cable is suitable for internal connections between relays, contactors, and terminal blocks, meeting high voltage levels and heat resistance requirements.
Distribution Box
H07V2-K cable is widely used inside commercial and industrial distribution boards for fixed installation of circuit breakers, switching equipment, and internal power circuits.
Industrial Machinery
In machine tools, conveyor systems, and automated production line equipment, H07V2-K cable is used for power control circuits; its flexible conductor facilitates wiring in confined spaces.
Customer Photos
Exporting to 80+ countries and regions, we bring proven global export experience and trusted wires & cables to customers worldwide.
plant equipment
Geritel Wire is a professional wire and cable manufacturer.
Packaging Information
H05V2-K cables are typically packaged in three ways: coiled, on plastic reels, and on wooden reels, to meet the needs of different project scales.
Coiled
Plastic Reels
Wooden Reels
Global Certification
Geritel Wire Manufacturer holds 50+ international certifications, including UL, cUL, SAA, TUV, CE, VDE, ISO, and others. Our cables meet the highest global quality and safety standards.
VDE
UL
SAA
TUV
ISO
