H07V-R Cable
Conductor：
Class 2 Stranded Bare Copper
Insulation：
PVC (Polyvinyl Chloride)
Rated Voltage：
300/500 V
Standard：
EN 50525-2-31 / EN 60228 / EN 50363
Temperature Rating：
-15°C to +70°C
Description
Download
Copper Conductor
Class 2 Stranded Bare Copper
Insulation
PVC (Polyvinyl Chloride)
No. of Conductor
Single Core
Temperature Rating
-15°C to +70°C
H07V-R Cable
H07V-R cable is a low-voltage single-core wire conforming to the EN 50525-2-31 standard, with a rated voltage of 450/750V. The cable uses stranded copper conductors (Class 2) and high-quality PVC insulation and is designed for fixed installation in power and lighting systems.
H07V-R
H07V-R cables offer a balance of good conductivity and moderate flexibility, and are widely used in building electrical installations and industrial power distribution, making them one of the common types of wiring cables.
Copper Conductors
Rated Voltage Uo/U (Um) : 300/500 V
PVC (Polyvinyl Chloride) Insulated
EN 50525-2-31 / EN 60228 / EN 50363 Standards

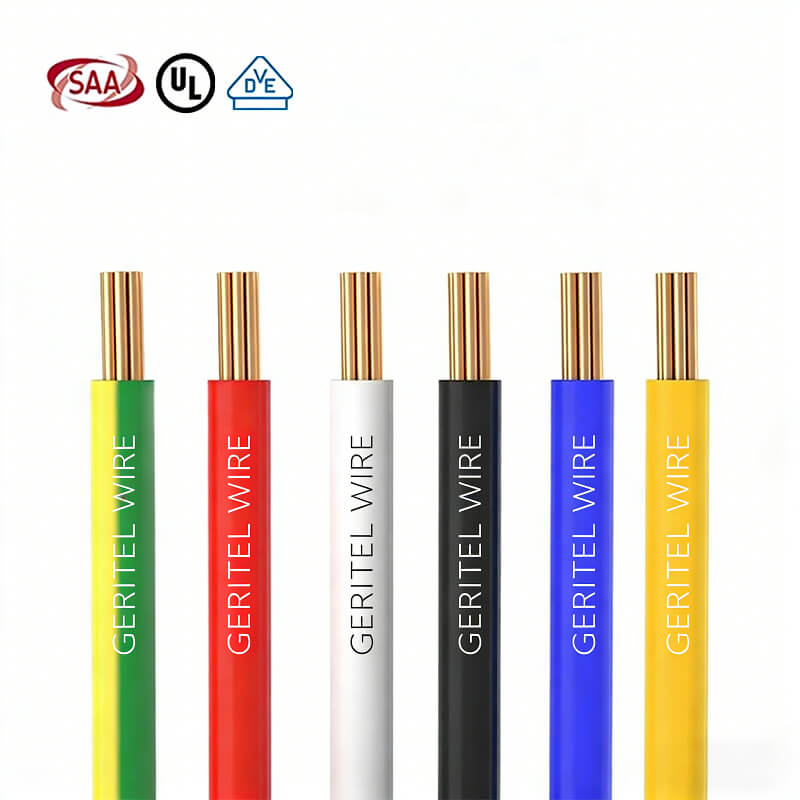

Color Options: Green/yellow (earth), blue, brown, black, grey, and other phase colors
Temperature range
-15°C to +70°C
Advantages of H07V-R

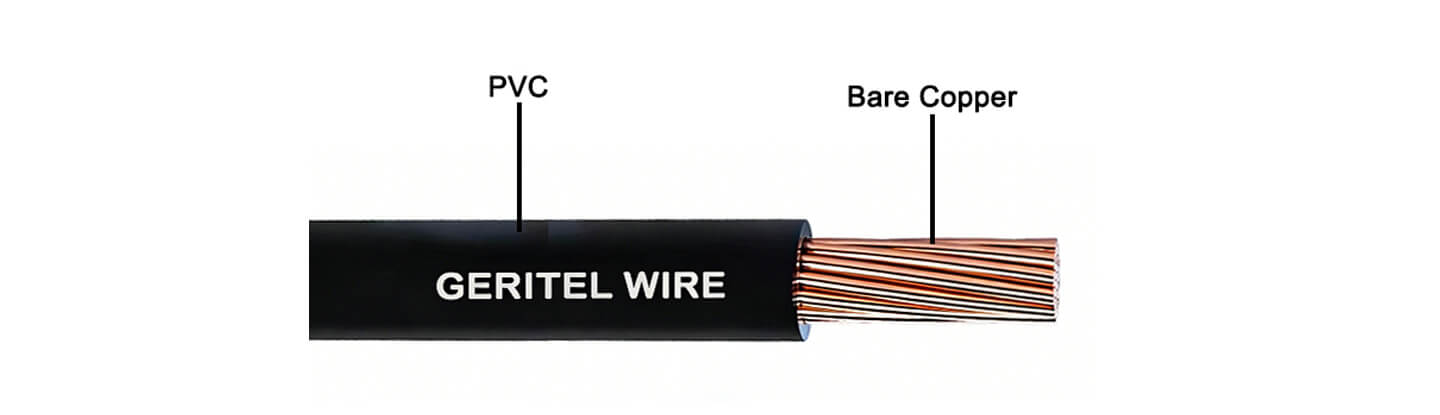

H07V-R cable uses annealed bare copper conductors, conforming to the Class 2 stranded structure, which provides better flexibility compared to solid conductors, facilitating installation and bending. PVC (polyvinyl chloride) insulation is used, with uniform insulation thickness, providing good electrical insulation and mechanical protection.
| Nominal Cross Sectional Area mm2 |
Nominal Thickness Of Insulation mm |
Nominal Overall Diameter mm |
Nominal Weight kg/km |
| 1.5 | 0.7 | 2.9 | 22 |
| 2.5 | 0.8 | 3.6 | 32 |
| 4 | 0.8 | 4.1 | 50 |
| 6 | 0.8 | 4.7 | 71 |
| 10 | 1 | 5.9 | 110 |
| 16 | 1 | 6.8 | 164 |
| 25 | 1.2 | 8.4 | 256 |
| 35 | 1.2 | 9.4 | 346 |
| 50 | 1.4 | 11 | 473 |
| 70 | 1.4 | 12.7 | 674 |
| 95 | 1.6 | 14.7 | 913 |
| 120 | 1.6 | 16.2 | 1150 |
| 150 | 1.8 | 18 | 1416 |
| 185 | 2 | 20 | 1749 |
| 240 | 2.2 | 23 | 2317 |
| 300 | 2.4 | 25.2 | 3049 |
| 400 | 2.6 | 28.4 | 3657 |
| 500 | 2.8 | 31.8 | 4700 |
| 630 | 2.8 | 38.1 | 5890 |

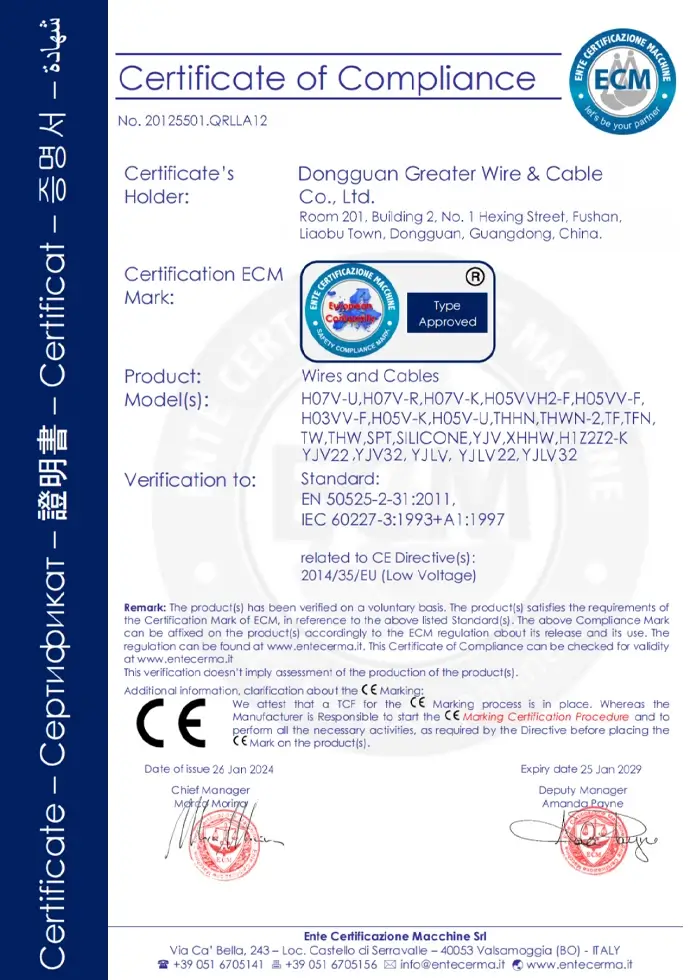

Certification
H07V-R cable has obtained multiple international certifications. H07V-R cable is manufactured in strict accordance with relevant European and international standards and has obtained multiple authoritative certifications, fully demonstrating its high standards in safety, reliability, and compliance.
Heat-resistant
water-resistant
Flame retardant properties
UL Certified
APPLICATIONS
H07V-R cable is primarily used in various fixed electrical installation scenarios, especially suitable for wiring systems requiring a certain degree of flexibility. It is used for power and lighting circuits inside buildings, distribution boxes, distribution cabinets, control cabinets, and internal wiring, and for fixed installations routed through PVC conduits, metal conduits, or enclosed cable trays.
Lighting Systems
H07V-R cable is commonly used in fixed lighting circuits within residential buildings. Run through PVC conduits or concealed cable trays, it connects distribution boxes to light fixtures.
Office Buildings
In office buildings and commercial complexes, H07V-R cable is used for fixed power lines, providing reliable power support for sockets, lighting, and office equipment.
Distribution Boxes
H07V-R cable is widely used inside distribution boxes and sub-distribution boxes, connecting circuit breakers, terminal blocks, and busbars. Its multi-strand conductor structure facilitates installation and organization.
Control Cabinets
In industrial automation and equipment control systems, H07V-R cable is used for power and auxiliary circuit connections within control cabinets, meeting the requirements for fixed installation and stable operation.
Customer Photos
Exporting to 80+ countries and regions, we bring proven global export experience and trusted wires & cables to customers worldwide.
plant equipment
Geritel Wire is a professional wire and cable manufacturer. Our factory, relying on a modern production base and a comprehensive quality management system, specializes in the large-scale and standardized manufacturing of low-voltage wires and cables. From copper wire drawing and stranding to insulation extrusion and finished product testing, the entire production process is completed under strictly controlled conditions.
Packaging Information
H07V-R cables are typically packaged in three ways: coiled, on plastic reels, and on wooden reels, to meet the needs of different project scales.

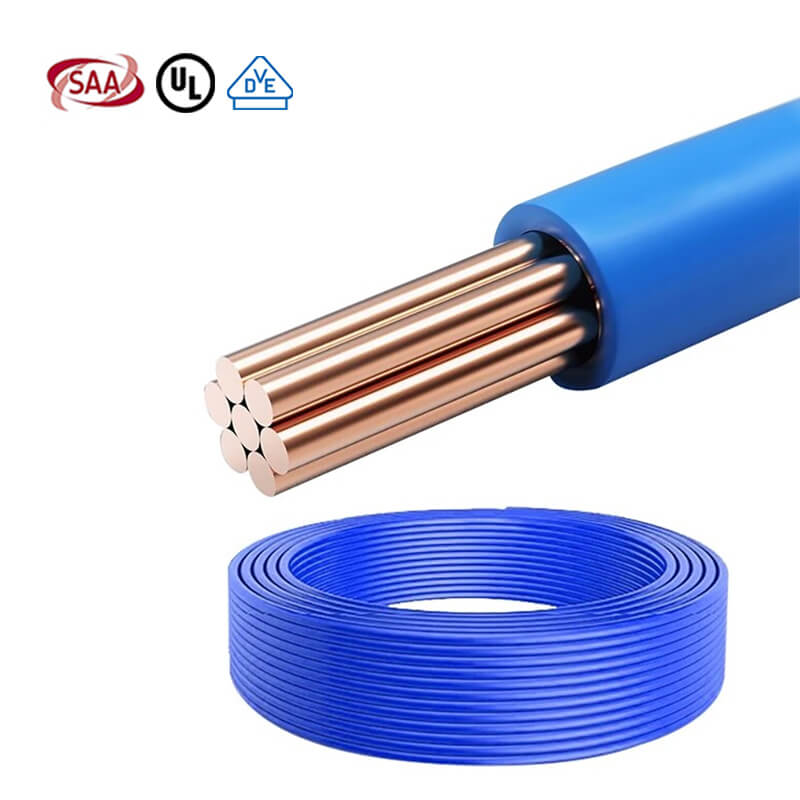

Coiled
Plastic Reels
Wooden Reels
Global Certification
Geritel Wire Manufacturer holds 50+ international certifications, including UL, cUL, SAA, TUV, CE, VDE, ISO, and others. Our cables meet the highest global quality and safety standards.
VDE
UL
SAA
TUV
ISO
