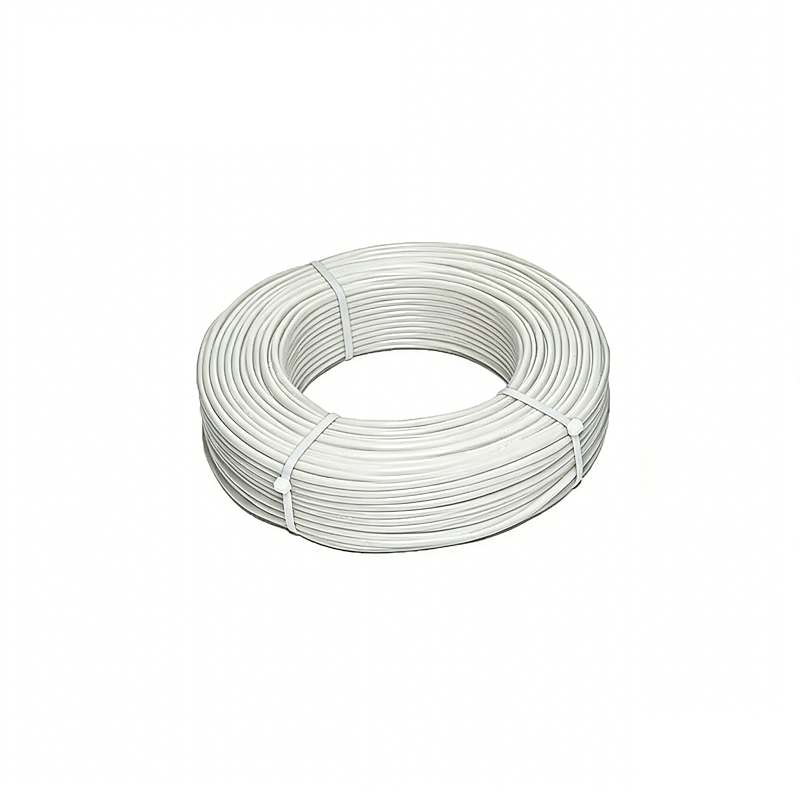

H05Z1Z1-F Cable
Conductor：
Class 5 Flexible Stranded Copper
Insulation：
LSZH
Jacket：
LSZH
Rated Voltage：
300/500V
Temperature range：
+5 °C to +70 °C
Standard：
EN 50525-3-11 (HD21.14), EN 60228
Description
Download
Conductor
Class 5 Flexible Stranded Copper
Insulation and Sheath
LSZH & LSZH
No. of Conductor
2 core / 3 core / 4 core / 5 core
Temperature Rating
+5 °C to +70 °C
H05Z1Z1-F Cable
H05Z1Z1-F cable is a European harmonized low-smoke halogen-free (LSZH) flexible power cable conforming to EN 50525-3-11 standard, with a rated voltage of 300/500V. Manufactured with halogen-free materials, this cable significantly reduces smoke density and the release of toxic and corrosive gases in the event of a fire, improving the safety of personnel evacuation and equipment protection.
H05Z1Z1-F Cable
H05Z1Z1-F cable combines excellent flexibility, electrical reliability, and environmental friendliness, it suitable for indoor electrical installations and mobile connections where high fire resistance is required.
Conductors ： 99.99% high-purity oxygen-free copper
Rated Voltage Uo/U (Um) : 300/500V
Insulated : LSZH
Standards : EN 50525-3-11 (HD21.14), EN 60228
Outer Jacket : LSZH
Temperature range ：+5 °C to +70 °C
Advantages of flexible cable
H05Z1Z1-F cable conductor uses class 5 multi-strand stranded annealed copper conductor conforming to EN 60228, offering excellent flexibility and conductivity. The conductor is covered with an LSZH insulation layer (TI6), providing good electrical insulation and heat resistance. The multi-core conductors are properly stranded and then completely covered with an LSZH sheath (TM7), providing the cable with additional mechanical protection and abrasion resistance.
| No. Of Cores | Nominal Cross Sectional Area mm2 |
Nominal Thickness Of Insulation mm |
Nominal Overall Diameter mm |
Nominal Weight KG/KM |
| 2 | 0.75 | 0.6 | 6.3 | 57 |
| 2 | 1 | 0.6 | 6.6 | 65 |
| 2 | 1.5 | 0.7 | 7.4 | 84 |
| 2 | 2.5 | 0.8 | 9 | 130 |
| 2 | 4 | 0.8 | 10.4 | 180 |
| 3 | 0.75 | 0.6 | 6.7 | 68 |
| 3 | 1 | 0.6 | 7 | 78 |
| 3 | 1.5 | 0.7 | 8 | 107 |
| 3 | 2.5 | 0.8 | 9.9 | 163 |
| 3 | 4 | 0.8 | 11.1 | 212 |
| 4 | 0.75 | 0.6 | 7.3 | 83 |
| 4 | 1 | 0.6 | 7.9 | 100 |
| 4 | 1.5 | 0.7 | 9 | 134 |
| 4 | 2.5 | 0.8 | 10.8 | 201 |
| 4 | 4 | 0.8 | 12.2 | 290 |
| 5 | 0.75 | 0.6 | 8.1 | 103 |
| 5 | 1 | 0.6 | 8.3 | 130 |
| 5 | 1.5 | 0.7 | 10.4 | 170 |
| 5 | 2.5 | 0.8 | 12.1 | 255 |
| 5 | 4 | 0.8 | 15 | 360 |
Certification
H05Z1Z1-F cables are manufactured in strict accordance with European standards such as EN 50525-3-11 and EN 60228, and comply with the EU Low Voltage Directive (LVD 2014/35/EU). The cable demonstrates consistent stability in electrical performance, mechanical reliability, and material safety.
Flexibility
Wear Resistance
Aging resistance
BPS Certified
APPLICATIONS
H05Z1Z1-F is widely used in indoor electrical applications with high requirements for fire resistance and environmental protection. It is commonly used for chandelier connections, lighting systems, power cords for portable appliances, and flexible power supply lines in commercial and public buildings.
Commercial
Used as flexible supply cables for pendant lights and ceiling luminaires in offices, shopping malls, and public buildings where LSZH performance is required.
Hospital
Installed in medical facilities for powering movable equipment and lighting circuits to reduce smoke and toxic gas emission in emergency situations.
Airport
Applied in terminals and stations for flexible power connections in public areas, improving fire safety in high-traffic environments.
School
Suitable for classroom lighting systems and movable electrical devices, meeting strict safety and environmental regulations.
Customer Photos
Exporting to 80+ countries and regions, we bring proven global export experience and trusted wires & cables to customers worldwide.
plant equipment
Geritel Wire is a professional wire and cable manufacturer. With a mature manufacturing system, strict quality standards, and extensive international experience, the Greater Wire factory has become a long-term wire and cable manufacturing partner for numerous customers.
Packaging Information
H05Z1Z1-F cables are typically offered in three packaging options: coiled, plastic reel, and wooden reel. The specific packaging method will depend on the quantity and size of the cables.
Coiled
Plastic Reel
Wooden Reel
Global Certification
Geritel Wire Manufacturer holds 50+ international certifications, including UL, cUL, SAA, TUV, CE, VDE, ISO, and others. Our cables meet the highest global quality and safety standards.
VDE
UL
SAA
TUV
ISO
