H05Z-K Cable
Conductor：
Class 5 Flexible Copper Conductor
Insulation：
LSZH (Low Smoke Zero Halogen)
Rated Voltage：
300/500 V
Standard：
EN 50525-3-41, EN 60228
Temperature Rating：
-25°C to +90°C
Description
Download
Copper Conductor
Class 5 Flexible Copper Conductor
Insulation
LSZH (Low Smoke Zero Halogen)
No. of Conductor
Single Core
Temperature Rating
-25°C to +90°C

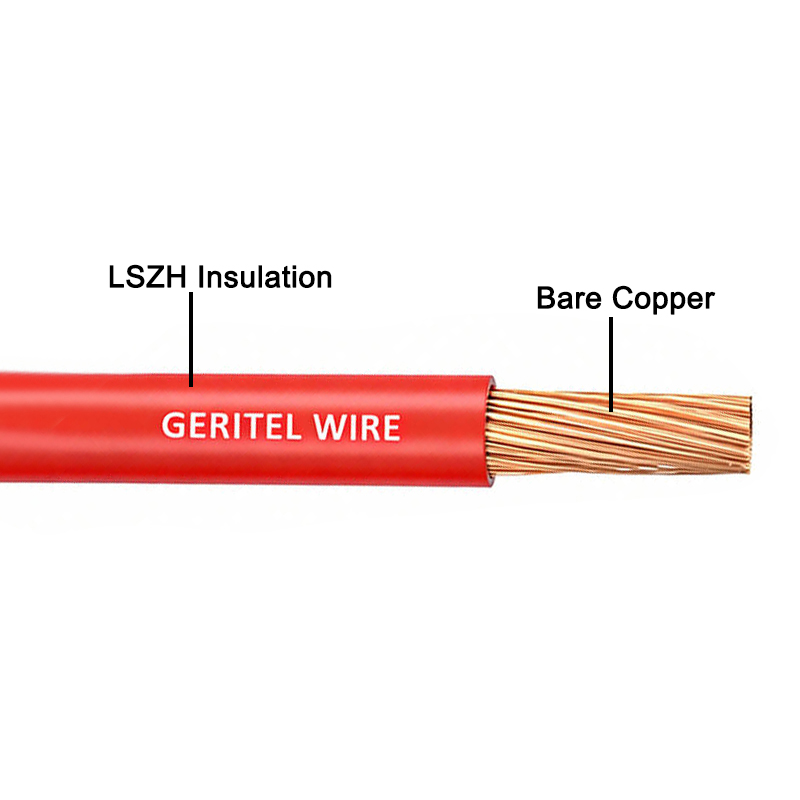

H05Z-K Cable
H05Z-K cable is a flexible single-core wire conforming to EN 50525-3-41 standards, for indoor wiring applications requiring enhanced fire safety and environmental performance. The H05Z-K cable is rated for 300/500V and has a maximum operating temperature of 90°C.

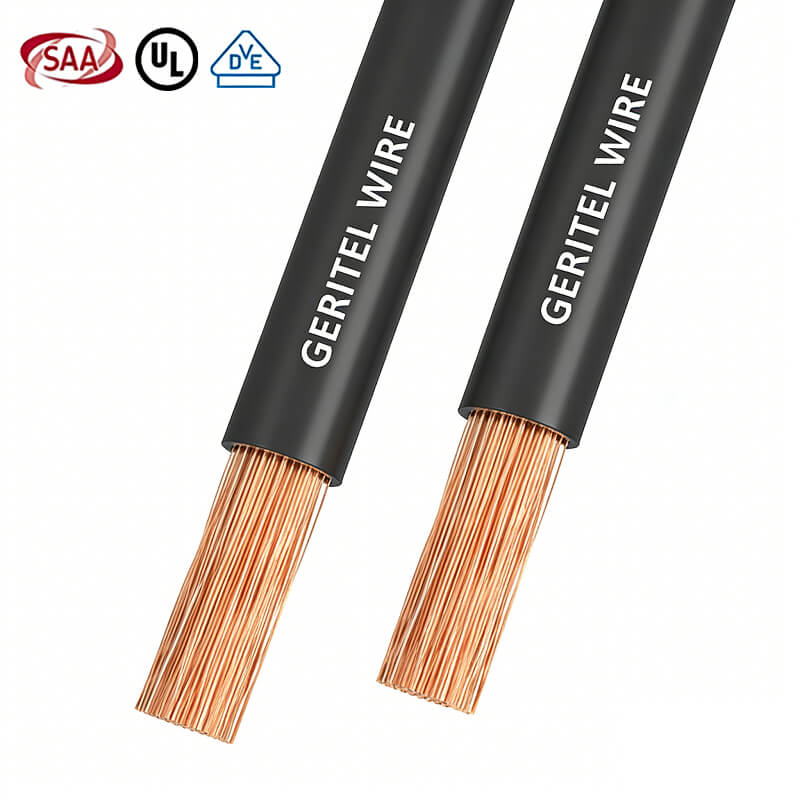

H05Z-K
H05Z-K cable uses Low Smoke Halogen-Free (LSZH) insulation, which reduces smoke concentration and eliminates corrosive halogen gases in the event of a fire.
Copper Conductors
Rated Voltage Uo/U (Um) : 300/500 V
LSZH (Low Smoke Zero Halogen) Insulated
EN 50525-3-41, EN 60228 Standards
Color Options: Green/yellow (earth), blue, brown, black, grey, and other phase colors
Temperature range
-25°C to +90°C
Advantages of H05Z-K
H05Z-K cable is constructed with a Class 5 flexible stranded copper conductor, as defined by EN 60228, providing excellent flexibility and ease of installation in confined or complex wiring spaces. The conductor is insulated with a thermoset LSZH compound, which delivers superior flame retardancy, low smoke emission, and zero halogen content.
| Type | Nominal Cross Sectional Area mm2 |
Nominal Thickness Of Insulation mm |
Nominal Overall Diameter mm |
Minimum Resistance Of Insulation At 90°C Mohms/Km |
Nominal Weight Kg/Km |
|
| Lower Limit | Upper Limit | |||||
| H05Z-K | 0.5 | 0.6 | 2.1 | 2.6 | 0.015 | 8.7 |
| H05Z-K | 0.75 | 0.6 | 2.2 | 2.8 | 0.011 | 11.3 |
| H05Z-K | 1 | 0.6 | 2.4 | 2.9 | 0.01 | 13.9 |
| H07Z-K | 1.5 | 0.7 | 2.8 | 3.5 | 0.01 | 19.3 |
| H07Z-K | 2.5 | 0.8 | 3.4 | 4.3 | 0.009 | 30.9 |
| H07Z-K | 4 | 0.8 | 3.9 | 4.9 | 0.007 | 44.9 |
| H07Z-K | 6 | 0.8 | 4.4 | 5.5 | 0.006 | 64.2 |
| H07Z-K | 10 | 1 | 5.7 | 7.1 | 0.0056 | 108.2 |
| H07Z-K | 16 | 1 | 6.7 | 8.4 | 0.0046 | 163.4 |
| H07Z-K | 25 | 1.2 | 8.4 | 10.6 | 0.0044 | 248.1 |
| H07Z-K | 35 | 1.2 | 9.7 | 12.1 | 0.0038 | 340.6 |
| H07Z-K | 50 | 1.4 | 11.5 | 14.4 | 0.0037 | 484.2 |
| H07Z-K | 70 | 1.4 | 13.2 | 16.6 | 0.0032 | 671 |
| H07Z-K | 95 | 1.6 | 15.1 | 18.8 | 0.0032 | 895.8 |
| H07Z-K | 120 | 1.6 | 16.7 | 20.9 | 0.0029 | 1111.1 |
| H07Z-K | 150 | 1.8 | 18.6 | 23.3 | 0.0029 | 1389.2 |
| H07Z-K | 185 | 2 | 20.6 | 25.8 | 0.0029 | 1724.1 |
| H07Z-K | 240 | 2.2 | 23.5 | 29.4 | 0.0028 | 2225.4 |
Certification
H05Z-K cable has obtained multiple international certifications.Manufactured according to the harmonized standard EN 50525-3-41, providing consistent wire quality and performance in the international market.
LSZH Insulation
High Flexibility
Low Toxicity
UL Certified
APPLICATIONS
H05Z-K cable is primarily used for internal wiring of electrical equipment and installations, including switchgear, control panels, distribution boards, and electrical enclosures. It is suitable for installation in conduits, trunking, cable trays, or fixed protected environments.
Public Building
Commonly used in places such as hospitals, schools, airports and shopping malls, where the low smoke and halogen-free characteristics are crucial for fire prevention.
Railway
Suitable for fixed wiring inside traffic control equipment, helping to minimize the release of toxic gases in enclosed or densely populated areas.
Industrial Machinery
For internal wiring of industrial machinery and production equipment, offering flexibility, durability, and compliance with EN standards.
Building
Applied to BMS control cabinets for HVAC, lighting, and security systems, ensuring safe and orderly internal cabling.
Customer Photos
Exporting to 80+ countries and regions, we bring proven global export experience and trusted wires & cables to customers worldwide.
plant equipment
Geritel Wire is a professional wire and cable manufacturer. The factory has a stable production capacity, enabling it to handle long-term bulk orders while maintaining flexible production scheduling capabilities to cater to both large-scale procurement and small-to-medium batch needs.
Packaging Information
H05Z-K cables are typically packaged in three ways: coiled, on plastic reels, and on wooden reels, If you require customized packaging, please contact us..
Coiled
Plastic Reels
Wooden Reels
