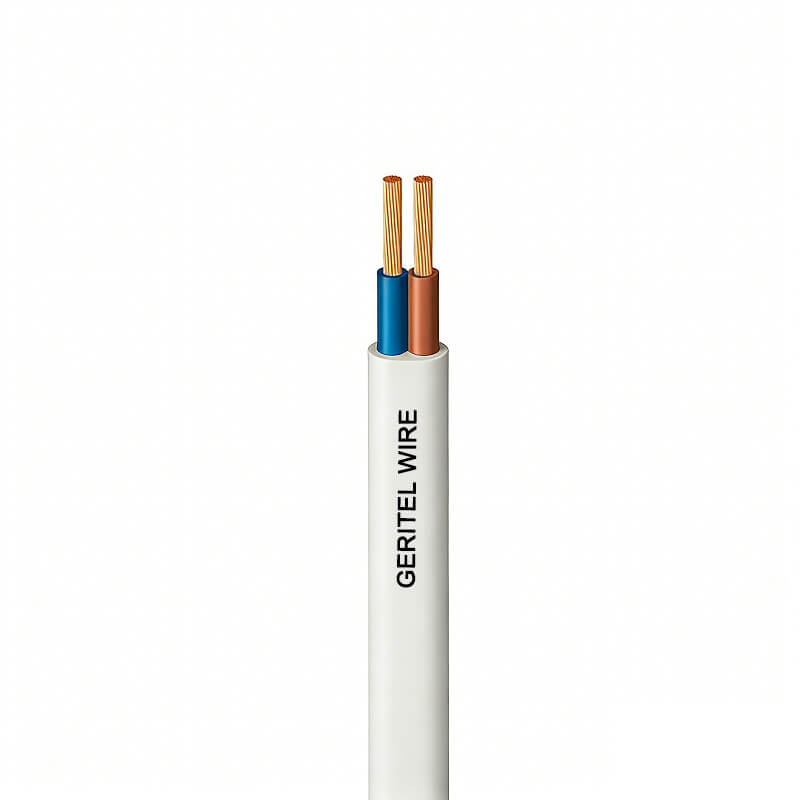

H05VVH2-F Cable
Conductor ：
Class 5 Flexible Stranded Copper
Insulation：
PVC (Polyvinyl Chloride)
Jacket：
PVC (Polyvinyl Chloride)，Flat Shape
Rated Voltage：
300/500V
Temperature range：
0 °C ~ 90 °C
Standard：
EN 50525‑2‑11
Description
Download
Conductor
Class 5 Flexible Stranded Copper
Insulation and Sheath
PVC (Polyvinyl Chloride) & PVC, flat shape
No. of Conductor
2 core / 3 core / 4 core / 5 core
Temperature Rating
0 °C ~ 90 °C

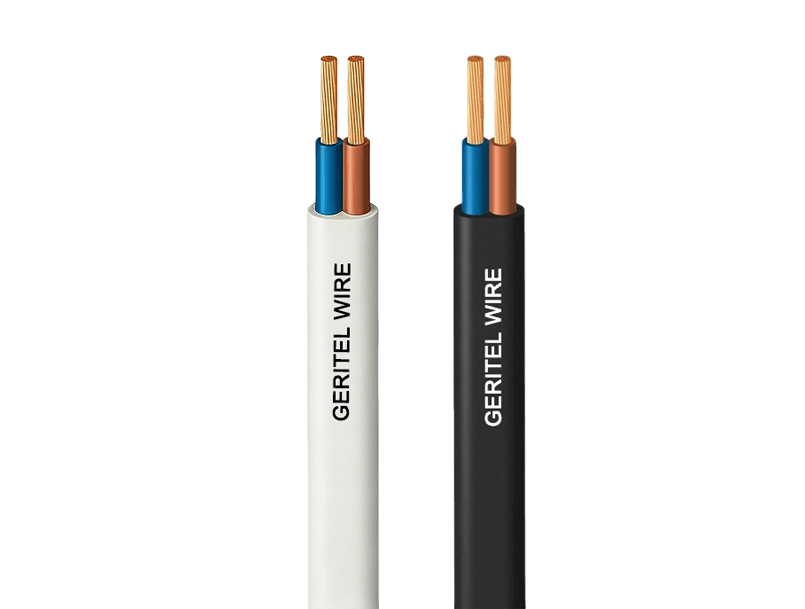

H05VVH2-F
H05VVH2-F is a low-voltage flexible flat cable featuring high-quality copper conductors and a PVC insulating sheath, designed specifically for household and light industrial electrical equipment.
H05VVH2-F Cable
H05VVH2-F offers excellent flexibility and durability, making it suitable for fixed wiring of indoor appliances, power tools, and control circuits.
Conductors ： 99.99% high-purity oxygen-free copper
Rated Voltage Uo/U (Um) : 300/500 VV
Insulated : PVC (Polyvinyl Chloride)
Standards : EN 50525‑2‑11
Outer Jacket : PVC , Flat Shape
Temperature range ：0 °C ~ 90 °C
Advantages of flexible cable

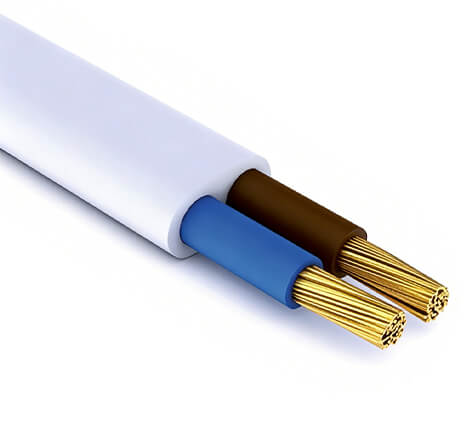

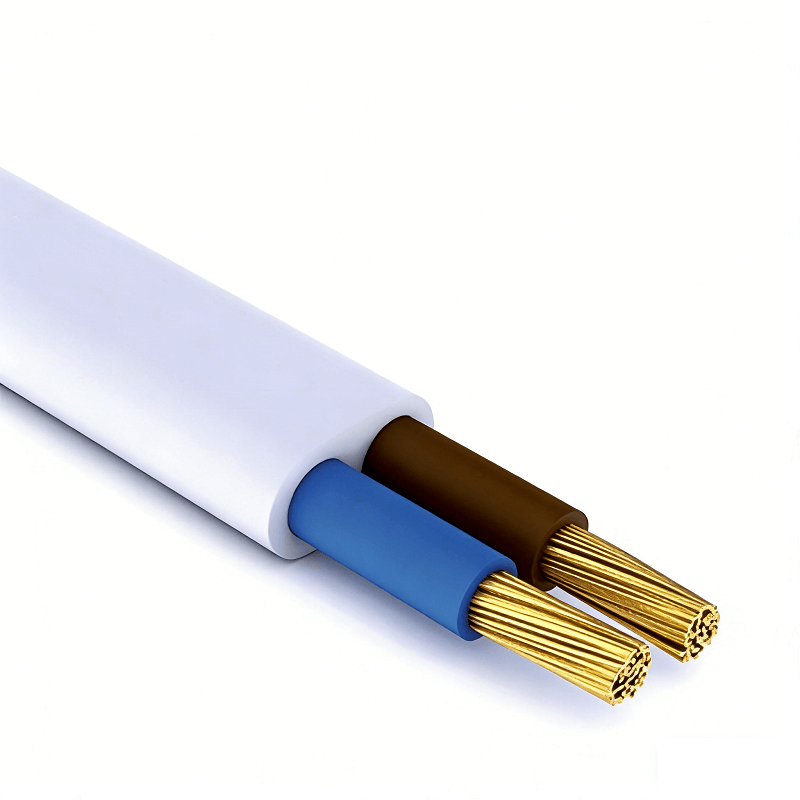

H05VVH2-F cable uses multi-strand flexible copper conductors (Class 5), offering excellent conductivity and easy bending. Each conductor is covered with a PVC insulation layer, providing abrasion resistance, oil resistance, and moisture resistance. The entire cable features a PVC sheath and a flat design, allowing for more flexible installation and minimizing space requirements.
| No. Of Cores | Nominal Cross Sectional Area mm2 |
Nominal Thickness Of Insulation mm |
Nominal Thickness Of Sheath mm |
Nominal Overall Diameter mm |
Nominal Weight Kg/Km |
| 2 | 0.75 | 0.6 | 0.8 | 6.3 | 63 |
| 3 | 0.75 | 0.6 | 0.8 | 6.7 | 74 |
| 3 | 1 | 0.6 | 0.8 | 7 | 86 |
| 3 | 1.5 | 0.7 | 0.9 | 8.1 | 115 |
| 3 | 2.5 | 0.8 | 1 | 9.7 | 170 |
| 4 | 0.75 | 0.6 | 0.8 | 7.3 | 78 |
| 4 | 1 | 0.6 | 0.9 | 7.9 | 110 |
| 4 | 1.5 | 0.7 | 1 | 9 | 140 |
| 4 | 2.5 | 0.8 | 1.1 | 10.8 | 210 |
| 5 | 0.75 | 0.6 | 0.9 | 8.1 | 105 |
Certification
H05VVH2-F cable strictly complies with the EN 50525-2-11 European low-voltage cable standard, ensuring safety and reliability at a rated voltage of 300/500V. This standard covers multiple aspects of the cable, including conductor performance, insulation and sheath materials, and electrical and mechanical properties.
Flexibility
Wear Resistance
Aging resistance
BPS Certified
APPLICATIONS
H05VVH2-F is widely used in household appliances, office equipment, and light industrial equipment. Common applications include wiring for washing machines, refrigerators, electric heaters, kitchen appliances, office lighting, and control circuits.
Household Appliances
H05V2V2-F cables are commonly used for fixed internal wiring in washing machines, ovens, and dishwashers. Their flexibility and heat-resistant PVC sheath can withstand the temperature rise generated during equipment operation.
Control Cabinets
In industrial control cabinets, H05V2V2-F is used to connect circuit breakers, relays, and terminal blocks. Its flexible structure facilitates wiring and maintenance in confined spaces.
Light Machinery
H05VVH2-F cable is suitable for internal electrical connections in light machinery such as packaging machines and small conveyor systems, and can withstand frequent bending and installation adjustments.
Lighting Systems
H05V2V2-F is commonly used for internal wiring in lighting fixtures, such as commercial lighting, cabinet lights, and industrial lighting, ensuring stable power supply and easy assembly.
Customer Photos
Exporting to 80+ countries and regions, we bring proven global export experience and trusted wires & cables to customers worldwide.
plant equipment
Geritel Wire is a professional wire and cable manufacturer. All cables undergo visual, electrical performance, dimensional, and marking inspections before leaving the factory, ensuring they remain in good condition during transportation and installation, reducing subsequent quality risks for customers.
Packaging Information
H05VVH2-F flexible cables are packaged in three ways: coiled, plastic reel, and wooden reel.
Coiled
Plastic Reel
Wooden Reel
