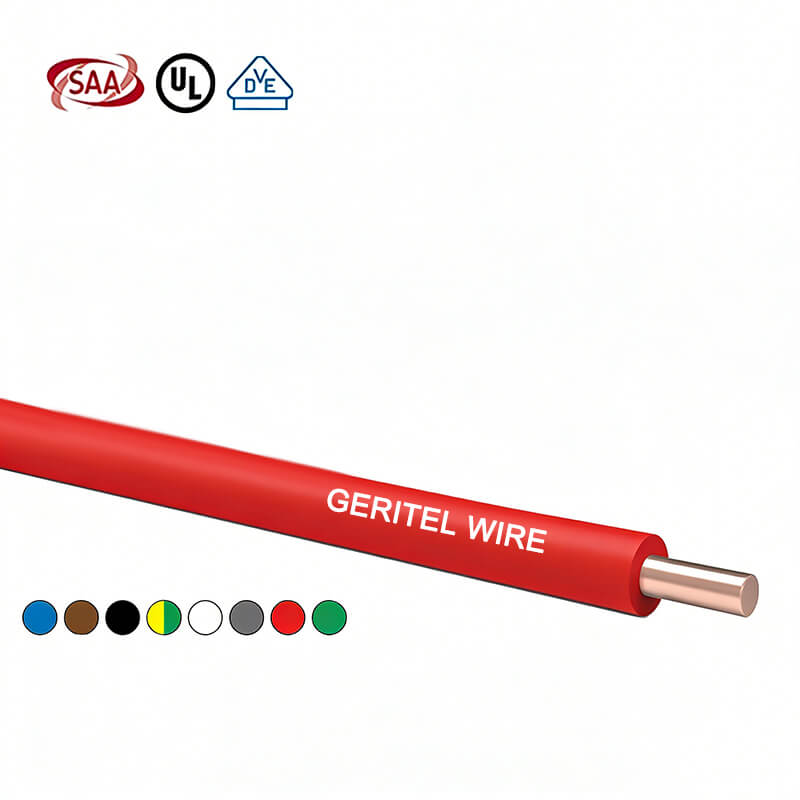

H05V2-U Cable
Conductor：
Solid Class 1 Copper Conductor
Insulation：
PVC Insulation
Rated Voltage：
300/500V
Standard：
IEC 60332-1-2
Temperature Rating：
-20 °C ～ +90 °C
Description
Download
Copper Conductor
Solid Class 1 Copper Conductor
Insulation
PVC Insulation
No. of Conductor
Single Core
Temperature Rating
-20 °C ～ +90 °C

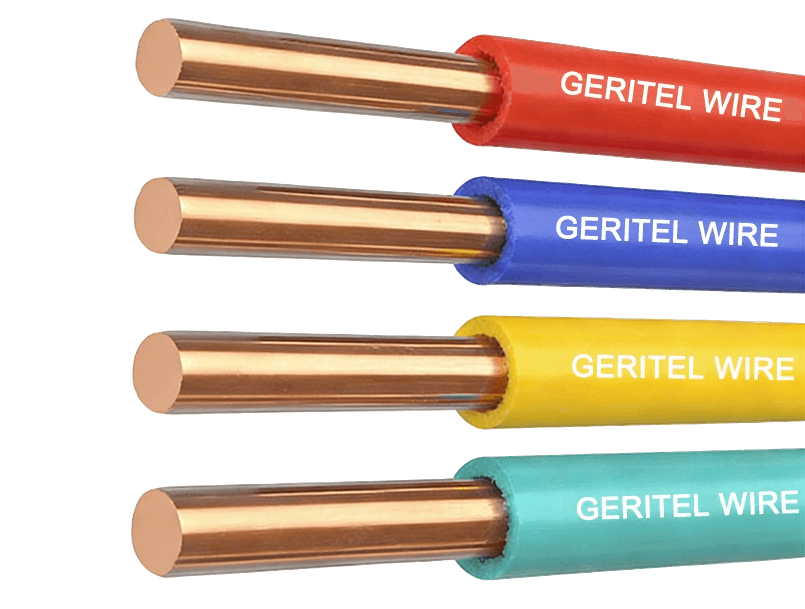

H05V2-U Cable
H05V2-U is a single-core heat-resistant installation wire with a rated voltage of 300/500 V, specifically designed for fixed wiring applications requiring high operating temperatures. Its biggest advantage lies in its use of heat-resistant PVC (V2) insulation, enabling a long-term operating temperature of up to 90 °C. Compared to the standard H05V-U (70 °C), it offers a higher safety margin and longer service life in high-temperature environments.
H05V2-U
While maintaining a simple structure and stable installation, the H05V2-U effectively reduces the risk of insulation aging due to temperature rise.
Copper Conductors
Rated Voltage Uo/U (Um) : 300/500V
PVC Insulation
IEC 60332-1-2 Standards
Temperature range
-20 °C ～ +90 °C
Advantages of H05V2-U

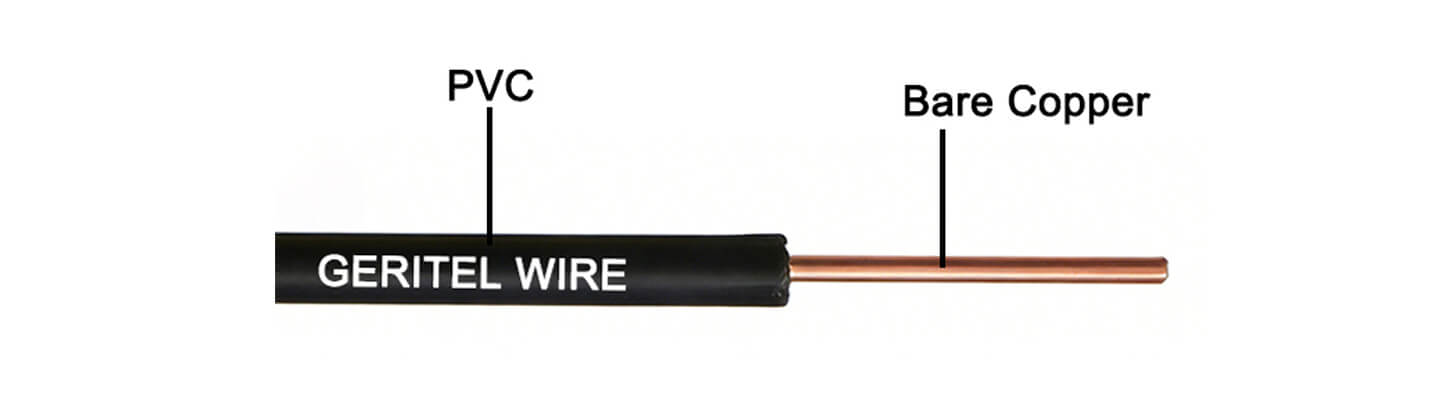

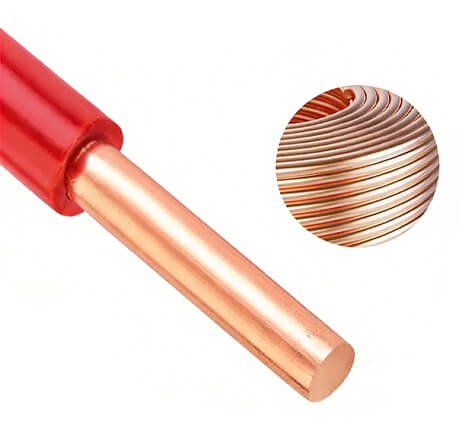

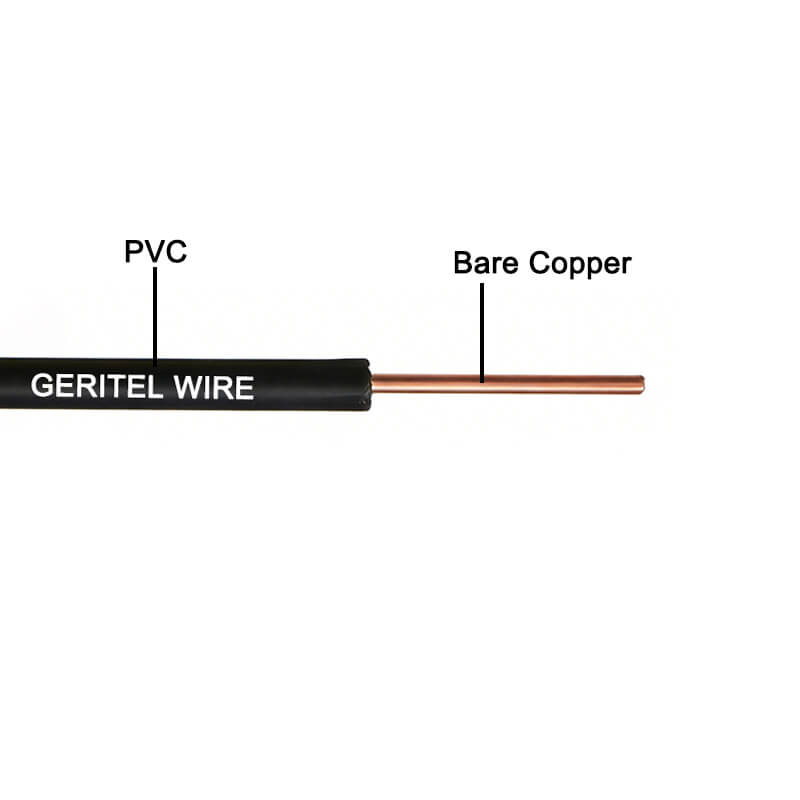

H05V2-U uses IEC 60228 Class 1 solid bare copper conductors, ensuring stable conductor structure and reliable contact, which is particularly suitable for fixed installations. The outer insulation is heat-resistant PVC (V2 grade), providing excellent electrical insulation and thermal stability, enabling long-term operation at high temperatures without performance degradation.
| Type Code | Cross-section | Nominal Outer Diameter | Current rating, installation in open air, ambient 30℃ | Total weight |
| [mm] | [mm] | [A] | [kg/km] | |
| H05V2-U | 0.5 | 2 | 12 | 9 |
| H05V2-U | 0.75 | 2.2 | 15 | 11 |
| H05V2-U | 1 | 2.3 | 19 | 14 |
| H07V2-U | 1.5 | 2.8 | 24 | 20 |
| H07V2-U | 2.5 | 3.4 | 32 | 31 |
| H07V2-U | 4 | 3.8 | 42 | 46 |
| H07V2-U | 6 | 4.3 | 54 | 68 |
| H07V2-U | 10 | 5.4 | 73 | 111 |
Certification
H05V2-U cable has obtained multiple international certifications.This certified cable is suitable for building and industrial applications with high environmental and safety requirements. Regarding fire resistance, the cable passes the IEC 60332-1-2 single-strand flame retardancy test and meets the CPR Eca rating, possessing basic flame retardancy and self-extinguishing capabilities in the event of an ignition source.
Heat-resistant
water-resistant
Flame retardant properties
UL Certified
APPLICATIONS
H05V2-U cable is primarily used for fixed installations in dry environments, typically laid within protective conduits, cable trays, or enclosed systems. It is widely used in internal wiring of lighting fixtures, wiring within distribution boxes and control cabinets, and internal connections of electrical equipment and instruments.
Lighting Fixtures
H05V2-U is ideal for the internal wiring of LED luminaires, downlights, and ceiling lights. The heat-resistant PVC insulation can withstand the high temperatures generated during long-term operation of the fixtures.
Distribution Boxes
In residential or commercial building distribution boxes, H05V2-U is used for fixed wiring of phase and control lines. Its 90°C heat resistance ensures stable operation in multi-circuit concentrated wiring and high-temperature environments.
Industrial Equipment
Internal wiring of machine tools, motor control units, and other industrial equipment often involves localized temperature increases. H05V2-U can withstand 90°C long-term operation, it is suitable for industrial environments.
Household Appliances
H05V2-U is suitable for the internal wiring of oven control units, water heaters, or range hoods. The heat-resistant insulation material can withstand the heat generated during appliance operation.
Customer Photos
Exporting to 80+ countries and regions, we bring proven global export experience and trusted wires & cables to customers worldwide.
plant equipment
Geritel Wire is a professional wire and cable manufacturer. We have long been focused on the research, development, production, and optimization of wires and cables. Through continuous process improvement and technological accumulation, we have established our own mature and stable production system in key areas such as conductor drawing, insulation extrusion, cabling, and testing.
Packaging Information
H05V2-U cables are typically packaged in three ways: coiled, on plastic reels, and on wooden reels, to meet the needs of different project scales.
Coiled
Plastic Reels
Wooden Reels
