H05V-R Cable
Conductor：
Class 2 Stranded Bare Copper
Insulation：
PVC (Polyvinyl Chloride)
Rated Voltage：
300/500 V
Standard：
DIN VDE 0281-3, DIN EN 60228 BS6004
Temperature Rating：
-5°C to +70°C
Description
Download
Copper Conductor
Class 2 Stranded Bare Copper
Insulation
PVC (Polyvinyl Chloride)
No. of Conductor
Single Core
Temperature Rating
-5°C to +70°C

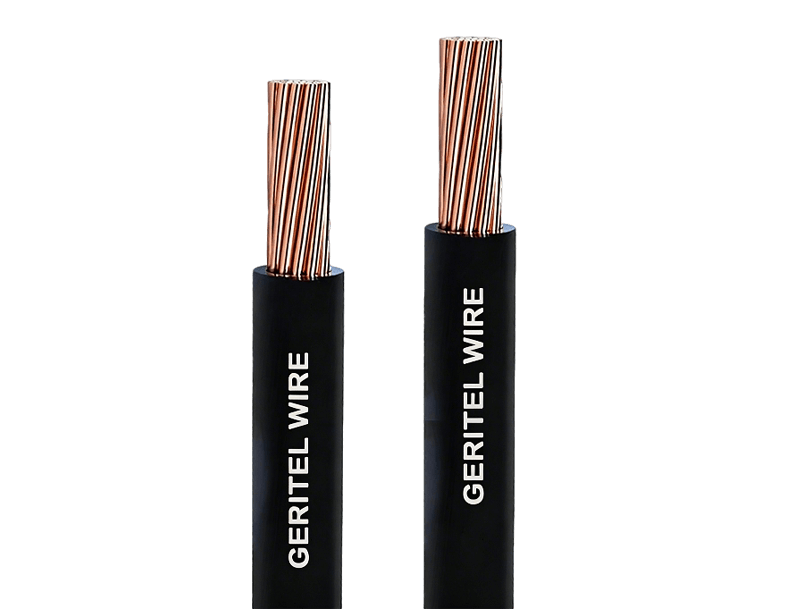

H05V-R Cable
H05V-R cable is a single-core low-voltage building wire conforming to European harmonized standards, with a rated voltage of 300/500V. It is primarily used for fixed indoor electrical installations.
H05V-R
H05V-R cables are widely used in residential, commercial, and light industrial power distribution systems, and are a common and reliable type of wire in building wiring and control circuits.
Copper Conductors
Rated Voltage Uo/U (Um) : 300/500 V
PVC (Polyvinyl Chloride) Insulated
DIN VDE 0281-3 DIN EN 60228 BS6004 Standards
Color Options: Green/yellow (earth), blue, brown, black, grey, and other phase colors
Temperature range
-5°C to +70°C
Advantages of H05V-R
H05V-R cable is Class 2 stranded bare copper conductor. The conductor is made of multiple strands of copper wire, balancing conductivity and structural stability. The outer layer is uniformly extruded PVC insulation material, providing good electrical insulation and mechanical protection.

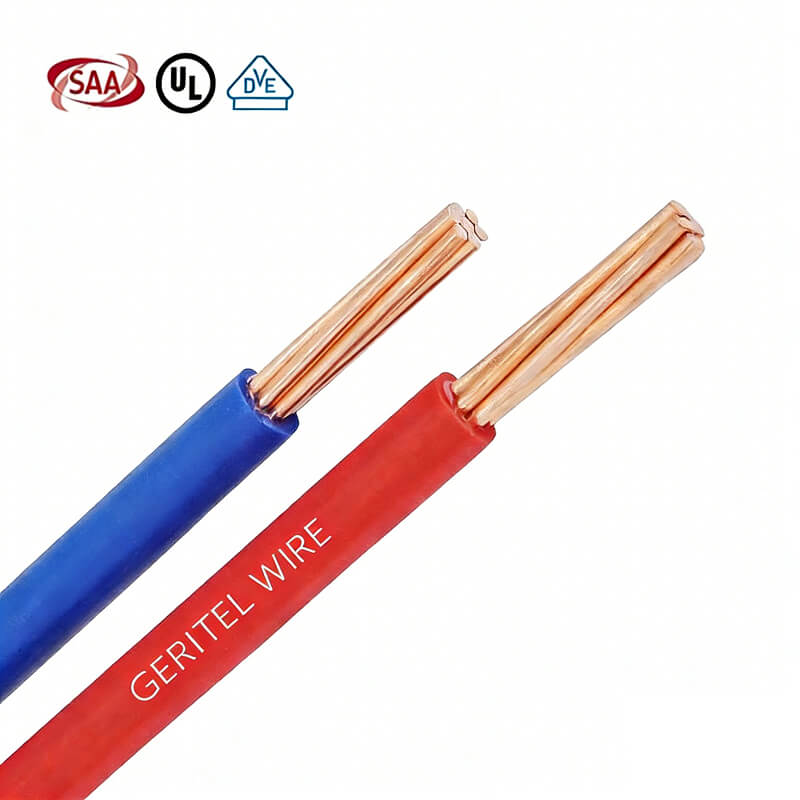

H05V-R is a single-core, unjacketed structure, usually available in various colors, including yellow-green (grounding wire), blue, brown, black, gray, etc., for easy installation and circuit identification.
| Nominal Cross Section | Conductor Construction | Insulation Thickness | Overall Diameter | Approx. Net Weight |
Max. Conductor Resistance at 20°C |
|
| mm2 | No. | Diameter | mm | mm | kg/km | Ω/km |
| 1X0.5 | 7 | 0.3 | 0.6 | 2.1 | 8.9 | 36 |
| 1X0.75 | 7 | 0.37 | 0.6 | 2.31 | 11.3 | 24.5 |
| 1X 1.0 | 7 | 0.43 | 0.6 | 2.49 | 14.2 | 18.1 |
Certification
H07G-K cable has obtained multiple international certifications. Through rigorous electrical, mechanical, and safety testing, the H05V-R cable meets unified standards in terms of conductor structure, insulation thickness, voltage resistance, and heat resistance.
Heat-resistant
water-resistant
Flame retardant properties
UL Certified
APPLICATIONS
H05V-R cable is mainly used for fixed installations, usually laid in conduits, cable trays, or enclosed systems. Typical applications include lighting circuits, socket circuits, distribution boxes, and internal wiring of switch control cabinets in residential and commercial buildings, and are also suitable for low-voltage control circuits in industrial equipment.
Indoor Lighting
In residential buildings such as apartments and villas, H05V-R is commonly installed in PVC or metal conduits for lighting circuits and power supply lines to sockets within walls and ceilings, meeting the requirements for fixed installation and long-term operation.
Distribution Boxes
In floor distribution boxes of office buildings and business centers, H05V-R is used for internal connections between circuit breakers and output terminals, providing a stable structure and facilitating bundled wiring and subsequent maintenance.
Control Cabinets
H05V-R is widely used inside low-voltage switchgear and control cabinets for power distribution and auxiliary circuit connections, possessing sufficient mechanical strength and being easy to bend and install in limited spaces.
Public Buildings
In public buildings such as schools, hospitals, and office buildings, H05V-R is used for fixed indoor electrical installations, laid in enclosed systems, complying with European standards for safety and reliability.
Customer Photos
Exporting to 80+ countries and regions, we bring proven global export experience and trusted wires & cables to customers worldwide.
plant equipment
Geritel Wire is a professional wire and cable manufacturer. We are familiar with the differentiated requirements of various markets regarding wire and cable standards, certifications, packaging, and labeling. We can tailor production and compliance configurations according to the regulations of the destination country and project requirements.
Packaging Information
H05V-R cables are typically packaged in three ways: coiled, on plastic reels, and on wooden reels, to meet the needs of different project scales.
Coiled
Plastic Reels
Wooden Reels
