H05V-K Cable
Conductor：
Class 5 Flexible Bare Copper
Insulation：
PVC
Rated Voltage：
300/500 V
Standard：
EN 50525-2-31 / BS EN 50525-2-31
Temperature Rating：
-5°C to +70°C
Description
Download
Copper Conductor
Class 5 Flexible Copper
Insulation
PVC
No. of Conductor
Single Core
Temperature Rating
-5°C to +70°C
H05V-K Cable

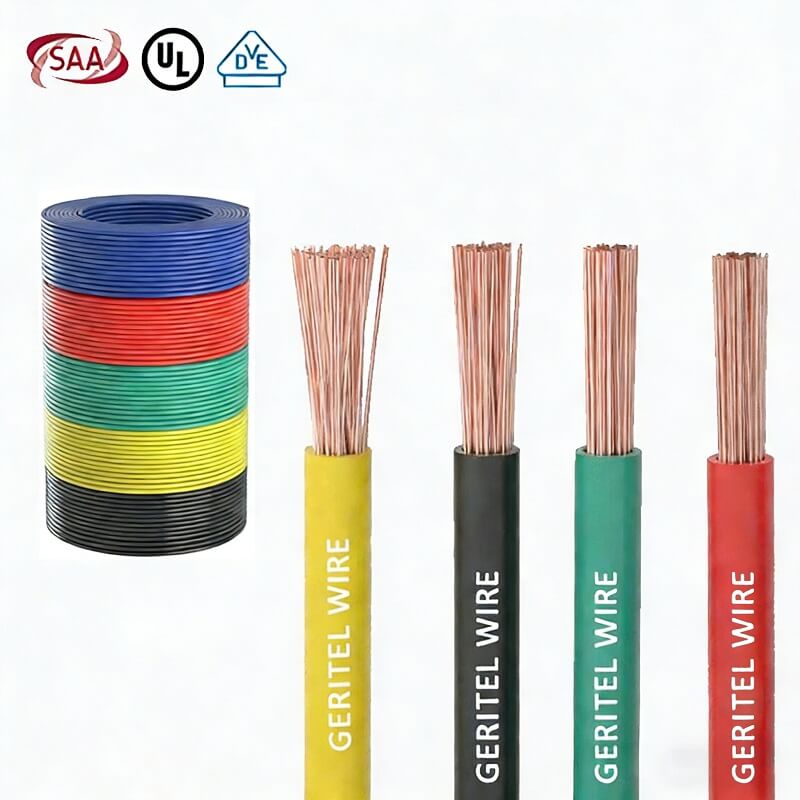

H05V-K is a single-core flexible PVC insulated wire conforming to EN 50525-2-31 standard. It is widely used in European and international industrial electrical systems due to its excellent flexibility, rich color options, and easy installation.
H05V-K
H05V-K is Class 5 multi-strand fine-strand copper conductors and is primarily used in fixed installations where high flexibility is required, such as electrical control cabinets, distribution boxes, and internal equipment wiring.
Copper Conductors
Rated Voltage Uo/U (Um) : 300/500 V
PVC Insulated
EN 50525-2-31 / BS EN 50525-2-31 Standards
Color Options: Green/yellow (earth), blue, brown, black, grey, and other phase colors
Temperature range
-5°C to +70°C
Advantages of H05V-K
H05V-K cable uses Class 5 multi-strand fine-strand copper conductors conforming to EN 60228 standards, offering excellent flexibility for easy wiring within electrical cabinets and equipment. The conductor is covered with high-quality PVC insulation (TI1 type), which is smooth, abrasion-resistant, easy to strip and terminate, and available in a variety of colors for convenient electrical identification and standardized installation.
| Nominal Cross Sectional Area mm2 |
Nominal Overall Diameter mm |
Nominal Weight kg/km |
| 0.5 | 2.2 | 9.1 |
| 0.75 | 2.4 | 11.7 |
| 1 | 2.55 | 14.4 |
Certification
H05V-K electrical wire has passed multiple certifications. Certified cables effectively suppress the spread of flames under fire conditions. The cables do not rapidly fuel combustion in the event of a localized fire, helping to reduce the risk of fire spread.
Heat-resistant
water-resistant
Flame retardant
UL Certified
APPLICATIONS
H05V-K wires are primarily used for fixed wiring within low-voltage equipment and electrical systems, commonly found in control cabinets, distribution boxes, and industrial equipment. They are used to connect components such as circuit breakers, contactors, relays, PLC modules, and terminal blocks.

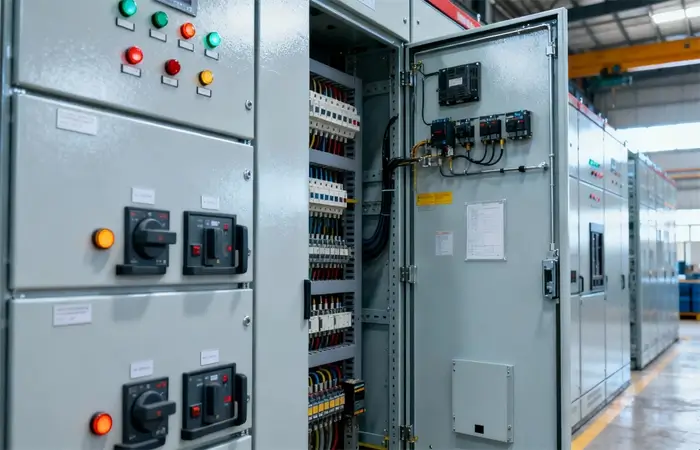

Distribution Cabinet
Used for internal connections between circuit breakers, contactors, and relays, facilitating bending and cable management.

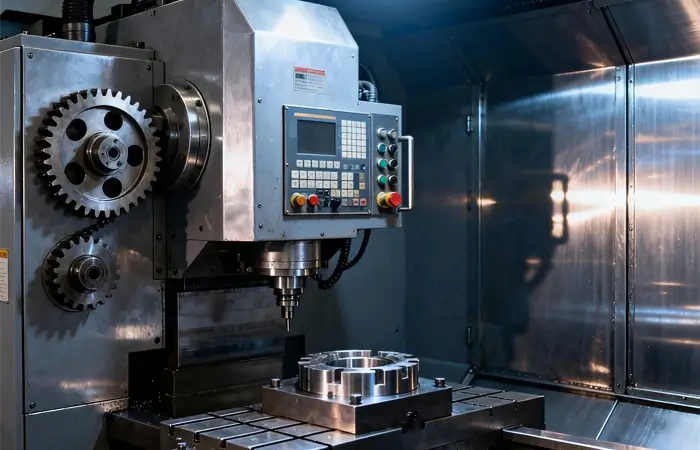

Machinery Equipment
Suitable for fixed electrical wiring inside machine tools, packaging equipment, and conveying equipment.
HVAC
Connects control components such as temperature controllers, fan controllers, and actuators.
Lighting System
Used inside building lighting control boxes, dimming systems, and relay control modules.
Customer Photos
Exporting to 80+ countries and regions, we bring proven global export experience and trusted wires & cables to customers worldwide.
plant equipment
Geritel Wire is a professional wire and cable manufacturer. We can provide reliable delivery times and consistent supply capabilities. At the same time, our professional technical, and sales teams can provide customers with product selection advice, application consulting, and pre-sales and after-sales support, improving overall procurement efficiency.
Packaging Information
H05V-K cables are typically packaged in three ways: coiled, on plastic reels, and on wooden reels. We can provide customized packaging solutions.
Coiled
Plastic Reels
Wooden Reels
