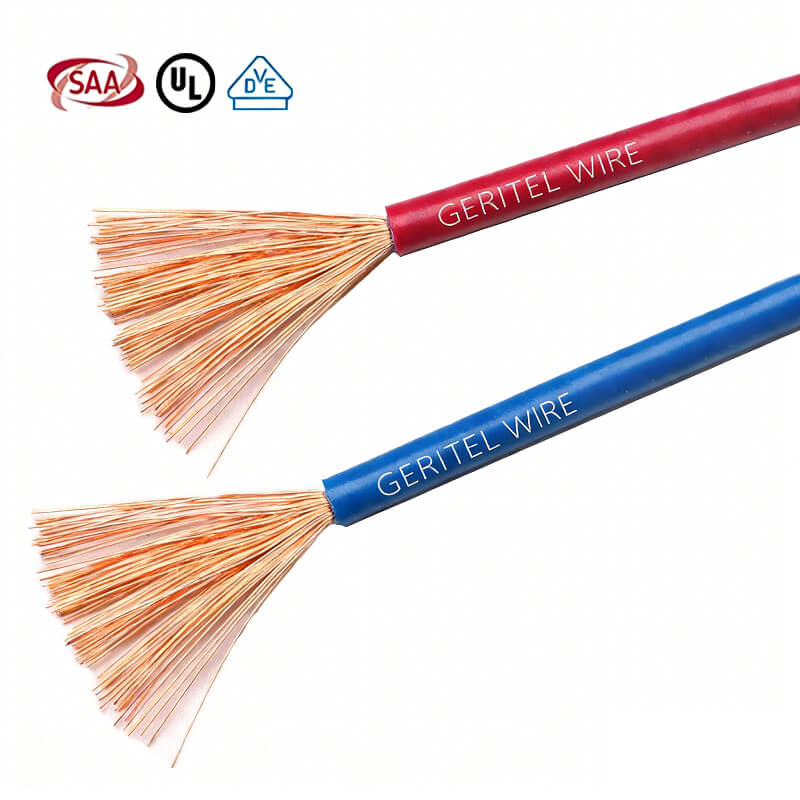

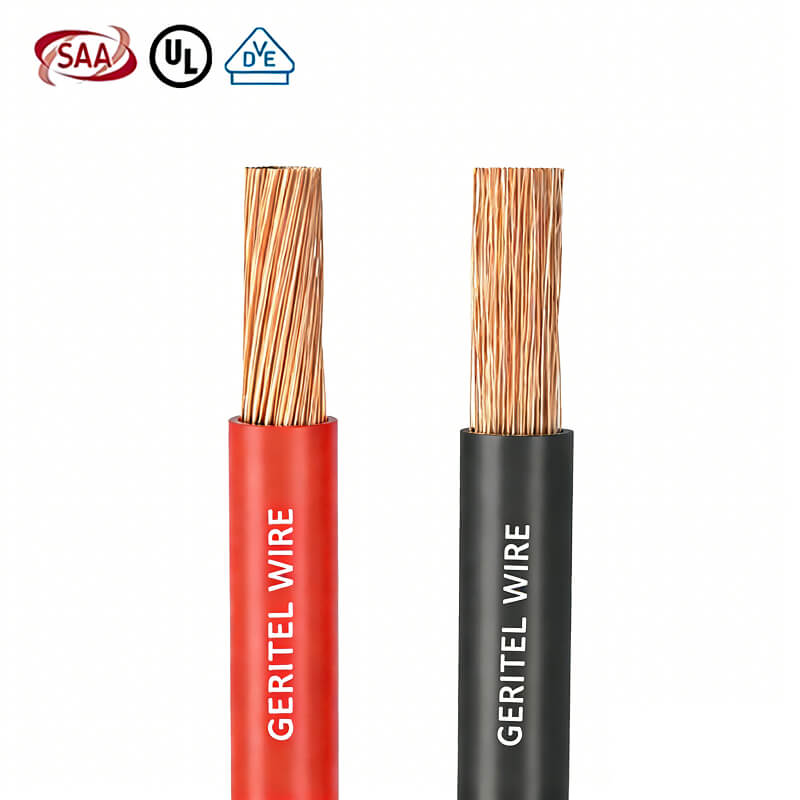

H05G-K Cable
Conductor：
Class 5 Flexible Stranded Copper
Insulation：
EVA (Ethylene Vinyl Acetate) Rubber EI8 Type
Rated Voltage：
300/500V
Standard：
EN 50525-1, EN 50525-2-42, IEC/EN 60228
Temperature Rating：
5°C to 110℃
Description
Download

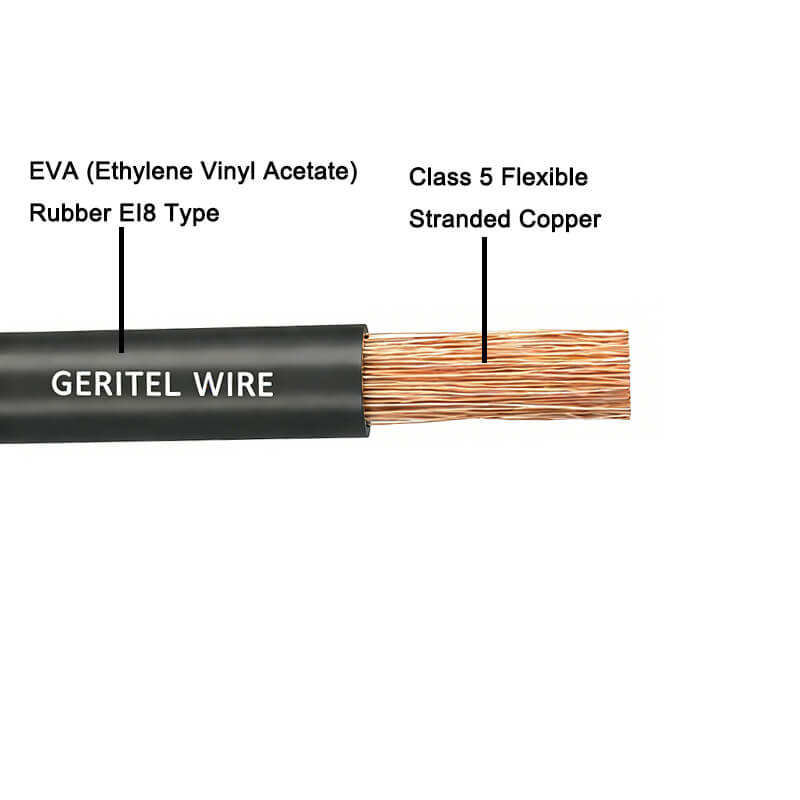

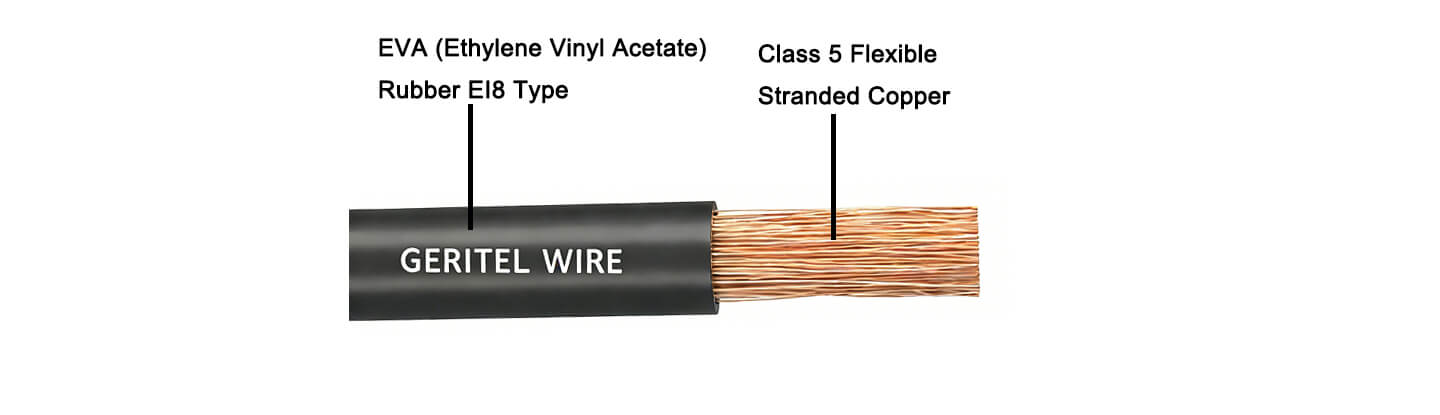

Copper Conductor
Class 5 Flexible Stranded Copper
Insulation
EVA (Ethylene Vinyl Acetate) Rubber EI8 Type
No. of Conductor
Single Core
Temperature Rating
5°C to 110℃

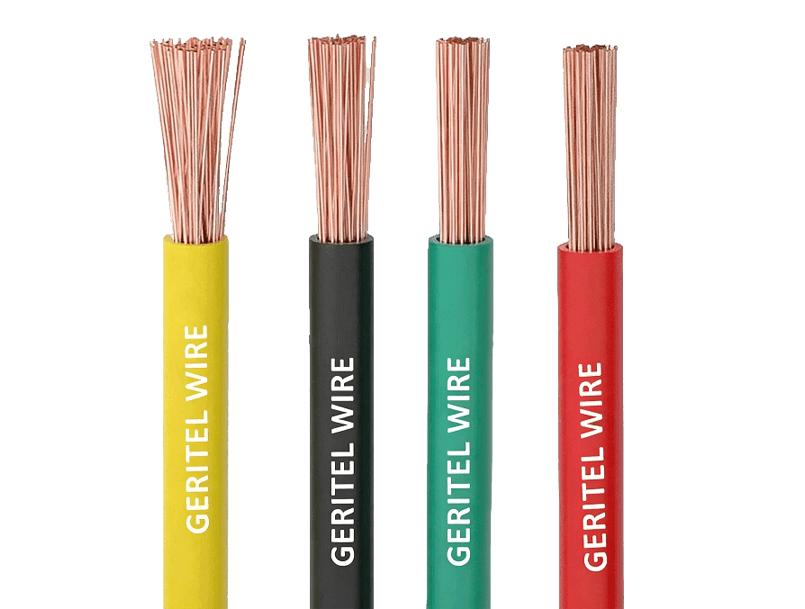

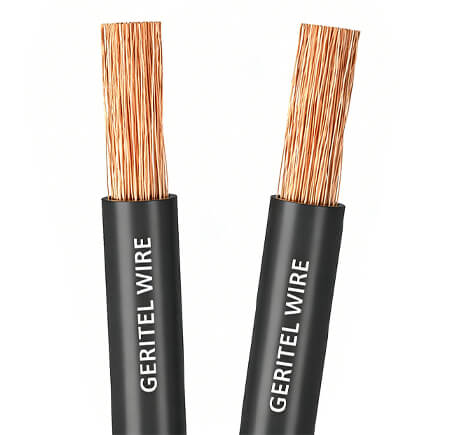

H05G-K Cable
H05G-K cable is a heat-resistant rubber-insulated single-core flexible cable with a rated operating voltage of 300/500 V, primarily used for internal wiring in low-voltage electrical systems.
H05G-K
H05G-K cable is suitable for connections within general equipment, distribution boards, switchgear, and lighting fixtures, and is designed to operate in high-temperature environments.
Copper Conductors
Rated Voltage Uo/U (Um) : 300/500V
EVA (Ethylene Vinyl Acetate) Rubber EI8 Type Insulated
EN 50525-1, EN 50525-2-42, IEC/EN 60228 Standards
Only for Dry Locations
Temperature range
5°C to 110℃
Advantages of H05G-K
H05G-K cables utilize highly flexible, finely stranded bare copper conductors, conforming to the VDE-0295 Class-5 / IEC 60228 Cl-5 flexible conductor standards, offering excellent conductivity and mechanical flexibility. The insulation layer uses a specially formulated heat-resistant rubber (EI3 / EVA type) material, providing resistance to heat, mechanical stress, and a certain degree of oil resistance.
| Nominal Cross Sectional Area mm2 |
Minimum Overall Diameter mm |
Maximum Overall Diameter mm |
Nominal Cable Weight Kg/Km |
| 1.5 | 3 | 3.7 | 25 |
| 2.5 | 3.6 | 4.5 | 39 |
| 4 | 4.3 | 5.4 | 59 |
| 6 | 4.8 | 6 | 81 |
| 10 | 6 | 7.6 | 132 |
| 16 | 7.1 | 8.9 | 197 |
| 25 | 8.8 | 11 | 303 |
| 35 | 10.1 | 12.6 | 410 |
| 50 | 11.9 | 14.9 | 580 |
| 70 | 13.6 | 17 | 788 |
| 95 | 15.5 | 19.3 | 1060 |
| 120 | 17.1 | 21.4 | 1318 |
| 150 | 19 | 23.8 | 1645 |
| 185 | 21 | 26.3 | 2026 |
| 240 | 23.9 | 29.9 | 2615 |
Certification
H05G-K cable has obtained multiple international certifications. The certified cable has specific requirements for conductor stranding, resistance values, and mechanical properties, effectively ensuring stable conductive performance during installation and long-term operation.
Heat Resistant
Highly Flexible
Flame Retardant
Multiple Certifications
APPLICATIONS
H05G-K cables are widely used for power connections inside distribution boxes, switchboards, and control devices, and can also be used for power and control wiring within various electrical equipment. Their flexibility and heat resistance make them suitable for use in modular equipment, lighting systems, and fixed installations within conduits or plastered structures.
Distribution Cabinets
H05G-K cables are commonly used for power and control circuit connections inside low-voltage distribution cabinets and control panels, meeting flexibility and heat resistance requirements.
Switchboards and Control Panels
In switchboards, button boxes, and control panels, H05G-K is used to connect terminals, relays, and control components, facilitating installation and maintenance.
Lighting Equipment
Suitable for internal wiring of commercial and industrial lighting equipment, it can withstand the higher operating temperatures generated during luminaire operation.
Heating Equipment
Due to its heat-resistant rubber insulation, H05G-K can be used for internal connections in high-temperature areas such as electric heaters and drying equipment.
Customer Photos
Exporting to 80+ countries and regions, we bring proven global export experience and trusted wires & cables to customers worldwide.
plant equipment
Geritel Wire is a professional wire and cable manufacturer. Our factory boasts extensive and stable international export experience, continuously supplying products to numerous countries and regions, including North America, South America, Europe, Australia, the Middle East, and Southeast Asia.
Packaging Information
H05G-K cables are typically packaged in three ways: coiled, on plastic reels, and on wooden reels, to meet the needs of different project scales.
Coiled
Plastic Reels
Wooden Reels
