300/500V H03VV-F Cable
Conductor ：
Class 5 Flexible Stranded Copper
Insulation：
PVC (Polyvinyl Chloride)
Jacket：
PVC (Polyvinyl Chloride)
Rated Voltage：
300/300V
Temperature Range：
+5 °C to +70 °C
Standard：
BS EN 50525‑2‑11
Description
Download
Conductor
Class 5 Flexible Stranded Copper
Insulation and Sheath
PVC (Polyvinyl Chloride) & PVC
No. of Conductor
2 Core / 3 Core / 4 Core
Temperature Rating
+5 °C to +70 °C

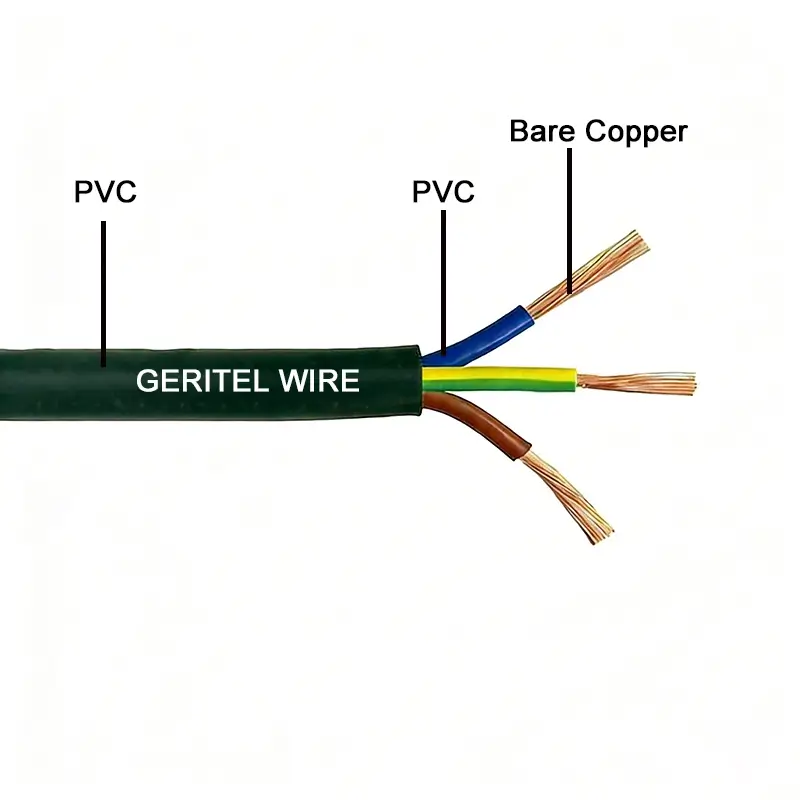

h03vv-f cable
H03VV-F cable is suitable for low-voltage, light-duty applications, with a rated voltage of 300/300V. Its flexible conductor structure ensures reliable electrical connection even after long-term use in mobile equipment and light electrical appliances. The PVC insulation provides corrosion resistance, moisture resistance, and flame retardancy, while operating stably within a temperature range of -5°C to +70°C.
h03VV-f
H03VV-F is flexible and lightweight, making it particularly suitable for installation inside furniture or in office appliances, ensuring a safe and reliable power supply while facilitating operation and maintenance.
Conductors oxygen-free copper
Rated Voltage Uo/U (Um) : 300/300 VV
Insulated : PVC (Polyvinyl Chloride)
Standards : BS EN 50525‑2‑11
Outer Jacket : PVC (Polyvinyl Chloride)
Temperature range ：+5 °C to +70 °C
Advantages of flexible cable
H03VV-F cable uses flexible multi-strand copper conductors, offering excellent conductivity and bending resistance. Each conductor is covered with PVC (polyvinyl chloride) insulation, providing basic electrical isolation and mechanical protection. The multi-strand copper conductors can withstand repeated bending under light mechanical stress without easily breaking, and the outer PVC sheath further enhances overall abrasion resistance and flexibility.
| No. Of Cores | Nominal Cross Sectional Area mm2 |
Nominal Thickness Of Insulation mm |
Nominal Thickness Of Sheath mm |
Nominal Overall Diameter mm |
Nominal Weight Kg/Km |
| 2 | 0.5 | 0.5 | 0.6 | 5 | 37 |
| 2 | 0.75 | 0.5 | 0.6 | 5.5 | 46 |
| 3 | 0.5 | 0.5 | 0.6 | 5.3 | 44 |
| 3 | 0.75 | 0.5 | 0.6 | 5.8 | 55 |
| 4 | 0.5 | 0.5 | 0.6 | 5.8 | 54 |
Certification
H03VV-F cables are designed and manufactured in strict accordance with EN 50525-2-11 and BS EN 50525-2-11 standards, for safety and reliability in low-voltage, light-duty applications.
Flexibility
Wear Resistance
Aging resistance
BPS Certified
APPLICATIONS
H03VV-F cable is widely used in lightweight portable electrical appliances and low-mechanical-stress circuits, such as desktop lamps, household appliances, office equipment, and small kitchen appliances. It can be used as an indoor wiring connection or for power connections in short-distance mobile devices.
Floor Lamps
H03VV-F cables are commonly used for power connections in table lamps and floor lamps. Their flexible structure facilitates daily movement and positioning, meeting the needs of low-power indoor lighting.
Office Equipment
In printers, copiers, and small office equipment, H03VV-F cables are used for internal or external power connections, ensuring stable power supply and easy wiring.
Household Appliances
Suitable for power cords of small kitchen appliances such as coffee makers, toasters, and electric kettles, meeting the requirements for light mechanical stress and low-voltage use.
Audio Equipment
H03VV-F cables can be used as power connection cables for audio systems, radios, and home entertainment equipment, ensuring stable operation and easy installation.
Customer Photos
Exporting to 80+ countries and regions, we bring proven global export experience and trusted wires & cables to customers worldwide.
plant equipment
Geritel Wire is a professional wire and cable manufacturer. We have always focused on the research, development, and production of wires and cables. It has gradually developed from basic wiring products into a comprehensive manufacturing base covering multiple international standards, accumulating profound process experience and industry reputation.
Packaging Information
H03VV-F cables come in three standard packaging options: coiled, plastic spool, and wooden spool. Customized packaging is also available.
Coiled
Plastic Reel
Wooden Reel
Global Certification
Geritel Wire Manufacturer holds 50+ international certifications, including UL, cUL, SAA, TUV, CE, VDE, ISO, and others. Our cables meet the highest global quality and safety standards.
