UL83 TWU Wire
Conductor：
Copper Single Conductor
Insulation：
Thermoplastic PVC
Rated Voltage：
600V
Standard：
UL 83
Temperature Rating：
60℃(wet/dry)
Description
Download
Copper Conductor
Copper Conductors
Insulation
Thermoplastic PVC
No. of Conductor
Single Core
Temperature Rating
60 °C(wet/dry)

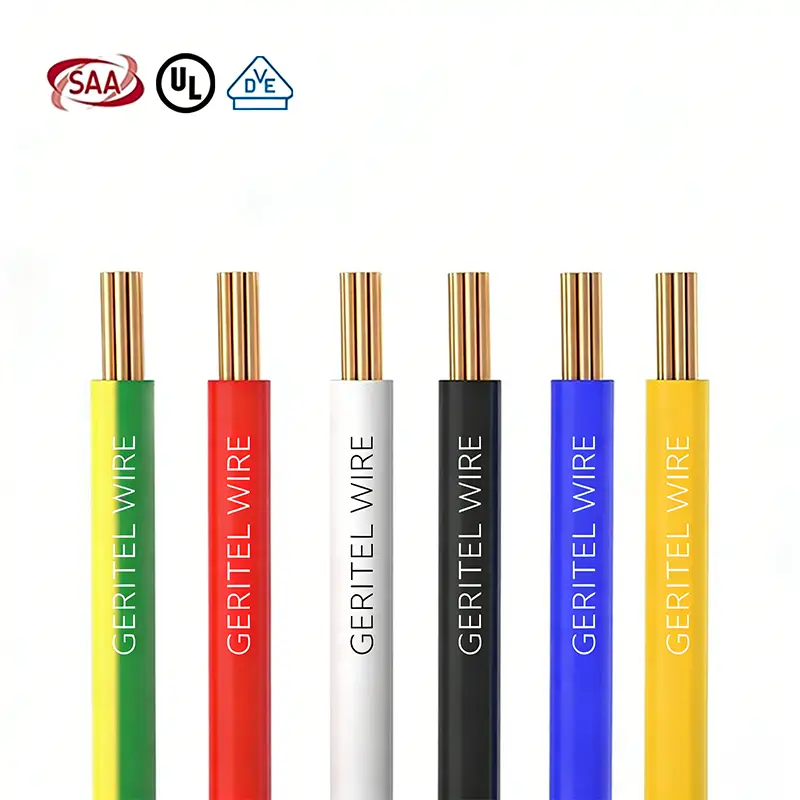

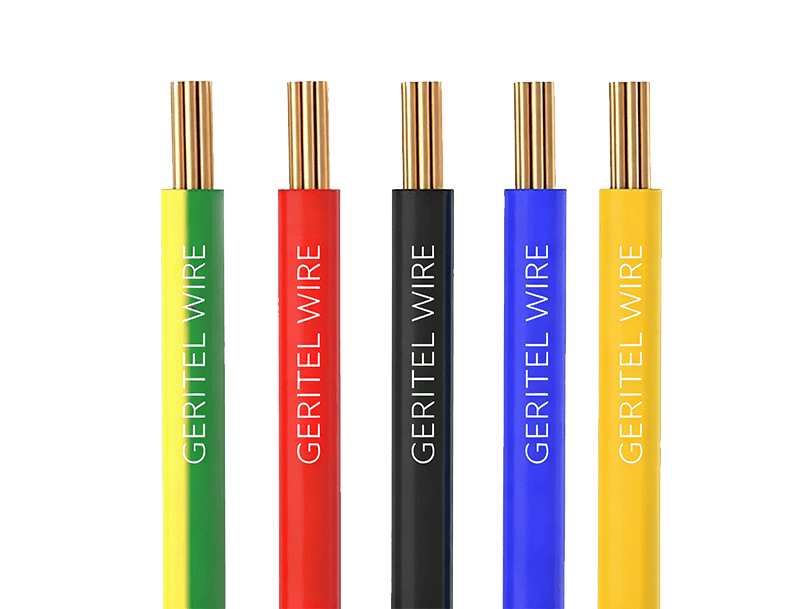

TWU wire
TWU wire is a thermoplastic insulated single-core wire with a rated voltage of 600V, designed for power supply and control circuit applications in underground and humid environments. It is heat-resistant, moisture-resistant, and adaptable to complex laying environments.

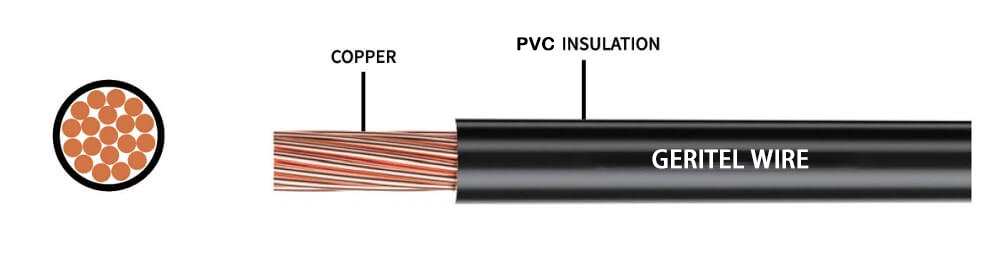

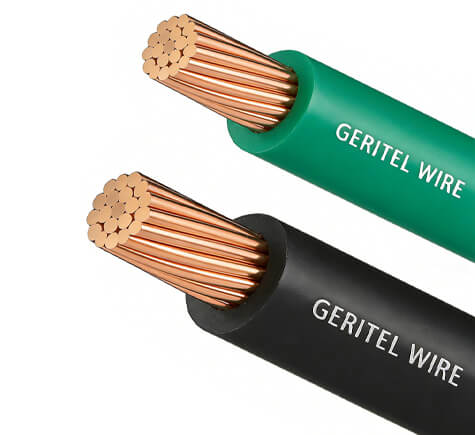

TWU wire
TWU wires possess stable electrical performance and excellent environmental adaptability, suitable for use in dry, humid, and underground environments.
Copper Conductors
Rated Voltage Uo/U (Um) 600V
Insulated
Thermoplastic PVC
UL83 Standards
Suitable for wet and dry environments
Temperature range
60 °C(wet/dry)
Advantages of cable
TWU wire is capable of being directly buried underground, reducing the need for additional pipe protection and making construction more flexible; its outstanding moisture and environmental resistance makes it suitable for complex installation conditions; its robust structure and high reliability enable it to operate stably for a long time in underground and outdoor environments.
| AWG Size | Insulation Thickness | Approximate Diameter | Net Weight | |||
| in. | mm. | in. | mm. | LB/MFT | KG/KM | |
| 14(1) | 0.06 | 1.52 | 0.19 | 4.7 | 26 | 39 |
| 10 (7) | 0.06 | 1.52 | 0.21 | 5.4 | 37 | 55 |
| 8 (7) | 0.08 | 2.03 | 0.31 | 7.8 | 85 | 126 |
| 6 (7) | 0.08 | 2.03 | 0.34 | 8.7 | 121 | 180 |
| 4 (7) | 0.08 | 2.03 | 0.39 | 9.9 | 177 | 263 |
| 2 (7) | 0.08 | 2.03 | 0.45 | 11.4 | 263 | 392 |
| 1/0 (19) | 0.095 | 2.41 | 0.55 | 13.9 | 407 | 606 |
| 2/0 (19) | 0.095 | 2.41 | 0.59 | 15 | 506 | 753 |
| 4/0 (19) | 0.095 | 2.41 | 0.7 | 17.6 | 764 | 1137 |

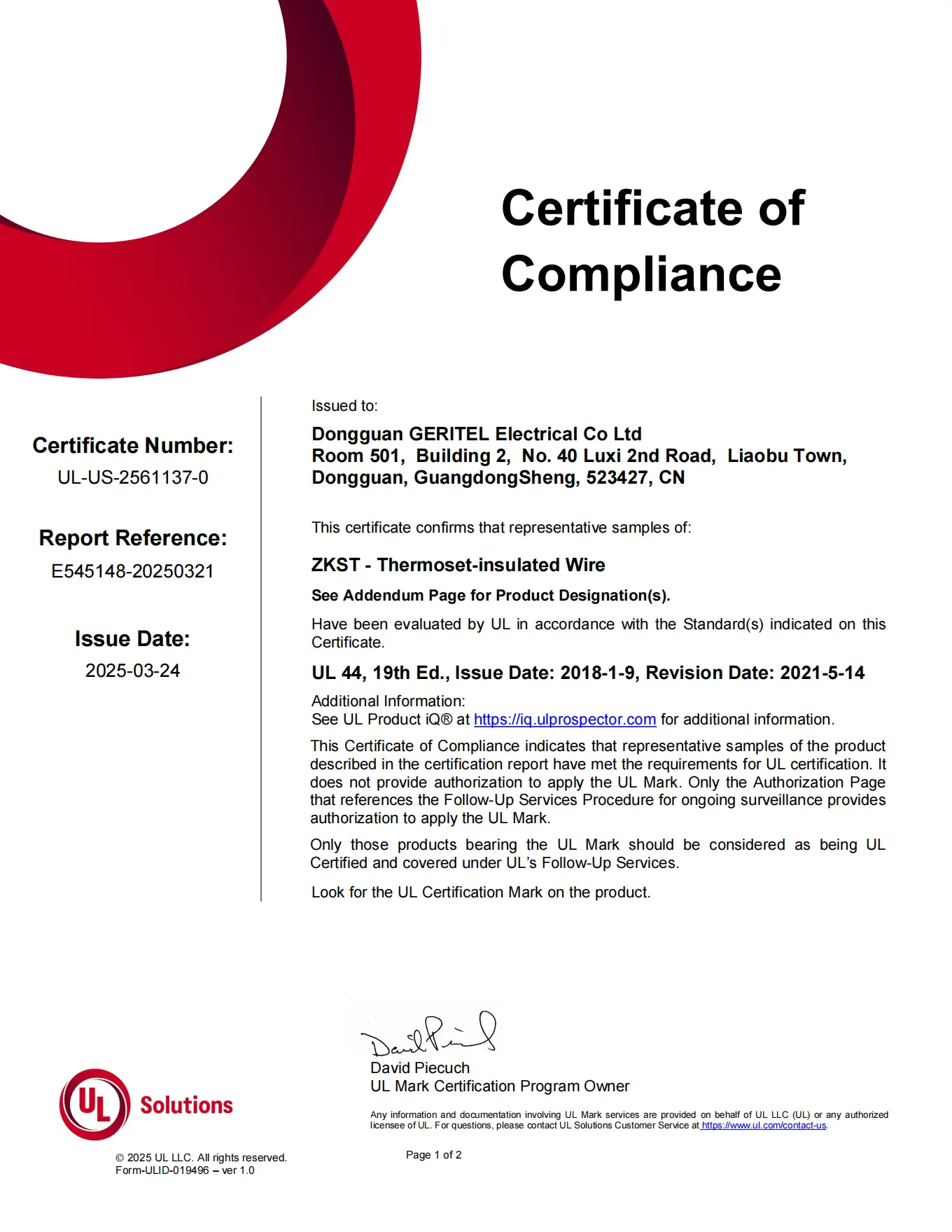

Certification
TWU wires are UL certified, which rigorously evaluates the electrical safety, insulation performance, heat resistance, and moisture resistance of the wires. They meet the safety requirements of the North American market for wires used in underground and humid environments and can be used in building and industrial electrical systems that comply with relevant electrical codes.
Aging resistance
Moisture resistance
Abrasion resistance
UL Certified
APPLICATIONS
TWU wire is widely used in underground power supply lines, power connections between buildings, outdoor lighting and equipment power supply, underground branch lines of electrical systems, and industrial and building electrical wiring in humid environments. It is a commonly used type of wire for outdoor and underground power transmission.
Industrial plant
In industrial plants, TWU wire is commonly used in underground power distribution lines and outdoor electrical systems. Its environmental resistance allows it to adapt to complex operating conditions, ensuring the safe transmission of power and control signals in both outdoor and underground environments.
Outdoor electrical
In outdoor electrical systems, TWU wire is commonly used for power supply and control lines below or near the ground, such as yard lighting, electric gate systems, outdoor monitoring equipment, and auxiliary electrical devices. Its insulation material can withstand the effects of soil moisture, rainwater infiltration, and environmental changes.

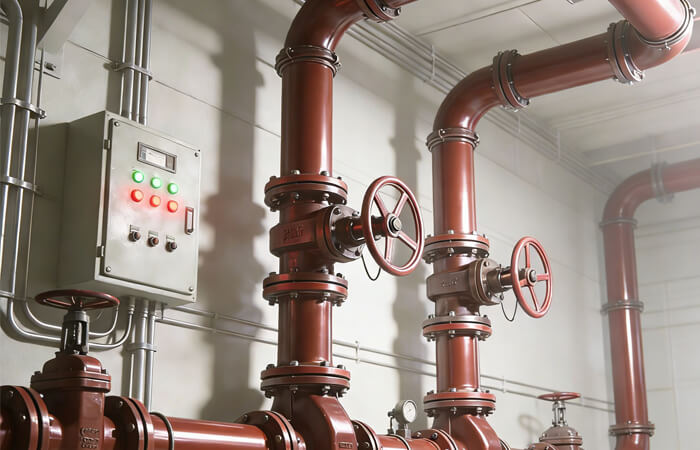

Humid environment
TWU wire is suitable for high-humidity locations such as basements, under equipment foundations, cable trenches, and near drainage areas. TWU wire possesses stable insulation properties and moisture resistance, enabling reliable operation even under prolonged humid conditions.
Underground power supply
TWU wire is mainly used for underground power supply lines between buildings and between main power distribution systems and branch equipment. Due to its good moisture resistance and mechanical strength, it can be directly buried underground under conditions that comply with electrical codes, and is used to provide stable power to outdoor lighting fixtures, equipment rooms, pumping stations and other facilities.
