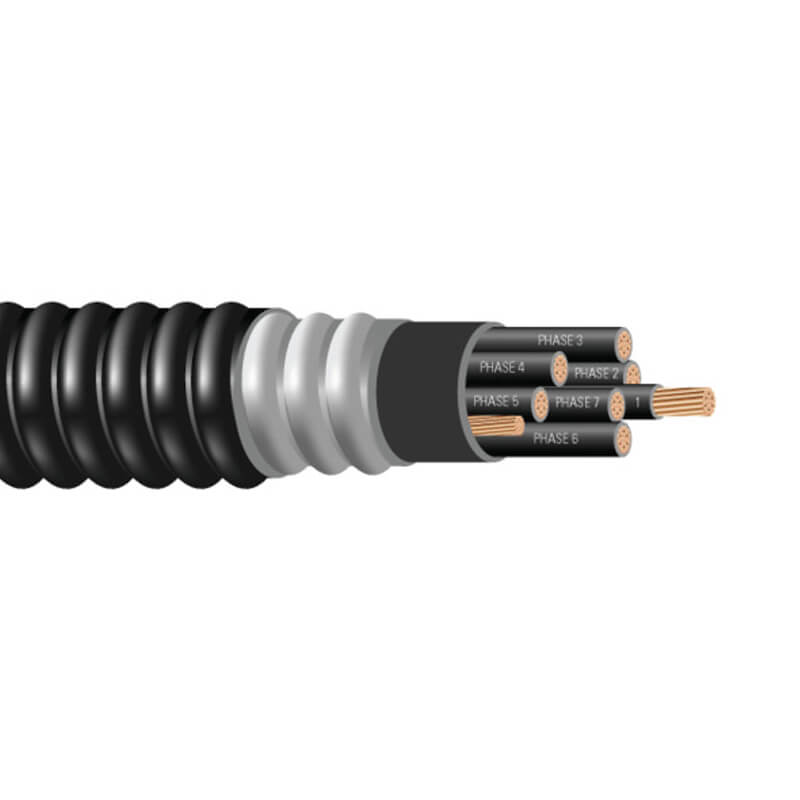

TECK90 Cable

Geritel Wire is a professional UL cables manufacturer with UL certification. We supply wire and cable to projects across North America and Latin America, including universities, airports, commercial buildings, hospitals, and more.

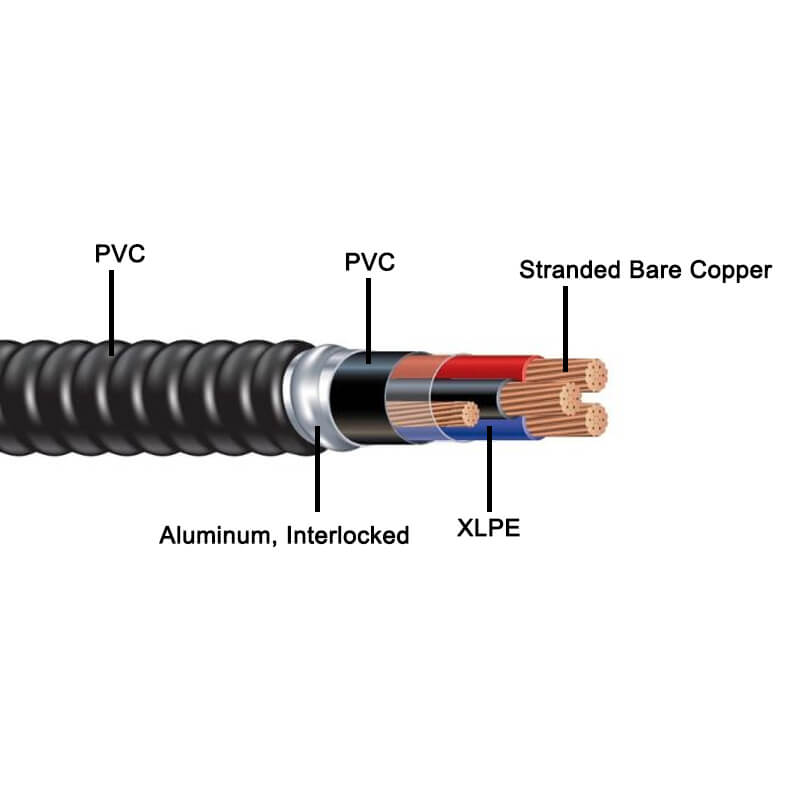

Conductor：

Bare Copper ( or Aluminum ) Class B Stranding Compressed Concentric Round to ASTM B8

Insulation：

XLPE (cross-linked polyethylene)

Armor：

Interlocked Aluminum Armor（AIA）

Inner Jacket：

PVC

Outer Jacket：

PVC, Typically Black

No. of Core：

One or More

Standard：

CSA C22.2 No. 131

Rated Voltage：

600V

Temperature Range：

– 40°C to 90°C

Whatsapp: +86 13510784550

manager01@greaterwire.com

Add To Inquiry

Description

Download

TECK90 Cable Manufacturer

MC cable

Conductor

Stranded Copper （or Aluminum）Conductors

NM-B

Insulation and Sheath

XLPE/PVC

Armor

Interlocked Aluminum Armor

Temperature Rating

– 40°C to 90°C

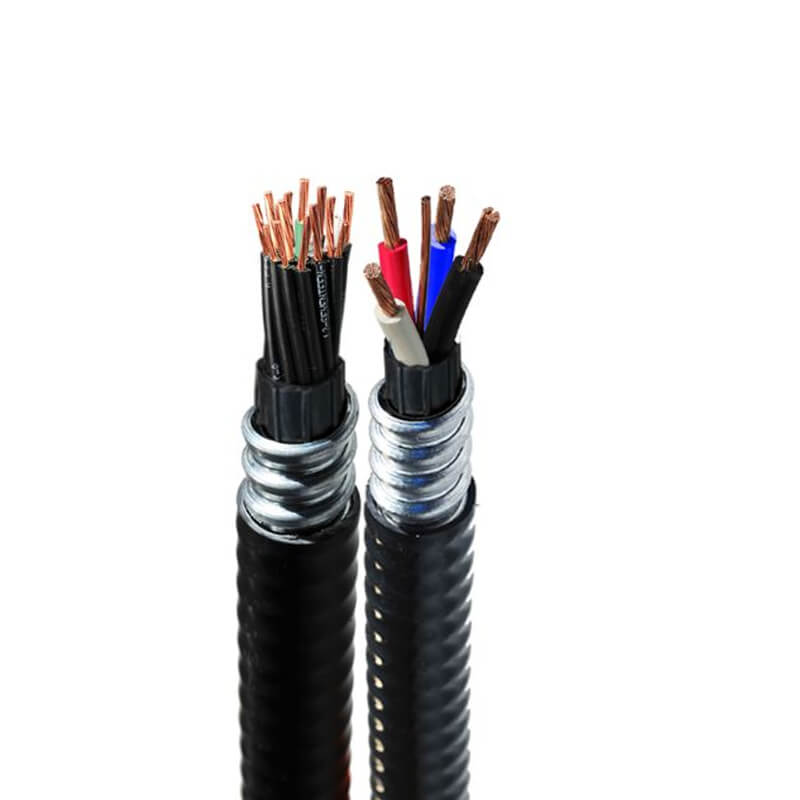

TECK90 Cable

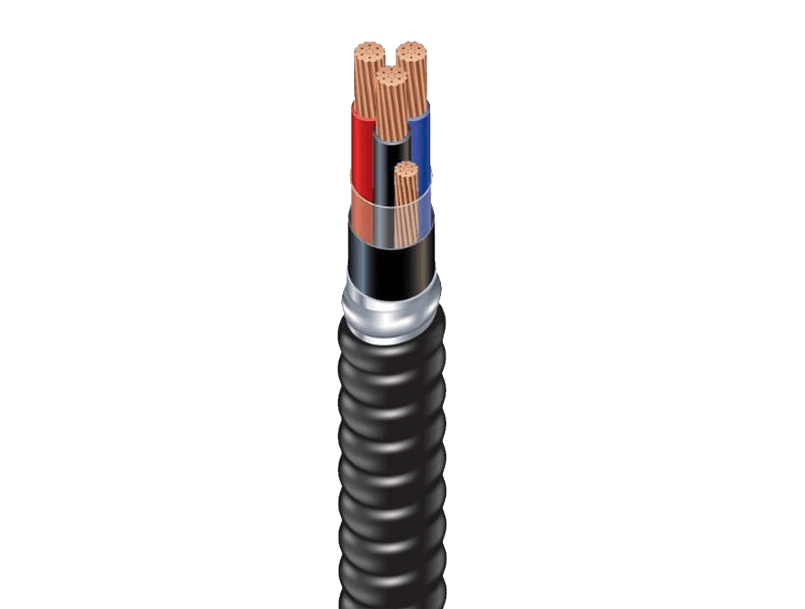

TECK‑90 cable is a rugged, industrial-grade armored multi-conductor cable with XLPE insulation and interlocked aluminum armor, rated for 600 V/1000 V and 90 °C, for safe and reliable power and control applications in harsh or hazardous environments.

TECK90 Cable

TECK 90 Cable

TECK-90 cable is an industrial-grade armored multi-core power and control cable to provide reliable power transmission in harsh environments and demanding applications.

NM-B cable

Conductors : Bare copper ( or Aluminum )

NM-B cable

Insulated & Sheath：XLPE insulation & PVC Sheath

NM-B cable

Standards : CSA C22.2 No. 131

NM-B CABLE

Armour: Interlocked Aluminum Armor (AIA)

NM-B WIRE

Temperature range : -25°C to 90°C

Advantages

TECK-90 cable is copper conductors and typically XLPE/RW90 insulation, capable of withstanding continuous operating temperatures up to 90°C while offering excellent resistance to moisture, chemical corrosion, and aging. The cable's outer layer is interlocked aluminum armor (AIA), complemented by an abrasion-resistant and UV-resistant PVC outer sheath, providing robust protection for mechanical installations without requiring additional conduits or conduits.

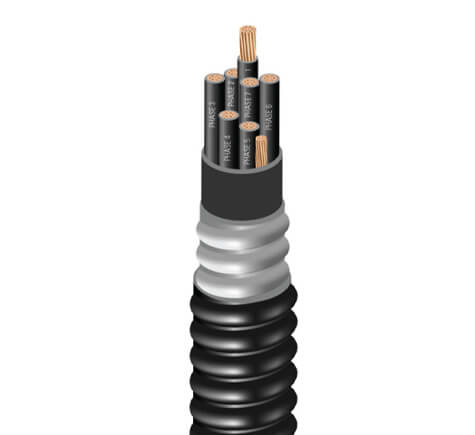

TECK90 Cable

Conductor Size (Stranding)	Number Of Conductors	Ground Wire Size	Nominal Diameter Over Insulation	Nominal Diameter Over Armor	Nominal Cable Diameter	Approx.Net Weight	Approx.Net Weight
Conductor Size (Stranding)	Number Of Conductors	(Awg)	(Mils)	(IN)	(IN)	(LBS/1000 FT)	(KG PER KM)
14(7W)	2	14	0.13	0.58	0.67	195	290
14(7W)	3	14	0.13	0.6	0.69	226	336
14(7W)	4	14	0.13	0.64	0.72	256	381
14(7W)	5	14	0.13	0.68	0.76	290	432
14(7W)	6	14	0.13	0.72	0.8	316	471
14(7W)	7	14	0.13	0.74	0.82	338	503
14(7W)	8	14	0.13	0.79	0.87	373	555
14(7W)	10	14	0.13	0.88	0.96	451	671
14(7W)	12	14	0.13	0.9	0.99	511	761
14(7W)	15	14	0.13	0.96	1.04	586	872
14(7W)	20	14	0.13	1.13	1.21	789	1174
12(7W)	2	14	0.15	0.62	0.7	228	340
12(7W)	3	14	0.15	0.65	0.73	254	378
12(7W)	4	14	0.15	0.69	0.77	293	436
12(7W)	5	14	0.15	0.73	0.81	350	521
10(7W)	2	12	0.18	0.67	0.75	275	410
10(7W)	3	12	0.18	0.7	0.78	327	487
10(7W)	4	12	0.18	0.74	0.83	413	615

Certification

TECK90 cables are cUL certified. The cable passes the FT4 flame retardancy test and can be safely used in vertical cable trays and industrial environments.

TECK90

Flame Retardancy

Moisture-Resistant

UV-Resistant

CSA Certified

AC90 cable certification

AC 90 cable certification

APPLICATIONS

TECK-90 is widely used in various environments, including industrial plants, mining facilities, commercial buildings, hazardous locations, and cable tray or direct burial installations, making it an ideal choice for power and control systems.

TECK90 Cable for Industrial Plants

Industrial Plants

TECK-90 cables provide safe and reliable power transmission for machinery, lighting, and control systems in industrial plants. Their armored design protects the cable from mechanical damage and abrasion, while also being resistant to high temperatures and humidity, ensuring long-term stable operation.

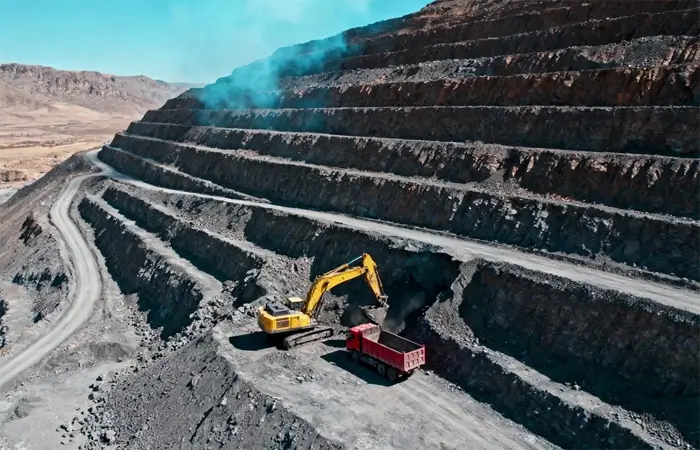

TECK90 Cable for Mining

Mining

In mining or extraction operations, environments are often humid and potentially abrasive. TECK-90 cables' aluminum interlocking sheath and heat-resistant insulation ensure safe power supply even under harsh conditions, reducing maintenance frequency and downtime risks.

TECK90 Cable for Commercial Buildings

Commercial Buildings

In commercial buildings, TECK-90 cables can be used for main power distribution lines and power distribution systems. Their flame-retardant and temperature-resistant properties enhance building safety and facilitate installation in cable trays or conduits.

TECK90 Cable for Cable Tray

Cable Tray Installation

TECK-90 cables are suitable for bundled installation in cable trays. Their armored protection and flame-retardant properties reduce fire risk, while also supporting centralized management of multi-core control or power lines.
