UL44 Copper RWU90 Cable
Conductor：
Copper Single Conductor
Insulation：
Cross-Linked Polyethylene (XLPE)
Rated Voltage：
600V/1kV
Standard：
UL 44/CSA C22.2 No.38
Temperature Rating：
-40℃ to 90℃
Description
Download
Copper Conductor
Stranded Copper Conductors
Insulation
XLPE Insulation
No. of Conductor
Single Core
Temperature Rating
-40℃ to 90℃
RWu90 CABLE
RWU90 is a single-core copper conductor cable rated at 1 kV with excellent electrical and thermal properties. Its maximum continuous operating temperature reaches 90 °C, and it maintains stable operation under high load and current fluctuation conditions. The cable is resistant to moisture, oil, chemicals, and UV radiation, and its operating temperature range covers -40 °C to 90 °C.
RWU90 CABLE
RWU90 features heat resistance, moisture resistance, and resistance to environmental aging. With a maximum operating temperature of 90 °C, it supports outdoor and direct underground installation and is widely used in building power distribution, industrial power supply, and new energy systems. It is a safe and reliable general-purpose power conductor.
Copper Conductors
Rated Voltage Uo/U (Um) 1kV
XLPE Insulated
UL44 Standards /CSA C22.2 No.38 Standards
Suitable for Wet/Dry Locations
Temperature range
-40℃ to 90℃
Advantages of RWU90 CABLE
The RWU90 boasts high safety and reliability, a high insulation class, and a long service life. Its excellent environmental adaptability makes it suitable for dry, humid, and outdoor environments. The single-core structure design enhances wiring flexibility, making it widely applicable and able to meet various power distribution needs.
| No. of Conductors | AWG size | Insulation Thickness | Approximate Diameter | Net Weight | ||||
| Cond. | Bond Wire | in. | mm. | in. | mm. | LB / MFT | KG / KM | |
| 14 (1) | 0.03 | 0.76 | 0.12 | 3.05 | 12 | 18 | 16 | 23 |
| 12 (1) | 0.03 | 0.76 | 0.14 | 3.56 | 12 | 18 | 24 | 36 |
| 10 (1) | 0.03 | 0.76 | 0.16 | 4.06 | 20 | 30 | 36 | 54 |
| 14 (7) | 0.03 | 0.76 | 0.13 | 3.3 | 20 | 30 | 16 | 24 |
| 12 (7) | 0.03 | 0.76 | 0.15 | 3.81 | 31 | 46 | 25 | 38 |
| 10 (7) | 0.03 | 0.76 | 0.17 | 4.32 | 32 | 48 | 38 | 57 |
| 8 (7) | 0.045 | 1.14 | 0.23 | 5.84 | 50 | 74 | 62 | 93 |
| 6 (7) | 0.045 | 1.14 | 0.27 | 6.86 | 78 | 116 | 93 | 139 |
| 4 (7) | 0.045 | 1.14 | 0.32 | 8.13 | 129 | 192 | 149 | 221 |
| 3 (7) | 0.045 | 1.14 | 0.34 | 8.64 | 163 | 243 | 184 | 274 |
| 2 (7) | 0.045 | 1.14 | 0.37 | 9.4 | 200 | 298 | 224 | 334 |
| 1 (19) | 0.055 | 1.4 | 0.43 | 10.92 | 258 | 384 | 289 | 430 |
| 1/0 (19) | 0.055 | 1.4 | 0.47 | 11.94 | 326 | 485 | 361 | 538 |
| 2/0 (19) | 0.055 | 1.4 | 0.52 | 13.21 | 411 | 612 | 451 | 672 |
| 3/0 (19) | 0.055 | 1.4 | 0.57 | 14.48 | 507 | 754 | 553 | 823 |
| 4/0 (19) | 0.055 | 1.4 | 0.62 | 15.75 | 635 | 945 | 686 | 1021 |
| 250 (37) | 0.065 | 1.65 | 0.69 | 17.53 | 772 | 1149 | 836 | 1244 |
| 300 (37) | 0.065 | 1.65 | 0.74 | 18.796 | 926 | 1378 | 996 | 1483 |
| 350 (37) | 0.065 | 1.65 | 0.79 | 20.07 | 1063 | 1582 | 1140 | 1696 |
| 400 (37) | 0.065 | 1.65 | 0.84 | 21.23 | 1235 | 1838 | 1318 | 1961 |
| 500 (37) | 0.065 | 1.65 | 0.92 | 23.37 | 1509 | 2245 | 1603 | 2386 |
| 750 (61) | 0.8 | 2.03 | 1.13 | 28.7 | 2316 | 3446 | 2453 | 3650 |
| 1000 (61) | 0.8 | 2.03 | 1.28 | 32.51 | 3088 | 4595 | 3250 | 4835 |
Certification
RWU90 cables meet UL 44 and CSA C22.2 No.38 standards, satisfying the 1 kV voltage rating and 90 °C operating temperature requirements. They also possess certifications for moisture resistance, sunlight resistance, oil resistance, and direct burial use, and comply with RoHS environmental requirements, making them suitable for North American and international power distribution systems.
Moisture Resistant
Heat Resistance
Wear Resistance
UL Certified
APPLICATIONS
RWU90 is primarily used in medium- and low-voltage power distribution systems in residential, commercial, and industrial buildings. It can be used as a service entry line, feeder, and branch circuit conductor, and is suitable for installation in cable ducts, trunking, and distribution cabinets. This cable supports both outdoor and direct underground installation and is commonly used in underground power distribution lines, outdoor distribution boxes, and power supply for public facilities.
Industrial Plant
RWU90 is suitable for factory buildings, power control rooms, and equipment power distribution systems, and can be used for power connections of equipment such as motors, pumps, fans, and compressors. Due to its oil, chemical, and moisture resistance, RWU90 is particularly suitable for installation in industrial environments with oil, moisture, or chemical media, such as manufacturing workshops, storage facilities, and public infrastructure power distribution systems.
Commercial Building
In building power distribution, RWU90 is often used as a service entry line to connect the power grid to the building's main distribution cabinet. It can also be used as a feeder and branch circuit conductor to supply power to lighting systems, socket circuits, air conditioning systems, elevators, and power equipment. It is suitable for wiring in cable ducts, cable trays, and distribution cabinets.

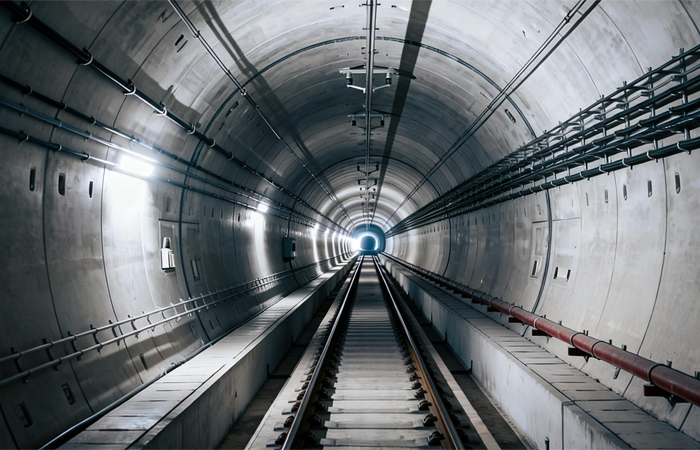

Outdoor and Underground
In both outdoor and underground applications, the RWU90 is capable of direct burial and is commonly used for underground power distribution lines, outdoor equipment power supply, power trenches, and outdoor distribution box connections. Its resistance to sunlight and weathering allows it to be exposed to outdoor environments for extended periods without affecting its electrical performance, making it suitable for power distribution in industrial parks, street lighting, and public facilities.
New Energy
In new energy applications, the RWU90 is also widely used in photovoltaic power generation systems for power connections between inverters, combiner boxes, and power distribution equipment. Furthermore, this cable is suitable for humid environments, low-temperature regions, and areas with significant temperature variations, maintaining safe and stable power transmission under various complex operating conditions.
Customer Photos
Exporting to 80+ countries and regions, we bring proven global export experience and trusted wires & cables to customers worldwide.
plant equipment
Geritel Wire is a professional UL wires manufacturer. Our factory is equipped with multiple modern wire and cable production lines, covering key processes such as wire drawing, stranding, insulation extrusion, online testing, and finished product inspection. We can stably produce a variety of UL-certified wire products, including THHN, THWN, XHHW, RHW, RHW-2, USE-2, and RW90. Through large-scale and standardized production, we achieve stable delivery times and flexible supply capabilities while maintaining full compliance with UL standards.
Packaging Information
RW90 cables are typically packaged on plastic reels, small wooden reels, or large wooden reels.
