RA90 Cable

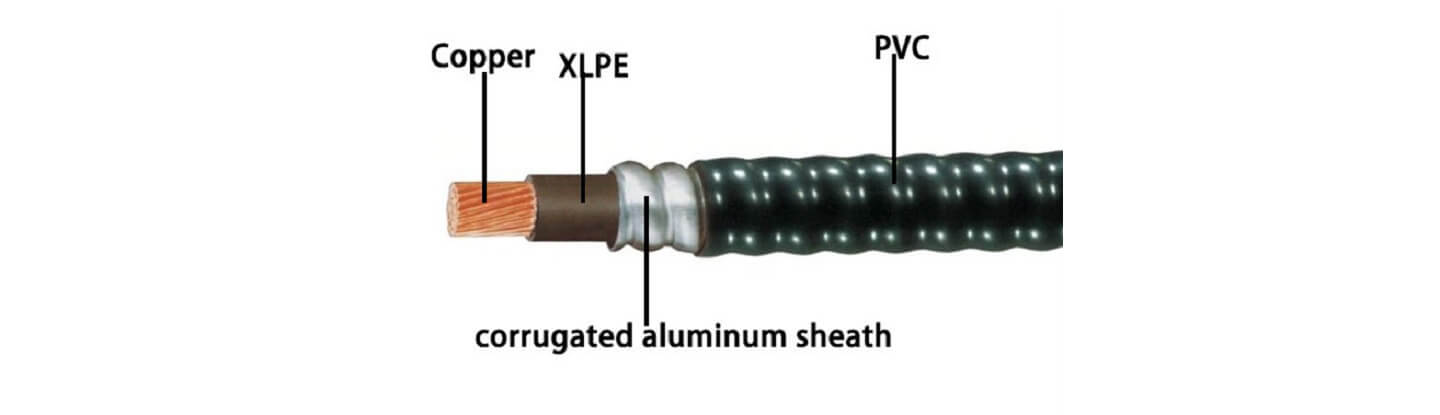

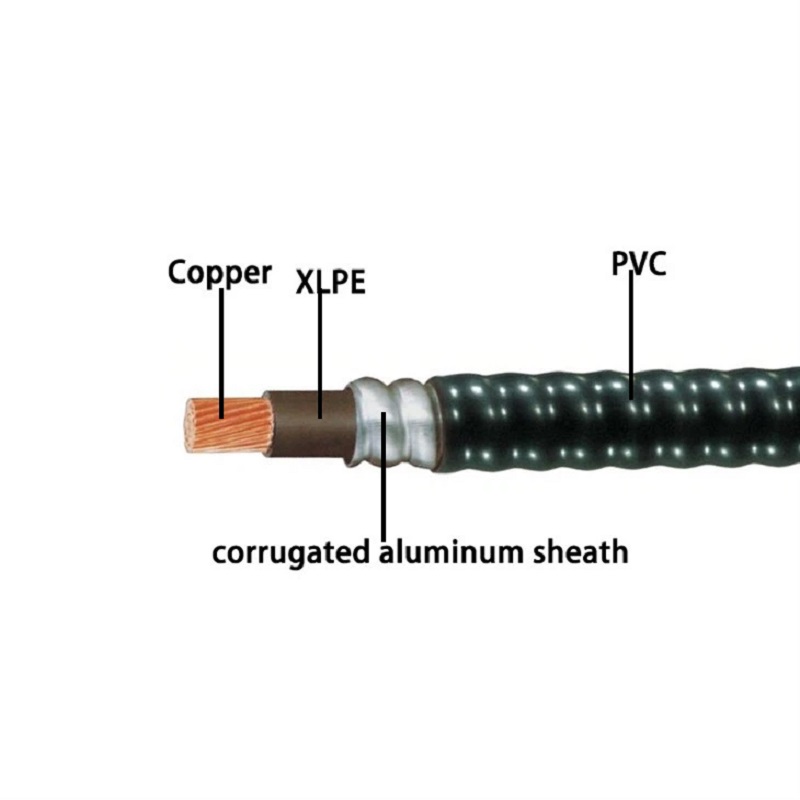

Conductor：
Soft, Annealed Copper
Insulation：
XLPE (Cross-Linked Polyethylene )
Armor：
Vapour Tight, Solid Corrugated Aluminum Sheath
Outer Jacket：
Polyvinyl Chloride (PVC)
Standard：
CSA FT4 & AG14 ; CSA C22.2 No.123-96
Description
Download
Conductor
Stranded Annealed Copper Conductors
Insulation and Sheath
XLPE Insulated & PVC Sheath
Armor
Vapour Tight, Solid Corrugated Aluminum Sheath
Temperature Rating
–40 °C ～ +90 °C
RA90 Cable

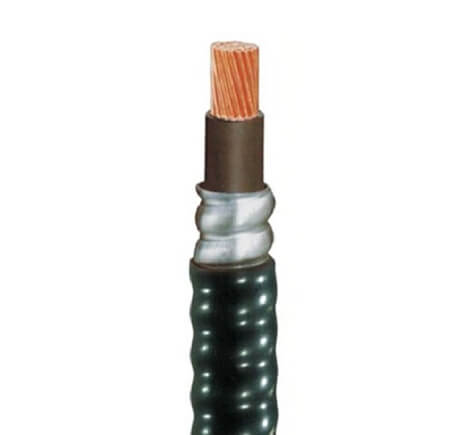

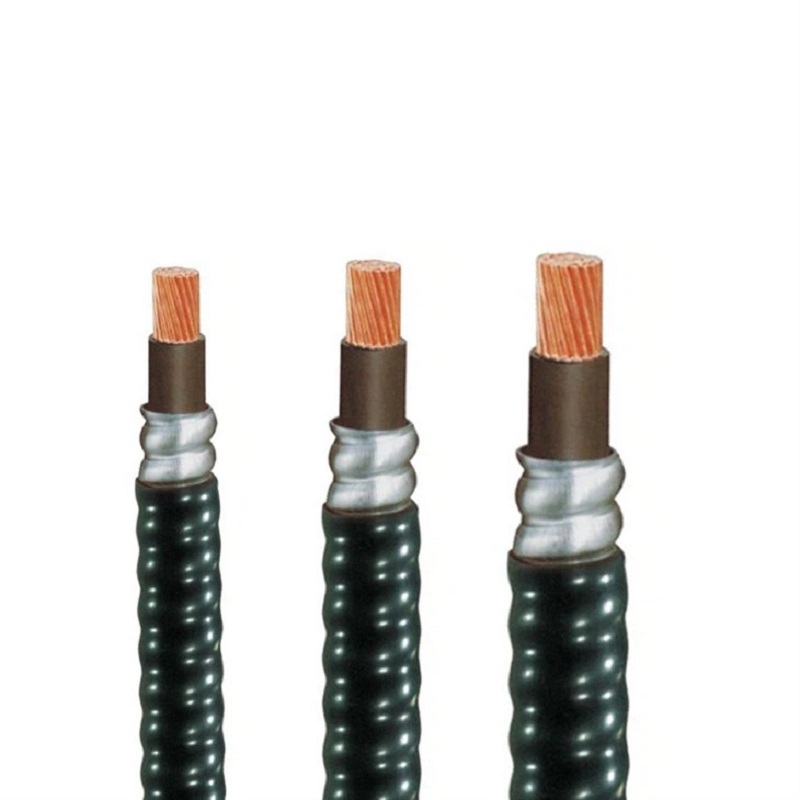

RA90 cable is an armored XLPE insulated power cable with an operating temperature range of -40°C to 90°C, excellent mechanical protection, and resistance to moisture and aging. It is widely used in safe and reliable power distribution scenarios in industrial plants, outdoor power installations, and hazardous areas.
RA90 Cable
RA90 cable is cUL certified and suitable for industrial, commercial, and outdoor power cabling environments.

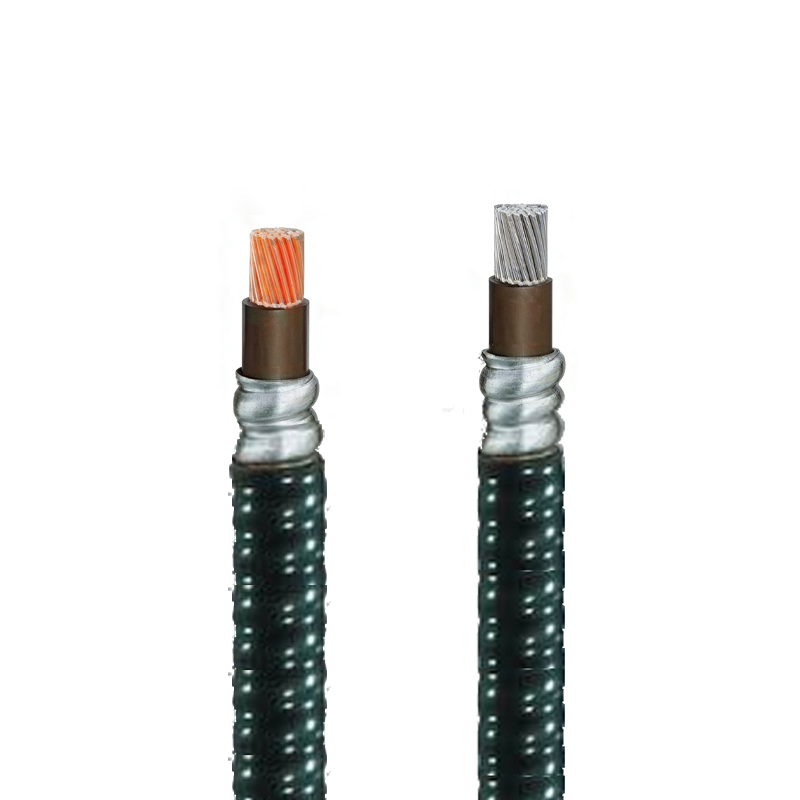

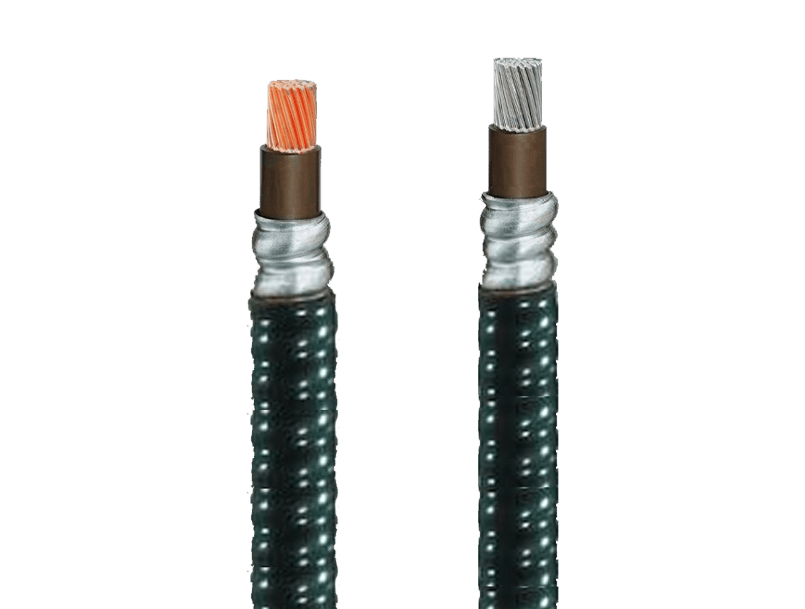

Conductors : Bare Copper / Aluminum
Insulated & Sheath：XLPE insulation & PVC Sheath
Standards : CSA C22.2 No.123-96
Armour: Interlocked Aluminum Armor (AIA)
Temperature range : –40 °C ～ +90 °C
Advantages
RA90 cable uses copper conductors with excellent conductivity. The conductor's long-term operating temperature can reach 90°C, and its short-circuit resistance can reach 250°C/5 seconds. Its XLPE insulation layer has excellent heat, moisture, and aging resistance, while the aluminum sheath armor provides superior mechanical protection and corrosion resistance. The outer sheath is made of flame-retardant, UV-resistant PVC material, ensuring long-term reliability in underground, conduit, or outdoor installations.
| AWG Size | Approximate Diameter | Minimum Bending Radius | Net Weight | |||
| in. | mm. | in. | mm. | LB/MFT | KG/KM | |
| 1/0 (19) | 0.75 | 18.9 | 8 | 170 | 496 | 737 |
| 3/0 (19) | 0.9 | 22.9 | 9 | 210 | 744 | 1107 |
| 4/0 (19) | 0.93 | 23.7 | 9 | 215 | 887 | 1320 |
| 250 (37) | 1.06 | 26.9 | 10 | 254 | 1045 | 1555 |
| 350 (37) | 1.14 | 28.9 | 10 | 260 | 1380 | 2052 |
| 500 (37) | 1.31 | 33.3 | 12 | 305 | 1944 | 2892 |
| 600 (61) | 1.48 | 37.6 | 14 | 356 | 2330 | 3467 |
| 750 (61) | 1.64 | 41.7 | 15 | 381 | 2885 | 4293 |
| 1000 (61) | 1.78 | 45.2 | 17 | 432 | 3725 | 5543 |
Certification
RA90 cables are cUL certified. RA90 cables comply with CSA C22.2 No. 38 (thermosetting insulated cables) and CSA C22.2 No. 51 (armored cables) standards and can be safely installed according to the Canadian Electrical Code (CSA C22.1). They are suitable for both wet and dry environments.
Flame Retardancy
90 °C Rated
Moisture-Resistant
cUL Certificated
APPLICATIONS
RA90 power cables are widely used in industrial plant power distribution, electrical facilities, tunnel projects, outdoor power laying, and wiring in hazardous areas. They offer superior electrical performance, environmental adaptability, and mechanical protection, making them a reliable and safe industrial and commercial power cable solution.
Industrial Plants
RA90 cables are suitable for main power distribution and equipment power supply lines in industrial plants. Their armored structure can withstand mechanical shock and vibration, stable power supply over long periods and reducing downtime risks.
Outdoor Power
In outdoor environments, RA90 cables, with their UV resistance and moisture resistance, can be safely laid on the ground, in conduits, or overhead lines, achieving long-term reliable power transmission.
Tunnels
In tunnels or subway facilities, RA90 cables can withstand high humidity, high temperatures, and mechanical compression, ensuring continuous operation of lighting, communication, and power systems.
Substations
RA90 cables can be used in power plants and substations for main power distribution and equipment connections. Their armored design enhances abrasion resistance and shock resistance, ensuring stable power system operation.
Customer Photos
Exporting to 80+ countries and regions, we bring proven global export experience and trusted wires & cables to customers worldwide.
plant equipment
Geritel Wire is a professional cUL wire manufacturer. Our wires and cables also cover building wiring, industrial control cables, flexible cables, rubber cables, silicone cables, solar cables, and other types of cables, widely used in various application scenarios such as residential, commercial, industrial, and new energy.
Packaging Information
RA90 cables are typically packaged in three ways: coiled, small wooden reel, and large wooden reel.
Coiled
Small Wooden Reel
Large Wooden Reel
