NMWU Cable
Conductor ：
Annealed, soft copper with compressed or compact stranding
Insulation：
PVC
Rated Voltage：
300V
Standard：
CSA FT1 ; CSA C22.2 No. 48
Temperature range：
60℃
Description
Download

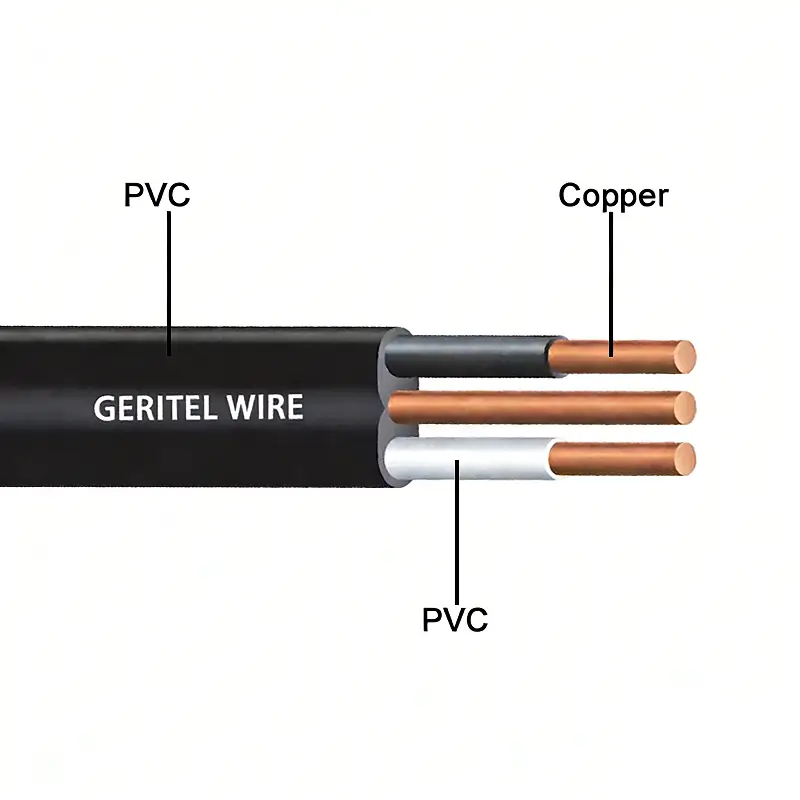

Conductor
Annealed, soft copper with compressed or compact stranding
Insulation and Sheath
PVC
No. of Conductor
2 cores / 3 cores
Temperature Rating
60℃

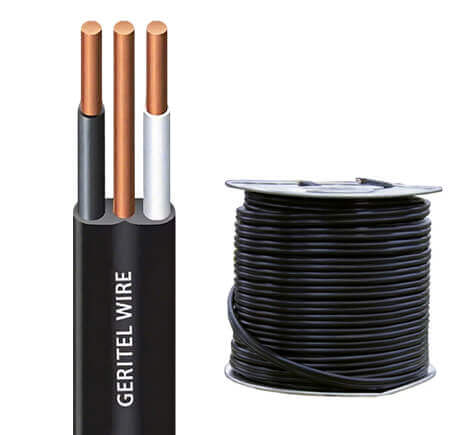

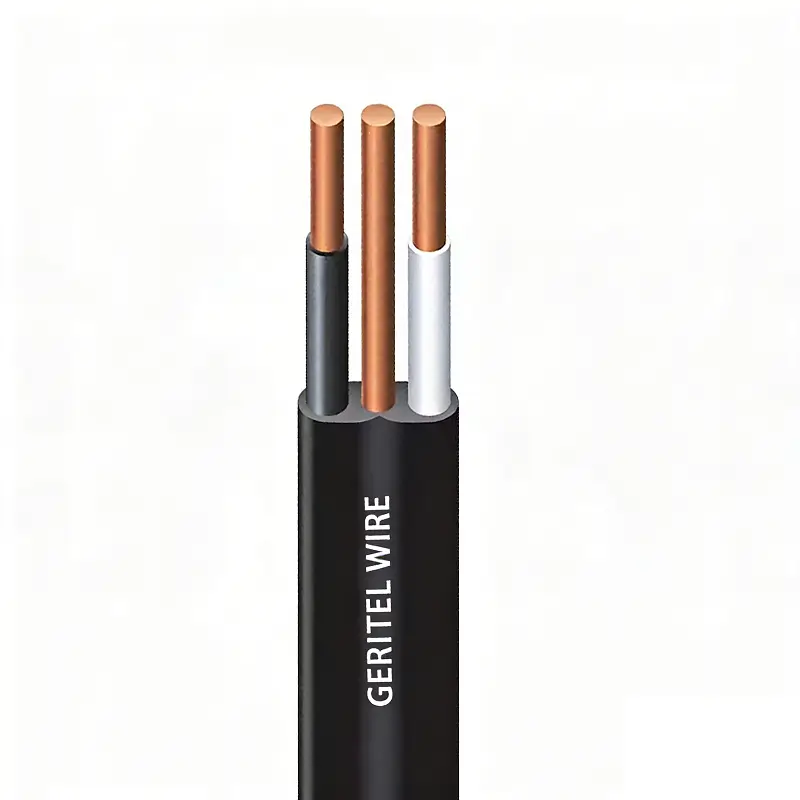

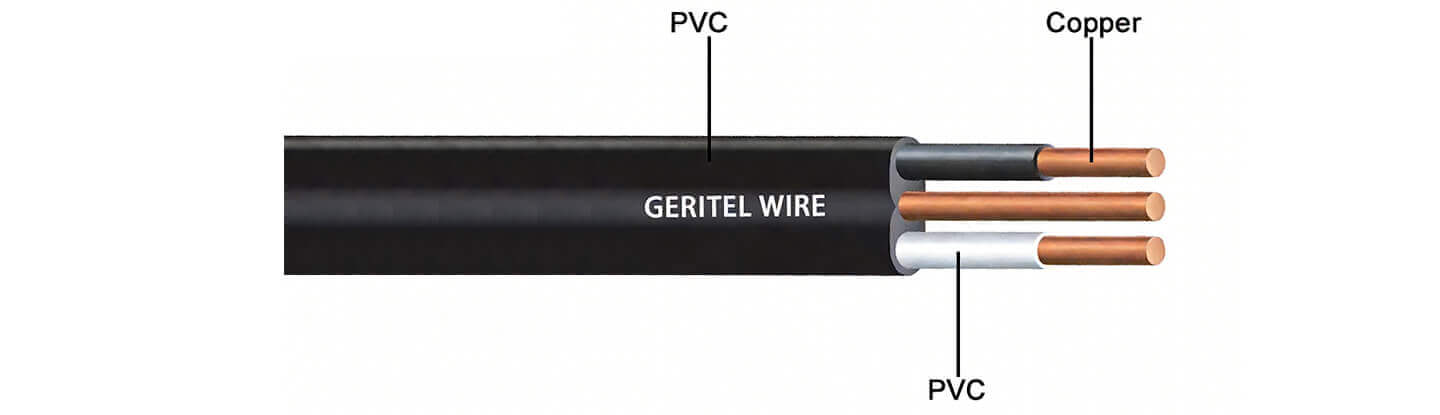

NMWU wire
NMWU90 wire is a solid copper cable conforming to Canadian standards. It features annealed soft copper conductors and PVC insulation and sheath, providing moisture and sun protection.

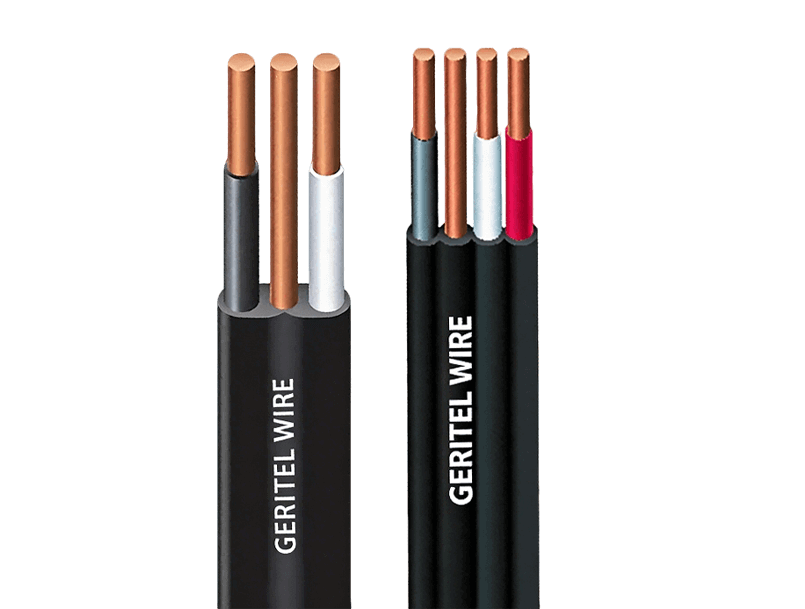

NMWU cable
NMWU cable is suitable for safe power supply in underground direct burial and outdoor humid environments, meets CSA C22.2 No. 48 and FT1 flame retardant requirements, and is suitable for residential and light commercial wiring.
Conductors: Annealed, soft copper with compressed or compact stranding
Rated Voltage Uo/U (Um) : 300V
Insulated : PVC
Standards : CSA FT1 ; CSA C22.2 No. 48
Temperature range : 60℃
Advantages
NMWU cables utilize annealed soft copper conductors (available in compressed or compact stranded) to provide stable electrical performance; the PVC insulation and sheath materials offer excellent resistance to moisture, rain, sunlight, and general outdoor conditions.
| No. of Conductors | AWG Size | Insulation Thickness | Jacket Thickness | Approximate Diameter | Net Weight | |||||
| Cond. | Bond Wire | in. | mm. | in. | mm. | in. | mm. | LB/MFT | KG/KM | |
| 2 | 14(1) | 14(1) | 0.06 | 1.52 | 0.03 | 0.76 | 0.25x0.50 | 6.3x12.7 | 95 | 142 |
| 2 | 12(1) | 14(1) | 0.06 | 1.52 | 0.03 | 0.76 | 0.27x0.53 | 6.8x13.6 | 117 | 173 |
| 2 | 10(1) | 12(1) | 0.06 | 1.52 | 0.03 | 0.76 | 0.29x0.59 | 7.3x15.1 | 157 | 234 |
| 2 | 8(7) | 10 (1) | 0.075 | 1.91 | 0.045 | 1.14 | 0.39x0.79 | 9.9x20.0 | 270 | 402 |
| 2 | 6(7) | 8 (7) | 0.09 | 2.29 | 0.045 | 1.14 | 0.46x0.92 | 11.6x23.5 | 379 | 565 |
| 3 | 14(1) | 14(1) | 0.06 | 1.52 | 0.03 | 0.76 | 0.47 | 11.9 | 122 | 181 |
| 3 | 12(1) | 14(1) | 0.06 | 1.52 | 0.03 | 0.76 | 0.5 | 12.8 | 152 | 227 |
| 3 | 10(1) | 12(1) | 0.06 | 1.52 | 0.03 | 0.76 | 0.55 | 13.9 | 205 | 306 |
| 3 | 8(7) | 10 (1) | 0.075 | 1.91 | 0.045 | 1.14 | 0.73 | 18.6 | 351 | 523 |
| 3 | 6(7) | 10 (1) | 0.09 | 2.29 | 0.045 | 1.14 | 0.88 | 22.3 | 505 | 752 |
| 3 | 2(7) | 8(7) | 0.09 | 2.29 | 0.08 | 2.03 | 1.17 | 29.8 | 1069 | 1591 |
Certification

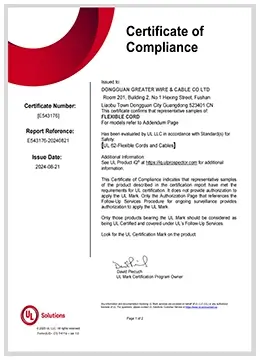

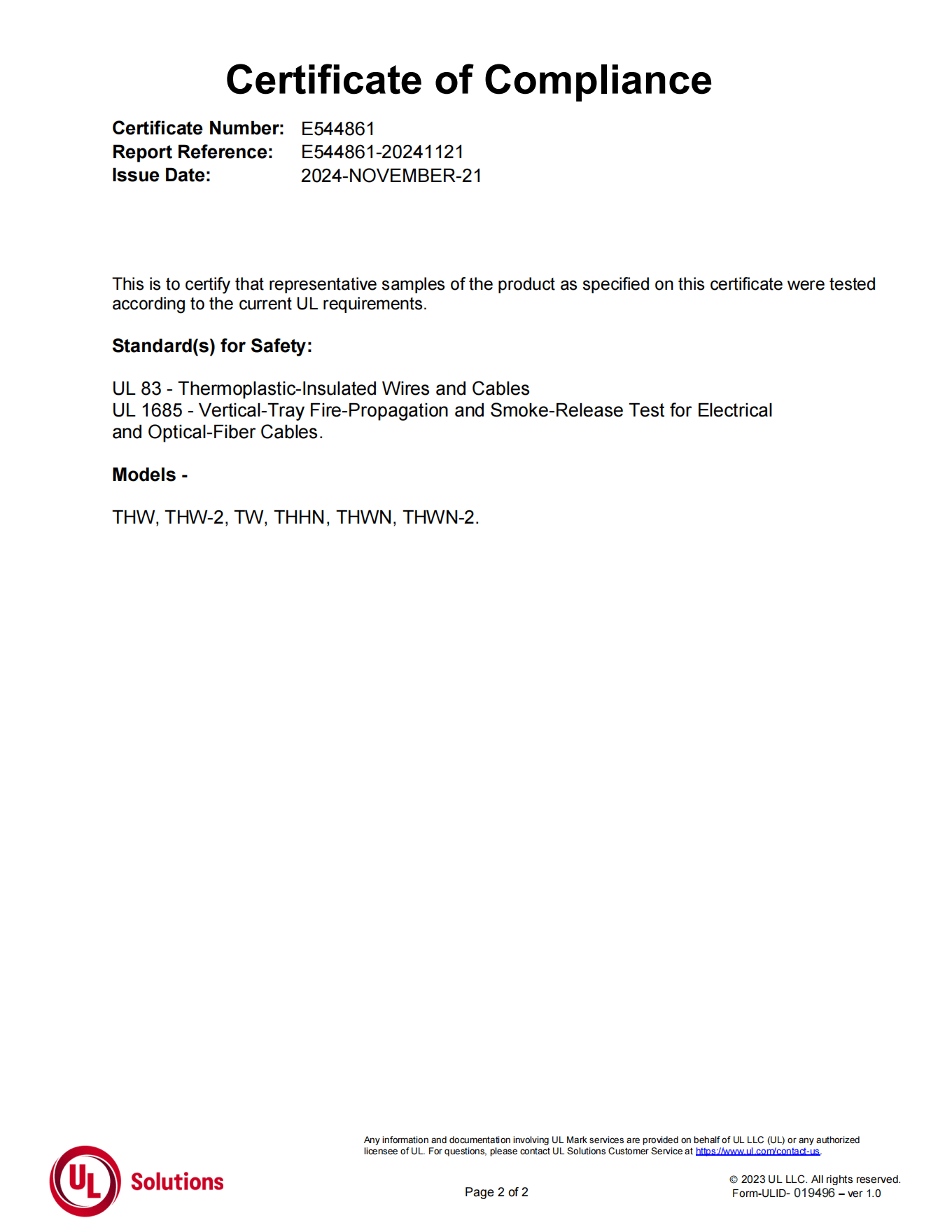

NNMWU cables have been UL certified. The CSA FT1 flame retardancy test complies with CSA C22.2 No. 48, verifying that they meet the requirements for building and outdoor cabling in Canada in terms of electrical safety, flame retardancy, and structural reliability.
Flexibility
Conductivity
Moisture Resistant
CSA FT1 ; CSA C22.2 No. 48
APPLICATIONS
NMWU90 Wire is primarily used for power cabling in underground, outdoor, or damp environments. It can be used as a direct-buried power supply line, lighting wiring in yards and garages, and outdoor power connections in agriculture or auxiliary buildings. It is suitable for residential and light commercial projects requiring moisture protection, sun protection, and long-term stable power supply.
Residential Detached Garages
NMWU wire is commonly used for underground power lines from the main residential distribution box to detached or backyard garages. This cable allows for direct burial, is suitable for damp soil environments, and provides a stable power supply for garage lighting, outlets, and power door systems.
Backyard Sheds
In residential or farm projects, NMWU wire is used to provide underground power to sheds, garden tool sheds, and storage rooms. Its copper conductor structure ensures stable voltage and is suitable for short to medium-distance underground branch circuits.

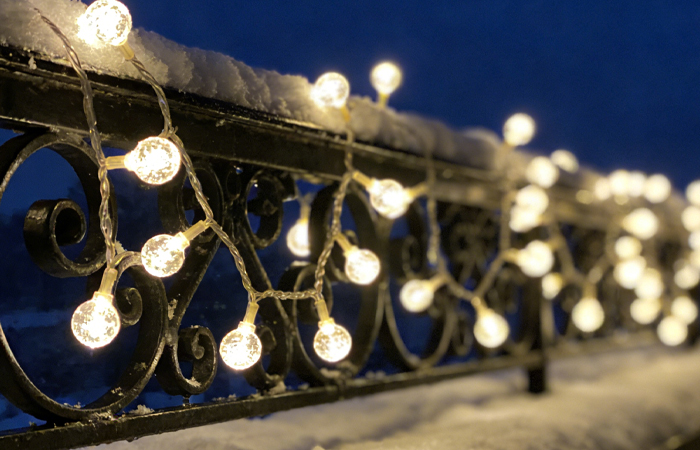

Landscape Lighting
NMWU wire is widely used for underground wiring in patio lights, lawn lights, and decorative lighting systems. The cable has good moisture and weather resistance, allowing for long-term underground use and reducing maintenance needs.

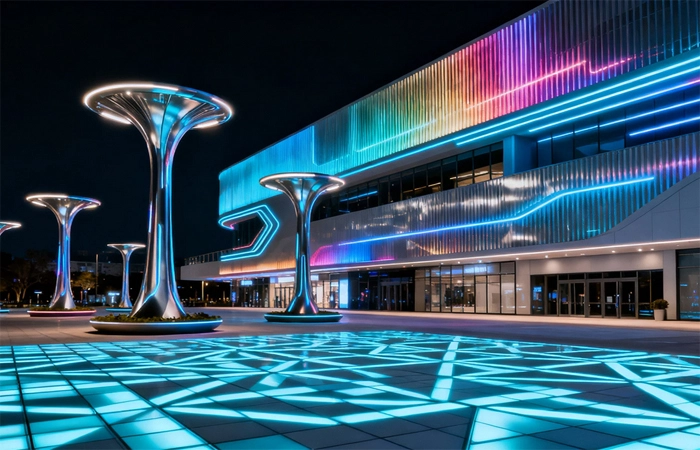

Outdoor Waterproofing
In patios, barbecue areas, or outdoor activity areas, NMWU wire is often used to connect underground power sources to waterproof outlets or outdoor distribution boxes, providing safe power to outdoor appliances and temporary equipment.
Customer Photos
Exporting to 80+ countries and regions, we bring proven global export experience and trusted wires & cables to customers worldwide.

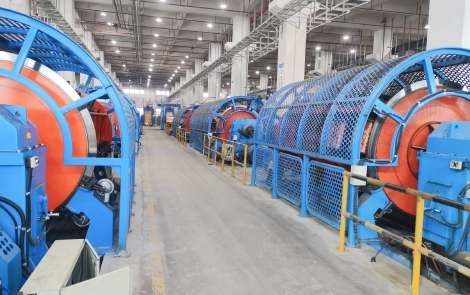

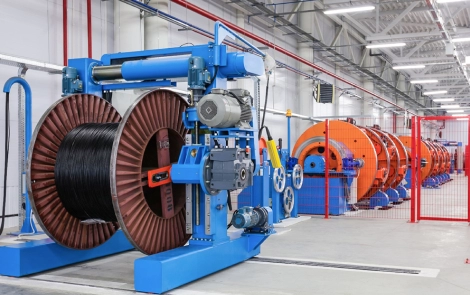

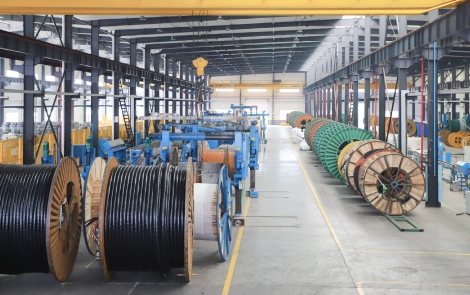

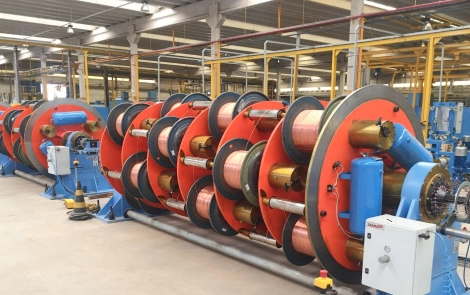

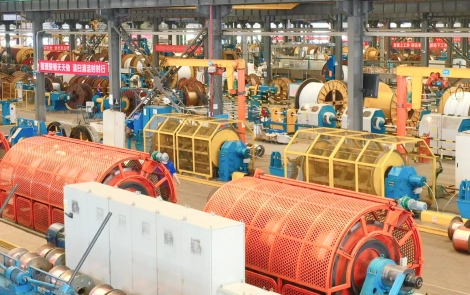

plant equipment
Geritel Wire is a professional cUL wire manufacturer. Our cables undergo rigorous electrical performance, temperature resistance, pressure resistance, and insulation testing before leaving the factory. Greater Wire Manufacturer utilizes advanced testing equipment, and the conductor resistance, insulation thickness, and mechanical properties all meet or exceed standards. Our high-quality control system is key to earning the long-term trust of our customers.
Packaging Information
NMWU cables are packaged in three ways: coiled, on a plastic reel, or tin-plated steel reel.

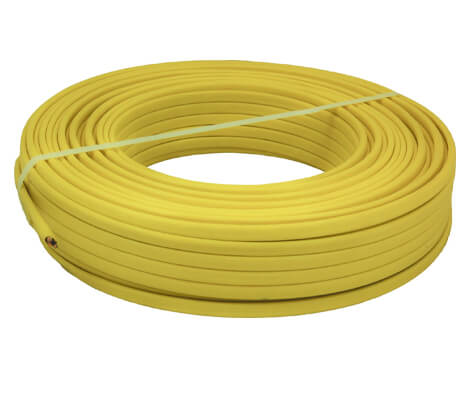

Rolled Packaging

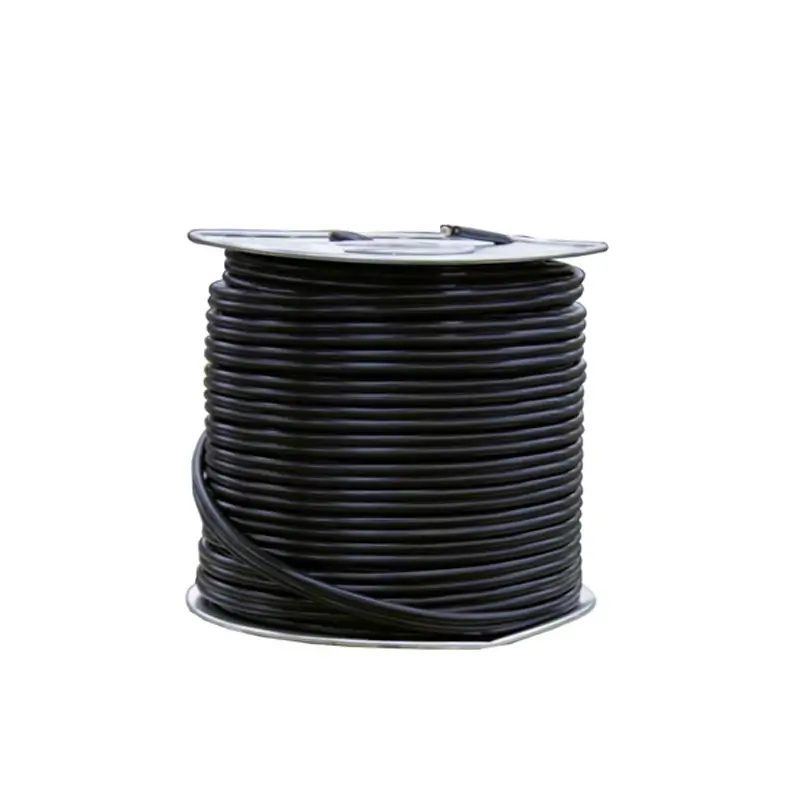

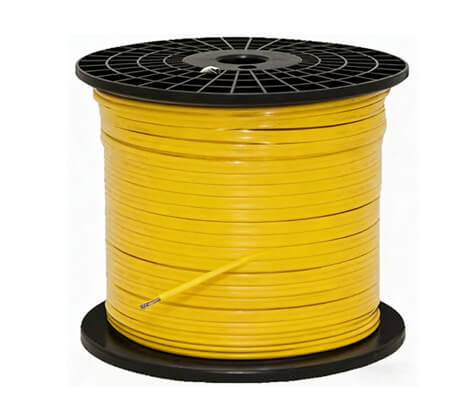

Plastic Reel

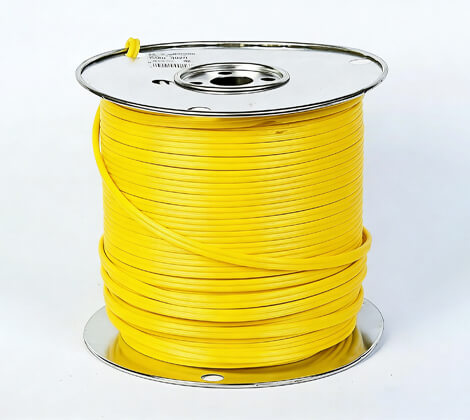

Tin-Plated Steel Reel
Global Certification
Geritel Wire Manufacturer holds 50+ international certifications, including UL, cUL, SAA, TUV, CE, VDE, ISO, and others. Our cables meet the highest global quality and safety standards.

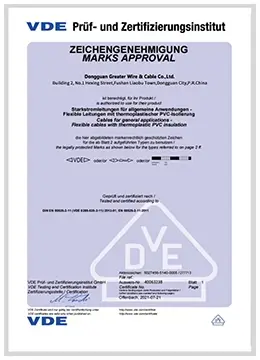

VDE
UL
SAA
TUV
ISO
What are people saying about us
Our customers have consistently shared positive feedback about our cables and services. Here’s what they say about US:

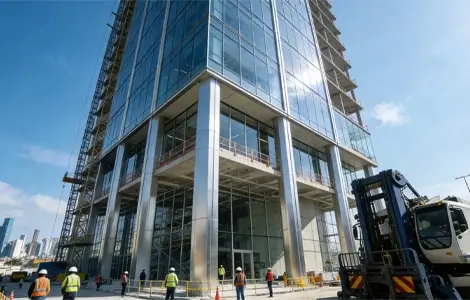

Luis Fernando Pérez - Venezuela - Office Building Project
