NMD90 Stranded Copper Electrical Wire
Conductor ：
Annealed copper
Insulation：
PVC
Outer sheath：
PVC
Rated Voltage：
300V
Standard：
ASTM；CSA C22.2 No. 48
Dry Locations Temperature Rating：
2C+GND:-25℃ ~90℃ ; 3C+GND:-10℃ ~90℃
Description
Download
Conductor
Annealed Copper Conductor
Insulation and Sheath
PVC Insulation & PVC Sheath
No. of Conductor
2C+GND & 3C+GND
Temperature Rating
2C+GND:-25℃ ~90℃
3C+GND:-10℃ ~90℃

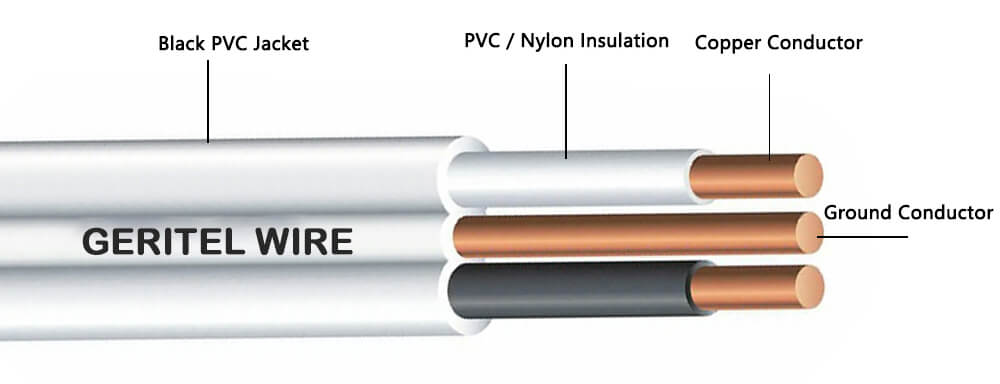

NMD90 wire
NMD90 copper cable is a non-metallic sheathed copper conductor cable used for electrical wiring in residential and light commercial buildings. It has a rated voltage of 300V and a maximum allowable conductor operating temperature of 90°C.

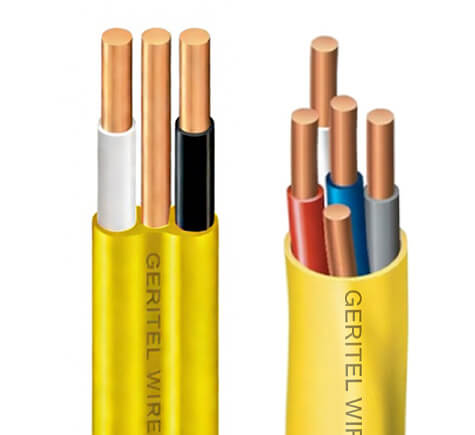

NMD90 wire
NMD90 cables feature PVC insulation and a low-friction outer sheath, making them suitable for surface or concealed installation. It is a highly reliable standard product for residential branch circuit wiring.
Conductors: Annealed copper
Rated Voltage Uo/U (Um) : 300V
Insulated and Sheath: PVC & PVC
Standards : ASTM；CSA C22.2 No. 48
Suitable for dry location
Temperature range :
2C+GND:-25℃ ~90℃
3C+GND:-10℃ ~90℃
Advantages of NMD90 wire
NMD90 cable is a highly reliable residential wiring solution that significantly reduces conduit resistance and improves installation efficiency. Its standardized color-coding design facilitates on-site identification and management, and both the conductor and sheath materials have passed multiple UL standard tests, ensuring the cable's safety, environmental adaptability, and structural stability during installation and long-term use.
| No. of Conductors | AWG Size | Insulation Thickness | Approximate Diameter | Net Weight | ||||
| Cond. | Bond Wire | in. | mm. | in. | mm. | LB/MFT | KG/KM | |
| 2 CONDUCTOR | ||||||||
| 2 | 14 | 14(1) | 0.03 | 0.76 | 0.19x 38 | 4.8x9.7 | 65 | 96 |
| 2 | 12 | 14(1) | 0.03 | 0.76 | 0.21 x41 | 5.3x10.4 | 83 | 123 |
| 2 | 10 | 12(1) | 0.03 | 0.76 | 0.23 x47 | 5.8x11.9 | 120 | 178 |
| 2 | 8 | 10 (1) | 1.14 | 0.045 | 8.4 x17.0 | 0.33 x0.67 | 212 | 315 |
| 2 | 6 | 8 (7) | 1.14 | 0.045 | 9.6 x20.5 | 0.38x0.81 | 335 | 500 |
| 2 | 4 | 8 (7) | 1.14 | 0.045 | 19.5 | 0.77 | 435 | 650 |
| 2 | 3 | 6 (7) | 1.14 | 0.045 | 21.9 | 0.86 | 575 | 860 |
| 2 | 2 | 6 (7) | 1.14 | 0.045 | 23.5 | 0.93 | 675 | 1010 |
| 3 CONDUCTOR | ||||||||
| 3 | 14 | 14(1) | 0.03 | 0.76 | 0.34 | 8.7 | 83 | 123 |
| 3 | 12 | 14(1) | 0.03 | 0.76 | 0.36 | 9.1 | 104 | 155 |
| 3 | 10 | 12(1) | 0.03 | 0.76 | 0.4 | 10.2 | 150 | 223 |
| 3 | 8 | 10(1) | 0.035 | 0.89 | 0.61 | 15.5 | 275 | 418 |
| 3 | 6 | 8(7) | 0.045 | 1.14 | 0.9 | 22.8 | 400 | 600 |
| 3 | 3 | 6(7) | 0.045 | 1.14 | 0.92 | 23.4 | 775 | 1150 |
| 3 | 2 | 6(7) | 0.045 | 1.14 | 0.99 | 25 | 920 | 1370 |
Certification
NMD90 cables are CUL certified to ASTM and CSA C22.2 No. 48 standards, and their conductor materials, structural design, and overall performance meet the relevant standards for North American electrical products.
Flexibility
Temperature stability
Anti-aging properties
cUL Certified
APPLICATIONS
NMD90 cable is a product for residential and light commercial interior electrical wiring, particularly suitable for fixed wiring installations from distribution panels to outlets, lighting, or control circuits.
Lighting Systems
In areas such as living rooms, bedrooms, corridors, and staircases, NMD90 cable is commonly used to connect distribution boxes, switches, and light fixtures. The cable's flexibility makes it suitable for installation in ceilings or within walls.
Residential Socket
NMD90 cable is widely used for branch circuit power supply to ordinary outlets in residential buildings. It is routed from the distribution box and embedded in walls or floor structures, providing stable power to televisions, computers, charging devices, and small appliances.
Schools
Suitable for lighting and outlet branch circuit systems in dry indoor environments such as classrooms, offices, and meeting rooms, meeting the needs of stable power supply and standardized wiring, while also considering construction efficiency and safety.
Distribution Boxes
NMD90 cable is often used to connect from the residential distribution box to the end circuits of various functional areas. The clear wiring and labeling facilitate the sectional management and future maintenance of the electrical system.
Customer Photos
Exporting to 80+ countries and regions, we bring proven global export experience and trusted wires & cables to customers worldwide.
plant equipment
Geritel Wire is a professional cUL wire manufacturer. Our cables undergo rigorous electrical performance, temperature resistance, pressure resistance, and insulation testing before leaving the factory. Greater Wire Manufacturer utilizes advanced testing equipment, and the conductor resistance, insulation thickness, and mechanical properties all meet or exceed standards. Our high-quality control system is key to earning the long-term trust of our customers.
Packaging Information
NMD90 cables are packaged in three ways: coiled, on a plastic reel, or tin-plated steel reel.
Rolled Packaging
Plastic Reel
Tin-Plated Steel Reel
Global Certification
Geritel Wire Manufacturer holds 50+ international certifications, including UL, cUL, SAA, TUV, CE, VDE, ISO, and others. Our cables meet the highest global quality and safety standards.
VDE
UL
SAA
TUV
ISO
