Green Ground Cable
Conductor：
Compact or compressed stranded bare copper
Insulation：
Flame-retardant (FR) Cross Linked Polyethylene (XLPE) Type RW90
Rated Voltage：
300V
Standard：
CSA FT4 ; CSA C22.2 No. 38 & 230 ; T.C. Approved
Temperature Rating：
90℃
Description
Download
Conductor
Compact or compressed stranded bare copper
Insulation & Sheath
XLPE & PVC
No. of Conductor
Single Core
Temperature Rating
90℃

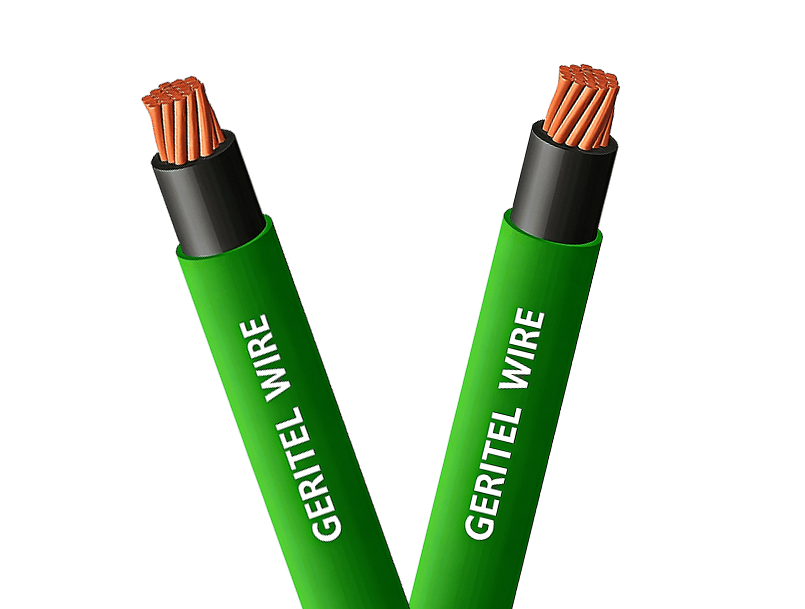

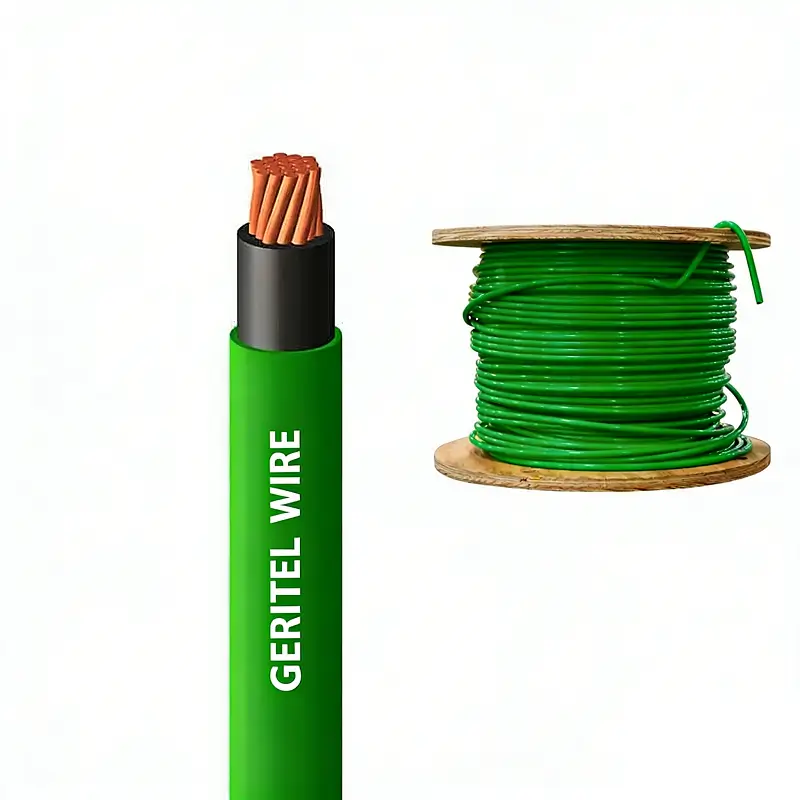

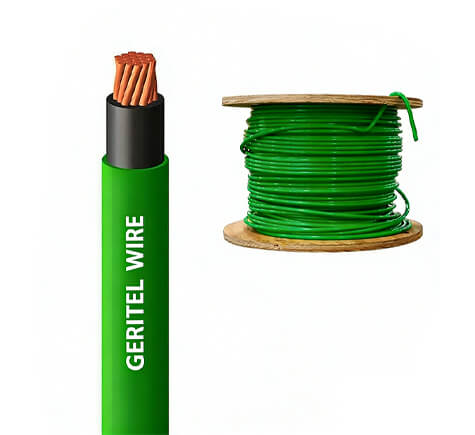

Green Ground Cable
1000V green ground cable is a green grounding cable compliant with North American standards. It features stranded soft copper conductors, cross-linked polyethylene (XLPE) insulation, and a green PVC sheath.

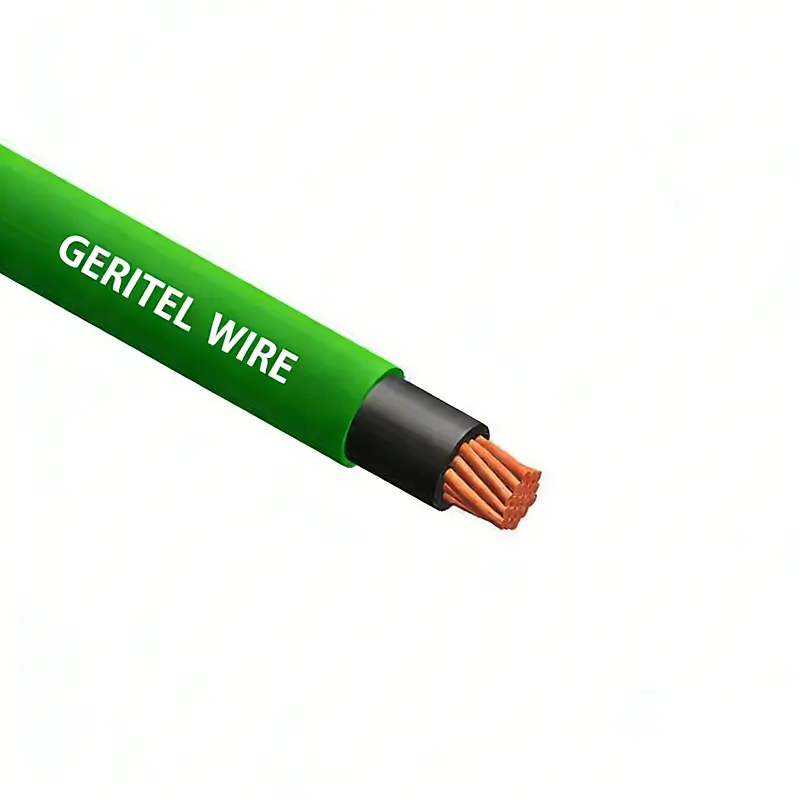

Green Ground Cable
Green ground cable has excellent resistance to ultraviolet radiation, mechanical damage, and low temperatures. It has passed cold bending and impact tests at -40°C, enabling it to adapt to complex climatic conditions.
Conductor：Compact or compressed stranded bare copper
Rated Voltage Uo/U (Um) : 1KV

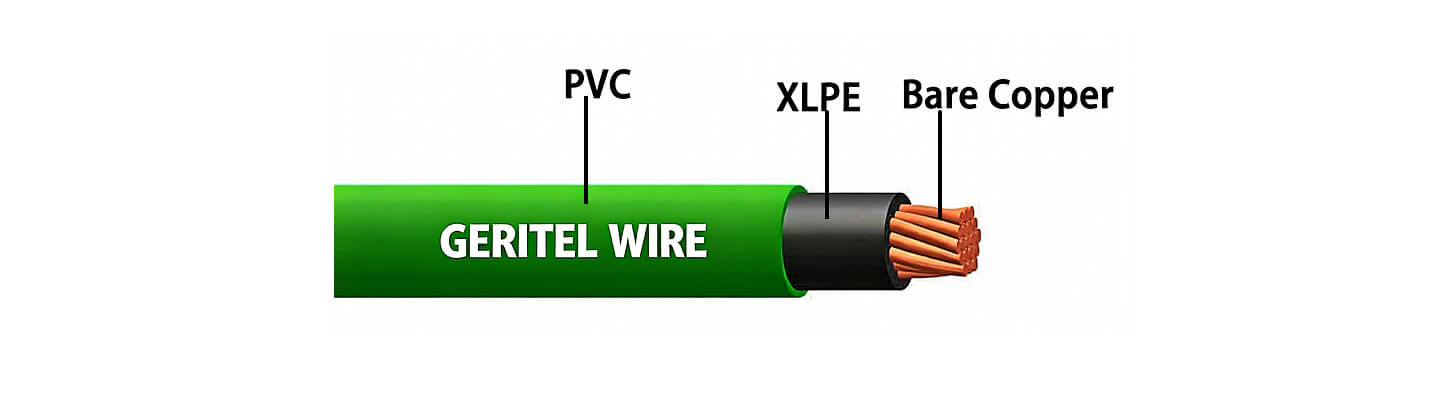

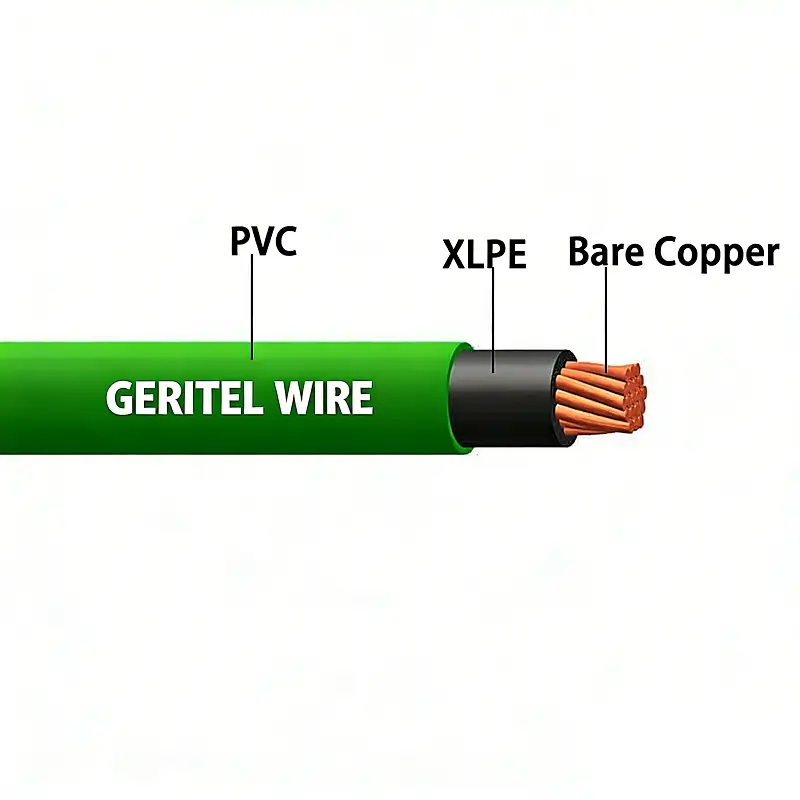

Insulation & Sheath：Flame-retardant (FR) Cross Linked Polyethylene (XLPE) & PVC
Standards : CSA FT4 ; CSA C22.2 No. 38 & 230 ; T.C. Approved
Temperature range ：90℃
Advantages
1000V green ground cable uses stranded soft copper conductors conforming to ASTM B8 standards, providing excellent conductivity and mechanical flexibility. Its insulation layer is made of cross-linked polyethylene (XLPE), which can withstand continuous operation at 90°C for extended periods in both dry and humid environments.
| AWG Size | Insulation Thickness | Approximate Diameter | Net Weight | Minimum Bend Radius | |||
| in. | mm. | in. | mm. | LB/MFT | KG/KM | (in) | |
| 6 (7) | 0.06 | 1.524 | 0.371 | 9.423 | 127 | 189 | 4.5 |
| 4 (7) | 0.06 | 1.524 | 0.42 | 10.668 | 140 | 209 | 4.5 |
| 2 (7) | 0.06 | 1.524 | 0.457 | 11.608 | 273 | 406 | 5.5 |
| 2/0 (19) | 0.08 | 2.032 | 0.638 | 16.205 | 536 | 798 | 7.75 |
| 4/0 (19) | 0.08 | 2.032 | 0.739 | 18.771 | 813 | 1210 | 9 |
Certification
Green ground cable is CSA certified. It meets Canadian requirements for building and industrial grounding applications in terms of electrical safety, flame retardancy, and structural reliability.
Heat resistant
water-resistant
Electrical Conductivity
CSA Approved
APPLICATIONS
1000V green ground cable is primarily used for power grounding, grounding marking, and system protection wiring. It is widely applicable to cable trays, ductwork, air conditioning ceiling ducts, and direct underground installations. Furthermore, it demonstrates good reliability in applications with high safety requirements (such as petrochemical, industrial, and power infrastructure).
Industrial Plants
In manufacturing plants, warehousing centers, and heavy industrial plants, Green Ground Cable is commonly used for protective grounding of distribution cabinets, transformers, and large equipment. Its XLPE insulation and high withstand voltage rating quickly conduct fault current to the ground under high-load operating conditions, improving the overall safety of the electrical system.
Commercial Buildings
Green grounding cable is widely used in the main grounding trunk lines and equipotential bonding systems of commercial buildings such as shopping malls, office buildings, and hotels, ensuring potential balance between the power distribution system, metal pipes, and structural steel reinforcement, complying with CSA and Canadian Electrical Code (CEC) requirements.
Cable Trays
In cable tray, ladder tray, and metal cable duct installations, 1000V green ground cable serves as a continuous grounding conductor, ensuring the grounding continuity of the entire tray system, reducing the risk of induced voltage and electrostatic accumulation, and is particularly suitable for large industrial and commercial projects.

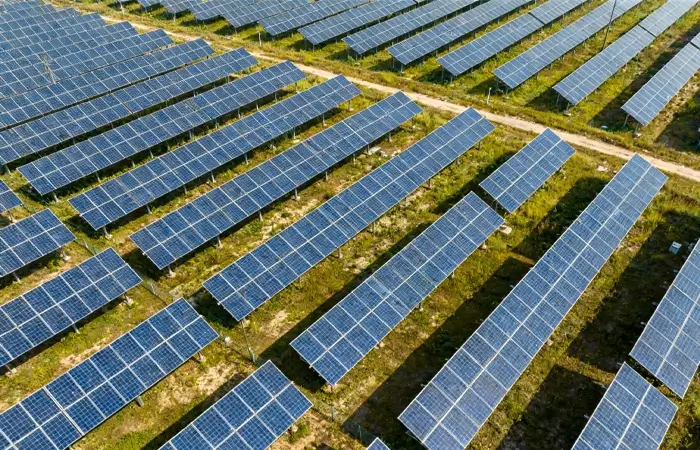

Renewable Energy
In new energy projects such as photovoltaic power plants and wind farms, Ground cable is commonly used in the grounding systems of module supports, inverters, and combiner boxes, ensuring the safety of personnel and equipment in the event of lightning strikes or faults.
Customer Photos
Exporting to 80+ countries and regions, we bring proven global export experience and trusted wires & cables to customers worldwide.
plant equipment
Geritel Wire is a professional UL wire manufacturer. We specialize in producing high-quality UL wire. Our products are designed and manufactured strictly according to UL standards and are certified by international standards such as UL, cUL, and CSA. Our cables meet all safety regulations. Whether for residential, commercial, or industrial projects, our UL wire can meet various voltage and temperature requirements, providing customers with reliable power transmission solutions.
Packaging Information
Ground cable is typically supplied in three packaging forms: coiled, plastic reels, and wooden reels, to meet the needs of different project scales.
Coiled
Plastic Reels

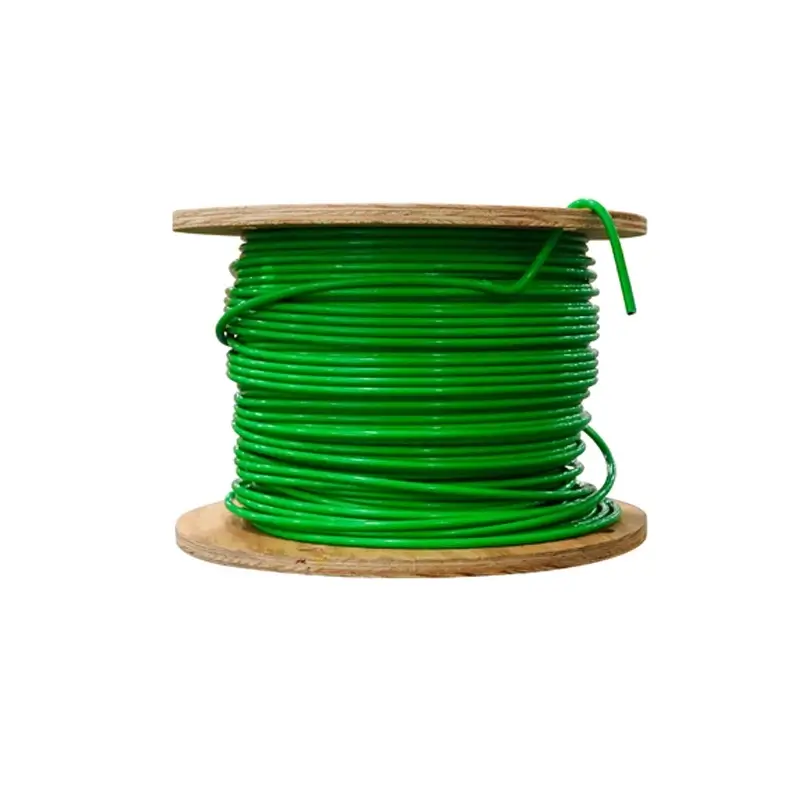

Wooden Reels
