ACWU 90 Cable
Conductor：
Stranded Copper or Aluminum Conductors
Insulation：
XLPE (cross-linked polyethylene)
Armor：
Interlocked Aluminum Armor
Outer Jacket：
PVC, Typically Black
No. of Core：
One or More
Standard：
UL 44, UL 854, and UL 1569 & CSA C22.2 #51
Description
Download
Conductor
Stranded Copper （or Aluminum）Conductors
Insulation and Sheath
XLPE/PVC
Armor
Interlocked Aluminum Armor
Temperature Rating
-25°C to 90°C

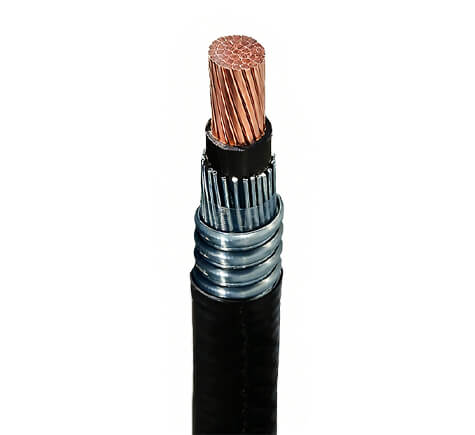

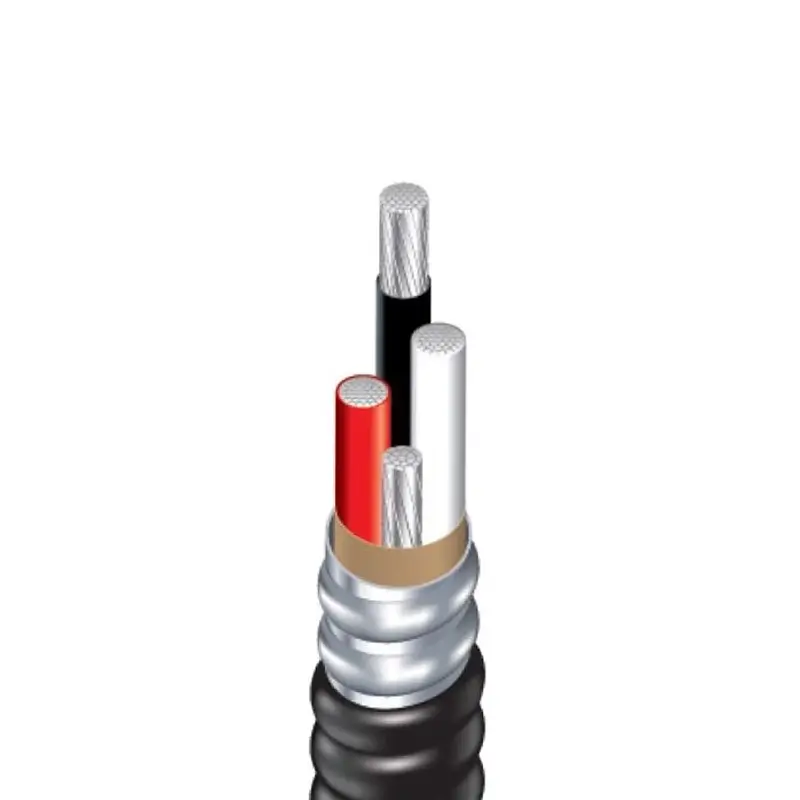

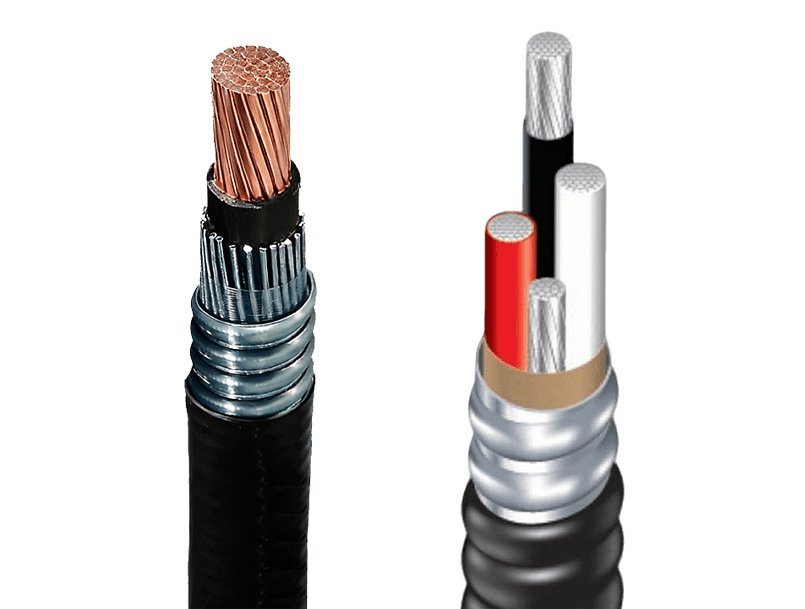

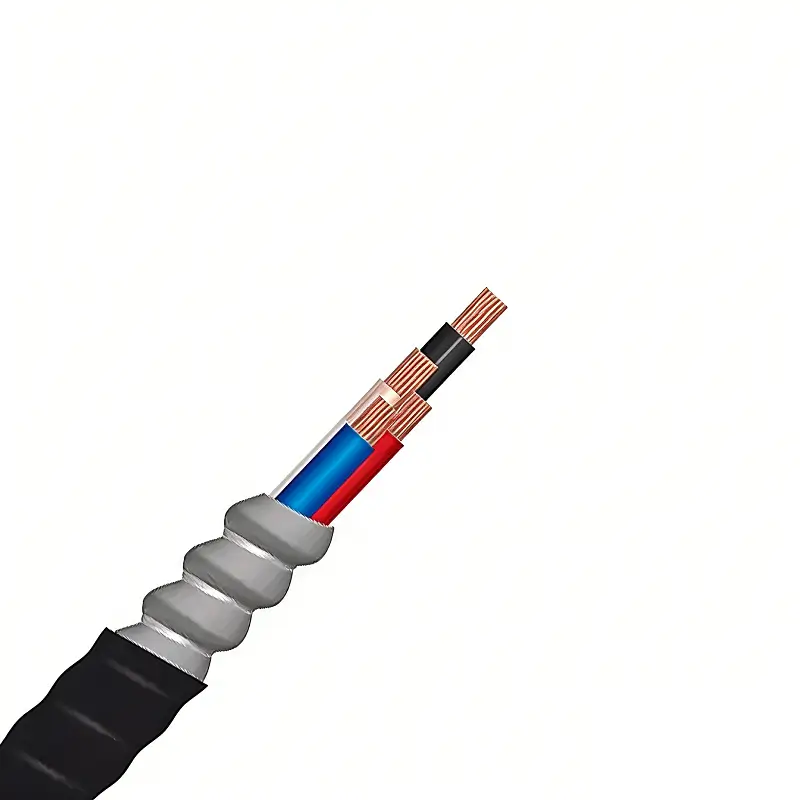

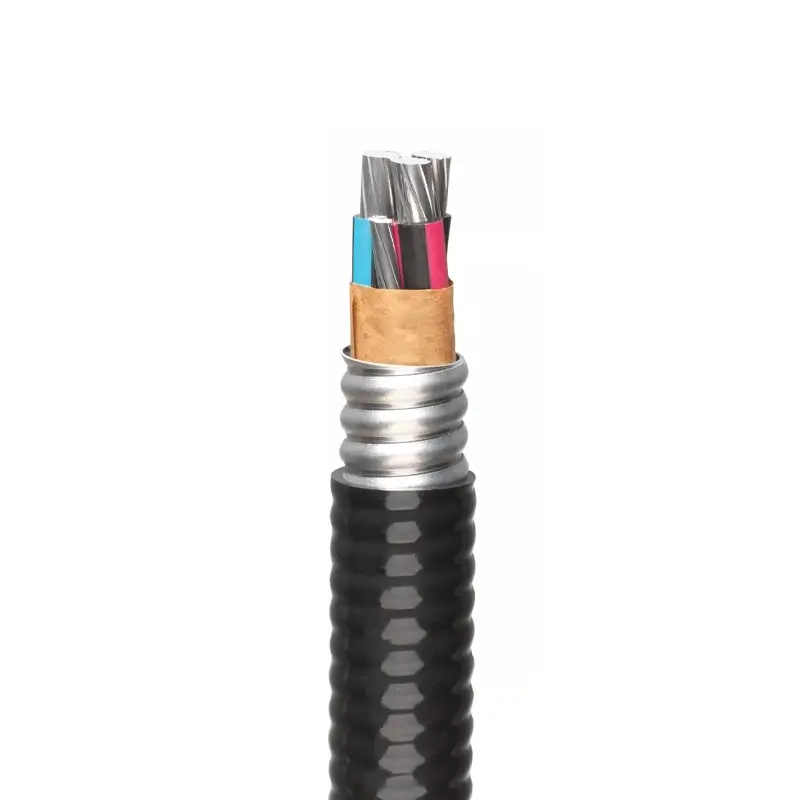

ACWU 90 Cable
ACWU90 cable is a rugged, armored power cable with RW90 XLPE insulation, rated for 90 °C operation in wet or dry environments, suitable for direct burial, underground, and industrial applications while meeting CSA safety and flame-resistance standards.
ACWU 90 Cable
ACWU90 cable is an armored power cable for industrial, commercial, and residential applications, suitable for both wet and dry environments.

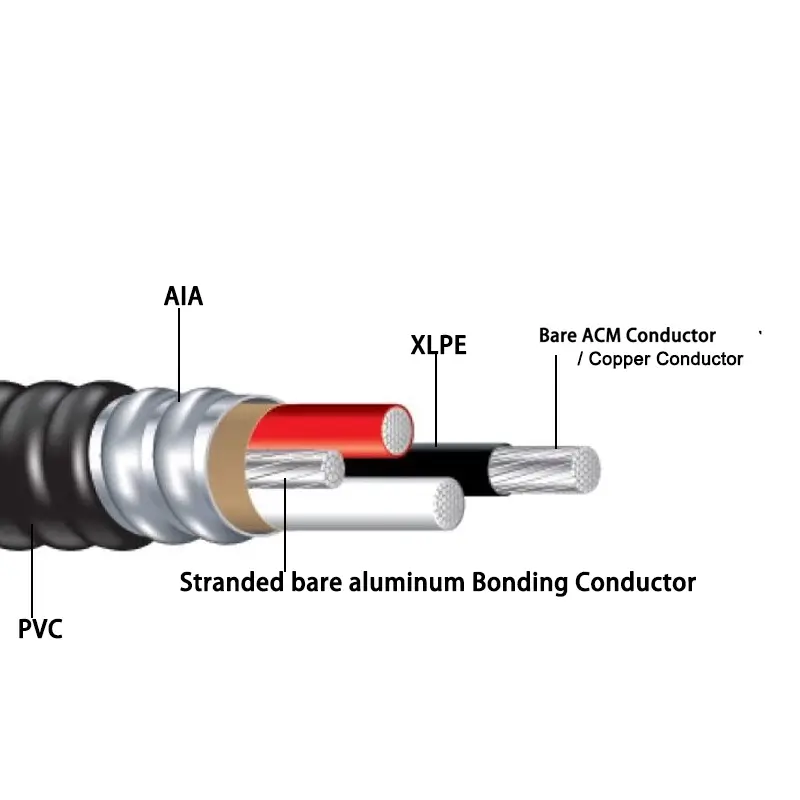

Conductors : Bare Copper / Aluminum
Insulated & Sheath：XLPE insulation & PVC Sheath
Standards : UL 44, UL 854, and UL 1569 & CSA C22.2 #51
Armour: Interlocked Aluminum Armor (AIA)
Temperature range : -25°C to 90°C
Advantages
ACWU90 cables feature stranded copper or aluminum conductors and RW90 grade cross-linked polyethylene (XLPE) insulation, allowing for continuous operation at 90°C. The cable includes interlocked aluminum or galvanized steel armor for mechanical protection, and a PVC outer sheath that is resistant to moisture, sunlight, abrasion, and environmental degradation.
| Size (AWG or Kcmil) |
Strand (no.) |
Insulation Thickness (mils) |
Grounding Conductor (AWG) |
Diameter Over Armour (in.) |
Jacket Thickness (mils) |
Approx. Diameter Overall (in.) |
Approx. Net Weight (lb./1000') |
Ampacity* (30°C ambient) |
| 6 | 7 | 85 | 8 | 0.99 | 50 | 1.09 | 765 | 75 |
| 4 | 7 | 85 | 6 | 1.09 | 50 | 1.19 | 975 | 95 |
| 2 | 7 | 85 | 6 | 1.27 | 50 | 1.37 | 1427 | 130 |
| 1 | 7 | 105 | 6 | 1.41 | 50 | 1.51 | 1718 | 145 |
| 1/0 | 19 | 105 | 6 | 1.51 | 60 | 1.63 | 2044 | 170 |
| 2/0 | 19 | 105 | 6 | 1.61 | 60 | 1.73 | 2432 | 195 |
| 3/0 | 19 | 105 | 4 | 1.71 | 60 | 1.83 | 2843 | 225 |
| 4/0 | 19 | 105 | 4 | 1.85 | 60 | 1.97 | 3358 | 260 |
| 250 | 37 | 120 | 4 | 2.05 | 60 | 2.17 | 4038 | 290 |
| 350 | 37 | 120 | 3 | 2.27 | 75 | 2.42 | 5240 | 350 |
| 500 | 37 | 120 | 2 | 2.53 | 75 | 2.68 | 7050 | 430 |
| 750 | 61 | 135 | 1 | 3.01 | 85 | 3.18 | 10093 | 535 |

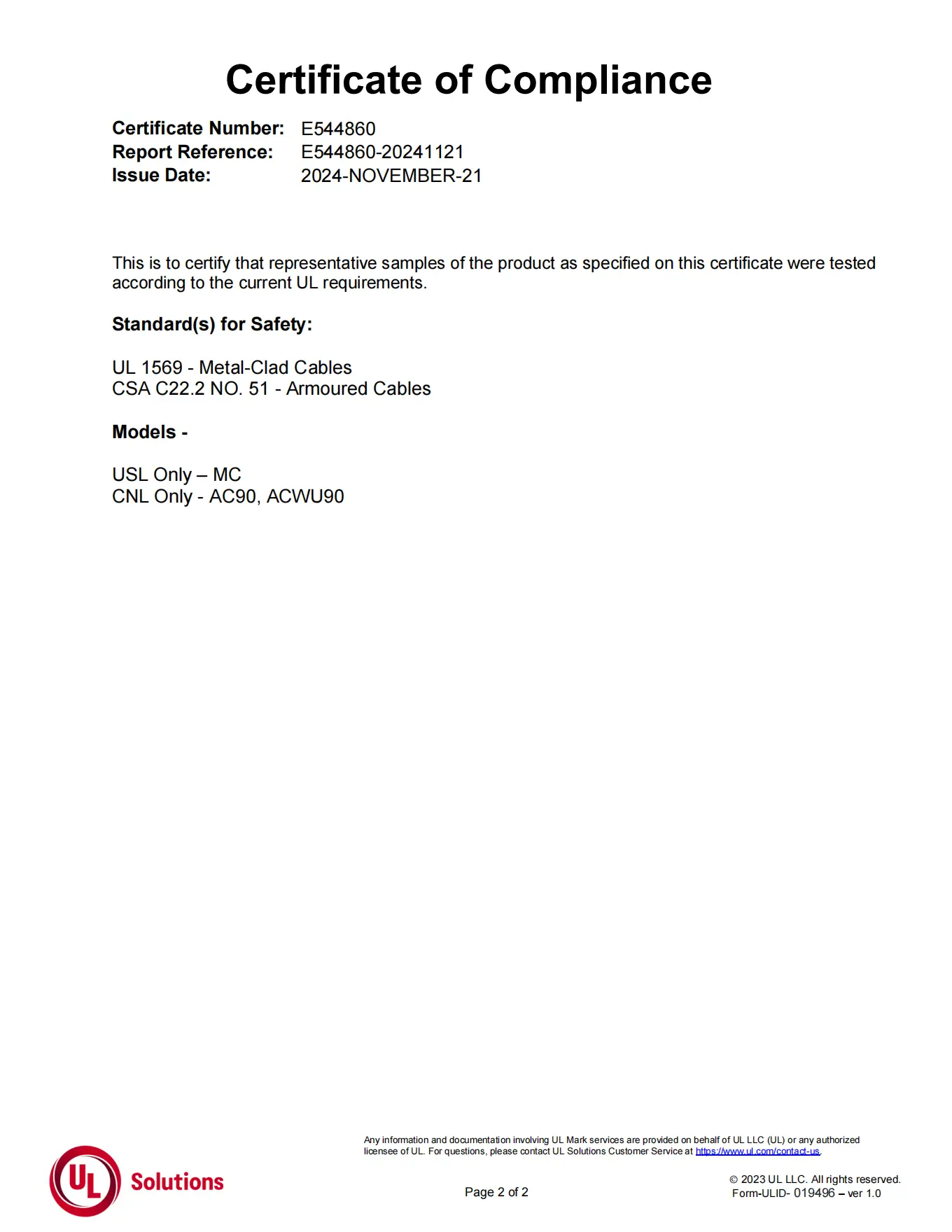

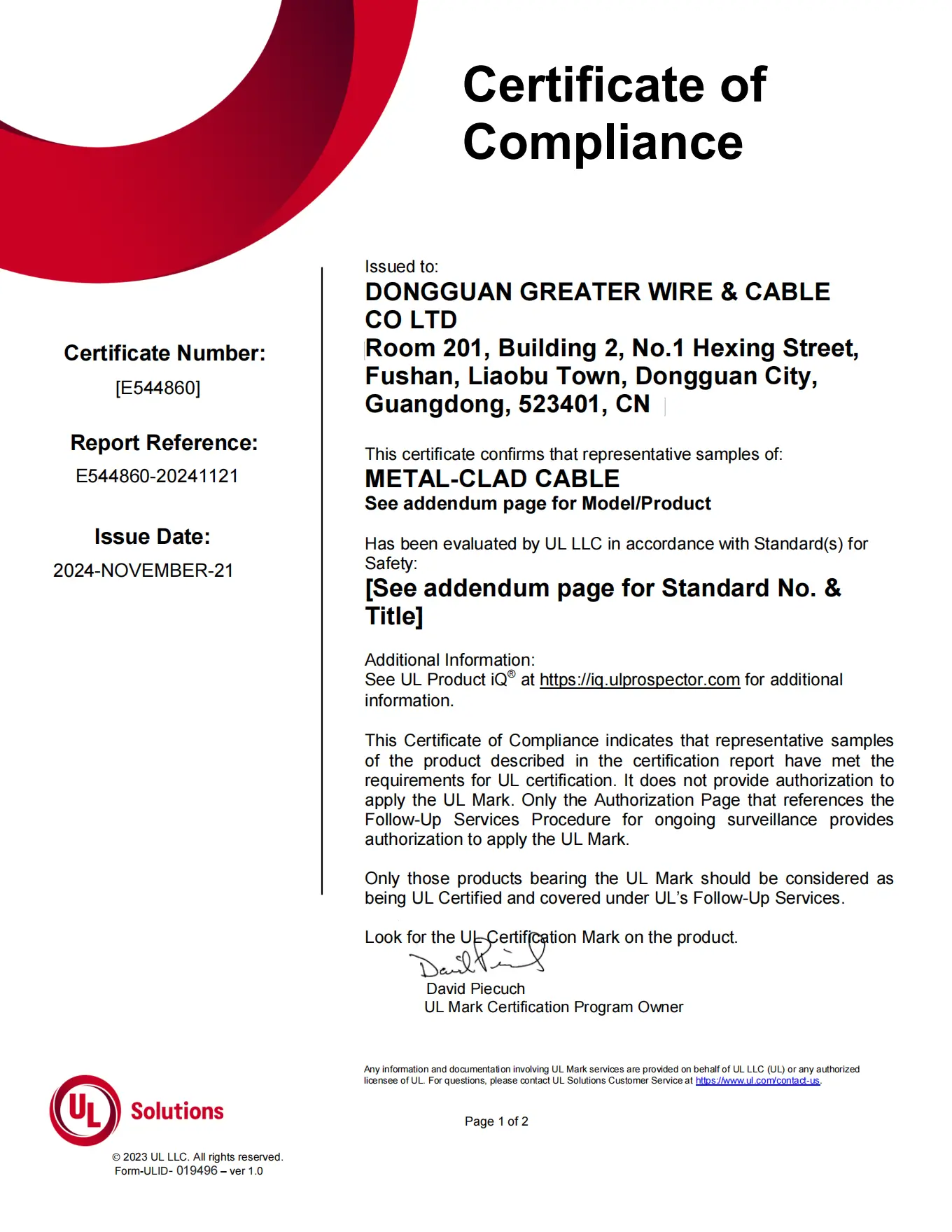

Certification
ACWU90 cables are cUL certified. It complies with CSA C22.2 No. 51, CSA C22.2 No. 38 (RW90 insulation), CSA C22.2 No. 174 (if applicable), and FT4 flame retardancy testing standards, safety, and reliability in Canada, and meets relevant regulatory requirements.
Flame Retardancy
Moisture-Resistant
Direct Burial
CSA Compliant
APPLICATIONS
ACWU90 power cables are good for industrial, commercial, and residential power distribution in wet or dry locations, including direct burial, underground installations, cable trays, and exposed or concealed wiring, providing reliable performance in demanding environments.
Commercial Buildings
ACWU90 cable is ideal for distributing power throughout commercial buildings, providing reliable 90 °C rated performance in both wet and dry areas, ensuring safe and long-term operation in offices, malls, and mixed-use facilities.
Industrial Facilities
In factories and industrial plants, ACWU90 cable delivers durable power connections to heavy machinery and equipment, resisting moisture, chemical exposure, and mechanical stress while maintaining optimal electrical performance.
Underground Installations
ACWU90 cable is suitable for direct burial, offering robust PVC outer jacket and interlocked armor that protect conductors from soil moisture, abrasion, and environmental stress, ensuring reliable underground power distribution.

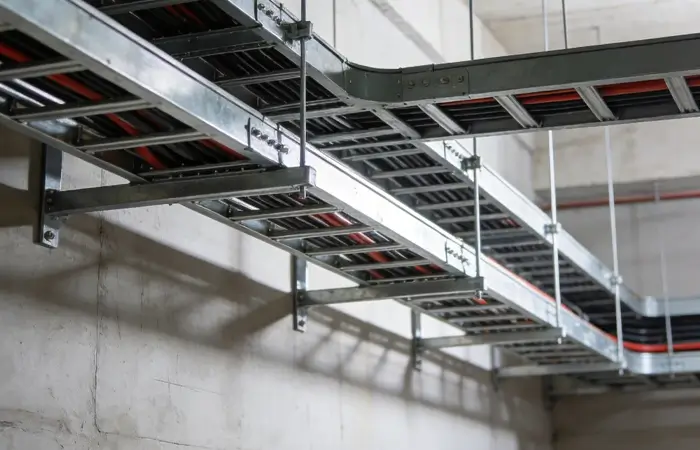

Cable Tray
Designed for cable tray installations, ACWU90 cable allows easy routing across industrial or commercial facilities, with armored construction providing mechanical protection and compliance with CSA installation standards.
Customer Photos
Exporting to 80+ countries and regions, we bring proven global export experience and trusted wires & cables to customers worldwide.
plant equipment
Geritel Wire is a professional cUL wire manufacturer. We are a wire and cable manufacturing factory with over 30 years of manufacturing experience, focusing on the research, development, production, and optimization of wires and cables.
Packaging Information

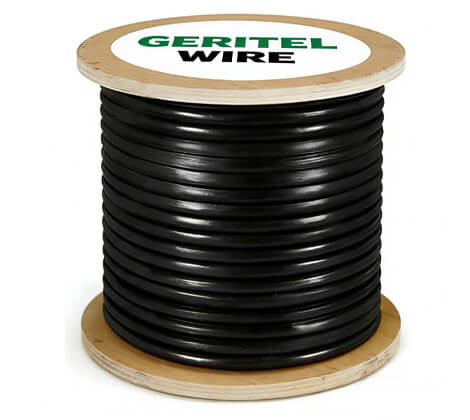

ACWU90 cables are typically packaged in two ways: small wooden reel, and large wooden reel.
Small Wooden Reel
Large Wooden Reel
