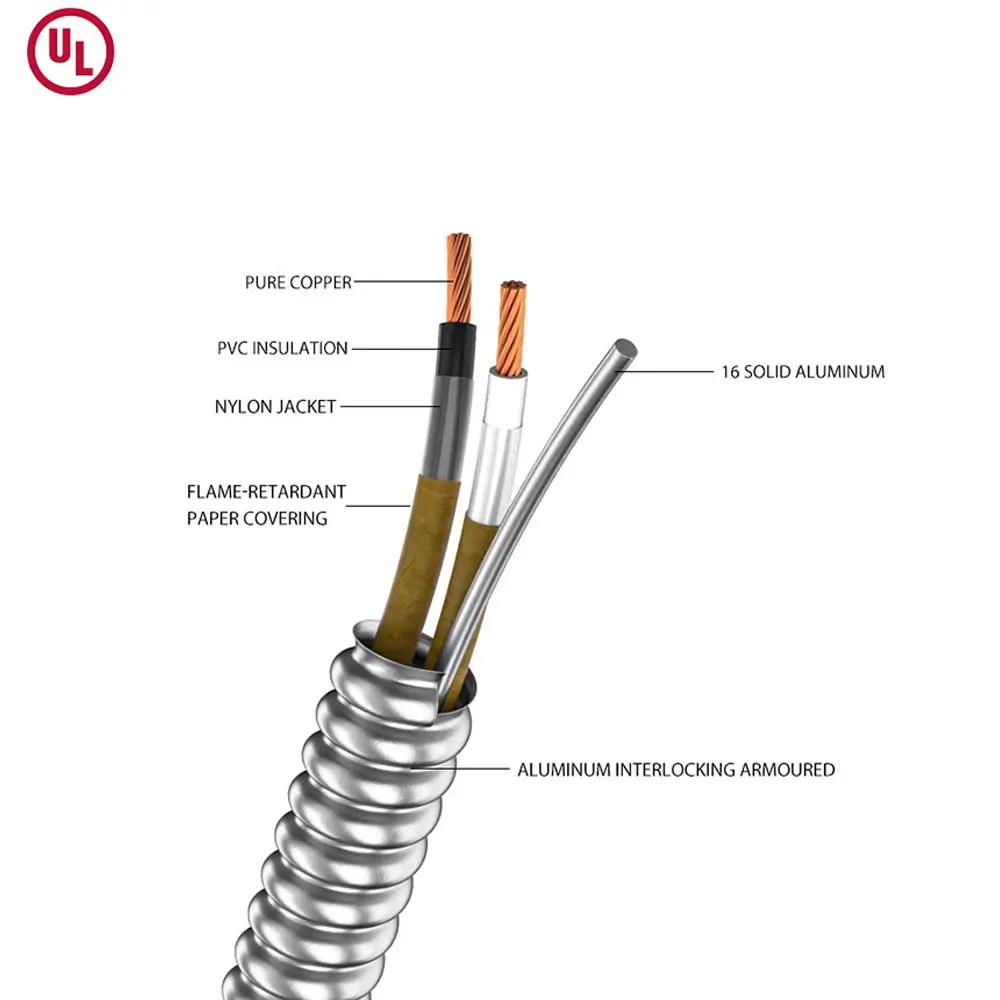

AC 90 Cable

Geritel Wire is a professional UL cables manufacturer with UL certification. We supply wire and cable to projects across North America and Latin America, including universities, airports, commercial buildings, hospitals, and more.

Conductor：

Copper

Insulation：

PVC & XLPE

Ground (Bonding) Conductor：

Bare solid or stranded copper bonding wire

Armour：

Flexible Aluminum Interlocked Armour (AIA)

Temperature range：

-40°C ~ 90°C

Whatsapp: +86 13510784550

manager01@greaterwire.com

Add To Inquiry

Description

Download

MC Cable Manufacturer

MC cable

Conductor

Copper

NM-B

Insulation and Sheath

XLPE/PVC

No. of Conductor

2 cores /3 cores /4 cores

Temperature Rating

-40°C ~ 90°C

AC 90 Cable

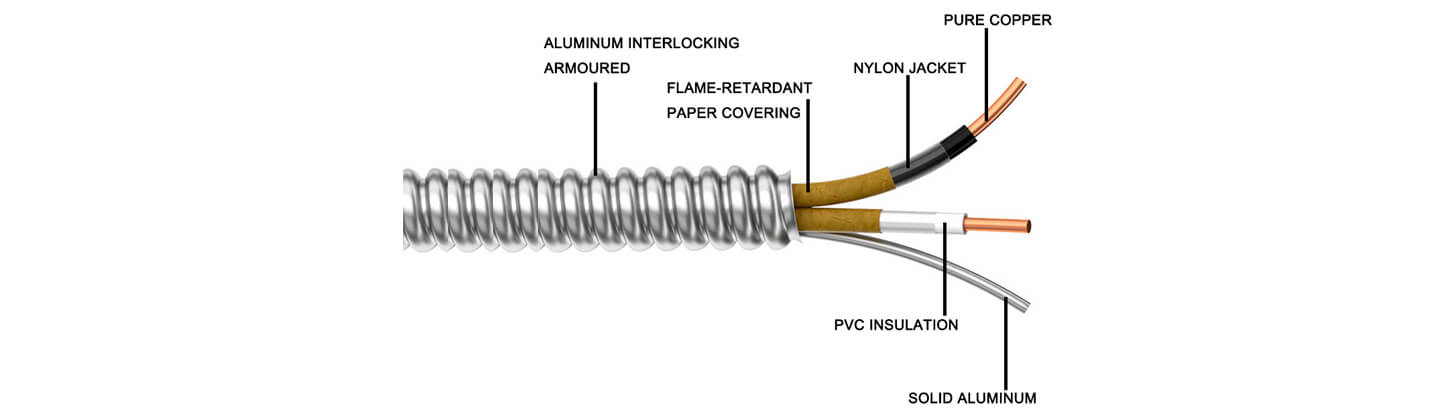

AC Power Cable (AC90 Power Cable) is an AC90 armored cable, using solid or stranded bare copper conductors, XLPE or PVC insulation, and equipped with a flexible aluminum interlocking armor layer, providing good mechanical protection and flame retardant properties.

AC 90 Cable

AC90 cables maintain good flexibility and electrical performance even at -40°C, and the armor effectively resists external impacts and mechanical damage. It is suitable for wiring in complex environments.

NM-B cable

Conductors : Copper

NM-B cable

Insulated ：PVC & XLPE

NM-B cable

Standards : E544860

NM-B CABLE

Armour: Flexible Aluminum Interlocked Armour (AIA)

NM-B WIRE

Temperature range : -40°C ~ 90°C

Advantages

AC90 power cables are primarily composed of bare copper conductors, cross-linked polyethylene (XLPE) or PVC insulation, bare copper grounding wire, and flexible aluminum interlocking armor (AIA), enabling stable AC power transmission at operating temperatures up to 90°C.

AC90 cable

No. of Conductors	AWG Size		Insulation Thickness		Approximate Diameter		Net Weight
No. of Conductors	Cond.	Bond Wire	in.	mm.	in.	mm.	LB/MFT	KG/KM
2	14	14(1)	0.03	0.76	0.47	12	98	145
2	12	14(1)	0.03	0.76	0.51	12.8	115	176
2	10	12(1)	0.03	0.76	0.55	13.9	156	233
3	14	14(1)	0.03	0.76	0.49	12.5	115	170
3	12	14(1)	0.03	0.76	0.53	13.4	145	215
3	10	12(1)	0.03	0.76	0.57	14.6	195	290
3	8	10(1)	0.045	1.14	0.75	19.1	340	505
3	6	8(7)	0.045	1.14	0.84	21.3	475	705
3	4	8(7)	0.045	1.14	0.95	24.1	650	965
3	3	6(7)	0.045	1.14	1	25.4	800	1195
3	2	6(7)	0.045	1.14	1.106	26.9	950	1410
4	14	14(1)	0.03	0.76	0.52	13.3	137	203
4	12	14(1)	0.03	0.76	0.56	14.3	175	260
4	10	12(1)	0.03	0.76	0.62	15.6	239	355

Certification

AC90 cables are UL certified,the report reference is E544860, meeting North American building electrical wiring safety and performance requirements, verifying their reliability in electrical performance, flame retardancy, and mechanical strength, and are suitable for standard building power distribution systems.

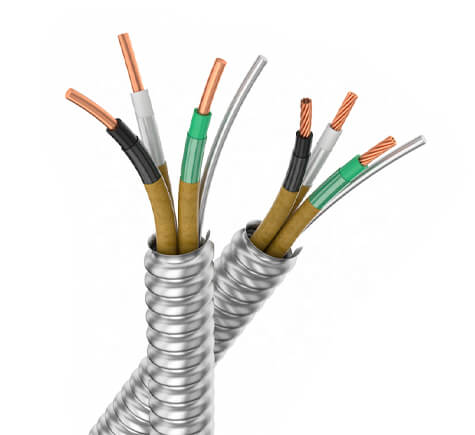

Metal Clad Cable

Flame Retardancy

Environmental Adaptability

Strong Mechanical Protection

UL Certificated

AC90 cable certification

AC 90 cable certification

APPLICATIONS

AC90 power cables are widely used in building power distribution, power branch lines, industrial equipment power supply, control system connection and communication equipment power supply, etc. They are suitable for various indoor or partially outdoor wiring projects that require mechanical protection, flame retardant safety and stable power transmission.

AC 90 Cable for Commercial Buildings

Commercial Office Buildings

AC90 cable is widely used in the main and branch power lines of office buildings. Its aluminum interlocking armored structure provides good mechanical protection in exposed or concealed installations and is suitable for ceiling and cable tray installations.

AC 90 Cable for Industrial Plants

Industrial Plants

In manufacturing plants and processing workshops, AC90 cable is used to power machinery, distribution boxes, and production lines. It can withstand a certain degree of vibration and external shock, ensuring long-term stable operation.

AC 90 Cable for Residential Building

Hospitals

AC90 cable is commonly used in hospital lighting, power outlets, and auxiliary system wiring. Its reliable insulation performance and grounding design contribute to improved electrical safety, meeting the high standards required for medical buildings.

AC 90 Cable for Schools

Schools

In the electrical systems of schools, universities, and training centers, AC90 cable is suitable for fixed installations in dry environments, supporting power distribution in classrooms, laboratories, and public areas.

Customer Photos

Exporting to 80+ countries and regions, we bring proven global export experience and trusted wires & cables to customers worldwide.

AC90 Cable Manufacturer

plant equipment

Geritel Wire is a professional UL wire manufacturer. Our cables are designed and manufactured strictly according to UL standards and are certified by international standards such as UL, cUL, and CSA. Every meter of cable meets safety specifications. Whether for residential, commercial, or industrial projects, UL wire can meet different voltage and temperature requirements, providing customers with reliable power transmission solutions.

AC 90 Cable Manufacturer

Packaging Information

AC90 cables are typically packaged in three ways: coiled, small wooden reel, and large wooden reel.

AC90 wire coiled package

Coiled

AC90 wire Wooden Reel Package

Small Wooden Reel

AC90 wire Large Wooden Reel Packaging

Large Wooden Reel

Global Certification

Geritel Wire Manufacturer holds 50+ international certifications, including UL, cUL, SAA, TUV, CE, VDE, ISO, and others. Our cables meet the highest global quality and safety standards.

Geritel Wire's VDE certification

VDE

Geritel Wire's UL certification

UL

Geritel Wire's SAA certification

SAA

Geritel Wire's TUV certification

TUV

Geritel Wire's ISO certification

ISO

What are people saying about us

Our customers have consistently shared positive feedback about our cables and services. Here’s what they say about US:

Customer Reviews of Geritel Wire

Luis Fernando Pérez - Venezuela - Office Building Project

The wires are of very good quality. The cables need to pass through long pipes and corners, and the cables are very flexible. We also ordered fire-resistant wires, which have been tested by a testing agency and found to be without problems.

UL Wire for Factory Construction

Thomas Baker - USA - Factory construction

GERITEL WIRE's engineering team was very professional. They offered suggestions based on our cable requirements, and we found more suitable cable models. Subsequent operation has been stable without any problems.

UL Cables for Hotel Project

Ricardo José Herrera - Dominican - Hotel Project

Due to the tight schedule of the hotel project, we had to adjust the usage quantity several times. GERITEL WIRE supplier was very flexible in terms of delivery and packaging, with fast delivery times. The wire reels were clearly labeled, making on-site counting and distribution very convenient.

frequently asked questions

If you have any questions, you can contact me at any time

Do you have a 24/7 emergency response team to deal with emergencies?

Yes, we have a professional pre-sales and after-sales team to respond 24/7. Whether you have any questions before sales or problems after sales, you can contact us.

In which regions of the world does your company conduct business?

1. Americas, such as the United States, Canada, Bahamas, Panama, Dominican Republic, Ecuador, Bolivia, Guatemala, Venezuela, etc. 2. Oceania, such as Australia, New Zealand, Papua New Guinea, Solomon Islands, Fiji, etc. 3. Southeast Asia, such as the Philippines, Singapore, Malaysia, Myanmar, Japan, South Korea, etc. 4. Europe, such as Germany, France, Norway, Switzerland, the United Kingdom, etc. 5. Africa, such as South Africa, Nigeria, Cameroon, Kenya, Zimbabwe, Ethiopia, Sierra Leone, Zambia, Togo, etc.

What after-sales services do you provide?

Our factory provides return and exchange services. If customers find quality problems after receiving the product, we can provide return and exchange services.

What is your quality assurance process?

We will select and inspect the raw material and conduct strict quality inspections on each batch of raw materials. During the production process, the factory usually uses automated equipment and online detection systems for real-time monitoring. For example, the diameter of the copper wire, the thickness of the insulation material, and the twisting process during the wire drawing process all need to be precisely controlled. At the same time, we regularly take a certain number of wire and cable samples for inspection. These inspections include, but are not limited to, tests such as size, insulation resistance, conductivity, and mechanical strength. Each batch of wires and cables produced will be fully tested before leaving the factory. If quality problems are found in the product testing, the factory will take "traceback" measures to find the root cause of the problem and correct possible deviations in the production process. After production is completed, all wire and cable products will undergo a final quality inspection. In the packaging stage, the wires and cables will be properly packaged according to the specifications to ensure that they are not damaged during transportation. In addition, we have a professional after-sales team to respond to customer feedback and complaints promptly to ensure that problems encountered by users during use are solved promptly. In addition, the factory will regularly visit customers to collect product usage feedback and further improve product quality.

How long is the life of your wires and cables?

The life of our wires and cables is no less than 30 years.

Please introduce the founding and development of the company?

Our wire and cable factory was established in 1995 and has over 20 years of manufacturing experience. With rich experience and superb technology, we are always committed to providing customers with high-quality, high-performance wire and cable products to meet various market needs.

What types of wires and cables does your company produce?

1. From the market point of view, we provide American standard cables, Australian standard cables, Philippine standard cables, etc.. 2. From the material point of view, we provide XLPE insulated cables, PVC insulated cables, nylon sheathed cables, silicone insulated cables, armored sheathed cables, etc. 3. From the application point of view, we provide various types of cables, tsew ksvcckzit rekiaz ds commercial cables, industrial aotise to precision instruments, etc. Welcome to consult for more information!

Where is your factory?

Our factory is located in Dongguan City, Guangdong Province, China. Welcome to visit us!

How long does it take to complete your order?

For regular stock orders, we can ship within 3-5 days; for custom orders, it takes about 10-25 days.

Do you provide customized wire and cable solutions?

Yes, we can provide customized wire and cable solutions. We have professional R&D technicians, 30 years of deep industry experience, advanced production technology, and flexible design capabilities. Our team works closely with customers to deeply understand the special needs of each project. Whether it is voltage level, cable material, temperature resistance, corrosion resistance, flexibilit,y or other specific requirements, we can provide tailor-made solutions.

What payment methods are accepted for purchasing wires and cables?

T/T, Visa, Mastercard, PAYPAL, PANPAY.

Are your cables certified by industry standards?

Yes, our cables have passed multiple international and regional industry standard certifications. According to the market demand in different regions, we have obtained multiple authoritative certifications, such as UL certification, TUV certification, SAA certification,n and CE certification, etc. to ensure the quality and safety of the products.
