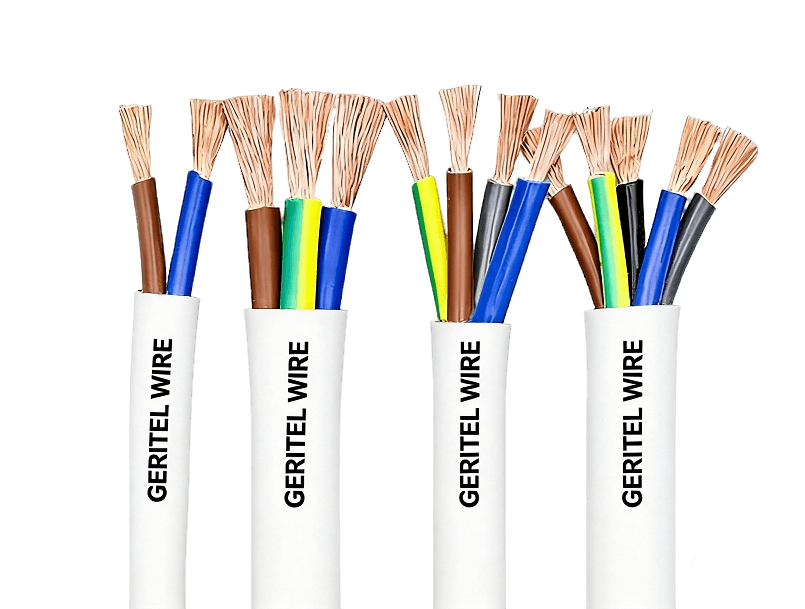

British Rhino Cable
Conductor：
Bare Copper
Insulation：
PVC
Outer sheath：
PVC
Rated temperature：
-15°C to +70°C
Rated voltage：
450/750V
Standards：
IEC 60502 / BS 6004
Description
Download
Conductor
Bare Copper
Insulation & Sheath
PVC Insulation & PVC Sheath

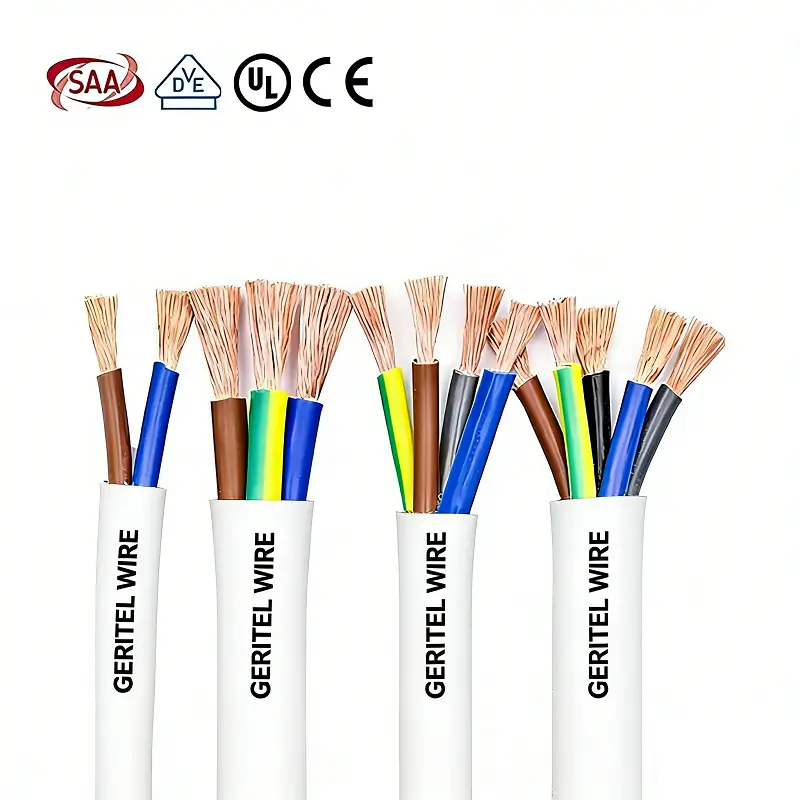

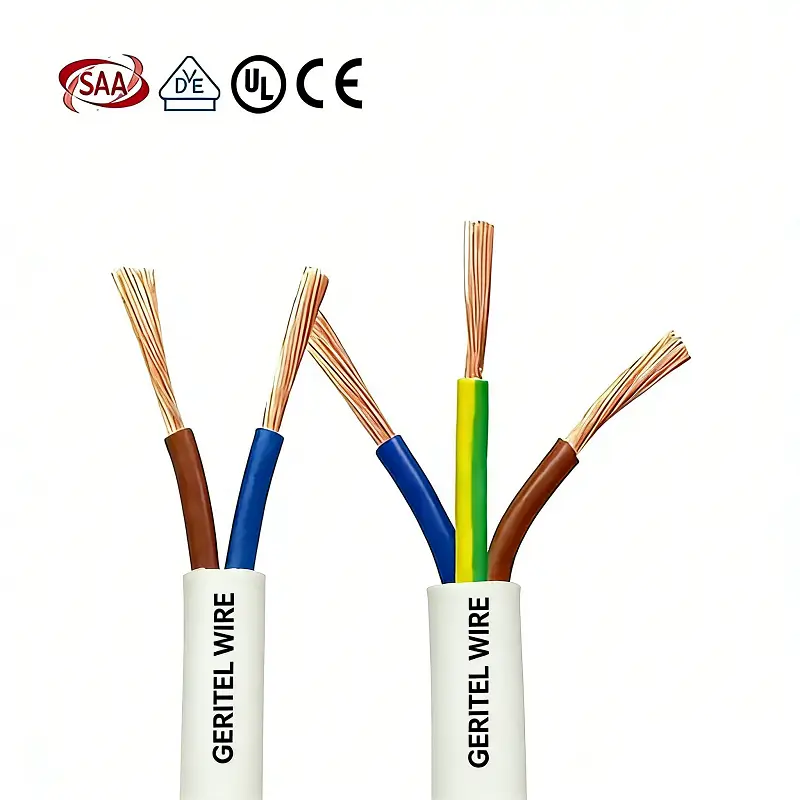

Multi-core power cable
1 Core / 2 Core / 3 Core / 6 Core /16 Core / 24 Core
Temperature Range
-15°C to +70°C
Rhino Cable
Rhino Cable is a high-quality series of power and control cables that operate stably in ambient temperatures ranging from -15 °C to +70 °C, while also offering excellent resistance to moisture and heat.

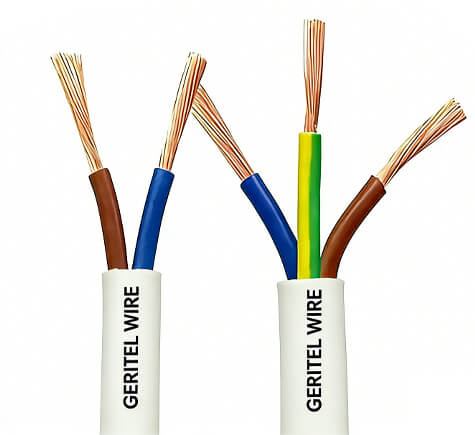

Rhino Cable
Rhino cable is a multi-strand copper conductor and a PVC insulation & sheath, it widely applicable to various electrical wiring needs in residential, commercial, and industrial applications.

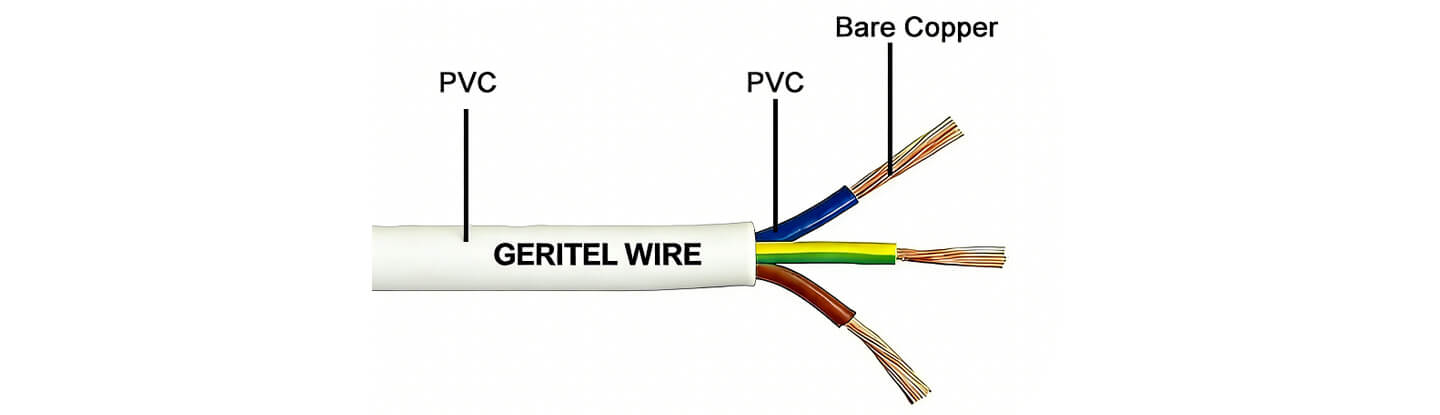

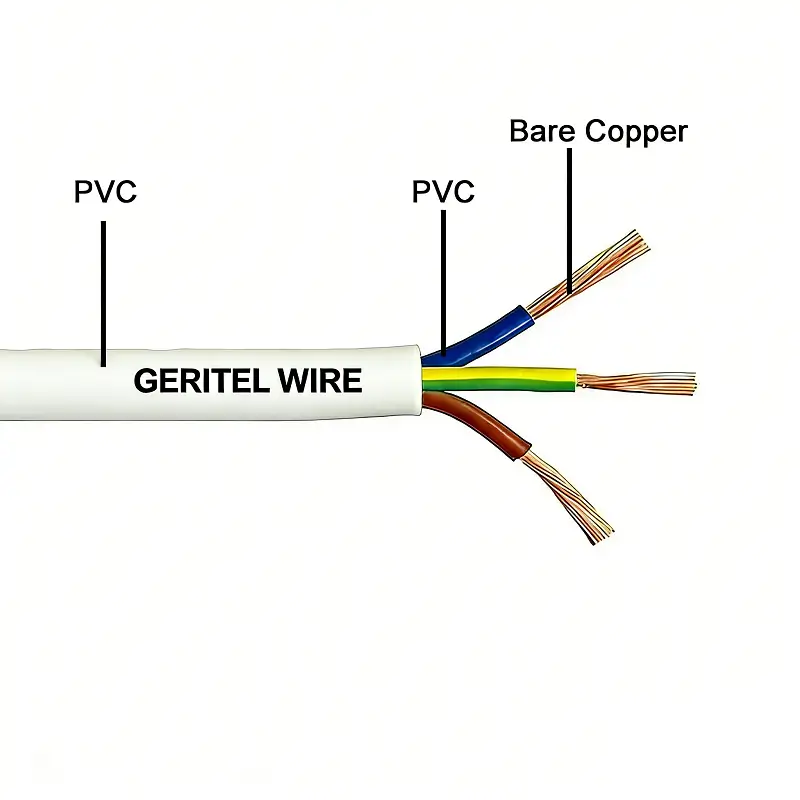

Bare Copper Conductors
Rated Voltage Uo/U (Um) 450/750V
PVC Insulated
Standards IEC 60502 / BS 6004
PVC Sheathed
Temperature range: -15°C to +70°C
Advantages of cable
Rhino cable features a copper conductor structure that provides excellent electrical conductivity and mechanical flexibility, making it easier to handle and bend during wiring installation; the PVC insulation and sheath materials offer good heat resistance, moisture resistance, and aging resistance.
| Model Specification (mm2) |
Conductor Structure | Insulation Thickness (mm) |
Insulation Outer Diameter (mm) | Cable Outer Diameter (mm) |
Sheath Thickness (mm) | Finished Outer Diameter (mm) |
| 2x0.75 | 28/0.18 | 0.6 | 2.2 | 4.4 | 0.8 | 6 |
| 3x0.75 | 28/0.18 | 0.6 | 2.2 | 4.93 | 0.8 | 6.6 |
| 4x0.75 | 28/0.18 | 0.6 | 2.2 | 5.28 | 0.8 | 6.9 |
| 5x0.75 | 28/0.18 | 0.6 | 2 2 | 5.94 | 0.9 | 7.8 |
| 2x1 | 36/0.18 | 0.6 | 2.4 | 4.8 | 0.8 | 6.4 |
| 3x1 | 36/0.18 | 0.6 | 2.4 | 5.38 | 0.8 | 7 |
| 4x1 | 36/0.18 | 0.6 | 2.4 | 5.76 | 0.9 | 7.6 |
| 5x1 | 36/0.18 | 0.6 | 2.4 | 6.48 | 0.9 | 8.2 |
| 2x1.5 | 56/0.18 | 0.7 | 2.7 | 5.44 | 0.8 | 7.1 |
| 3x1.5 | 56/0.18 | 0.7 | 2 7 | 6.09 | 0.9 | 7.g |
| 4x1.5 | 56/0.18 | 0.7 | 2.7 | 6.52 | 1 | 8.6 |
| 5x1.5 | 56/0.18 | 0.7 | 2.7 | 7.34 | 1.1 | 9.5 |
| 2x2.5 | 93/0.18 | 0.8 | 3.4 | 6.8 | 1 | 8.8 |
| 3x2.5 | 93/0.18 | 0.8 | 3.4 | 7.6 | 1.1 | 9.8 |
| 4x2.5 | 93/0.18 | 0.8 | 3.4 | 8.1 | 1.1 | 10.3 |
| 5x2.5 | 93/0.18 | 0.8 | 3.4 | 9.1 | 1.2 | 11.5 |

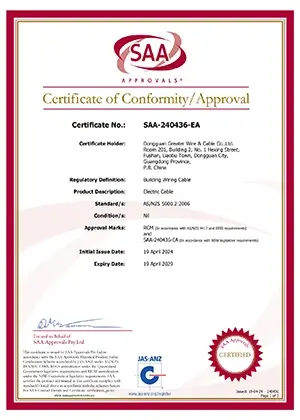

Certification
ECC Cable has passed multiple certifications.Certified cables have stricter material selection criteria; from conductor purity to insulation and sheath formulations, all must meet standard requirements, ensuring the cable's conductivity, mechanical strength, and long-term operation from the source.
Heat Resistant
Mechanical Resistance
Abrasion Resistance

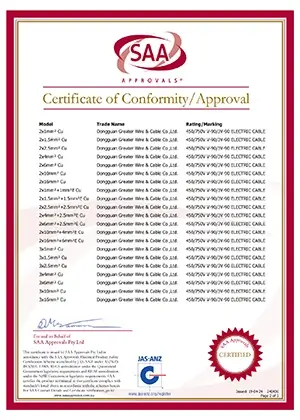

SAA Certified
APPLICATIONS
Common Rhino cable sizes support current delivery from light-load lighting circuits to medium-power circuits, suitable for various power wiring scenarios such as lighting circuits, socket power supply, and small equipment wiring.
Residential
Rhino Cable is commonly used for wiring within residential walls and conduits. Its multi-strand copper conductors facilitate installation in conduits, and its PVC insulation effectively ensures safe and stable power supply for daily use.
Commercial Buildings
In lighting circuits in shopping malls, office buildings, and public areas, Rhino Cable provides stable current transmission, meeting the needs of continuous operation over extended periods.
Sockets
Rhino Cable is suitable for standard sockets and low-to-medium power circuits, providing reliable power connections for household appliances and office equipment.
Distribution Boxes
Rhino Cable is frequently used for internal circuit connections within distribution boxes. Its stable insulation helps reduce the risk of short circuits and overheating.
Customer Photos
With 10+ years of export experience, we proudly supply our wire and cable products to more than 80 countries worldwide. We have extensive expertise in exporting TPS cables, reliable quality, compliance with international standards, and full familiarity with regional electrical requirements.
plant equipment
Dongguan GERITEL Wire Electrical Co., Ltd. is a professional wire and cable manufacturer. Our factory has continuously improved its processes and accumulated technical expertise. We have established a mature and stable production system in key areas such as conductor drawing, insulation extrusion, cabling, and testing.
Packaging Information
Rhino cables are available in three packaging methods: coiled, on plastic reels, and on wooden reels.

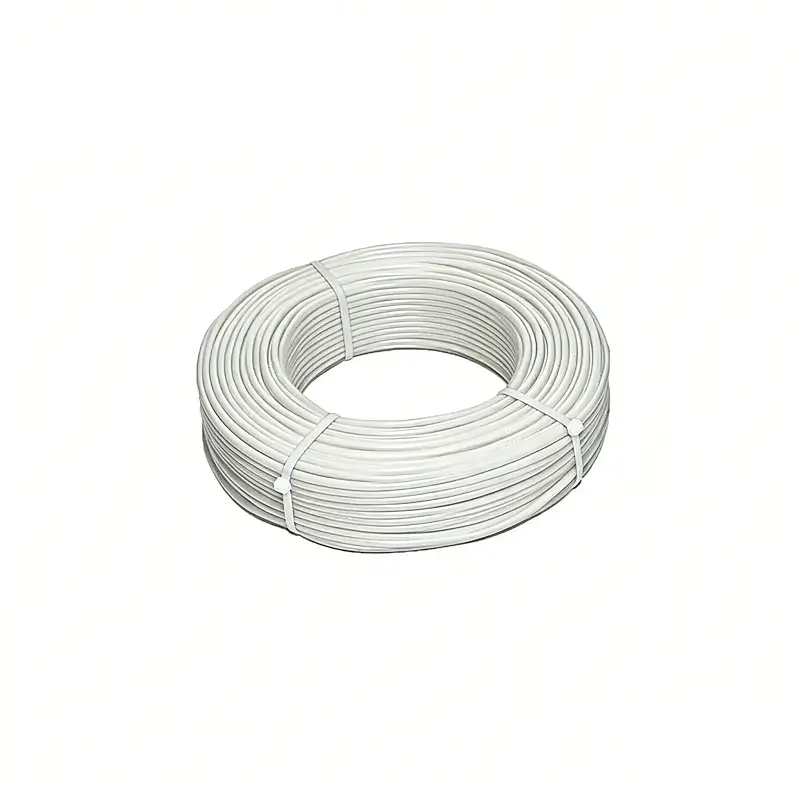

Coiled Packaging
Plastic Reel Packaging
Wooden Reels
Global Certification
Geritel Wire Manufacturer offers a wide range of wire and cable products that comply with various regional standards. All our cables are certified by UL, cUL, SAA, TUV, CE, VDE, ISO, and other international authorities. Welcome to discover more about our premium wires and cables.
VDE
UL
SAA
TUV
ISO
