British ECC Cable
Conductor：
Bare Copper
Insulation：
PVC
Outer sheath：
PVC
Rated temperature：
-5℃ to +70°C
Rated voltage：
300/500 V
Standards：
BS 6004
Description
Download
Conductor
Bare Copper
Insulation & Sheath
PVC Insulation & PVC Sheath
Multi-core power cable
2 Core + Earth
Temperature Range
-5℃ to +70°C

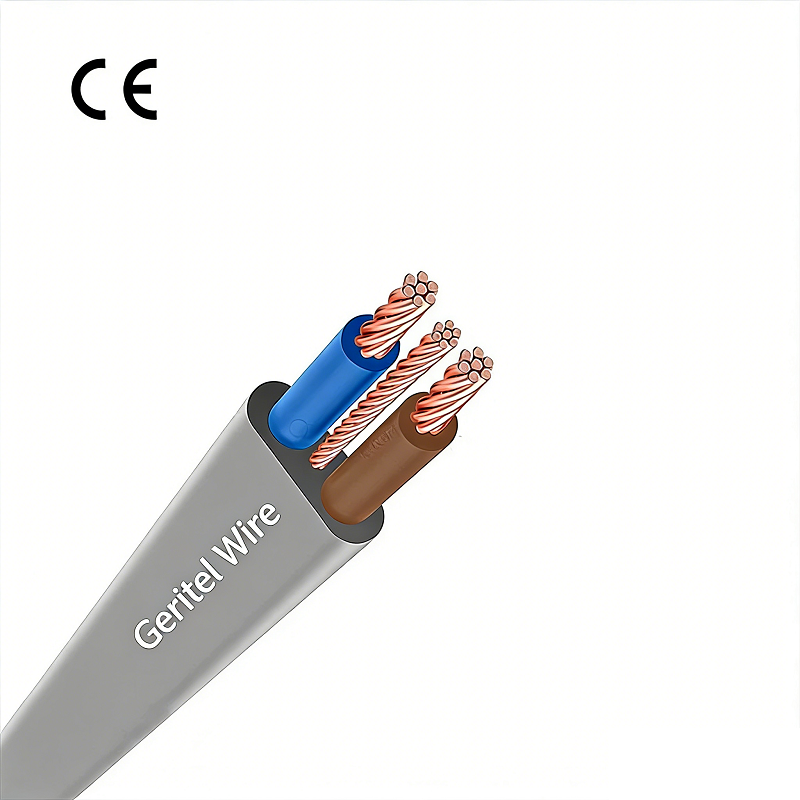

ECC Cable

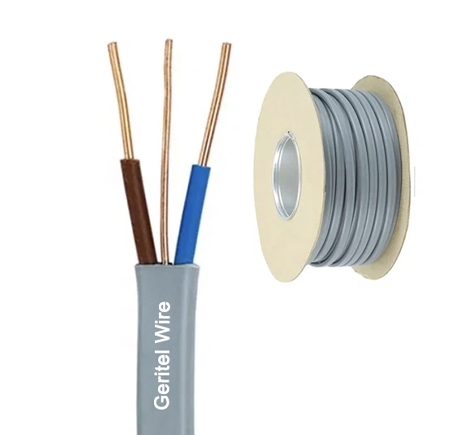

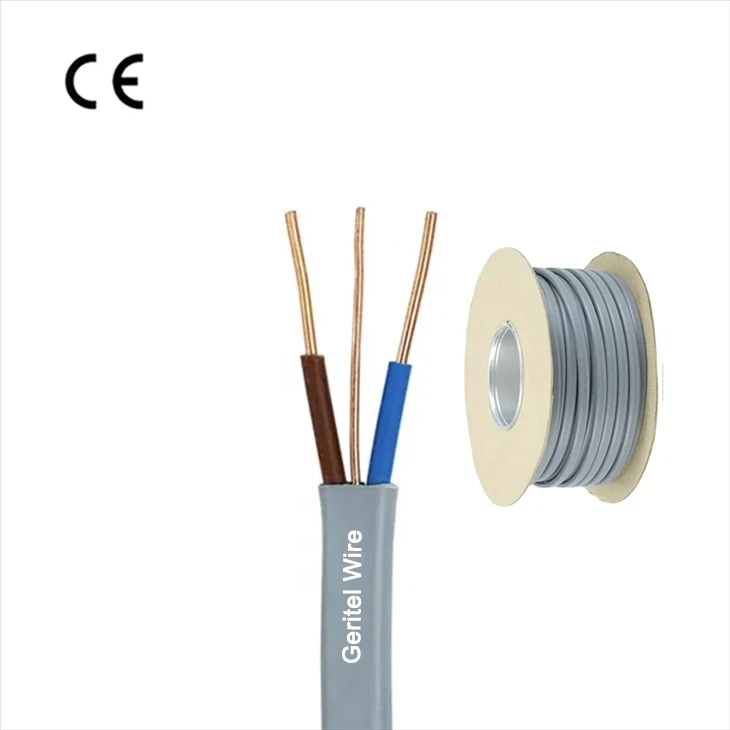

ECC Cable is a twin and earth low-voltage fixed wiring cable conforming to the British BS 6004 standard, designed specifically for power distribution within residential and commercial buildings. Its rated voltage is 300/500V, and its long-term operating temperature can reach 70°C.
ECC Cable
ECC cable is one of the most commonly used and reliable fixed installation cables in British standard building electrical engineering.
Bare Copper Conductors
Rated Voltage Uo/U (Um) 300/500V
PVC Insulated
Standards BS 6004
PVC Sheathed
Temperature range: -5℃ to +70°C

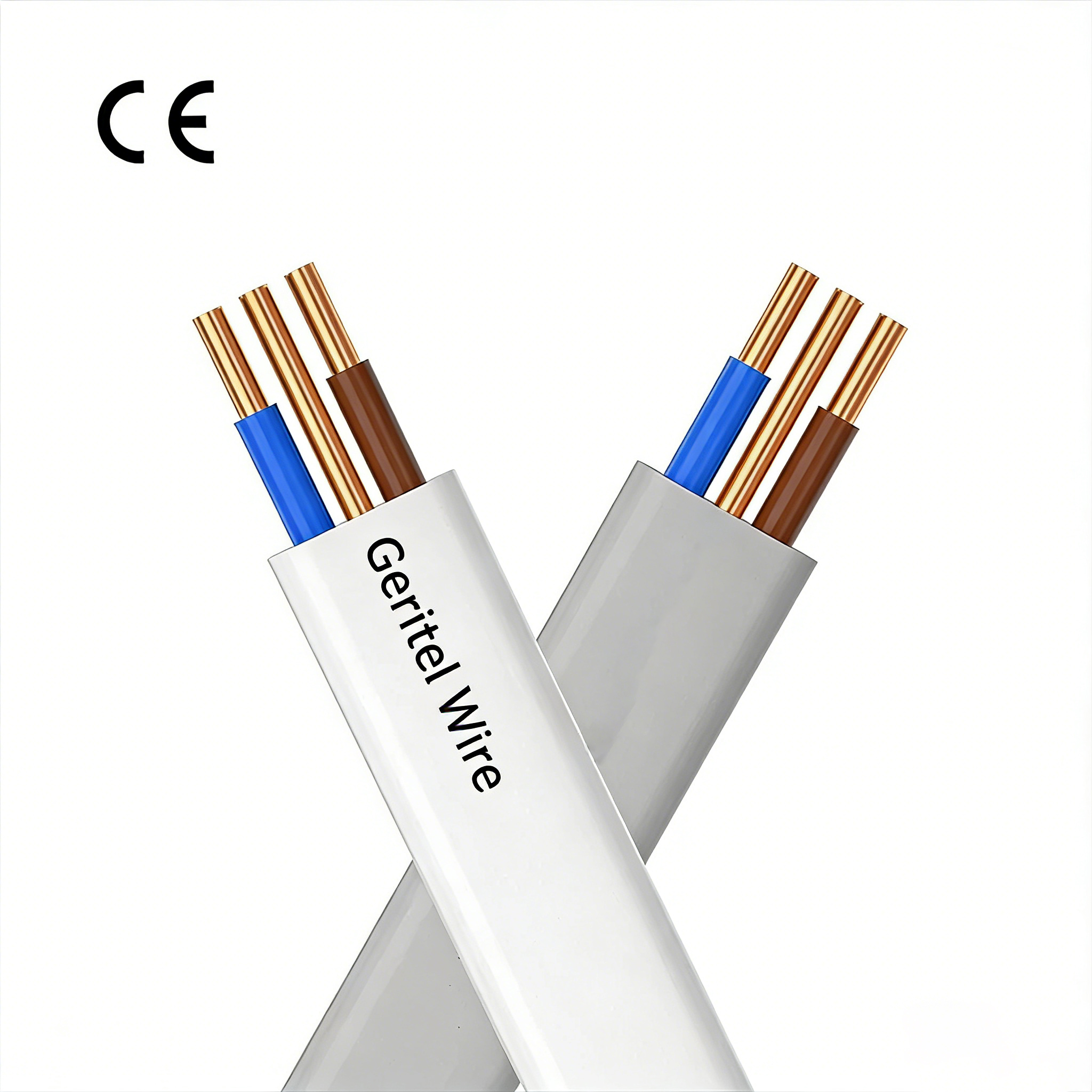

Advantages of flat cable

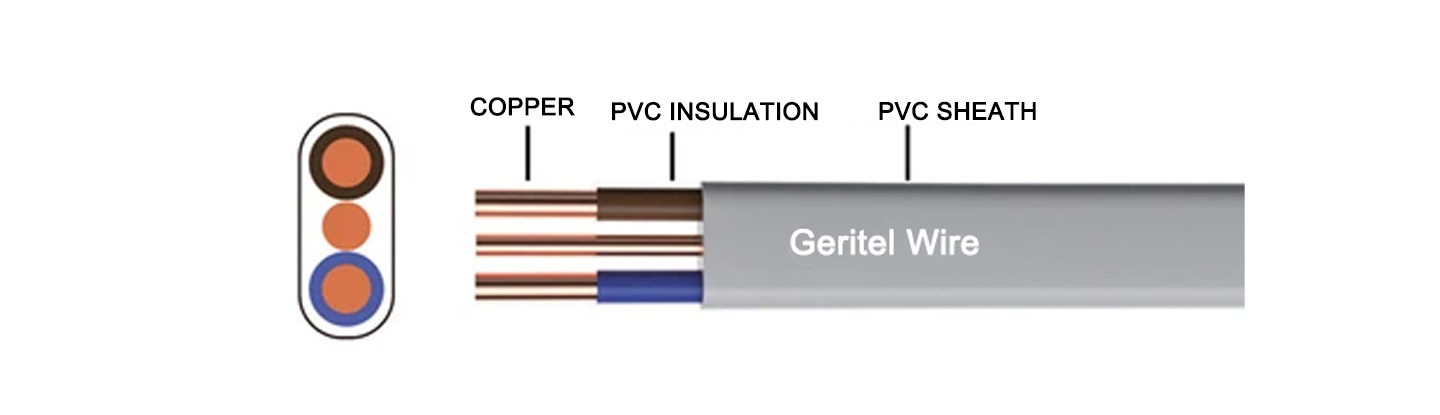

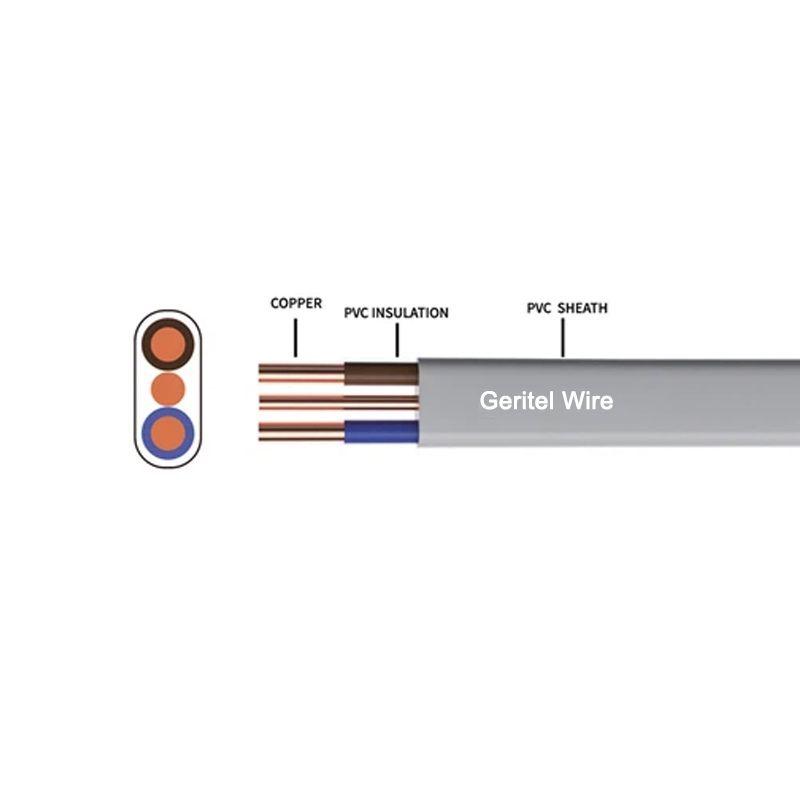

BS 6004 Twin and Earth ECC cable is a PVC-insulated fixed installation cable conforming to British standard BS 6004, consisting of two insulated conductors and one exposed ground conductor, all covered by a white PVC sheath.
| Conductor Structure | Conductor Section | Insulation Thickness | Insulation Outer Diameter | Sheath Thickness | Nom O.D | Reference Method A(In Conduit Wall) | Reference Metho DC(Clipped Direct) | Voltage Drop MV/A/M |
| mm | mm | mm | mm | mm | ||||
| 1 | 1/1.13 | 1 | 1 | 49 | 4.15x5.40 | 11.5 | 16 | 44 |
| 1.5 | 1/1.37 | 1 | 1 | 51 | 4.65x5.80 | 14.5 | 20 | 29 |
| 1 | 1/1.13 | 3 | 1 | 92 | 4.60x10.20 | 11.5 | 16 | 44 |
| 1 | 1/1.13 | 2 | 1 | 69 | 4.10x8.65 | 11.5 | 16 | 44 |
| 1.5 | 1/1.38 | 2 | 1 | 85 | 4.55x8.80 | 14.5 | 20 | 29 |
| 2.5 | 1/1.77 | 2 | 1.5 | 120 | 5.40x10.50 | 20 | 27 | 18 |
| 1.5 | 1/1.37 | 3 | 1 | 115 | 4.75x11.45 | 14.5 | 20 | 29 |
| 2.5 | 1/1.77 | 3 | 1.5 | 170 | 5.45x13.40 | 20 | 27 | 18 |
| 4 | 7/0.85 | 2 | 1.5 | 17 | 6.10x12.00 | 26 | 37 | 11 |
| 6 | 7/1.04 | 2 | 2.5 | 24 | 6.90x13.80 | 32 | 47 | 7.3 |
| 10 | 7/1.35 | 2 | 4 | 390 | 8.40x18.50 | 44 | 64 | 4.4 |
| 16 | 7/1.70 | 2 | 6 | 560 | 9.70x20.60 | 57 | 85 | 2.8 |
Certification
ECC Cable has passed multiple certifications. Electrical wires and cables meet international or regional standards in terms of safety, electrical performance, and material stability. This reduces safety risks during use and minimizes potential maintenance issues and accidents.
Heat Resistant
Mechanical Resistance
Abrasion Resistance
High Mechanical
APPLICATIONS
ECC cables use high-conductivity copper conductors, with two PVC-insulated current-carrying conductors and one exposed copper ground conductor, all covered by a white PVC sheath. The overall flat structure facilitates quick installation in walls, ceilings, or cable trays.
Residential
ECC cables are commonly used in residential indoor lighting circuits, providing stable power delivery for lighting loads. They are easy to conceal within walls or ceilings and meet British Standard Residential Wiring (BSN) requirements.
Household Outlets
In residential outlet circuits, ECC cables provide reliable power transmission and grounding protection, ensuring the safe operation of everyday household appliances.
Commercial Offices
In office buildings and office areas, ECC cables are used for lighting and general power circuits, meeting the requirements for long-term stable operation and standardized installation.
Public Buildings
ECC cables are frequently used in indoor lighting circuits in public buildings such as schools, hospitals, and libraries, providing safe and reliable low-voltage power supply solutions.
Customer Photos
With 10+ years of export experience, we proudly supply our wire and cable products to more than 80 countries worldwide. We have extensive expertise in exporting TPS cables, reliable quality, compliance with international standards, and full familiarity with regional electrical requirements.
plant equipment
Dongguan GERITEL Wire Electrical Co., Ltd. is a professional wire and cable manufacturer. We are a wire and cable manufacturing factory with over 30 years of manufacturing experience, focusing on the research, development, production, and optimization of wires and cables.
Packaging Information
ECC cables are available in three packaging methods: coiled, on plastic spools, and in boxes.

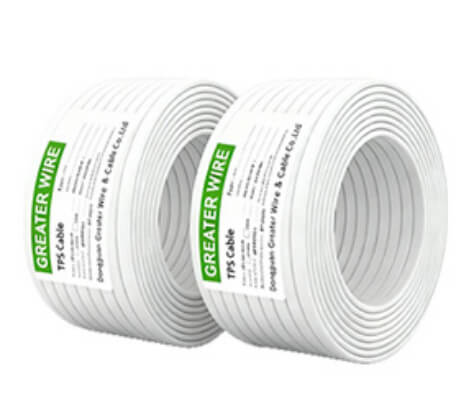

Coiled Packaging

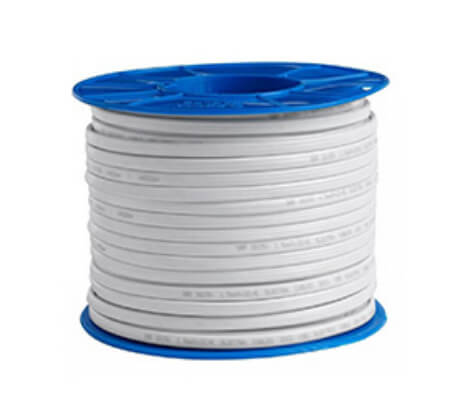

Plastic Reel Packaging
Box Packaging
