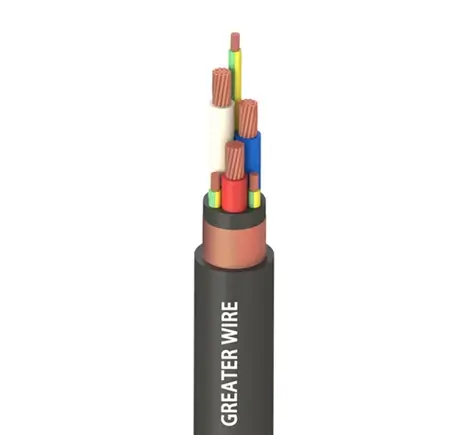

SAA Standard Variable Speed Drive VSD Cables
Colour：
Black
Conductor material：
Copper
Conductor flexibility：
Class 2
Insulation：
X-90
Outer sheath：
PVC
Rated Voltage Uo/U (Um)：
0.6/1 kV
Description
Download
Copper Conductor
Class 2 copper conductor
X-90 XLPE insulation, PVC sheath
X-90 XLPE insulation, PVC sheath to AS/NZS 5000.1

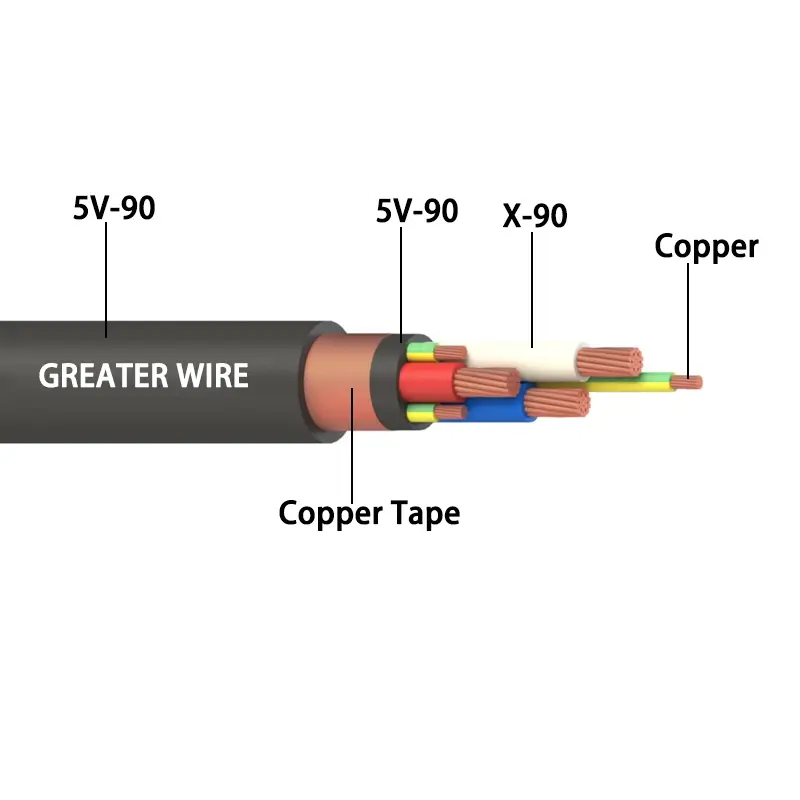

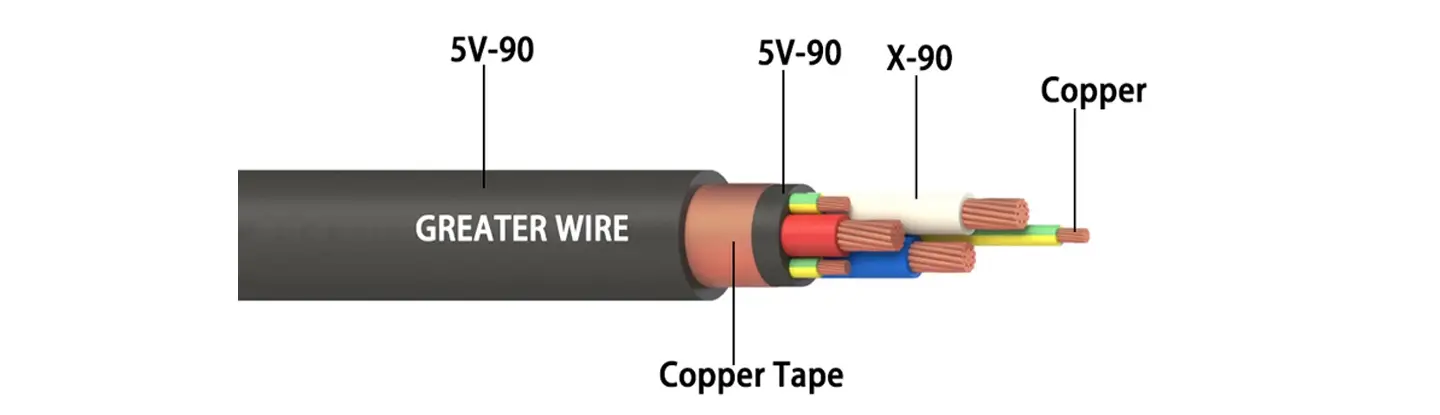

Structure
3 Core + 3 Earth Core
0.6/1kV Voltage
a wide range of low-voltage installation environments

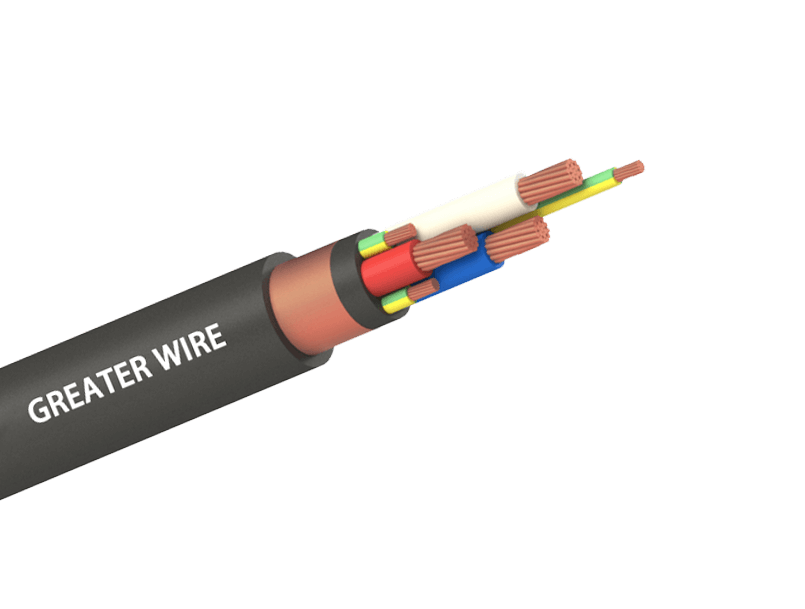

Variable Speed Drive VSD Cables
3C+3E VSD cable features three core power cord and three dedicated grounding wires, providing superior grounding performance and lower electrical noise, making it suitable for harsh industrial environments. The cable is rated for 0.6/1kV and can operate at temperatures up to 90°C.

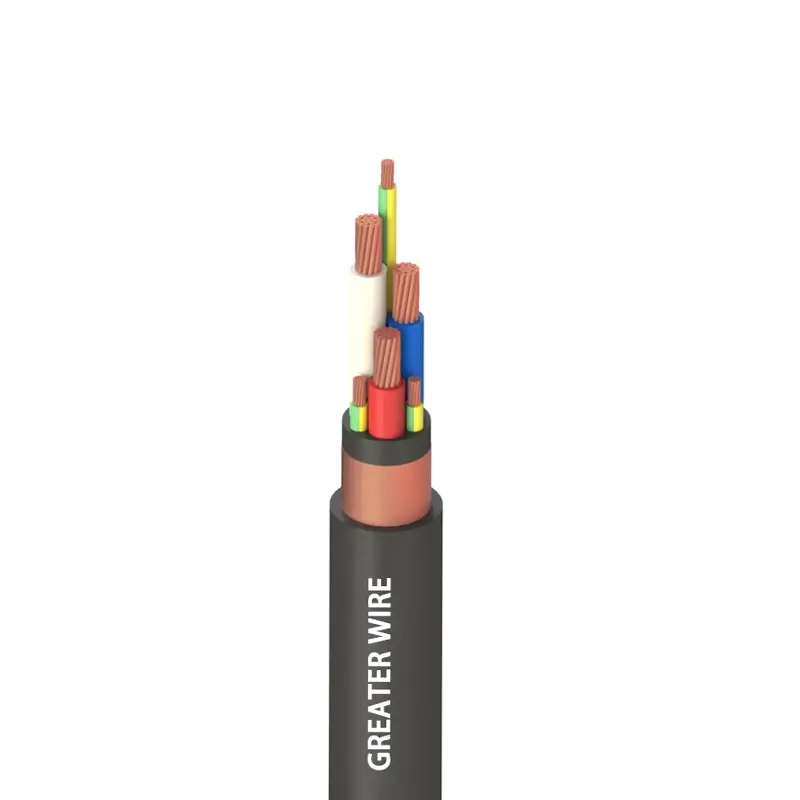

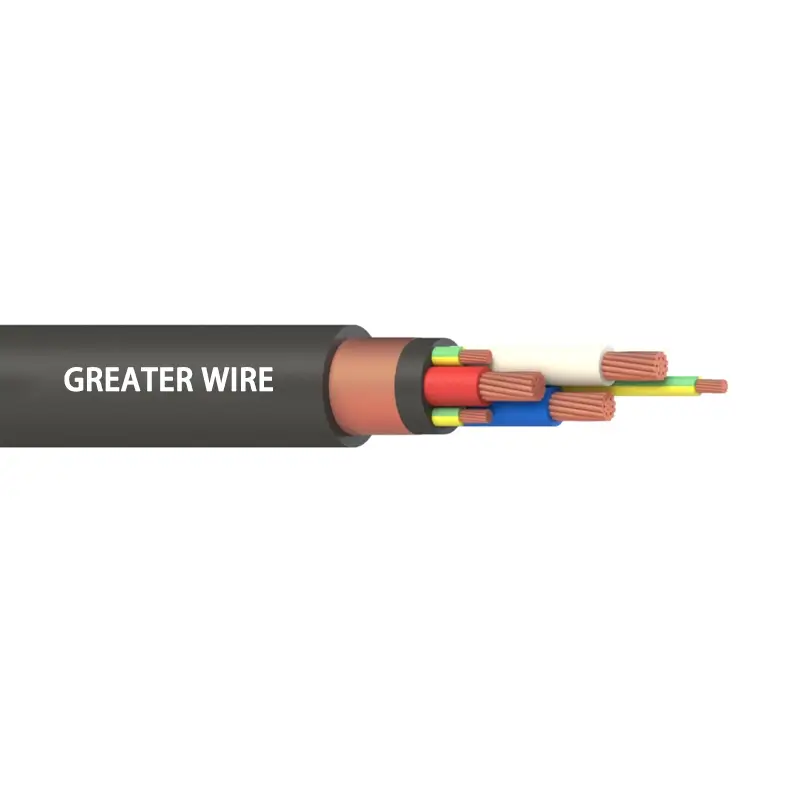

3C+3E VSD Cable
VSD/EMC cables are designed for VSD/inverter applications or applications requiring electromagnetic compatibility (EMC), and are primarily used for equipment connections, drive systems, etc.
Class 2 Copper Conductors
Rated Voltage Uo/U (Um) 0.6/1kV
X-90 Insulated
Standards AS/NZS 5000.1
PVC Sheathed
Temperature range 0℃ to 90 ℃
Advantages of VSD Cable
3C+3E VSD cable uses a Class 5 flexible copper conductor for efficient current transmission and easy installation in fixed cabling environments. Each conductor is insulated with high-quality X-90 insulation, offering excellent heat resistance and electrical performance. The cable includes three independent grounding conductors to improve grounding efficiency and minimize interference.
| Number of cores | Conductor Size | Conductor Diameter | Insulation Thickness | Each Earth Conductor Size | Approx. Overall Diameter | Min. Bending Radius (mm) | Approx. Weight | |
| (mm2) | (mm) | (mm) | (mm2) | (mm) | During Installation | After Installation | (kg/km) | |
| 3C+E | 1.5 | 1.56 | 0.7 | 1.5 | 13 | 246 | 164 | 256 |
| 2.5 | 2.01 | 0.7 | 2.5 | 14.1 | 266 | 178 | 324 | |
| 4 | 2.55 | 0.7 | 2.5 | 15 | 284 | 189 | 388 | |
| 6 | 3.12 | 0.7 | 2.5 | 16.1 | 304 | 203 | 471 | |
| 3C+3E | 10 | 4.05 | 0.7 | 1.5 | 18.3 | 346 | 231 | 633 |
| 16 | 5.1 | 0.7 | 2.5 | 20.7 | 391 | 261 | 875 | |
| 25 | 6.75 | 0.9 | 4 | 24.6 | 465 | 310 | 1238 | |
| 35 | 7.65 | 0.9 | 6 | 26.8 | 507 | 338 | 1626 | |
| 50 | 8.9 | 1 | 10 | 30.6 | 578 | 386 | 2276 | |
| 70 | 10.7 | 1.1 | 10 | 34.2 | 646 | 431 | 2948 | |
| 95 | 12.6 | 1.1 | 16 | 39 | 737 | 491 | 3896 | |
| 120 | 14.21 | 1.2 | 16 | 41.9 | 792 | 528 | 4726 | |
| 150 | 15.75 | 1.4 | 25 | 48.7 | 920 | 614 | 6039 | |
| 185 | 17.64 | 1.6 | 25 | 52.4 | 990 | 660 | 7164 | |
| 240 | 20.25 | 1.7 | 35 | 58.8 | 1111 | 741 | 9244 | |
| 300 | 22.68 | 1.8 | 50 | 65.3 | 1234 | 823 | 11547 | |
Certification
VSD cable has successfully obtained SAA certification, fully complying with Australian and New Zealand low-voltage cable safety standards. This certification verifies that the cable meets the stringent requirements of AS/NZS 5000.1 standards for insulation performance, conductor quality, temperature resistance, and long-term electrical reliability.
Electromagnetic Shielding
Interference Resistance
High Flexibility
SAA Certified
APPLICATIONS
VSD cable is suitable for fixed installations in variable frequency drive systems, where electromagnetic compatibility (EMC) protection and reliable power transmission are extremely important. It is widely used in industrial machinery, conveyor systems, motor-driven production lines, pumps, compressors, and HVAC equipment.
Variable Frequency Motors
VSD cables are ideal for industrial variable frequency drive systems, providing a stable three-phase power supply to motors while achieving excellent grounding through three independent ground wires.
Wastewater Treatment Plants
In pumping stations, wastewater treatment plants, and water supply systems, VSD cables provide reliable power supply and strong EMC protection for variable frequency pumps.

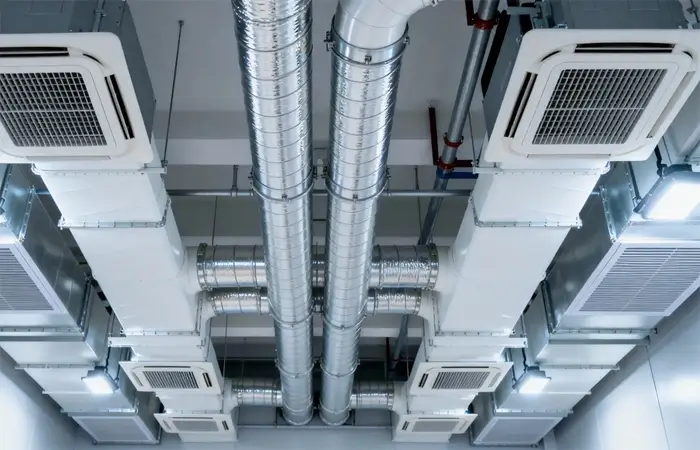

Heating Systems
In HVAC systems, fans, compressors, and ventilation equipment typically use variable frequency drives; the copper tape shielding of VSD cables significantly reduces harmonic interference.
Mining
Mining equipment operates in high-load, high-noise electrical environments; VSD cables offer excellent anti-interference capabilities, ensuring stable operation of variable frequency drives in large equipment.
Customer Photos
Exporting to 80+ countries and regions, we bring proven global export experience and trusted wires & cables to customers worldwide.
plant equipment
We are a professional Australia cable manufacturer, our company is equipped with a full range of modernized manufacturing and quality control equipment, including high-speed extrusion lines, precision stranding machines, automatic winding systems, and advanced electrical performance testing instruments. These facilities allow us to achieve high production efficiency, stable performance, and strict compliance with international cable standards such as SAA, UL, IEC, BS, and others.
Packaging Information
VSD cable are available in three packaging methods: coiled, plastic reel, and wooden reel.
