Australian Standard VSD/EMC Shielded Cable
Colour：
Clear
Conductor material：
Copper
Conductor flexibility：
Class 5
Insulation：
PVC
Outer sheath：
PVC
Rated Voltage Uo/U (Um)：
0.6/1 kV
Description
Download
Copper Conductor
Class 5 Plain Annealed Copper Conductors
Insulation and Sheath
PVC Sheath, Material Designated AS/NZS
Shielding
Tinned Annealed Copper Wire Braid
Temperature Rating
-20°C - 75°C

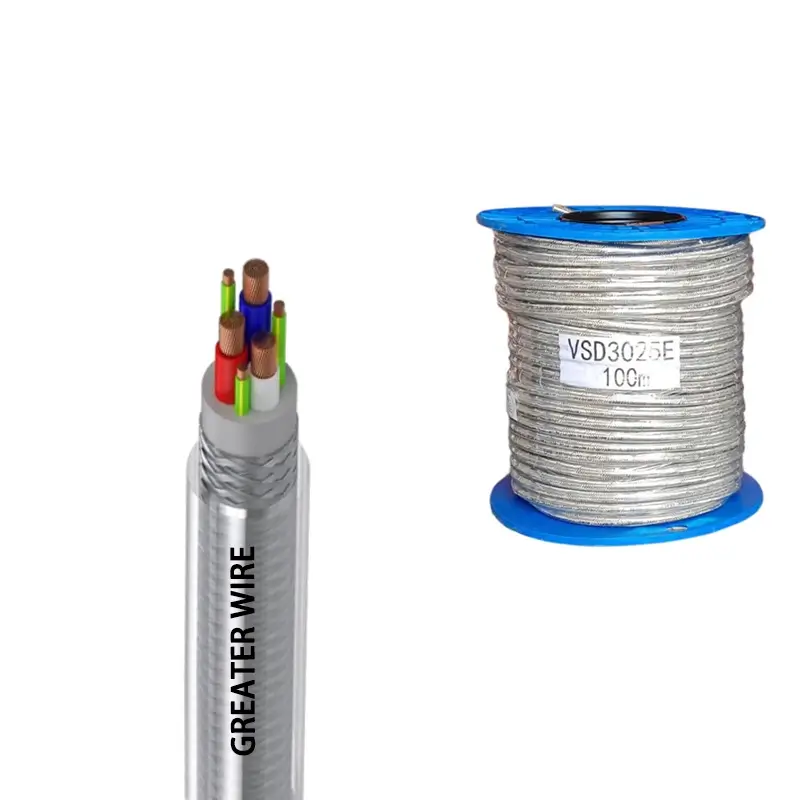

VSD/EMC Cable
0.6/1 kV screened VSD/EMC cable is a power connection cable for variable frequency drive (VSD) systems, capable of maintaining stable signal and power transmission in environments with high electromagnetic interference (EMI).

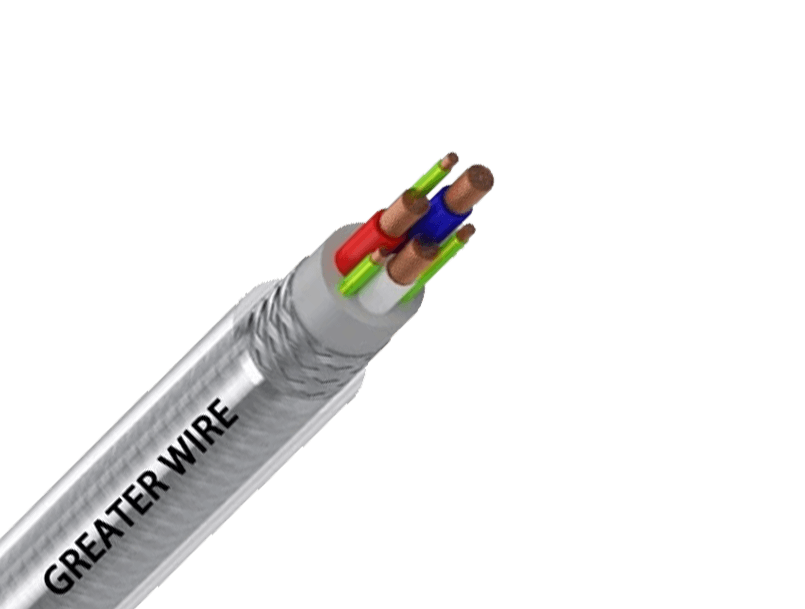

clear VSD cable
VSD/EMC cables are designed for VSD/inverter applications or applications requiring electromagnetic compatibility (EMC), and are primarily used for equipment connections, drive systems, etc.

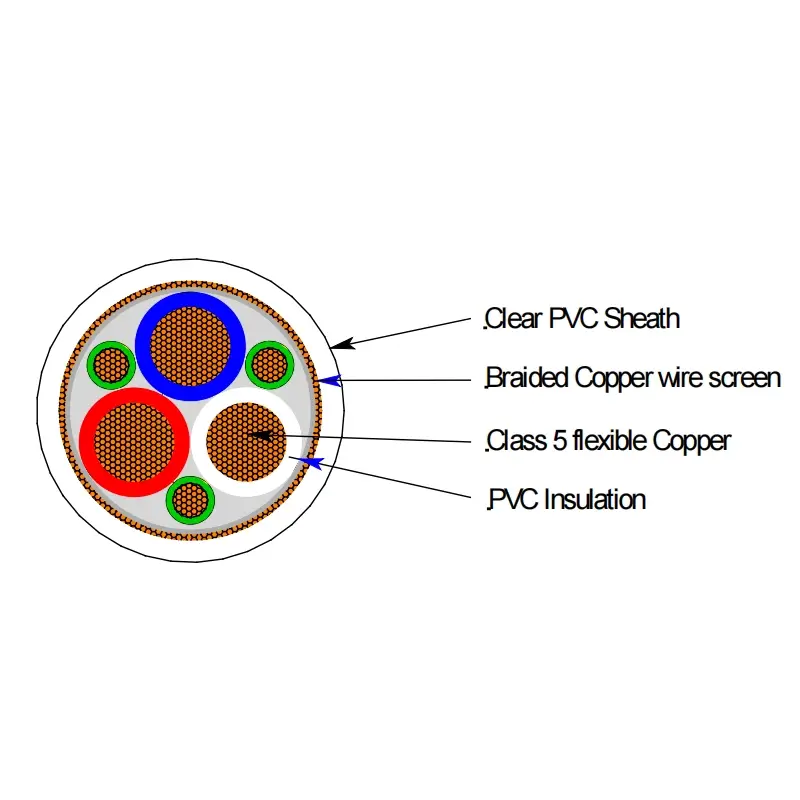

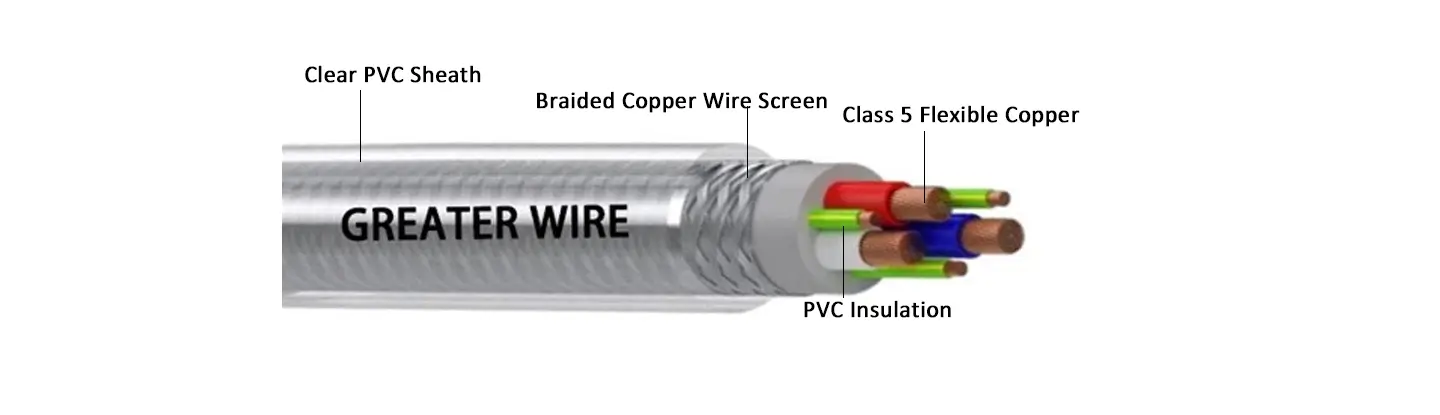

Class 5 Copper Conductors
Rated Voltage Uo/U (Um) 0.6/1kV
PVC Insulated and Sheath
Standards AS/NZS 5000.1
Tinned Annealed Copper Wire Braid
Temperature range -25℃ to 75 ℃
Advantages of VSD Cable
VSD cable uses class 5 high-flexibility plain annealed copper conductors, maintaining excellent mechanical flexibility under continuous vibration or equipment movement. The conductor is covered with a PVC or XLPE electrical insulation layer, providing excellent dielectric and heat resistance properties. Each core wire is clearly color-coded for easy installation identification.
| No. Of Cores | Nom. Area | Earth Size Per Core | Cable O.D. | Gland Size | Approx Mass | Current Rating Unenclosed |
| mm2 | mm2 | mm | mm | kg/km | ||
| 3 + E | 1 | 1 | 12.3 | 20 | 191 | 14 |
| 3 + E | 1.5 | 1.5 | 13.2 | 25 | 222 | 17 |
| 3 + E | 2.5 | 2.5 | 14 | 25 | 281 | 22 |
| 3 + 3E | 4 | 1.5 | 16.7 | 25 | 424 | 30 |
| 3 + 3E | 6 | 1.5 | 17.6 | 32 | 496 | 38 |
| 3 + 3E | 10 | 1.5 | 20.7 | 32 | 666 | 51 |
| 3 + 3E | 16 | 2.5 | 23.5 | 40 | 908 | 71 |
| 3 + 3E | 25 | 4 | 27.4 | 40 | 1332 | 94 |
| 3 + 3E | 35 | 6 | 34.8 | 50 | 1794 | 117 |
| 3 + 3E | 50 | 10 | 36.4 | 50 | 2517 | 148 |
Certification
0.6/1 kV VSD/EMC shielded cable is SAA certified, and its conductor, insulation, and sheath materials all comply with AS/NZS 1125 and AS/NZS 5000.1 standards.
Electromagnetic Shielding
Interference Resistance
High Flexibility
SAA Certified
APPLICATIONS
0.6/1 kV screened VSD cable is mainly used in variable speed drives (VFD), motor control systems, pumps, compressors, conveyor belt machinery, industrial automated production lines, and various motor equipment requiring speed regulation and precise control.
Mining
VSD cables are resistant to mechanical abrasion, oil, and vibration, and suppress electrical noise under harsh operating conditions, making them ideal for use in demanding environments.
Ventilation Equipment
In air conditioning systems, cooling towers, tunnel ventilation, and HVAC applications, VSD cables are used to power variable frequency drive (VFD) systems for fans.
Water Treatment Plants
Where pumping stations require frequent adjustments to water flow rates, VSD cables ensure stable operation between the VFD and the pump motor, while preventing interference with surrounding monitoring instruments.
Logistics and Transportation
In conveyor systems, packaging lines, and automated sorting equipment, VSD cables are used to power VFD-controlled drive motors, preventing electromagnetic noise from interfering with control signals.
Customer Photos
Exporting to 80+ countries and regions, we bring proven global export experience and trusted wires & cables to customers worldwide.
plant equipment
Geritel Wire is professional Australian Standard (AS/NZS) cables manufacturer , possessing advanced wire and cable manufacturing equipment and a rigorous quality control system. The factory fully complies with key standards such as AS/NZS 5000, AS/NZS 3808, and AS/NZS 1125. From conductor drawing and insulation extrusion to cabling and sheathing, every process is meticulously monitored, ensuring the cables exhibit stable conductivity, excellent mechanical strength, and reliable weather resistance.
Packaging Information
Depending on specifications and length, VSD cables can be packaged on wooden reels, steel-wood composite reels, or sturdy plastic reels, and secured with moisture-proof film and abrasion-resistant strapping to prevent moisture intrusion and damage from external forces. For shorter lengths, packaging options such as reels, rolls, and boxes are also available.

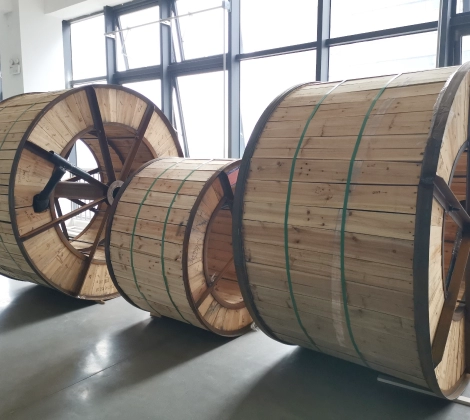

Wooden Drum Packaging
Large Wooden Drum Packaging
Reel Packaging
