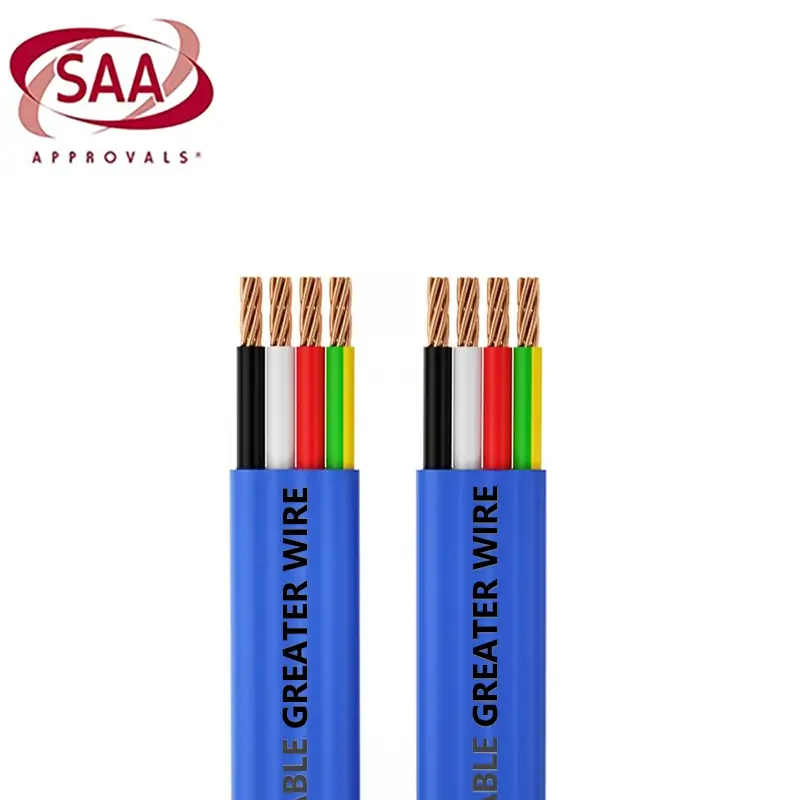

HVAC Air Conditioning Blue TPS Cable
Conductor：
Plain annealed copper, solid or stranded
Insulation：
V-90 insulation
Outer sheath：
3V-90 (PVC) compound
Rated temperature：
Maximum operating temperature of conductor is 90°C
Rated voltage：
AC 450/750V
Description
Download

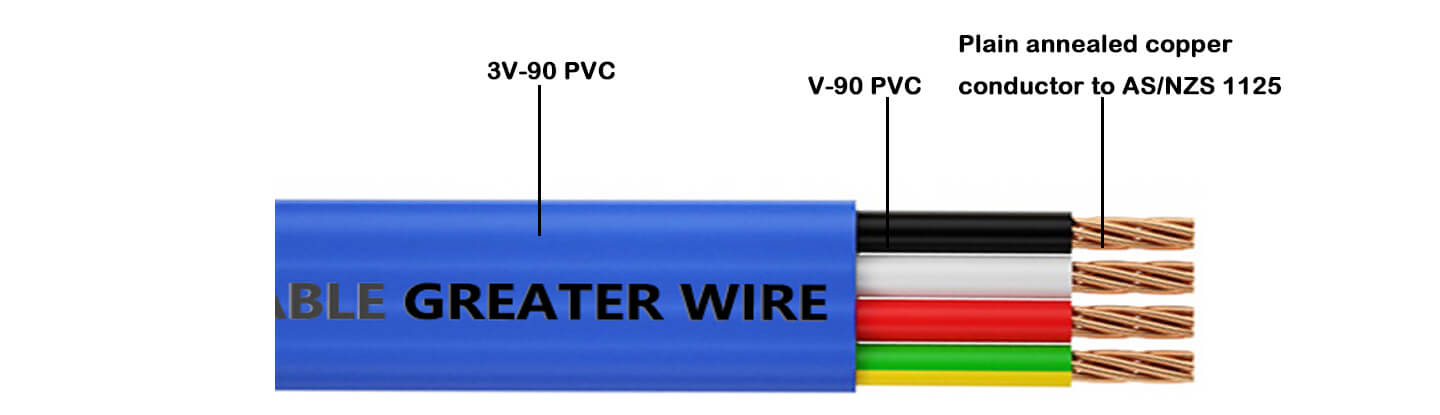

Copper Conductor
Class2 plain annealed copper conductor to AS/NZS 1125
V-90 PVC insulation, 3V-90 PVC sheath
90℃ PVC sheathed to AS/NZS 5000
Multi-core power cable
3 core + earth
Temperature Range
Operated at temperatures up to 90℃

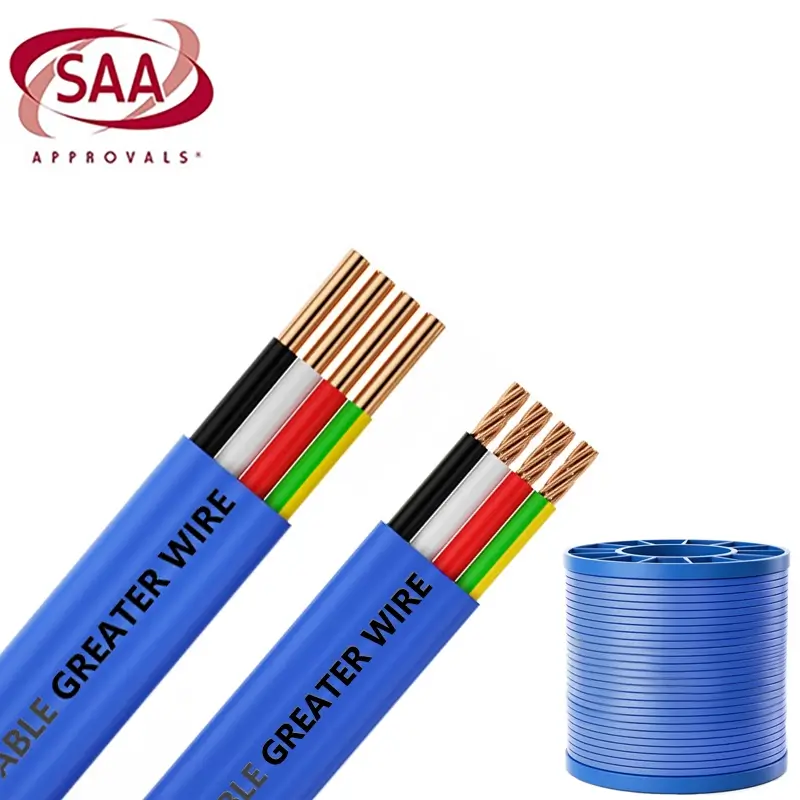

electrical tps cable

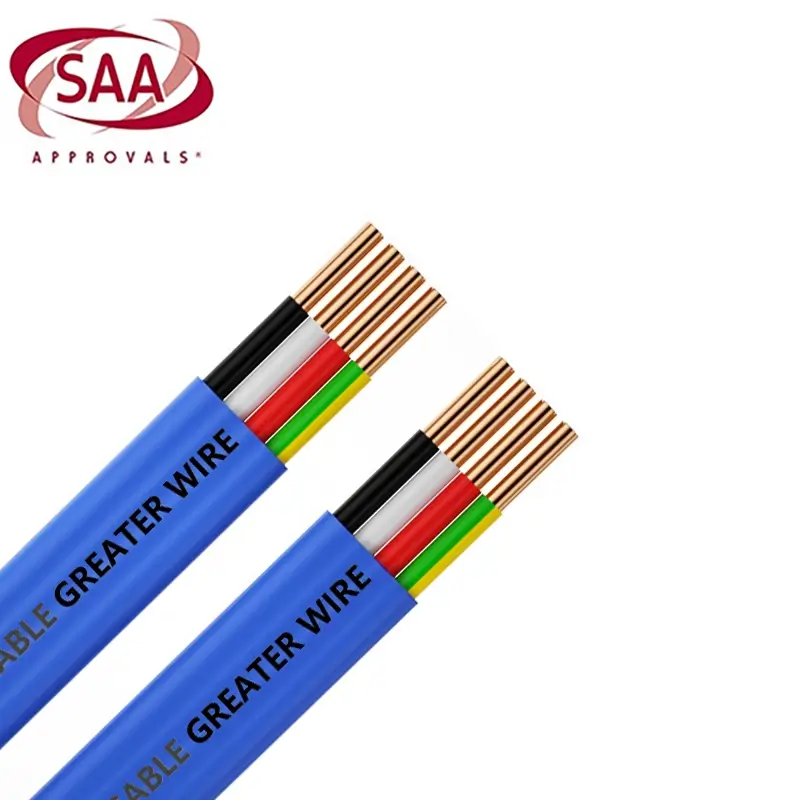

Blue TPS cable is a high-performance, heavy-duty 3C+E cable for air conditioning and single-phase electrical installations. The blue outer sheath is for quick and clear identification on-site. Built for durability, reliability, and ease of installation.

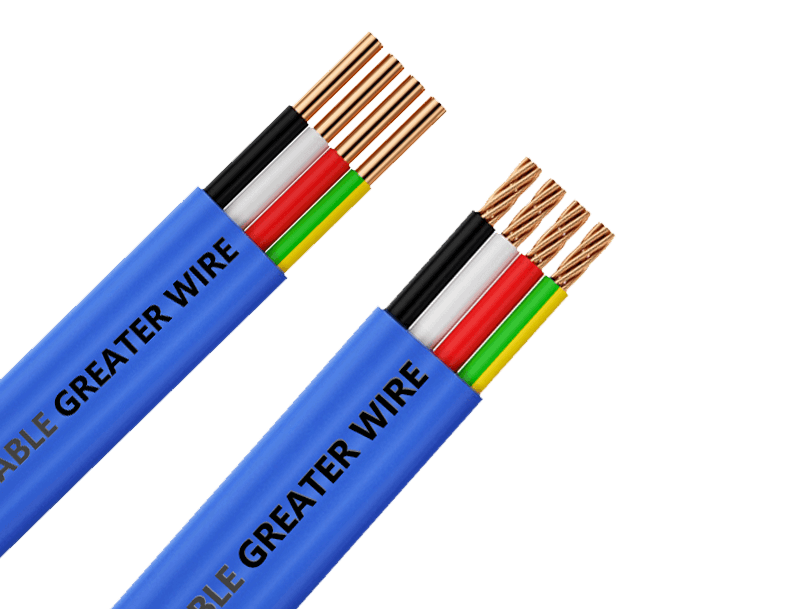

Flat TPS Cable
- The blue outer sheath makes it easy to distinguish different circuits, simplifying installation and maintenance.
- High heat resistance, wear resistance, and oil resistance design adapts to various installation environments.
- Provides safe, reliable, and low-loss power transmission.
Class 2 Copper Conductors
Rated Voltage Uo/U (Um) 450/750KV
V-90 Insulated
Standards AS/NZS 5000.2
3V-90 Sheathed
Temperature range 0℃ to 90 ℃
Advantages of electrical TPS cables
Blue TPS cable is 3 core and earth wire structure (3C+E), characterized by its compact, uniform conductors, and excellent insulation. All conductor cores are arranged in parallel and uniformly encased in a robust blue outer sheath. This sheath provides excellent mechanical protection and is also wear-resistant, oil-resistant, corrosion-resistant, and flame-retardant.
| Cable description 3C+E |
Nominal conductor area mm² |
Nominal insulation thickness mm |
Number and diameter of wires No/mm |
Approx. overall diameter mm 3C+E |
Approx.mass kg/100m 3C+E |
Min.installed bending radius mm 3C+E |
Cores construction / Sheat colour |
| 3x1.5+1.5 | 1.5 | 0.6 | 7/0.52 | 12.8x4.6 | 12 | 20 | Black-Red-G/Y-White/Blue |
| 3x2.5+2.5 | 2.5 | 0.7 | 7/0.67 | 15.8x5.5 | 19 | 20 | Black-Red-G/Y-White/Blue |
Certification
Our TPS cables have successfully obtained SAA certification, certification number SAA-240436-EA. This confirms that our cables meet the relevant standards of Australia, New Zealand (or other Oceania countries or regions) in terms of safety, durability, and performance.
Heat Resistant
Flame Retardant
Abrasion Resistance
SAA Certifieds
Usage scenario
Blue TPS cable features a 3-core + Earth structure with a tough blue sheath for excellent abrasion resistance and easy identification. Its superior conductivity and insulation strength make it ideal for single-phase electrical systems and air conditioning installations.
Building Wiring
In the building and construction industry, Blue TPS Cable is widely used in various fixed cabling projects, such as inside walls, in ceiling spaces, and in ground or underground conduit installations.
Industrial Wiring
In industrial environments, TPS Cable can be used to provide power to single-phase machinery, control systems, and instrumentation. It can operate stably in harsh environments such as factories, workshops, and production lines.

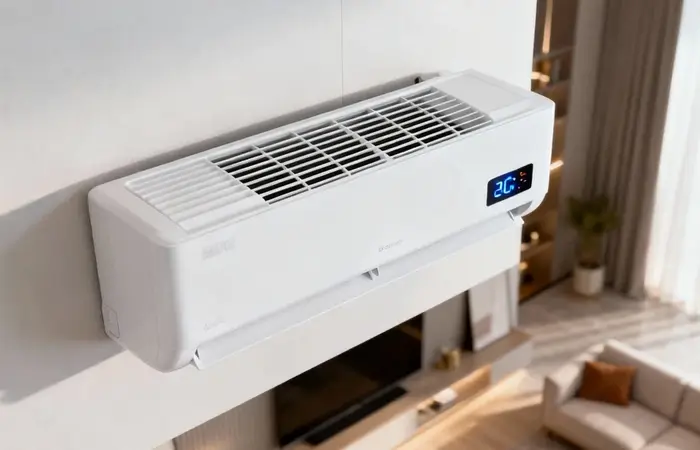

Air Conditioning Systems
In air conditioning systems in residential, commercial, and industrial settings, Blue 3 Core and Earth TPS Cable is commonly used for power connections to air conditioning units, compressors, and control panels.
Home Appliances
In residential environments, Blue TPS cable is particularly suitable for power connections to single-phase high-power appliances such as water heaters, range hoods, washing machines, and microwave ovens.
Customer Photos
Our wire and cable are sold to many countries and regions, reaching customers on every continent.
plant equipment
As a Australian standard cable manufacturer, Geritel Wire exports our wires and cables to numerous countries and regions across Oceania, Asia, Europe, the Middle East, and the Americas. Our wires and cables are known for their consistent quality, reliable performance, and compliance with multiple international certifications. Through long-term partnerships with distributors, engineering contractors, and electrical wholesalers, we have built a broad sales network, enabling our cables to serve a wide range of large-scale projects and industries.
Packaging Information
TPS cables are available in three packaging methods: coiled, on plastic reels, and in boxes. The specific packaging method depends on the size and length of the cable.
Coiled Packaging
Plastic Reel Packaging
Box Packaging
