Flat Purple TPS Electrical Cable
Conductor：
Plain annealed copper, solid or stranded
Insulation：
V-90 insulation
Outer sheath：
3V-90 (PVC) compound
Rated temperature：
Maximum operating temperature of conductor is 90°C
Rated voltage：
AC 450/750V
Standards：
AS/NZS 5000.2
Description
Download
Copper Conductor
Class2 plain annealed copper conductor to AS/NZS 1125
V-90 PVC insulation, 3V-90 PVC sheath
90℃ PVC sheathed to AS/NZS 5000
Multi-core power cable

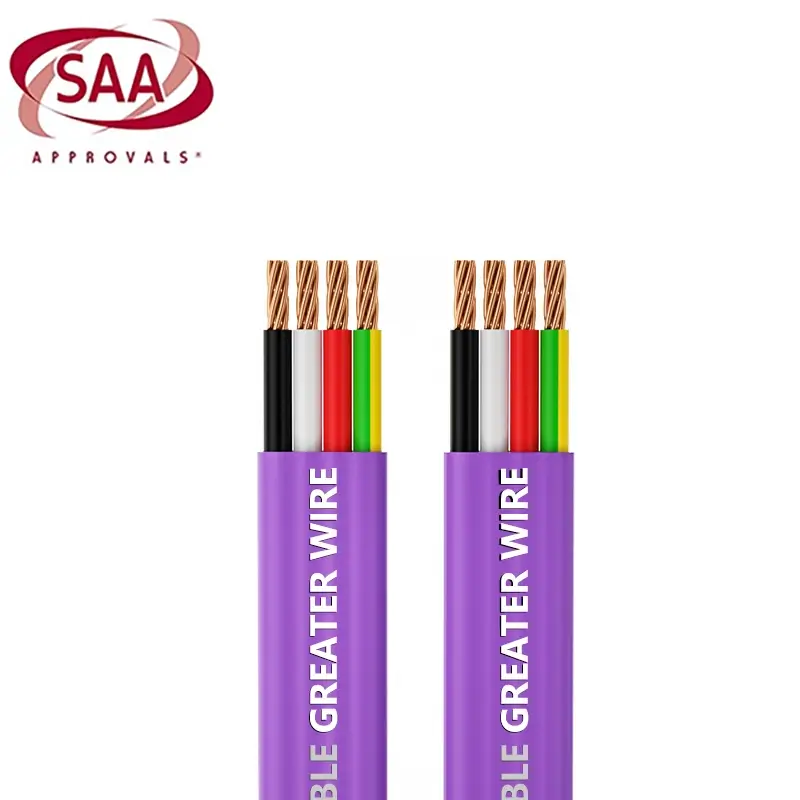

2 core + earth / 3 core + earth
Temperature Range
Operated at temperatures up to 90℃

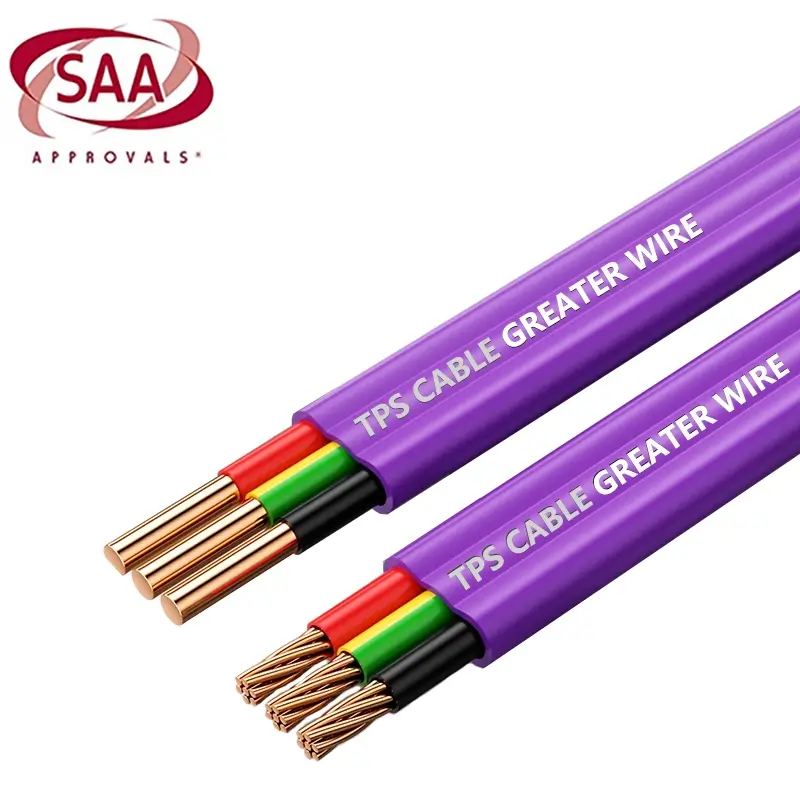

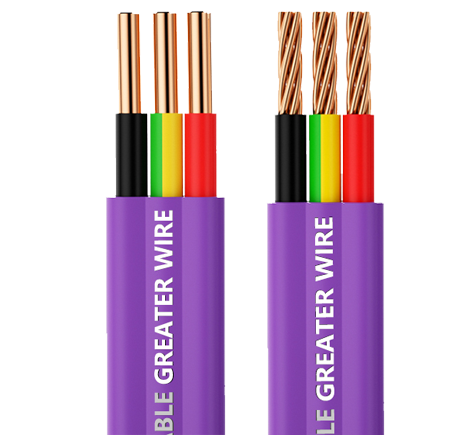

purple tps cable
Purple TPS cable, with its distinctive purple outer sheath, not only enhances visibility for identification but also indicates its non-migratory compound, making it safe for installation in contact with polystyrene, acrylic, ABS, and polycarbonate materials—a common requirement in modern construction environments.

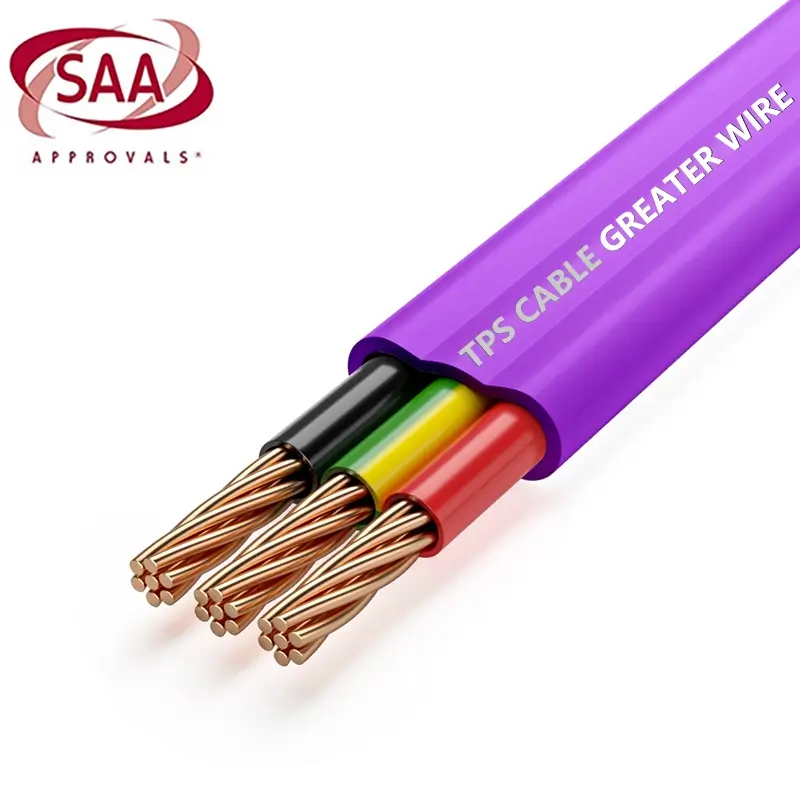

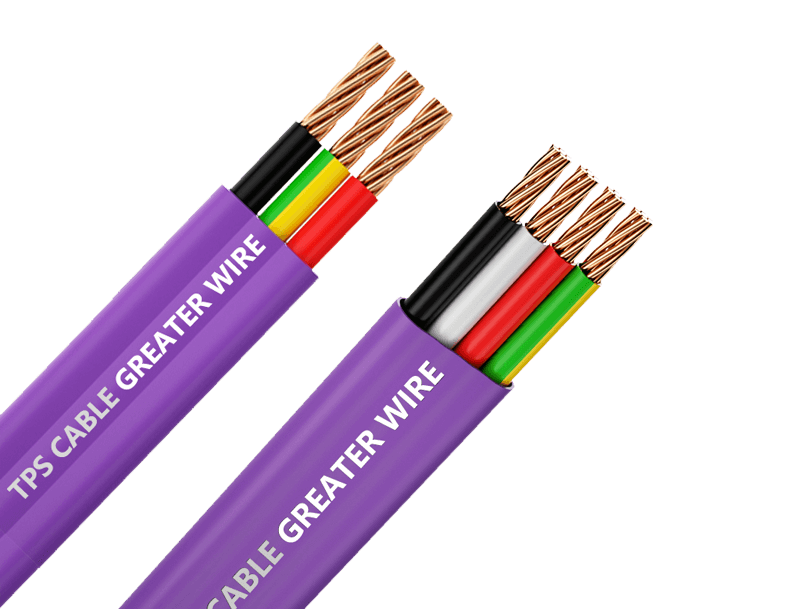

Flat Purple TPS Cable
Purple TPS Cable is designed for light to medium industrial installations and a wide range of internal building wiring applications. Its non-migratory PVC insulation and sheath make it especially suitable for environments where cables may come into contact with materials such as polystyrene, acrylic, ABS, or polycarbonate, for long-term material compatibility and stability.
Class 2 Copper Conductors
Rated Voltage Uo/U (Um) 450/750KV
V-90 Insulated
Standards AS/NZS 5000.2
3V-90 Sheathed
Temperature range 0℃ to 90 ℃

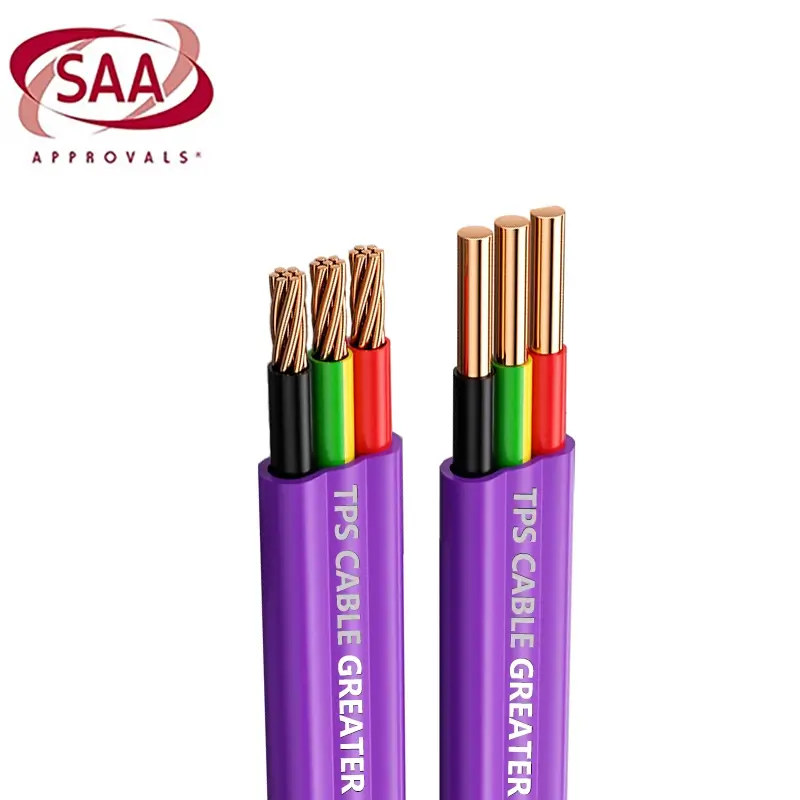

Advantages of electrical TPS cables
Purple TPS cable is a premium flat twin and earth power cable designed in compliance with AS/NZS 5000.2. It features V-90 PVC insulation and a 3V-90 non-migratory PVC sheath， excellent electrical insulation, flame retardancy, and long-term material stability.
| Insulation Colours | Conductor | Cable | Min installed bending radius(a) | |||||||
| Nominal C.S.A. | Number and diameter of wires | Nominal diameter | Nominal insulation thickness | Overall diameter mm | Approx. mass | |||||
| Minimum | Maximum | |||||||||
| mm2 | No/mm | mm | mm | Major axis | Major axis | Major axis | Major axis | kg/100m | mm | |
| Red, Green/Yellow, Black | 1 | 7/0.42 | 1.26 | 0.6 | 7.0 | 4.2 | 7.1 | 4.3 | 5.2 | 15 |
| Red, Green/Yellow, Black | 1.5 | 7/0.52 | 1.56 | 0.6 | 7.1 | 4.5 | 7.3 | 4.6 | 6.4 | 20 |
| Red, Green/Yellow, Black | 2.5 | 7/0.67 | 2 | 0.7 | 8.7 | 5.4 | 8.9 | 5.5 | 10 | 20 |
| Red, Green/Yellow, Black | 4 | 7/0.85 | 2.6 | 0.8 | 10.4 | 6.3 | 10.7 | 6.5 | 15 | 25 |
| Red, Green/Yellow, Black | 6 | 7/1.04 | 3.1 | 0.8 | 11.5 | 6.9 | 11.9 | 7.1 | 20 | 30 |
| Red, Green/Yellow, Black | 10 | 7/1.35 | 4.1 | 1 | 14.2 | 8.4 | 15.0 | 8.8 | 31 | 35 |
| Red, Green/Yellow, Black | 16 | 7/1.70 | 5.1 | 1 | 15.7 | 9.7 | 17.3 | 10.0 | 45 | 40 |
Certification
TPS cables have obtained SAA certification under the certificate number SAA-240436-EA. Customers may visit the official SAA website to verify the authenticity of this certification.
Heat Resistant
Flame Retardant
Abrasion Resistance
SAA Certifieds
Usage scenario
Purple TPS cable is suitable for interior wiring in buildings, such as residential, commercial, and light industrial applications. It is suitable for wall and roof materials, cold rooms, and mobile buildings.
Building Wiring
Used in offices, retail stores, and public facilities for reliable internal wiring where neat, flat cabling is preferred.
Residential Wiring
Ideal for general household electrical wiring, including lighting circuits, power outlets, and appliance connections within walls and ceilings.
Transportable Buildings
Perfect for caravans, prefabricated, and transportable buildings requiring flexible, flame-retardant, and compact cabling solutions.

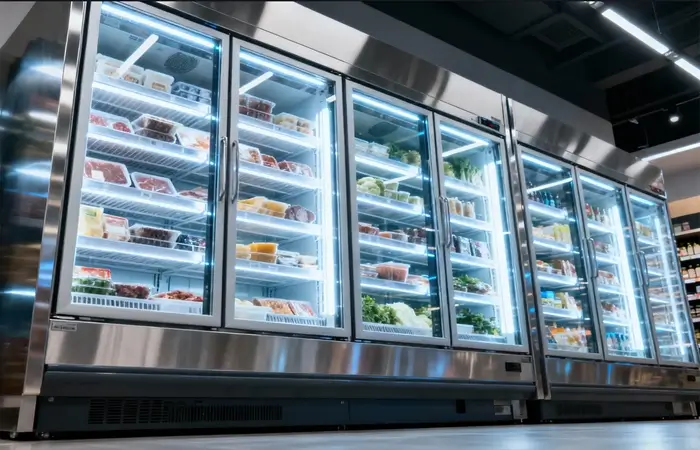

Refrigerated Areas
Performs reliably in cold environments such as walk-in freezers and cold rooms, maintaining insulation integrity and electrical performance.
Customer Photos
Our wires and cables are exported to numerous countries and regions around the world, and we have established long-term partnerships with clients from various parts of the globe.
plant equipment
Geritel Wire is a professional Australian Standard cable manufacturer, equipped with advanced machinery and an efficient management system. Every cable we produce meets Oceania and international standards. Our pursuit of excellence drives us to continuously improve product performance, production efficiency, and customer satisfaction.
Packaging Information
TPS cables are available in three packaging methods: coiled, on plastic reels, and in boxes. The specific packaging method depends on the size and length of the cable.
Coiled Packaging
Plastic Reel Packaging
Box Packaging
