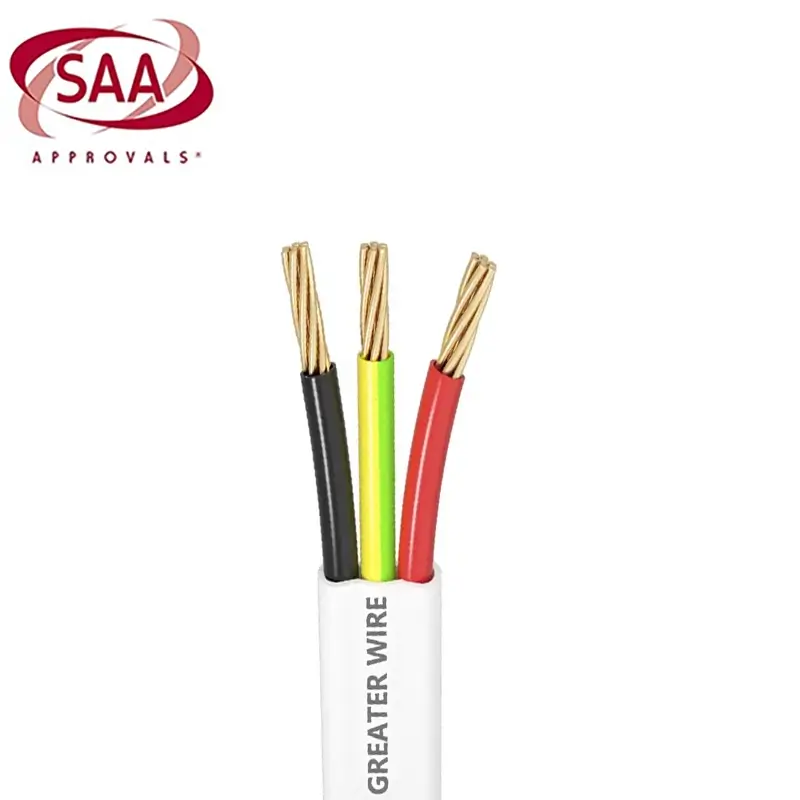

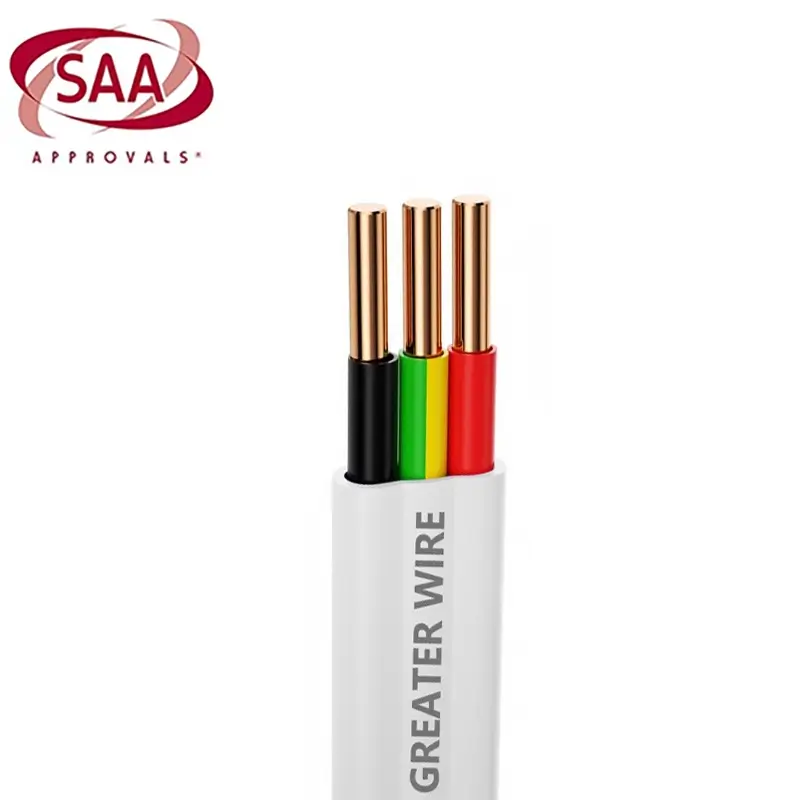

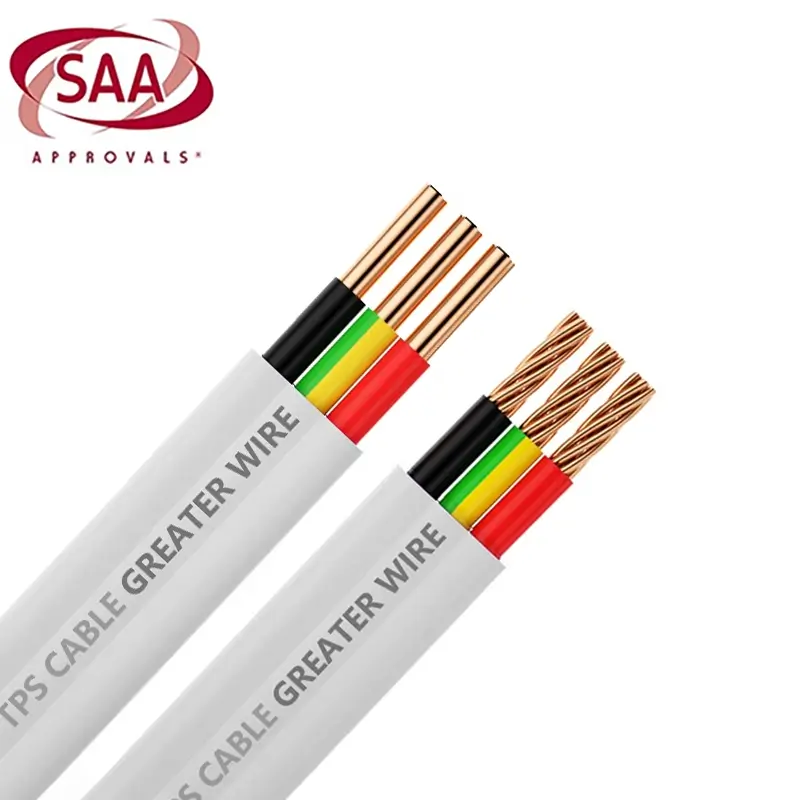

AS/NZS 5000.2 Flat TPS Electrical Cable
Conductor：
Plain annealed copper, solid or stranded
Insulation：
V-90 insulation
Outer sheath：
3V-90 (PVC) compound
Rated temperature：
Maximum operating temperature of conductor is 90°C
Rated voltage：
AC 450/750V
Standards：
AS/NZS 5000.2
Description
Download

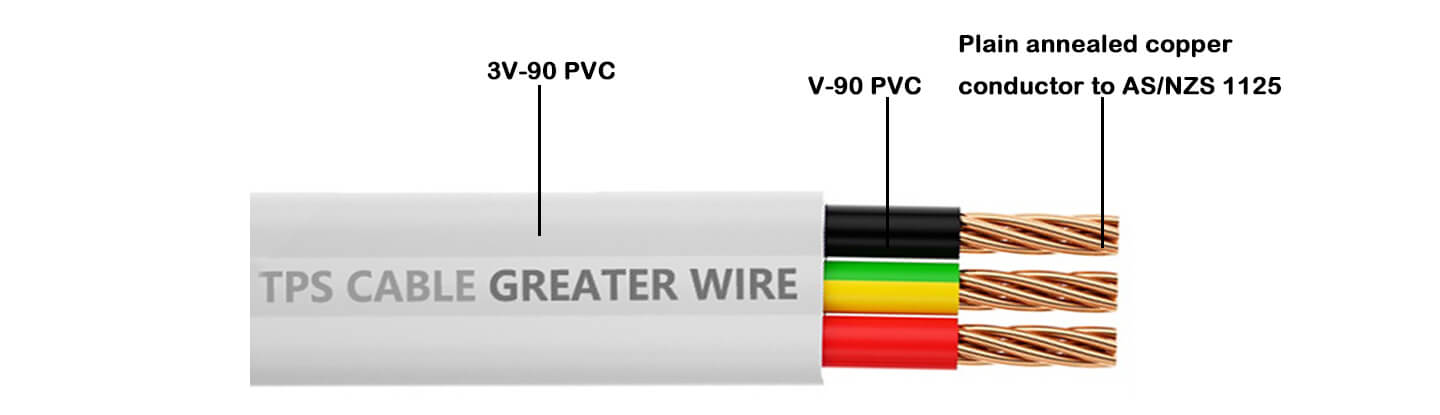

Copper Conductor
Class2 plain annealed copper conductor to AS/NZS 1125
V-90 PVC insulation, 3V-90 PVC sheath
90℃ PVC sheathed to AS/NZS 5000
Multi-core power cable

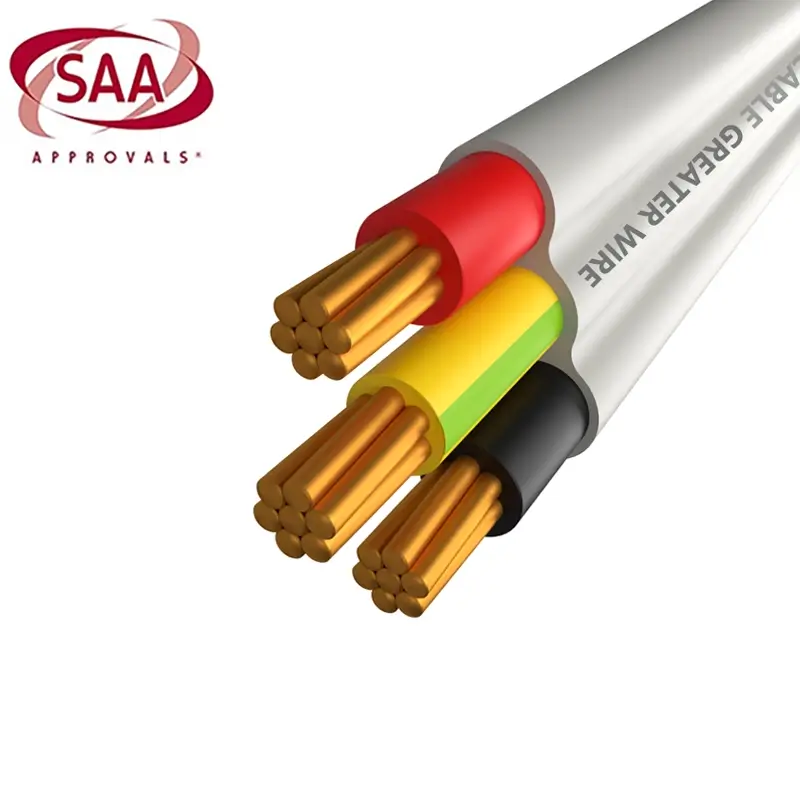

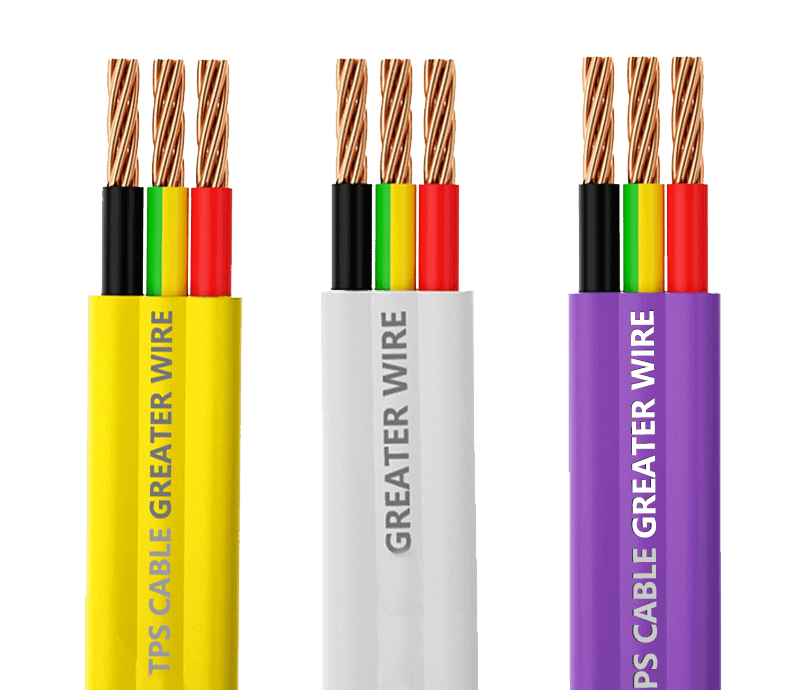

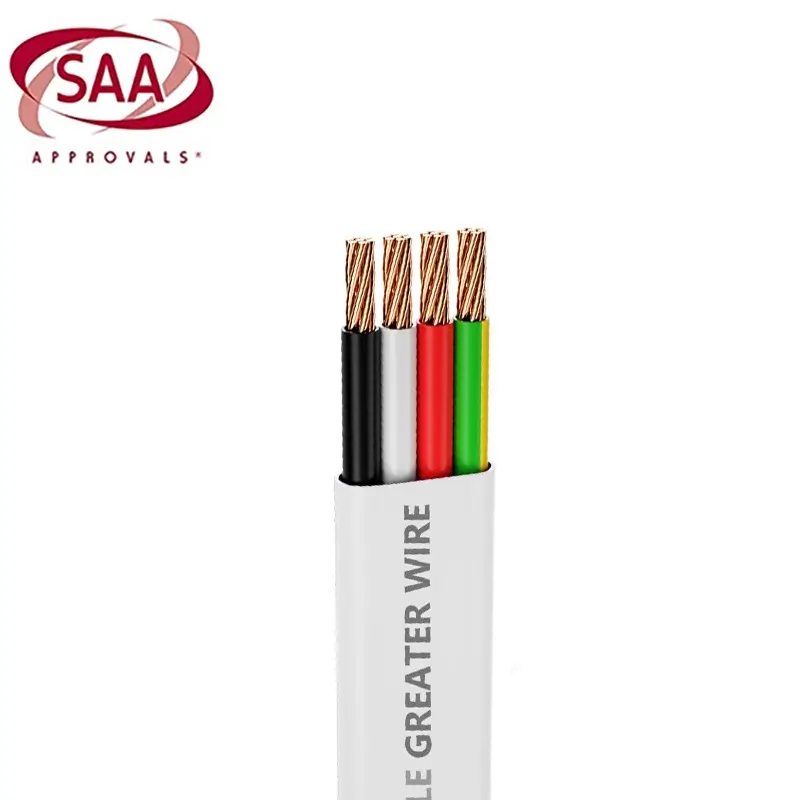

2 core / 2 core + earth / 3 core + earth
Temperature Range
Operated at temperatures up to 90℃
TPS Electrical Cable
TPS Cable features PVC insulated copper conductors and a durable PVC sheath, providing excellent electrical insulation, flexibility, and flame retardancy. Its compact flat profile allows for easy handling and neat installation.
Flat TPS Electrical Cable
For general wiring, unenclosed, enclosed in conduit, for domestic, commercial and industrial installations where not subject to mechanical damage.
Class 2 Copper Conductors
Rated Voltage Uo/U (Um) 450/750KV
V-90 Insulated
Standards AS/NZS 5000.2
3V-90 Sheathed
Temperature range 0℃ to 90 ℃
Advantages of flat tps cable
Australian standard TPS cable adopts a double thermoplastic sheath structure, containing multiple copper conductors, a PVC insulation layer, and a robust outer sheath, giving it excellent electrical insulation, heat resistance, and mechanical strength.
| Insulation Colours | Conductor | Cable | Min installed bending radius(a) | |||||||
| Nominal C.S.A. | Number and diameter of wires | Nominal diameter | Nominal insulation thickness | Overall diameter mm | Approx. mass | |||||
| Minimum | Maximum | |||||||||
| mm2 | No/mm | mm | mm | Major axis | Major axis | Major axis | Major axis | kg/100m | mm | |
| 2C+E FLAT PVC | ||||||||||
| Red, Green/Yellow, Black | 1 | 7/0.42 | 1.26 | 0.6 | 9.5 | 4.3 | 9.6 | 4.4 | 8 | 20 |
| Red, Green/Yellow, Black | 1.5 | 7/0.52 | 1.56 | 0.6 | 9.8 | 4.5 | 10.1 | 4.6 | 10 | 20 |
| Red, Green/Yellow, Black | 2.5 | 7/0.67 | 2 | 0.7 | 12.1 | 5.4 | 12.4 | 5.5 | 15 | 20 |
| Red, Green/Yellow, Black | 4 | 7/0.85 | 2.6 | 0.8 | 13.8 | 6.3 | 14.1 | 6.5 | 19 | 30 |
| Red, Green/Yellow, Black | 6 | 7/1.04 | 3.1 | 0.8 | 14.9 | 6.9 | 15.3 | 7.1 | 24 | 30 |
| Red, Green/Yellow, Black | 10 | 7/1.35 | 4.1 | 1 | 18.9 | 8.4 | 19.6 | 8.8 | 38 | 35 |
| Red, Green/Yellow, Black | 16 | 7/1.70 | 5.1 | 1 | 21.8 | 9.7 | 22.5 | 10 | 54 | 40 |
| 3C+E FLAT PVC | ||||||||||
| Red, White, Green/yellow, Blue | 1 | 7/0.42 | 1.26 | 0.6 | 11.4 | 4.5 | 11.7 | 4.6 | 10 | 20 |
| Red, White, Green/yellow, Blue | 1.5 | 7/0.52 | 1.56 | 0.6 | 12.4 | 4.5 | 12.8 | 4.6 | 12 | 20 |
| Red, White, Green/yellow, Blue | 2.5 | 7/0.67 | 2 | 0.7 | 15.4 | 5.4 | 15.8 | 5.5 | 19 | 20 |
| Red, White, Green/yellow, Blue | 4 | 7/0.85 | 2.6 | 0.8 | 17.9 | 6.3 | 18.3 | 6.5 | 26 | 25 |
| Red, White, Green/yellow, Blue | 6 | 7/1.04 | 3.1 | 0.8 | 19.5 | 6.9 | 20.1 | 7.1 | 33 | 30 |
| Red, White, Green/yellow, Blue | 10 | 7/1.35 | 4.1 | 1 | 24.9 | 8.4 | 25.8 | 8.8 | 52 | 35 |
| Red, White, Green/yellow, Blue | 16 | 7/1.70 | 5.1 | 1 | 28.8 | 9.7 | 29.7 | 10 | 75 | 40 |
| 3C FLAT PVC | ||||||||||
| Red, White, Blue | 1 | 7/0.42 | 1.26 | 0.6 | 8.8 | 4.1 | 9 | 4.3 | 8 | 20 |
| Red, White, Blue | 1.5 | 7/0.52 | 1.56 | 0.6 | 9.8 | 4.5 | 10.1 | 4.6 | 10 | 20 |
| Red, White, Blue | 2.5 | 7/0.67 | 2 | 0.7 | 12.1 | 4.4 | 12.4 | 5.5 | 15 | 20 |
Certification
TPS cables are SAA certified, our certificate number SAA-240436-EA. Customers can verify the certification information on the SAA official website to confirm its authenticity.
Heat Resistant
Mechanical Resistance
Abrasion Resistance
SAA Certified
APPLICATIONS
Australian standard TPS cable is widely used in various building and electrical installation projects in Australia and New Zealand. It boasts excellent moisture and aging resistance, which is suitable for indoor surface mounting, concealed installation, and conduit installation.
Building Wiring
In commercial settings such as office buildings, shopping malls, supermarkets, and educational institutions, TPS cables are used for lighting, power distribution, and emergency system wiring, conforming to the AS/NZS 5000.2 standard, to ensure the safety and efficiency of power systems.
Industrial Plants
In factories, workshops, or warehouses, TPS cables are used for main lighting systems and emergency lighting wiring. They possess excellent conductivity and flexibility, allowing for installation in complex structures and providing stable power supply.
Residential Wiring
Australian standard TPS cables are widely used for fixed wiring within residential buildings, such as for lighting, power outlets, and power supply to household appliances. Their double-insulated construction provides excellent electrical safety and heat resistance, contributing to the long-term stable operation of the home.
Household Appliances
TPS cables are commonly used to power medium power electrical appliances such as electric water heaters, electric ovens, and electric stoves. They have good insulation, temperature resistance, and moisture resistance, making them suitable for high-humidity environments.
Customer Photos
With 10+ years of export experience, we proudly supply our wire and cable products to more than 80 countries worldwide. We have extensive expertise in exporting TPS cables, reliable quality, compliance with international standards, and full familiarity with regional electrical requirements.
plant equipment
Dongguan GERITEL Wire Electrical Co., Ltd. is a professional Australian Standard TPS Cables manufacturer with over 30 years of industry experience. We prioritize material quality, using high-purity copper conductors and environmentally friendly PVC sheaths for excellent conductivity and durability. Each batch of cables undergoes multiple tests, including withstand voltage, aging, insulation resistance, and flame retardancy, to meet Australian and international safety standards and is SAA certified.
Packaging Information
TPS cables are available in three packaging methods: coiled, on plastic spools, and in boxes. The specific packaging method depends on the size and length of the cable. Custom packaging options are also available.
Coiled Packaging
Plastic Reel Packaging
Box Packaging
