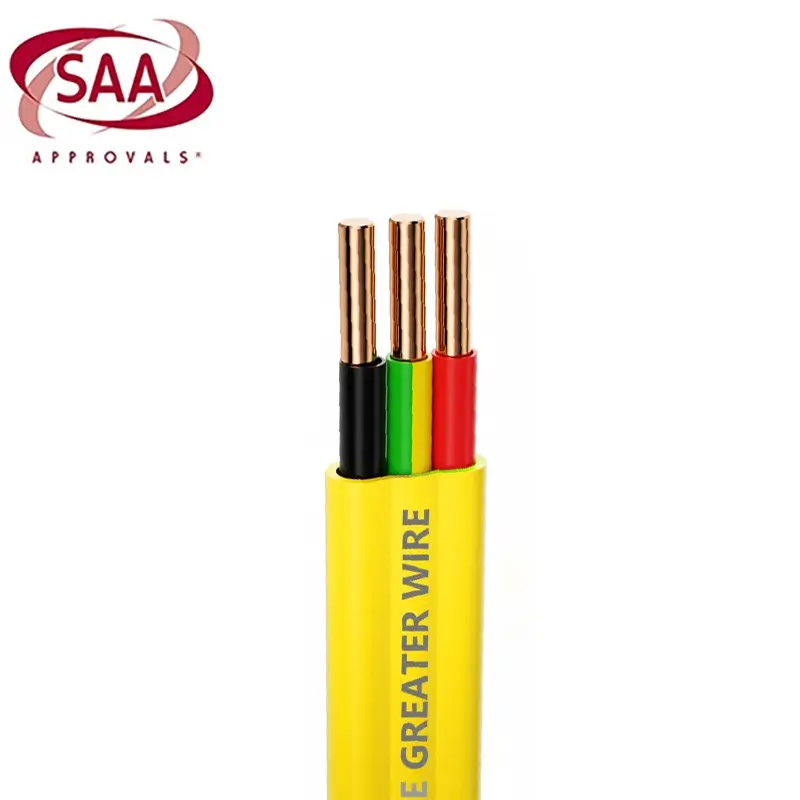

2 /3 Core and Earth Yellow TPS Electrical Cable
Conductor：
Plain annealed copper, solid or stranded
Insulation：
V-90 insulation
Outer sheath：
3V-90 (PVC) compound
Rated temperature：
Maximum operating temperature of conductor is 90°C
Rated voltage：
AC 450/750V
Standards：
AS/NZS 5000.2
Description
Download

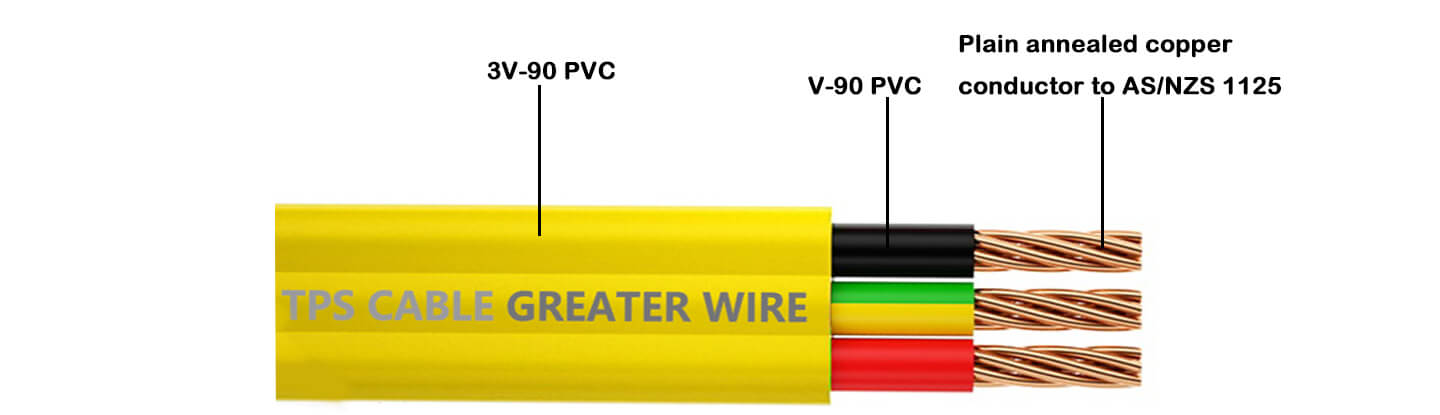

Copper Conductor
Class2 plain annealed copper conductor to AS/NZS 1125
V-90 PVC insulation, 3V-90 PVC sheath
90℃ PVC sheathed to AS/NZS 5000
Multi-core power cable
2 core + earth / 3 core + earth
Temperature Range
Operated at temperatures up to 90℃

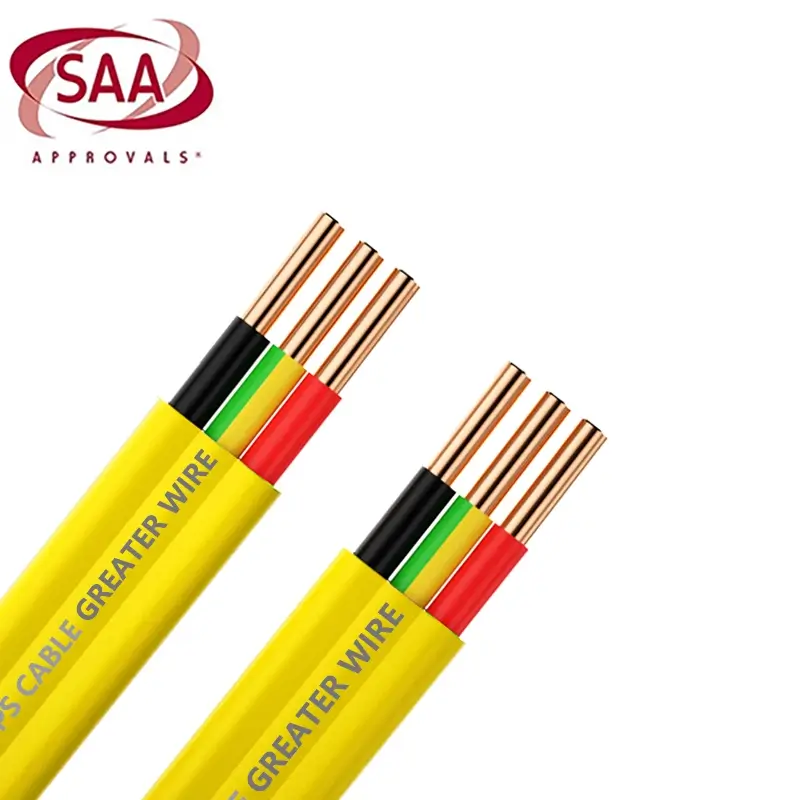

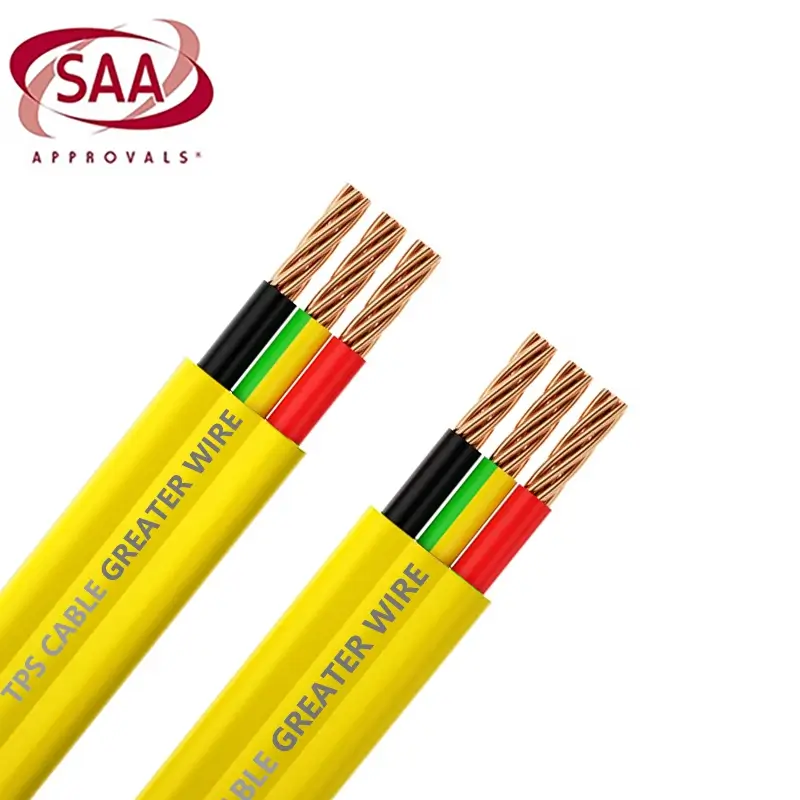

electrical tps cable
Yellow TPS cable, belonging to the category of "Thermoplastic-Sheathed Cable," is a low-voltage power cable used for fixed wiring, particularly in residential, commercial buildings, or light industrial locations. This type of cable conforms to standards such as AS/NZS 5000.2. In the "yellow" version, the outer sheath (or sheath color) is yellow, or yellow is used in specific applications to distinguish the line's purpose and increase identification. This color-coded sheath helps installers quickly identify the cable's application or circuit category.

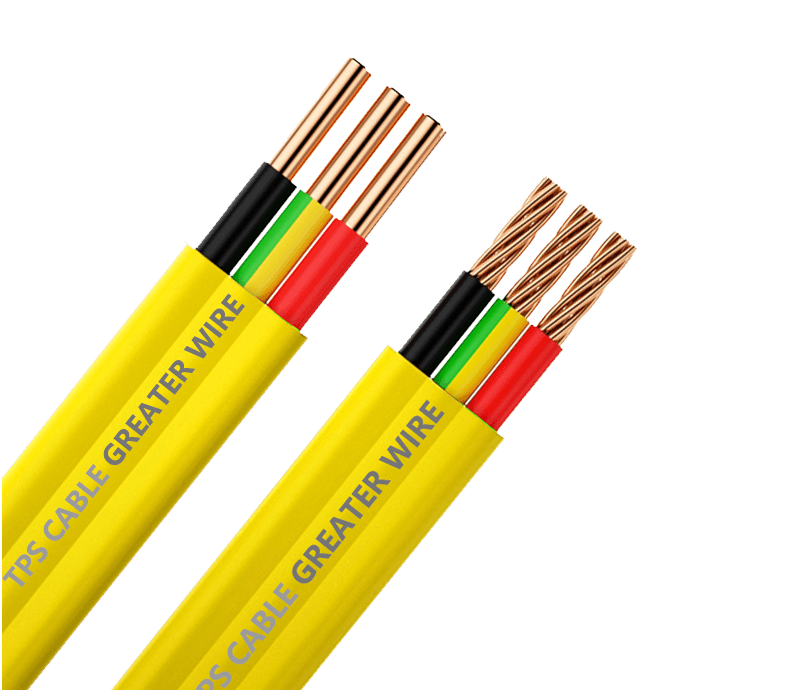

Flat TPS Cable
TPS cables are ideal for use in bathroom heater/lighting/exhaust fan combinations, as well as outdoor motion-sensor lighting systems. Their construction allows for flexible wiring in switching circuits (including 2-way circuits and intermediate switching lines) for LED lights or dimmer controls common in modern lighting systems.
Class 2 Copper Conductors
Rated Voltage Uo/U (Um) 450/750KV
V-90 Insulated
Standards AS/NZS 5000.2
3V-90 Sheathed
Temperature range 0℃ to 90 ℃
Advantages of electrical TPS cables
Yellow TPS cables are commonly found in Oceania regions such as Australia and New Zealand. They have a "flat" structure, meaning the conductors are arranged side-by-side and the overall sheath is flat, making them easy to lay close to walls or floors.
| Insulation Colours | Conductor | Cable | Min installed bending radius(a) | |||||||
| Nominal C.S.A. | Number and diameter of wires | Nominal diameter | Nominal insulation thickness | Overall diameter mm | Approx. mass | |||||
| Minimum | Maximum | |||||||||
| mm2 | No/mm | mm | mm | Major axis | Major axis | Major axis | Major axis | kg/100m | mm | |
| Red, Green/Yellow, Black | 1 | 7/0.42 | 1.26 | 0.6 | 7.0 | 4.2 | 7.1 | 4.3 | 5.2 | 15 |
| Red, Green/Yellow, Black | 1.5 | 7/0.52 | 1.56 | 0.6 | 7.1 | 4.5 | 7.3 | 4.6 | 6.4 | 20 |
| Red, Green/Yellow, Black | 2.5 | 7/0.67 | 2 | 0.7 | 8.7 | 5.4 | 8.9 | 5.5 | 10 | 20 |
| Red, Green/Yellow, Black | 4 | 7/0.85 | 2.6 | 0.8 | 10.4 | 6.3 | 10.7 | 6.5 | 15 | 25 |
| Red, Green/Yellow, Black | 6 | 7/1.04 | 3.1 | 0.8 | 11.5 | 6.9 | 11.9 | 7.1 | 20 | 30 |
| Red, Green/Yellow, Black | 10 | 7/1.35 | 4.1 | 1 | 14.2 | 8.4 | 15.0 | 8.8 | 31 | 35 |
| Red, Green/Yellow, Black | 16 | 7/1.70 | 5.1 | 1 | 15.7 | 9.7 | 17.3 | 10.0 | 45 | 40 |
Certification
TPS Cable has been certified by the Australian SAA, with certification number SAA-240436-EA. This certification indicates that the product meets the safety and performance standards of Australia, New Zealand, and other Oceania regions, and is legally permitted for sale and use in those markets.
Heat Resistant
Flame Retardant
Abrasion Resistance
SAA Certifieds
Usage scenario
Yellow TPS cables can be used to identify specific circuits (such as backup circuits, special-purpose lighting, emergency power supplies, etc.) for easier maintenance, inspection, and identification. While not all regional standards require yellow sheaths, in practice, yellow sheaths improve identification efficiency.
Building Wiring
In office buildings or public buildings, TPS cables can be used for corridor lighting, emergency exit lights, and indicator light circuits. The yellow color makes them easy to identify and maintain.
Industrial Wiring
In light industry or equipment rooms, such as small machinery, control panels, and lighting and fan assemblies, cables can be used for control circuits or auxiliary lighting circuits, improving wiring management.

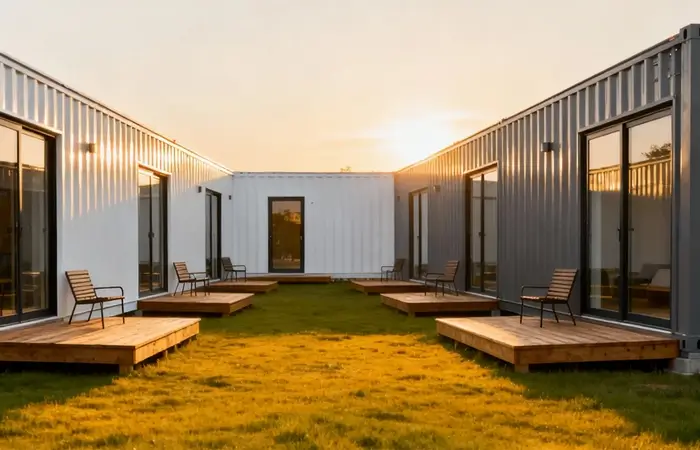

Mobile Units
In modular buildings, temporary housing on construction sites, or mobile structures, yellow TPS cables can be used for fixed wiring installations, especially for lines marked "lighting/control" applications.

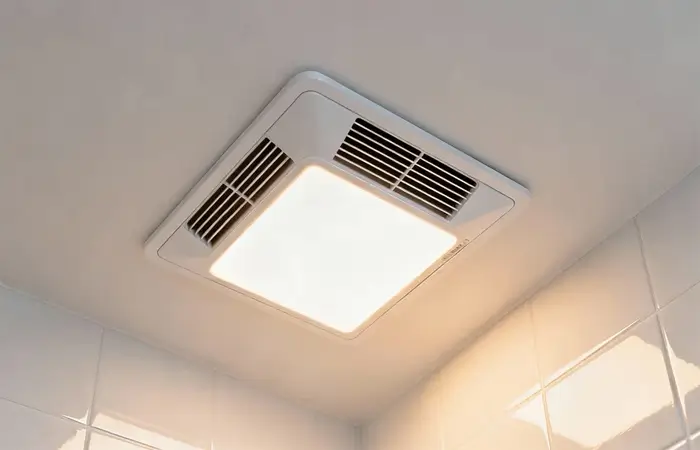

Home Appliances
Home appliances may include heaters, lights, and fans, among others. Using yellow sheathed TPS cables clearly identifies the circuit as a "multi-functional combination circuit," facilitating future maintenance and repair.
Customer Photos
Our wire and cable are sold to many countries and regions, reaching customers on every continent.
plant equipment
Our factory is committed to producing cables that meet international standards and places great emphasis on technology, precision, and quality assurance. We employ advanced production technologies, such as automated extrusion, online measurement, and high-speed braiding, to ensure consistent precision and performance in our wires and cables. Every batch of cables undergoes rigorous testing; our Australian Standard cables comply with AS/NZS standards, with tests covering conductor resistance, insulation performance, tensile strength, and flame retardancy.
Packaging Information
TPS cables are available in three packaging methods: coiled, on plastic reels, and in boxes. The specific packaging method depends on the size and length of the cable.
Coiled Packaging
Plastic Reel Packaging
Box Packaging
