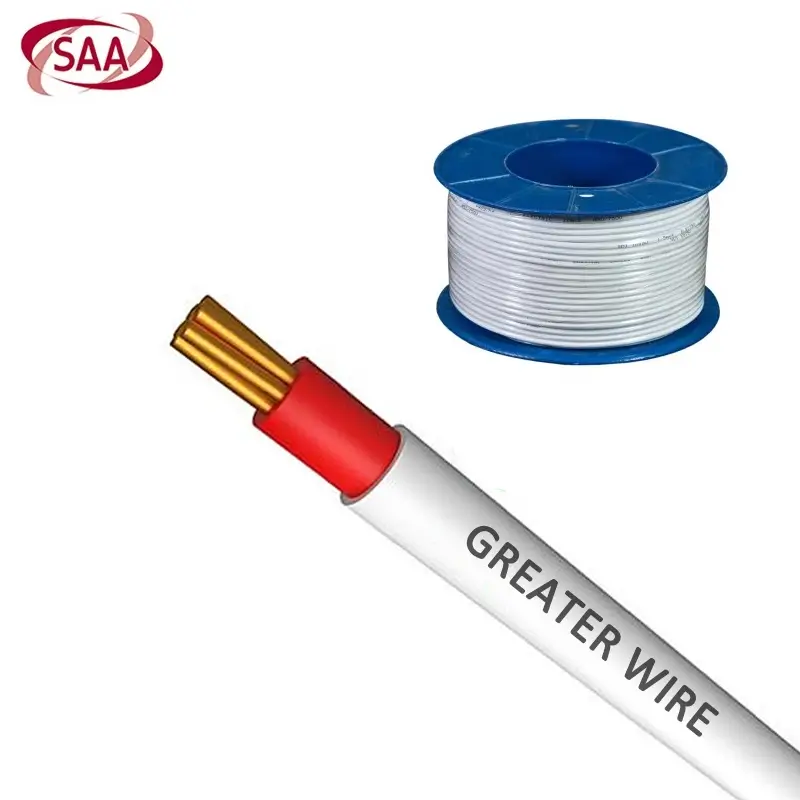

450/750V PVC Single Core Copper SDI Cable
Conductor material：
Copper
Conductor flexibility：
Class 2
Insulation：
V-90
Outer sheath ：
PVC
Rated Voltage Uo/U (Um)：
450/750V
Standards：
AS/NZS 5000.2
Description
Download

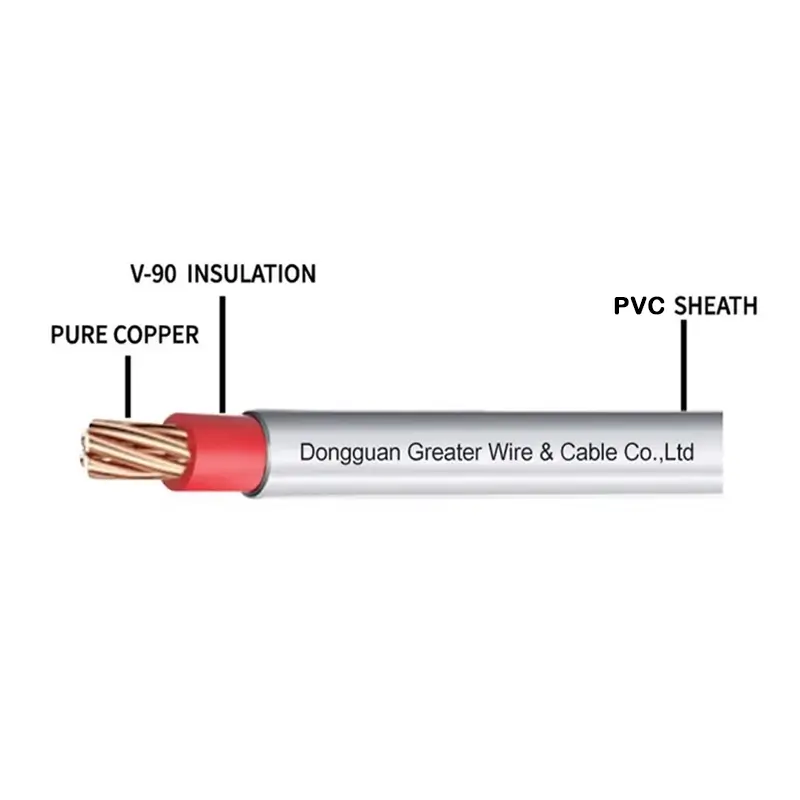

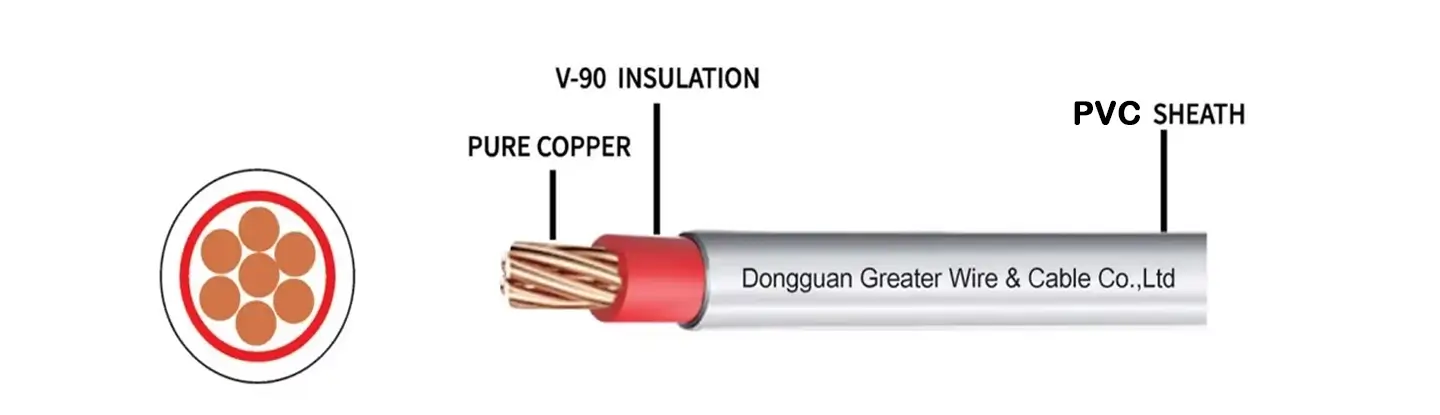

Copper Conductor
Class 2 copper conductor
V-90 PVC insulation, PVC sheath
Heat-resistant and PVC sheath to AS/NZS 5000.2

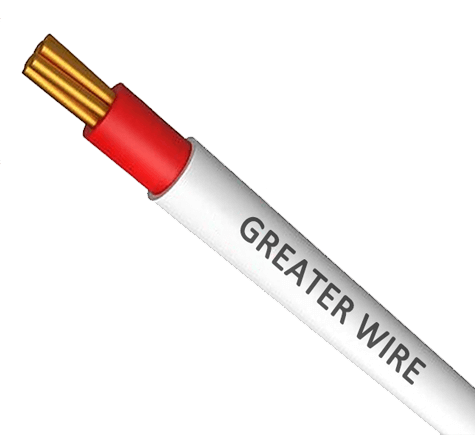

Single Core Cable
Simplified Installation
450/750V Voltage
a wide range of low-voltage installation environments

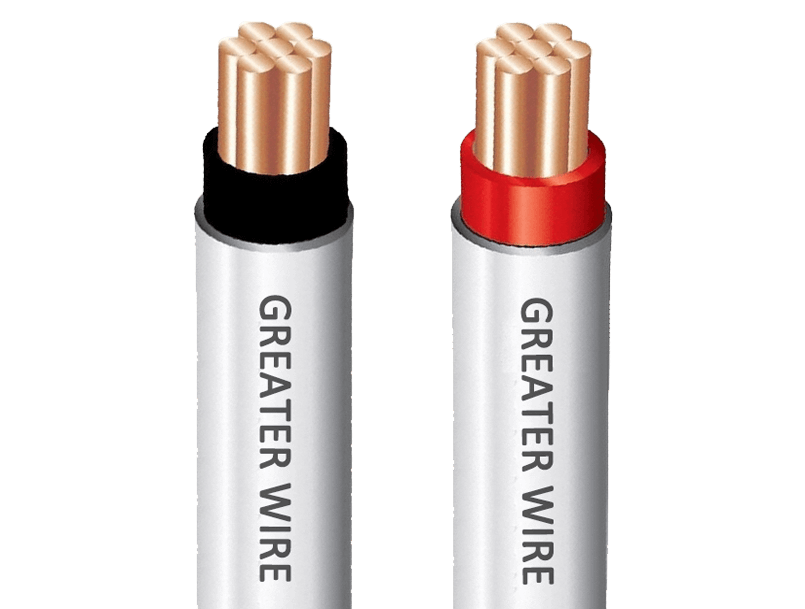

PVC Single Core Copper SDI Cable
PVC SDI single core cable is a single core cable manufactured according to AS/NZS standards. It uses high-conductivity stranded copper conductors and is covered with a high quality V-90 PVC insulation layer, providing reliable mechanical strength and excellent electrical performance.
Single Core Copper SDI Cable
For mains,submains, and subcircuits unenclosed, enclosed in conduit, buried, or in underground ducts for buildings and industrial plants where not subject to mechanical damage.
Class 2 Copper Conductors
Rated Voltage Uo/U (Um) 450/750V
V-90 Insulated
Standards AS/NZS 5000.2
PVC Sheathed
Temperature range 0℃ to 90 ℃
Advantages of SDI Cable
PVC SDI single core cable uses high-purity soft stranded copper conductors, offering excellent conductivity and flexibility, effectively reducing energy loss and bending stress during installation. Its core is covered with a high-performance V-90 PVC insulation layer, providing good dielectric strength, heat resistance, and resistance to mechanical abrasion, ensuring stable electrical performance during long-term operation.
| Cross section （mm²） |
Type of conductor | Nom.overall diam. （mm） |
Approx. weight （kg/100m） |
Maximum installation tension （N） |
Min. bend. rad. during instal. （mm） |
Min. bend.rad.installed （mm） |
| 1 | Stranded Copper | 4 | 2.7 | 70 | 24 | 16 |
| 1.5 | Stranded Copper | 4.4 | 3.2 | 105 | 26 | 18 |
| 2.5 | Stranded Copper | 5.1 | 4.8 | 175 | 31 | 20 |
| 4 | Stranded Copper | 6 | 7.1 | 280 | 36 | 24 |
| 6 | Stranded Copper | 6.6 | 9.4 | 420 | 40 | 26 |
| 10 | Stranded Copper | 7.8 | 14.3 | 700 | 47 | 31 |
| 16 | Stranded Copper | 8.9 | 20.8 | 1120 | 53 | 36 |
Certification

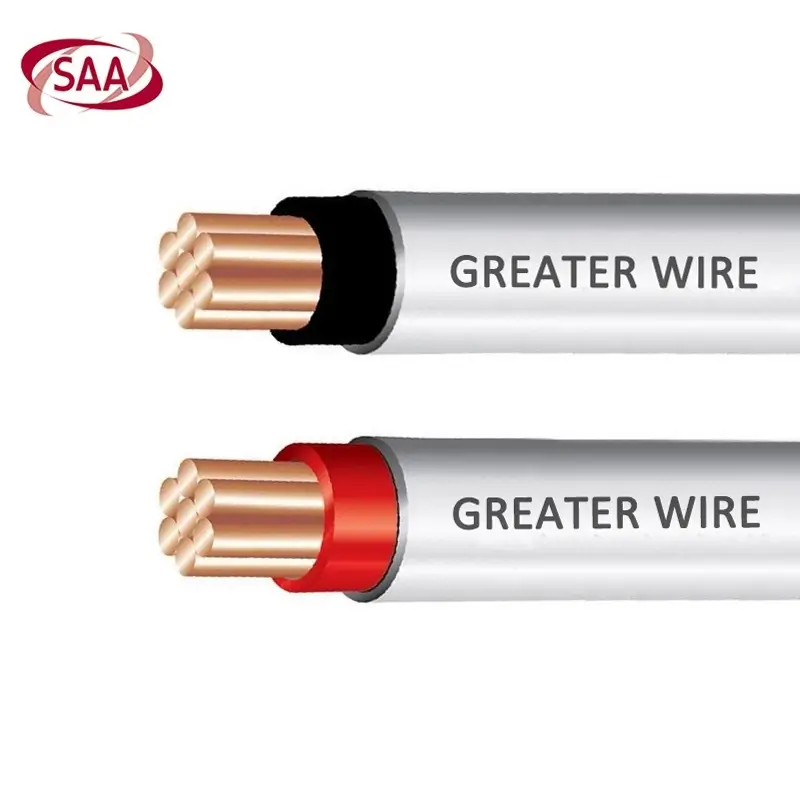

PVC SDI single core cable has passed the stringent SAA certification. The cable's conductor structure, insulation materials, temperature resistance, and electrical properties have all undergone comprehensive testing, meeting the requirements of the AS/NZS 5000 series standards. It is legally permitted for use in building wiring and power distribution systems in Australia and New Zealand.
Heat Resistant
Strong Structure
Stable and Reliable
SAA Certified
APPLICATIONS
PVC SDI single core cable is widely used in various low-voltage power distribution and building electrical systems, commonly used for switchboard connections, main power lines, lighting circuits, equipment power supply, and control circuits.
Building Wiring
Widely used in lighting circuits for residential, office, commercial, and public buildings, providing stable low-voltage power transmission to meet long-term reliability requirements.
Industrial Plants
Used as main power distribution circuit in factory workshops, warehousing centers, shopping malls, and commercial complexes to meet safe power supply needs under high load conditions.
Power Distribution Cabinet
Used for main power feeder, branch circuits, and control circuit connections. Its excellent conductivity and flexibility make it suitable for bending and arrangement in confined spaces.
Large Equipment
Used as main distribution feeder in factory workshops, warehousing centers, shopping malls, and commercial complexes to meet safe power supply needs under high load conditions.
Customer Photos
Our customers are located worldwide, spanning North America, Europe, Oceania, the Middle East, Southeast Asia, Africa, and Latin America. With consistent wire and cable quality, stringent international certification systems, and flexible and reliable service capabilities, we have successfully provided cables to power engineering companies, wholesalers, brand owners, contractors, and manufacturers in various countries and regions.
plant equipment
Geritel Wire is a professional PVC SDI Single Core cables manufacturer, possessing advanced production equipment and a rigorous quality management system. We use high-purity oxygen-free copper conductors and high quality V-90 PVC insulation, fully complying with AS/NZS standards to meet the long-term needs of various electrical engineering, building wiring, and industrial projects. Geritel Wire offers standardized specifications and customized services to global customers, suitable for various installation environments and engineering specifications.
Packaging Information
SDI cables are available in three packaging methods: coiled, plastic reel, and wooden reel.
Coiled
Plastic Reel
Wooden Reel
