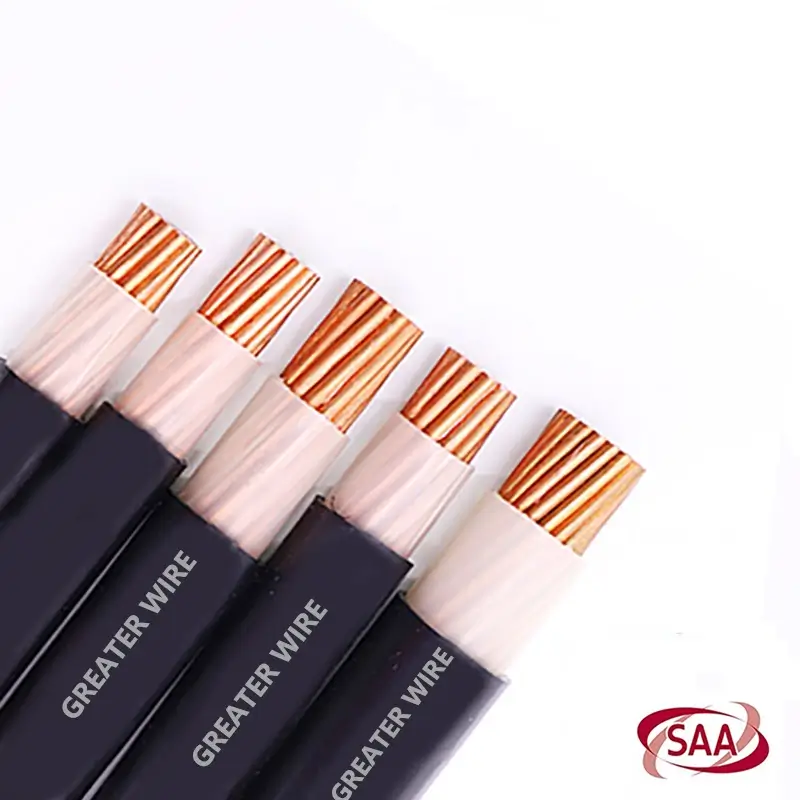

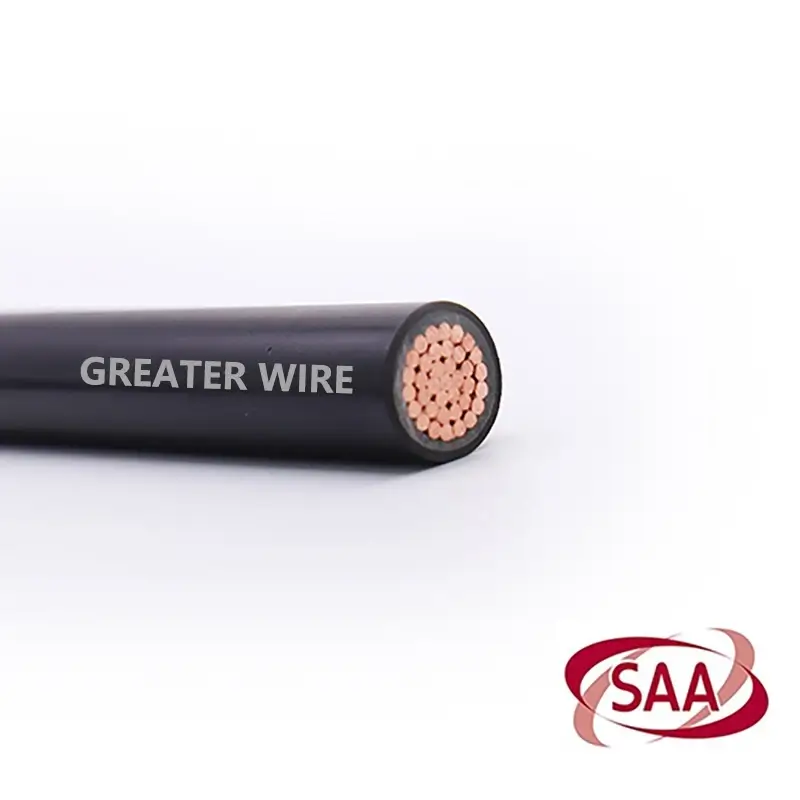

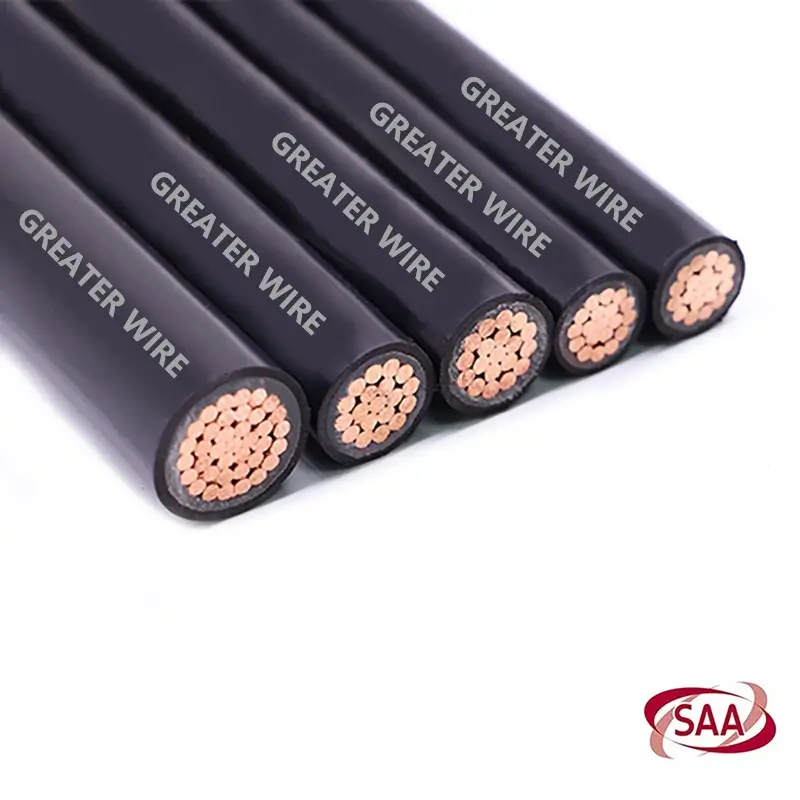

0.6/1kV XLPE/PVC Single Core Copper SDI Cable
Colour：
Black
Conductor material：
Copper
Conductor flexibility：
Class 2
Insulation：
X-90
Outer sheath：
PVC
Rated Voltage Uo/U (Um)：
0.6/1 kV
Standards：
AS/NZS 5000.1
Description
Download

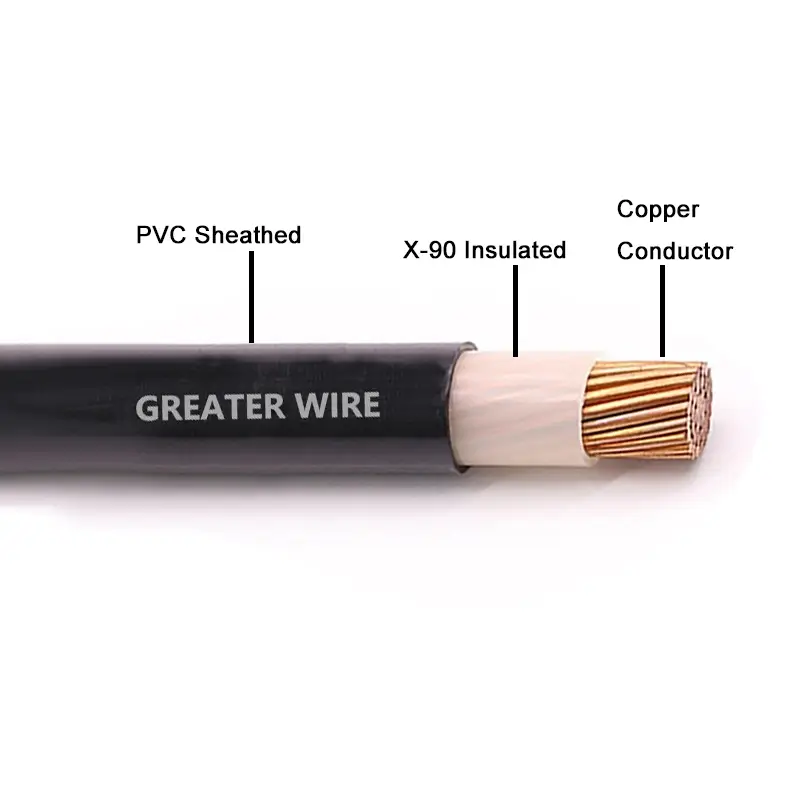

Copper Conductor
Class 2 copper conductor
X-90 XLPE insulation, PVC sheath
X-90 XLPE insulation, PVC sheath to AS/NZS 5000.1
Single Core Cable
Simplified Installation
0.6/1kV Voltage
a wide range of low-voltage installation environments

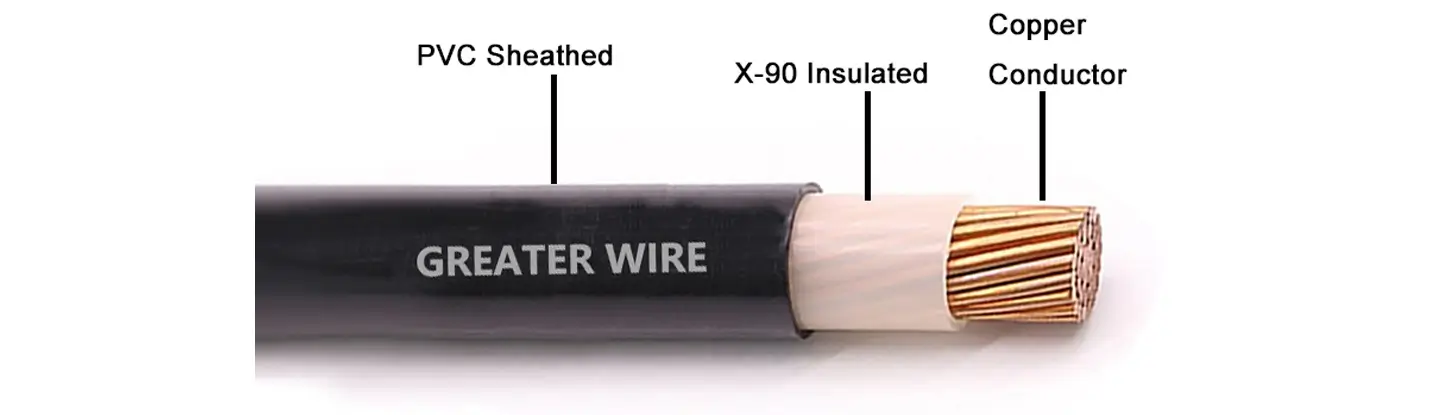

XLPE/PVC Single Core Copper SDI Cable
0.6/1 kV XLPE/PVC single core copper SDI cable features high-conductivity stranded copper conductors, offering excellent electrical performance and low resistance loss. The X-90 XLPE insulation provides superior thermal stability and long-term electrical integrity, while the durable PVC sheath offers robust mechanical protection against abrasion, moisture, and environmental degradation.
Single Core Copper SDI Cable
For mains,submains, and subcircuits unenclosed, enclosed in conduit, buried, or in underground ducts for buildings and industrial plants where not subject to mechanical damage.
Class 2 Copper Conductors
Rated Voltage Uo/U (Um) 0.6/1kV
X-90 Insulated
Standards AS/NZS 5000.1
PVC Sheathed
Temperature range 0℃ to 90 ℃
Advantages of SDI Cable
Single core copper SDI cable offers excellent heat dissipation, simplified installation, and high current carrying efficiency. It is suitable for industrial, commercial, and infrastructure applications requiring reliable and secure power supply.
| Cross section （mm²） |
Type of conductor | Nom.overall diam. （mm） |
Approx. weight （kg/100m） |
Max. pull tension of cond. （kN） |
Min. bend. rad. during instal. （mm） |
Min. bend.rad.installed （mm） |
| 16 | Stranded copper |
9.3 | 21 | 1 | 56 | 37 |
| 25 | Compact copper |
10.5 | 30 | 2 | 130 | 84 |
| 35 | Compact copper |
11.5 | 40 | 2 | 140 | 92 |
| 50 | Compact copper |
12.9 | 52 | 4 | 150 | 100 |
| 70 | Compact copper |
14.7 | 73 | 5 | 180 | 120 |
| 95 | Compressed copper |
17.2 | 101 | 7 | 100 | 69 |
| 120 | Compressed copper |
19.6 | 123 | 8 | 120 | 78 |
| 150 | Compressed copper |
21.3 | 152 | 11 | 130 | 85 |
| 185 | Compressed copper |
23.5 | 189 | 13 | 140 | 94 |
| 240 | Compact copper |
25.6 | 246 | 17 | 310 | 200 |
| 300 | Compact copper |
28.8 | 306 | 21 | 350 | 230 |
| 400 | Stranded copper |
33.3 | 386 | 25 | 300 | 200 |
| 500 | Stranded copper |
37.0 | 491 | 25 | 330 | 220 |
| 630 | Stranded copper |
41.4 | 635 | 25 | 370 | 250 |
Certification
0.6/1 kV XLPE/PVC single core copper SDI cable is SAA certified, meeting stringent requirements for electrical integrity, durability, fire resistance, and long-term operational reliability.
Wear-Resistant
Low-Resistance
Heat-Stable
SAA Certified
APPLICATIONS
SDI cables are widely used in low-voltage power distribution systems, including power connections between distribution cabinets and switchgear, high-current power supply for industrial motors and pumps, AC output lines from solar inverters to distribution boards, and main circuit connections for equipment such as UPS systems, battery cabinets, and generator sets.
Building Wiring
High-capacity power distribution for main incoming feeders (service feeders ) and commercial buildings; high-load backbone cables or feeders in power supply systems.
Industrial Plants
Short-distance high-load power supply for independent equipment or distribution points in industrial plants, mines, etc. Provides reliable single-core power transmission in harsh environments.
Power Distribution Cabinet
Power connections between main switchboards and sub-distribution boards, used for single-core power supply to main circuits or branch circuits.
Large Equipment
Single-core power feeders for large equipment such as industrial motors, pumps, and compressors; suitable for equipment requiring high current and low impedance power supply.
Customer Photos
Exporting to 80+ countries and regions, we bring proven global export experience and trusted wires & cables to customers worldwide.
plant equipment
We are a professional Australia cable manufacturer, our company is equipped with a full range of modernized manufacturing and quality control equipment, including high-speed extrusion lines, precision stranding machines, automatic winding systems, and advanced electrical performance testing instruments. These facilities allow us to achieve high production efficiency, stable performance, and strict compliance with international cable standards such as SAA, UL, IEC, BS, and others.
Packaging Information
SDI cables are available in three packaging methods: coiled, plastic reel, and wooden reel.
Coiled
Plastic Reel
Wooden Reel
