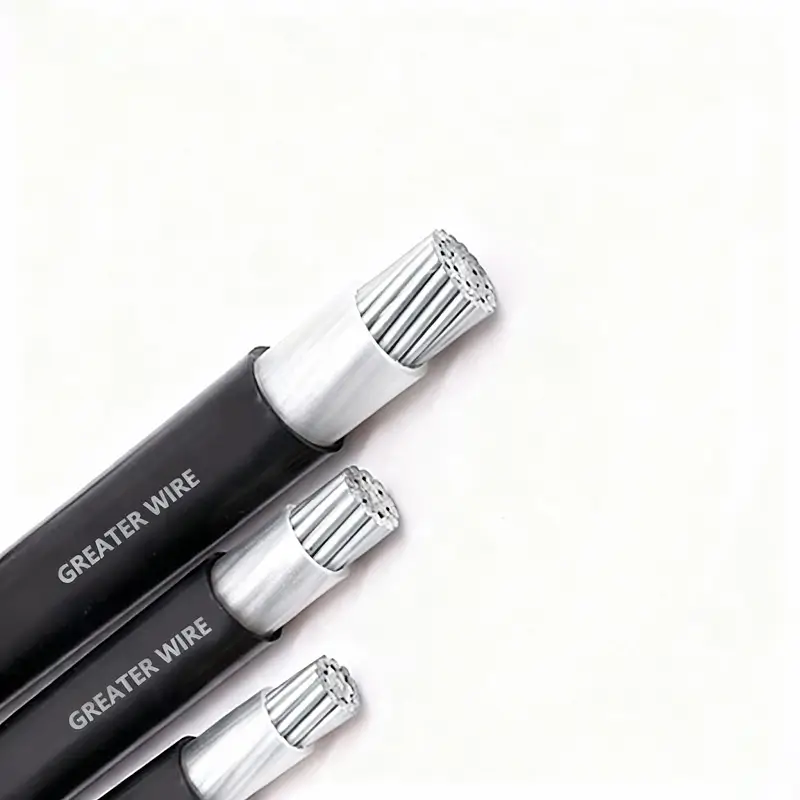

0.6/1kV XLPE/PVC Single Core Aluminum SDI Cable

Geritel Wire is SDI cable manufacturer with SAA certification. We supply wire and cable to projects across Oceania, including universities, airports, commercial buildings, hospitals, and more.

Colour：

Black

Conductor material：

Aluminum

Type of conductor：

Circular compacted

Conductor flexibility：

Class 2

Insulation：

X-90

Outer sheath：

PVC

Rated Voltage Uo/U (Um)：

0.6/1 kV

Standards：

AS/NZS 5000.1

Whatsapp: +86 13510784550

manager01@greaterwire.com

Add To Inquiry

Description

Download

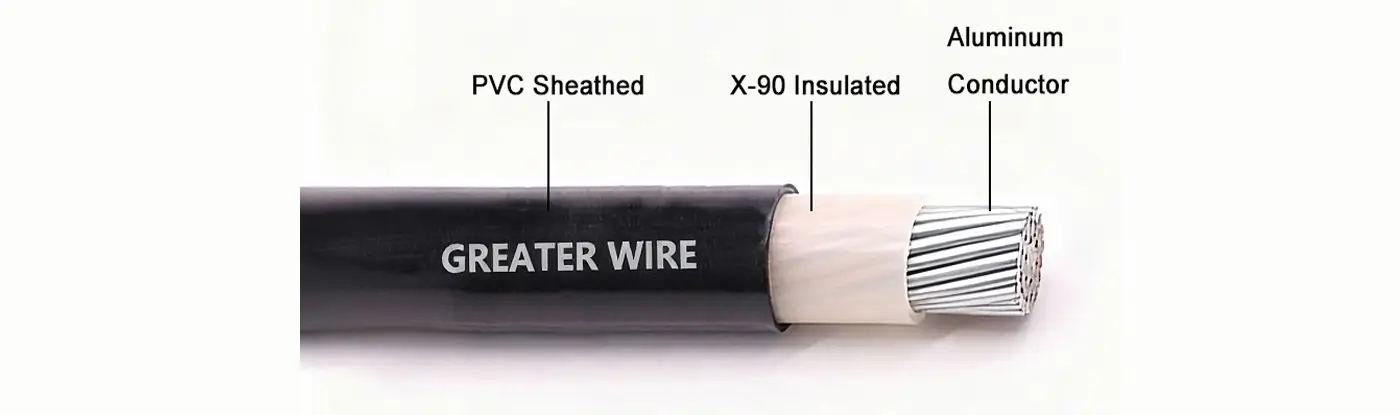

Aluminum Conductor

Class 2 Aluminum conductor

X-90 XLPE insulation, PVC sheath

X-90 XLPE insulation, PVC sheath to AS/NZS 5000.1

Single Core Cable

Simplified Installation

0.6/1kV Voltage

a wide range of low-voltage installation environments

XLPE/PVC Single Core Aluminum SDI Cable

XLPE/PVC single core aluminium SDI cable uses high-strength stranded aluminum conductors, which can reduce cable weight while achieving efficient current transmission, making installation of large projects more convenient and economical.

Single Core Aluminum SDI Cable

For mains,submains, and subcircuits unenclosed, enclosed in conduit, buried, or in underground ducts for buildings and industrial plants where not subject to mechanical damage.

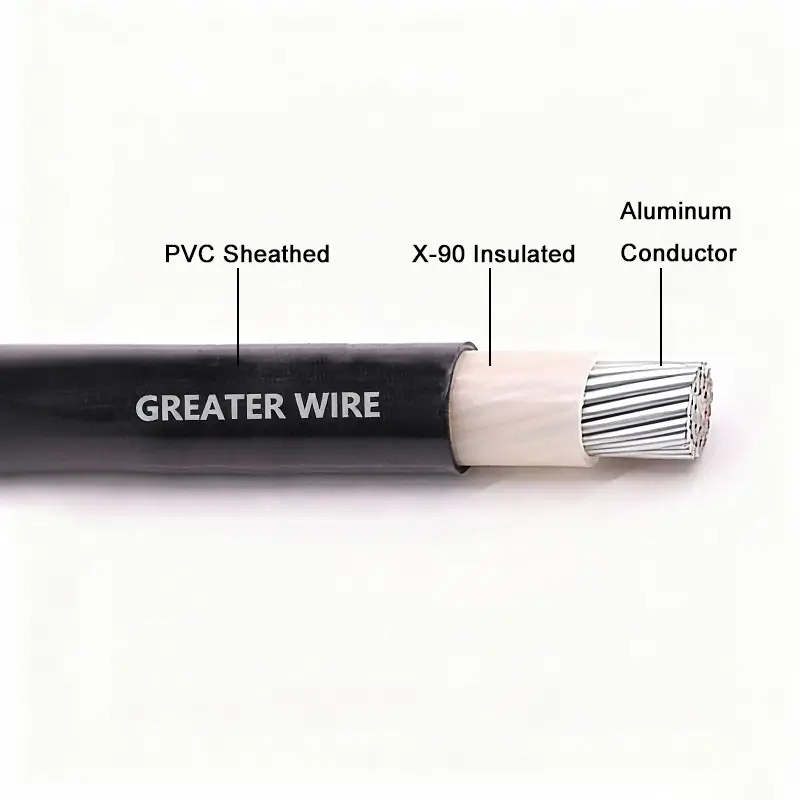

Class 2 Aluminum Conductors

Rated Voltage Uo/U (Um) 0.6/1kV

X-90 Insulated

Standards AS/NZS 5000.1

PVC Sheathed

Temperature range 0℃ to 90 ℃

Advantages of SDI Cable

XLPE/PVC single core aluminium SDI cable features a compact stranded class 2 aluminum conductor, providing a lightweight and efficient current transmission path. The single-core construction enhances heat dissipation, simplifies cable installation, and creates a robust and reliable cable suitable for a wide range of low-voltage power distribution applications.

XLPE/PVC SDI Cable

Cross section （mm²）	Type of conductor	Nom.overall diam. （mm）	Approx. weight （kg/100m）	Max. pull tension of cond. （kN）	Min. bend. rad. during instal. （mm）	Min. bend.rad.installed （mm）
16	Stranded copper	9.3	21	1	56	37
25	Compact copper	10.5	30	2	130	84
35	Compact copper	11.5	40	2	140	92
50	Compact copper	12.9	52	4	150	100
70	Compact copper	14.7	73	5	180	120
95	Compressed copper	17.2	101	7	100	69
120	Compressed copper	19.6	123	8	120	78
150	Compressed copper	21.3	152	11	130	85
185	Compressed copper	23.5	189	13	140	94
240	Compact copper	25.6	246	17	310	200
300	Compact copper	28.8	306	21	350	230
400	Stranded copper	33.3	386	25	300	200
500	Stranded copper	37.0	491	25	330	220
630	Stranded copper	41.4	635	25	370	250

Certification

XLPE/PVC single core aluminium SDI cable has achieved SAA certification and complies with AS/NZS low-voltage power cable standards. All cables are independently tested and meet requirements for electrical safety, mechanical strength, heat resistance, and long-term reliability. They fully comply with installation requirements for projects in Australia and New Zealand and can be safely used in industrial, commercial, and infrastructure environments.

single core SDI cable

Wear-Resistant

Low-Resistance

Heat-Stable

SAA Certified

SDI cable certification

SAA approval SDI cable

APPLICATIONS

Aluminium SDI cables are widely used for main power feeders in low-voltage power distribution systems, power transmission in buildings and industrial facilities, and long-distance cabling in large projects due to their lightweight and cost-effectiveness.

Building Wiring

Aluminium SDI cables are widely used in low-voltage power distribution and main power transmission, and are particularly suitable for projects with requirements on weight, cost, and installation efficiency.

Industrial Plants

In industrial plants, Aluminium SDI cables are widely used for low-voltage power distribution and power supply to high-capacity equipment, and are particularly suitable for environments requiring long-distance cabling and high installation efficiency.

Power Distribution Cabinet

In distribution cabinet systems, Aluminium SDI cables primarily undertake the power transmission tasks of main circuits and high-capacity feeders, and are a commonly used lightweight solution in low-voltage power distribution.

Large Equipment

Aluminium SDI cables are widely used for low-voltage power supply to large equipment, and are particularly suitable for scenarios requiring high current, long-distance cabling, and cost control.

Customer Photos

Exporting to 80+ countries and regions, we bring proven global export experience and trusted wires & cables to customers worldwide.

plant equipment

GERITEL WIRE is a cable manufacturing company with over 10 years of export experience. Its products include XLPE/PVC insulated power cables, photovoltaic cables for solar energy, and single-core and multi-core power cables. The company uses advanced equipment and strictly controls key parameters (such as insulation thickness and conductor diameter) in its production, and has obtained international certifications including UL, SAA, and TÜV.

Packaging Information

Aluminium SDI cables are available in a variety of packaging options to ensure safe transport and ease of on-site installation. Small-gauge cables are typically packaged in coils for easy handling and short-distance installation; medium-gauge cables can be packaged in plastic reels, suitable for standard cabling and distribution cabinet wiring needs; while larger cross-section or heavier cables are packaged in wooden drums, providing greater structural stability for long-distance transport and engineering deployment.

Wooden Drum Packaging

Large Wooden Drum Packaging

Reel Packaging

Global Certification

Geritel Wire Manufacturer holds 50+ international certifications, including UL, cUL, SAA, TUV, CE, VDE, ISO, and others. Our cables meet the highest global quality and safety standards.

VDE

UL

SAA

TUV

ISO

What are people saying about us

Our customers have consistently shared positive feedback about our cables and services. Here’s what they say about US:

Andrew Walker from Australia

Delivery was smooth, the quality was exactly what we needed, and the service was very good. Everything went perfectly from order to delivery. A truly reliable supplier we’re happy to work with.

Francis Kila - Papua New Guinea

Highly recommended seller! All my questions were answered quickly and professionally. The product quality is excellent, fully meeting the promised specifications at a very reasonable price.

Aleksi Niemi - Finland

Comparing Geritel Wire with other big brands, I found their quality to be almost identical, and at a much better value. I’m delighted with the purchase and truly impressed with their professionalism and product.

frequently asked questions

If you have any questions, you can contact me at any time

Do you have a 24/7 emergency response team to deal with emergencies?

Yes, we have a professional pre-sales and after-sales team to respond 24/7. Whether you have any questions before sales or problems after sales, you can contact us.

In which regions of the world does your company conduct business?

1. Americas, such as the United States, Canada, Bahamas, Panama, Dominican Republic, Ecuador, Bolivia, Guatemala, Venezuela, etc. 2. Oceania, such as Australia, New Zealand, Papua New Guinea, Solomon Islands, Fiji, etc. 3. Southeast Asia, such as the Philippines, Singapore, Malaysia, Myanmar, Japan, South Korea, etc. 4. Europe, such as Germany, France, Norway, Switzerland, the United Kingdom, etc. 5. Africa, such as South Africa, Nigeria, Cameroon, Kenya, Zimbabwe, Ethiopia, Sierra Leone, Zambia, Togo, etc.

What after-sales services do you provide?

Our factory provides return and exchange services. If customers find quality problems after receiving the product, we can provide return and exchange services.

What is your quality assurance process?

We will select and inspect the raw material and conduct strict quality inspections on each batch of raw materials. During the production process, the factory usually uses automated equipment and online detection systems for real-time monitoring. For example, the diameter of the copper wire, the thickness of the insulation material, and the twisting process during the wire drawing process all need to be precisely controlled. At the same time, we regularly take a certain number of wire and cable samples for inspection. These inspections include, but are not limited to, tests such as size, insulation resistance, conductivity, and mechanical strength. Each batch of wires and cables produced will be fully tested before leaving the factory. If quality problems are found in the product testing, the factory will take "traceback" measures to find the root cause of the problem and correct possible deviations in the production process. After production is completed, all wire and cable products will undergo a final quality inspection. In the packaging stage, the wires and cables will be properly packaged according to the specifications to ensure that they are not damaged during transportation. In addition, we have a professional after-sales team to respond to customer feedback and complaints promptly to ensure that problems encountered by users during use are solved promptly. In addition, the factory will regularly visit customers to collect product usage feedback and further improve product quality.

How long is the life of your wires and cables?

The life of our wires and cables is no less than 30 years.

Please introduce the founding and development of the company?

Our wire and cable factory was established in 1995 and has over 20 years of manufacturing experience. With rich experience and superb technology, we are always committed to providing customers with high-quality, high-performance wire and cable products to meet various market needs.

What types of wires and cables does your company produce?

1. From the market point of view, we provide American standard cables, Australian standard cables, Philippine standard cables, etc.. 2. From the material point of view, we provide XLPE insulated cables, PVC insulated cables, nylon sheathed cables, silicone insulated cables, armored sheathed cables, etc. 3. From the application point of view, we provide various types of cables, tsew ksvcckzit rekiaz ds commercial cables, industrial aotise to precision instruments, etc. Welcome to consult for more information!

Where is your factory?

Our factory is located in Dongguan City, Guangdong Province, China. Welcome to visit us!

How long does it take to complete your order?

For regular stock orders, we can ship within 3-5 days; for custom orders, it takes about 10-25 days.

Do you provide customized wire and cable solutions?

Yes, we can provide customized wire and cable solutions. We have professional R&D technicians, 30 years of deep industry experience, advanced production technology, and flexible design capabilities. Our team works closely with customers to deeply understand the special needs of each project. Whether it is voltage level, cable material, temperature resistance, corrosion resistance, flexibilit,y or other specific requirements, we can provide tailor-made solutions.

What payment methods are accepted for purchasing wires and cables?

T/T, Visa, Mastercard, PAYPAL, PANPAY.

Are your cables certified by industry standards?

Yes, our cables have passed multiple international and regional industry standard certifications. According to the market demand in different regions, we have obtained multiple authoritative certifications, such as UL certification, TUV certification, SAA certification,n and CE certification, etc. to ensure the quality and safety of the products.
