AS/NZS 5000.1 Standard X-90 Insulation Orange Circular Cable
Conductor：
Plain annealed copper, class 2, stranded round
Insulation：
X-90 insulation
Outer sheath：
5V-90 (PVC) sheath
Standard：
AS/NZS 5000.1
Rated temperature：
The Maximum operating temperature of the conductor is 90°C
Rated voltage：
0.6/1k V
Description
Download
Copper Conductor
Class2 plain annealed copper conductor to AS/NZS 1125
X-90 XLPE insulation, 5V-90 PVC sheath
90℃ PVC sheathed to AS/NZS 5000
Multi-core power cable
single core / 2 core + earth / 3 core + earth / 4 core + earth optional
Temperature Range
Operated at temperatures up to 90℃

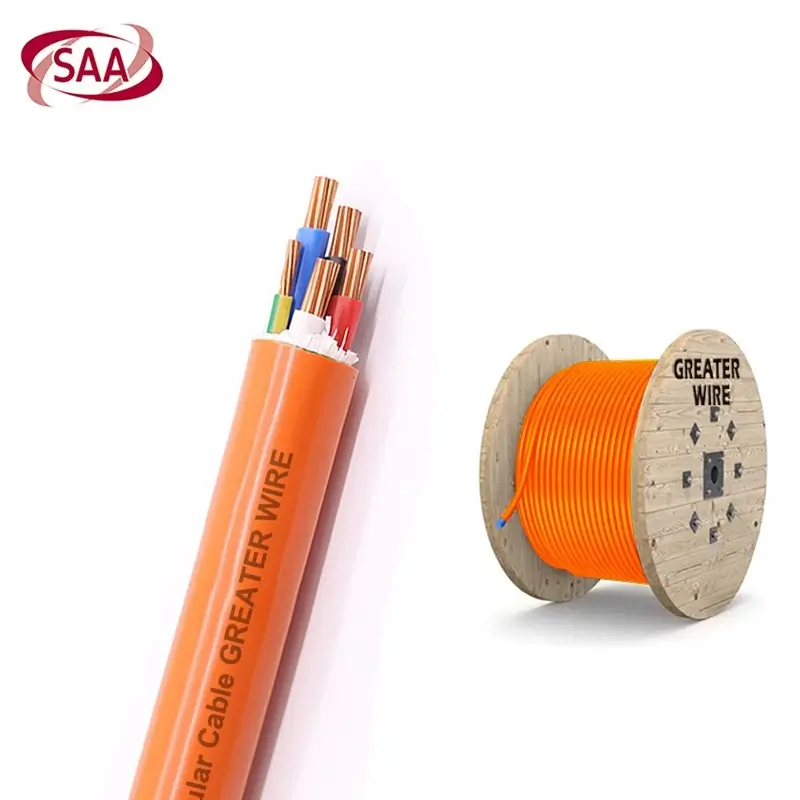

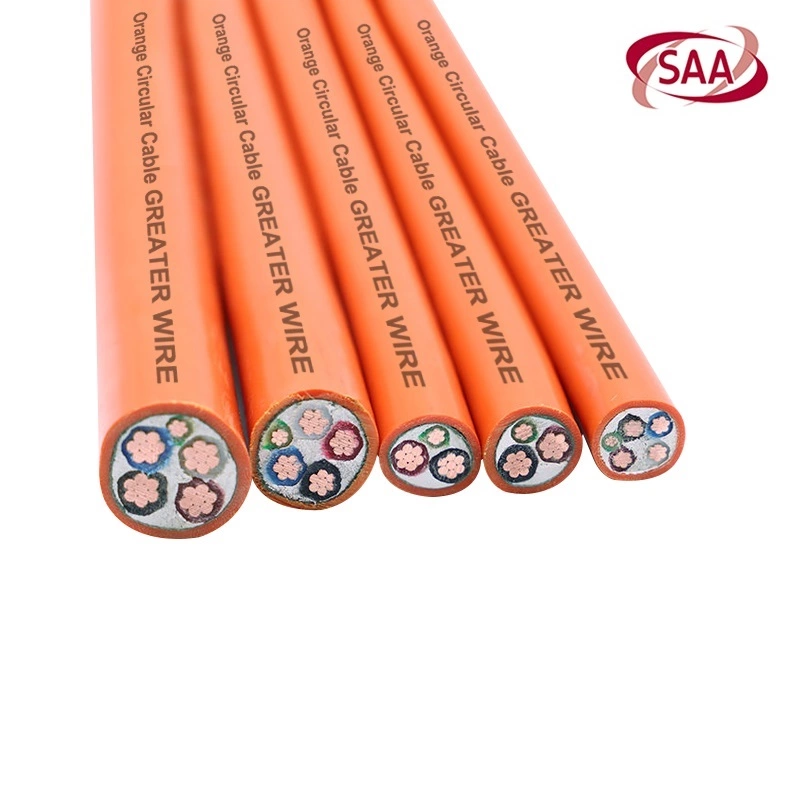

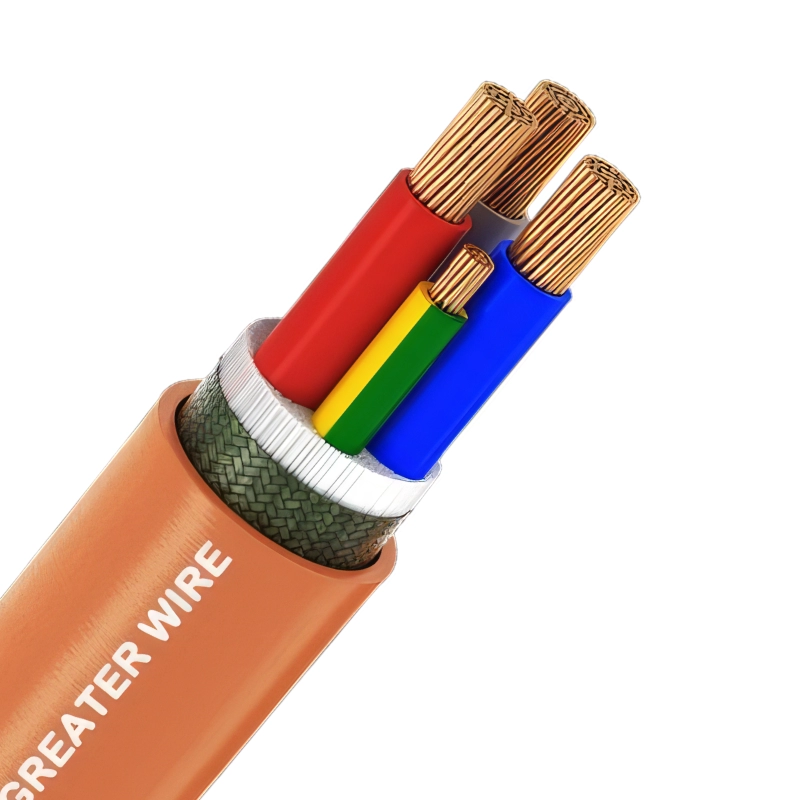

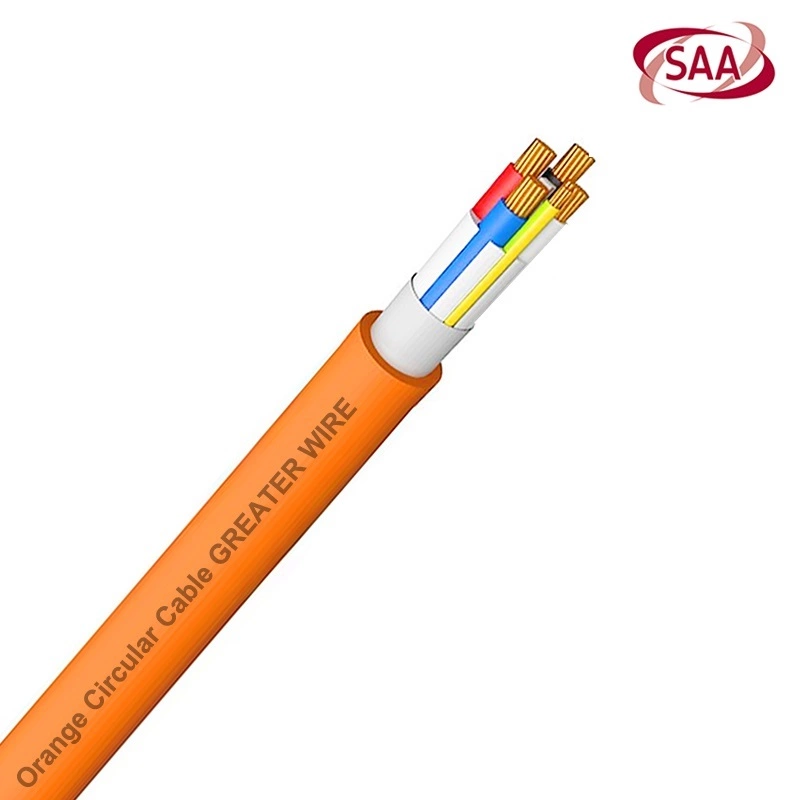

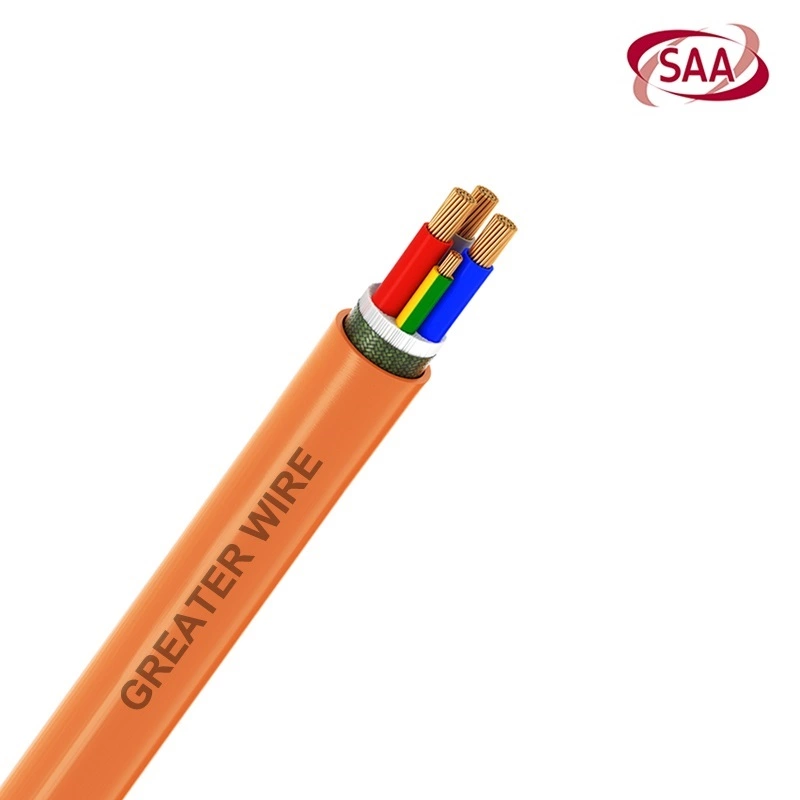

X-90 ORANGE CIRCULAR Cable
X-90 orange circular cable is a low-voltage power cable manufactured in accordance with AS/NZS 5000.1, with a rated voltage of 0.6/1 kV. This cable utilizes a high conductivity annealed copper conductor, X-90 cross-linked polyethylene (XLPE) insulation, and an orange PVC (5V-90) outer jacket, offering excellent electrical and mechanical properties. Its circular design allows for easy installation, a tight bend radius, and a compact size. It is widely used for power distribution in construction and industrial projects in Australia and New Zealand.
Copper X-90 insulation multi-core
power cable
For mains,submains, and subcircuits unenclosed, in conduit. buried directly or in underground ducts for buildings and industrial plants, where not subject to mechanical damage. Suitable wherespace is at a premium and/or where conditions of overload may occur.
Class 2 Copper Conductors
Rated Voltage Uo/U (Um) 0.6/1KV
X-90 Insulated
Standards AS/NZS 5000.1
5V-90 Sheathed
Temperature range -25℃ to 90 ℃
Advantages of Multicore Orange Circular Cable
X-90 orange circular cable adopts a circular and compact structure design, combining high-conductivity copper conductors with cross-linked polyethylene (X-90) insulation, which improves electrical performance and heat resistance. The cable also has excellent flexibility and easy installation.
| Conductor | Cable | Min installed bending radius(a) | ||||
| Nominal C.S.A. |
Number and diameter of wires | Nominal insulation thickness | Overall diameter mm | Approx. mass | ||
| Minimum | Maximum | |||||
| mm | No/mm | mm | mm | mm | kg/100m | mm |
| 2 Core and Earth (2C+E) | ||||||
| 1.5 | 7/0.52 | 0.7 | 9.6 | 10.4 | 15 | 42 |
| 2.5 | 7/0.67 | 0.7 | 10.8 | 11.7 | 20 | 47 |
| 4 | 7/0.85 | 0.7 | 11.6 | 12.5 | 25 | 50 |
| 6 | 7/1.04 | 0.7 | 12.6 | 13.6 | 30 | 54 |
| 10 | 7/1.35 | 0.7 | 14.4 | 15.4 | 42 | 62 |
| 16 | 7/1.70 | 0.7 | 16.8 | 17.7 | 55 | 71 |
| 3 Core and Earth (3C+E) | ||||||
| 25 | 7/2.12 | 0.9 | 21.6 | 22.6 | 104 | 90 |
| 35 | 7/2.50 | 0.9 | 24.2 | 25.3 | 137 | 150 |
| 50 | 19/1.80 | 1 | 27.4 | 28.7 | 185 | 170 |
| 70 | 19/2.14 | 1.1 | 32.1 | 33.3 | 256 | 200 |
| 95 | 19/2.50 | 1.1 | 36 | 37.3 | 339 | 220 |
| 120 | 37/2.01 | 1.2 | 40.1 | 41.4 | 425 | 250 |
| 150 | 37/2.24 | 1.4 | 44.8 | 46.3 | 528 | 280 |
| 185 | 37/2.50 | 1.6 | 50.4 | 51.9 | 669 | 310 |
| 240 | 61/2.25 | 1.7 | 56.9 | 58.5 | 872 | 350 |
| 300 | 61/2.52 | 1.8 | 63 | 64.8 | 1089 | 390 |
| 4 Core and Earth (4C+E) | ||||||
| 16 | 7/1.70 | 0.7 | 19.59 | 21.6 | 87.2 | 85 |
| 25 | 7/2.12 | 0.9 | 24 | 25.1 | 132 | 150 |
| 35 | 7/2.50 | 0.9 | 26.8 | 28.1 | 175 | 170 |
| 50 | 19/1.80 | 1 | 30.8 | 32.2 | 237 | 190 |
| 70 | 19/2.14 | 1.1 | 36.1 | 37.3 | 328 | 220 |
| 95 | 19/2.50 | 1.1 | 40.6 | 42.1 | 439 | 250 |
| 120 | 37/2.01 | 1.2 | 45.3 | 46.7 | 550 | 280 |
| 150 | 37/2.24 | 1.4 | 50.7 | 52.3 | 684 | 310 |
| 185 | 37/2.50 | 1.6 | 57 | 58.6 | 862 | 350 |
| 240 | 61/2.25 | 1.7 | 64.4 | 66.2 | 1127 | 400 |
| 300 | 61/2.52 | 1.8 | 71.3 | 73.3 | 1407 | 440 |
Certification

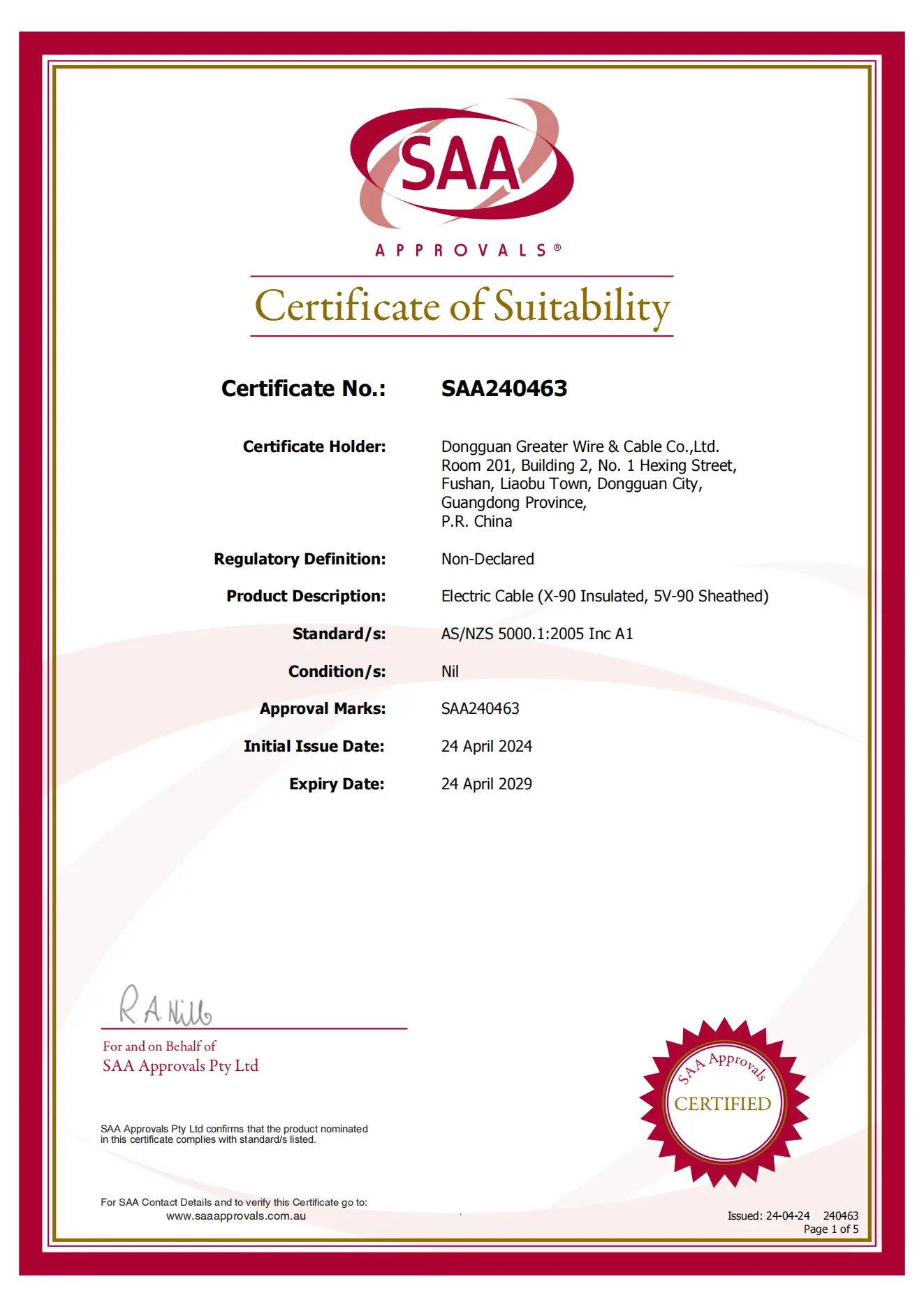

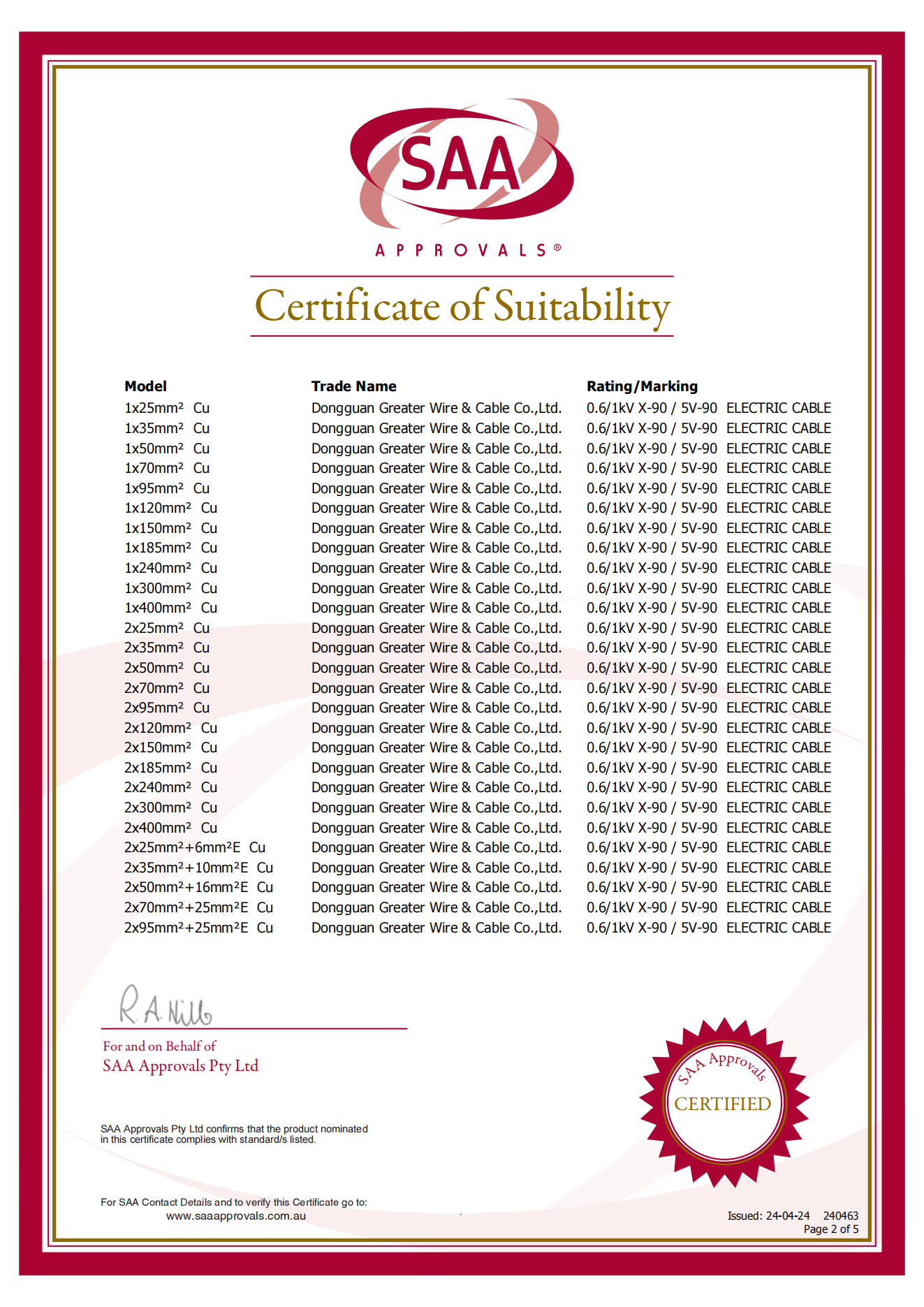

The certificate numbers for our X-90 insulated orange circular cable are SAA240463 and SAA-240462-EA (the certificate number for our V-90 PVC insulated orange circular cable is SAA-241265-EA). Customers can verify this on the SAA certification website.
Heat Resistant
Oil Resistant
Highly Conductive
SAA Certified
APPLICATIONS
X-90 orange circular cable is suitable for 0.6/1 kV low voltage power transmission applications and is widely used in building power distribution, industrial power systems, and infrastructure projects.
Building Wiring
Used in commercial and residential buildings for main feeders and switchboard connections for safe and efficient low-voltage power distribution, offering excellent heat resistance and long-term operational reliability.
Industrial Plants
Widely applied in factory power systems to supply motors, pumps, and compressors. The cable provides strong mechanical durability and insulation performance, making it suitable for continuous heavy-duty operations.
Distribution Equipment
Used to interconnect low voltage generators, transformers, and switchboards. The cable’s high conductivity and flexibility make installation easier while maintaining superior electrical performance and mechanical protection.

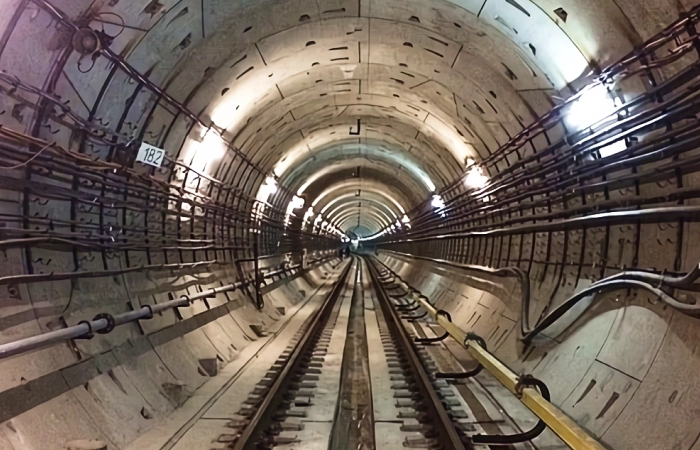

Underground and Conduit
Designed for conduit or underground installations, the orange PVC sheath offers moisture and corrosion resistance. It performs reliably in damp or outdoor environments for stable and safe power transmission.
Customer Photos
With 10+ years of export experience, we proudly deliver our products to more than 80 countries worldwide. Wire and cable quality reliability, familiar with regional standards.
plant equipment
Geritel Wire is a professional AS/NZS Standard cable manufacturer. Our factory is equipped with advanced automated production equipment and a comprehensive testing system. We utilize internationally leading wire drawing machines, insulation extrusion lines, cabling machines, and an online spectral testing system. Every meter of cable meets the stringent requirements of the AS/NZS standard. Our production process is fully digitally controlled, with rigorous quality control at every step, from raw material inspection and conductor forming to insulation thickness monitoring, cabling, and jacket extrusion. We also offer a wide variety of Australian Standard cable products, including ordinary-duty cable, heavy-duty cable, building wire, TPS cable, and 110° elastomer cable.
Packaging Information
Orange Circular Cable is available in two packaging options: small wooden reels and large wooden reels.
Small Wooden Reel
Large Wooden Reel
Global Certification
Geritel Wire Manufacturer is certified by over 50 international authorities such as UL, cUL, SAA, TUV, CE, VDE, ISO, and others. Every cable we produce meets the world’s most rigorous quality and safety standards.
