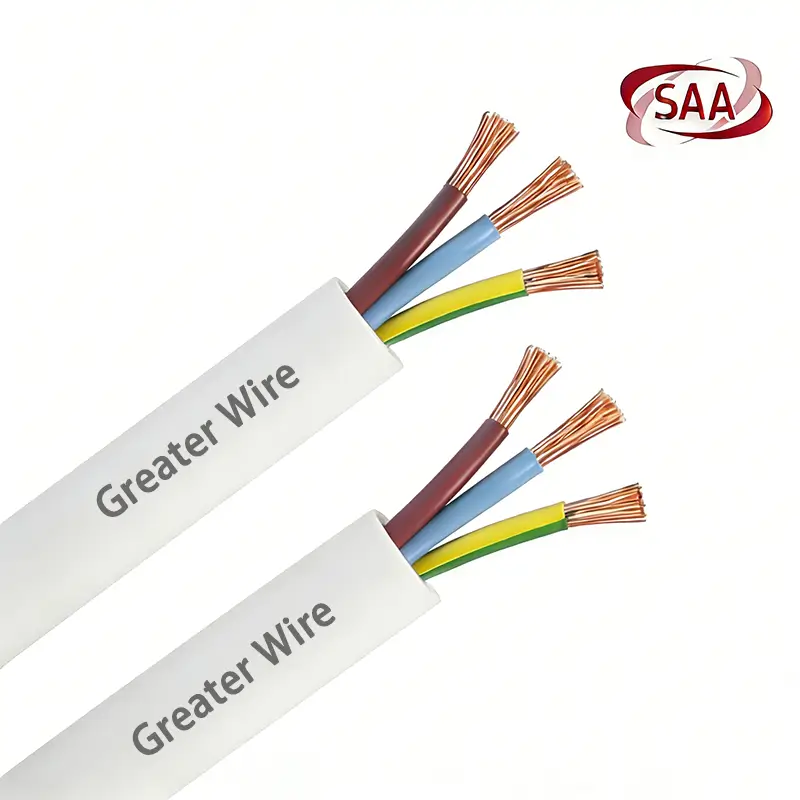

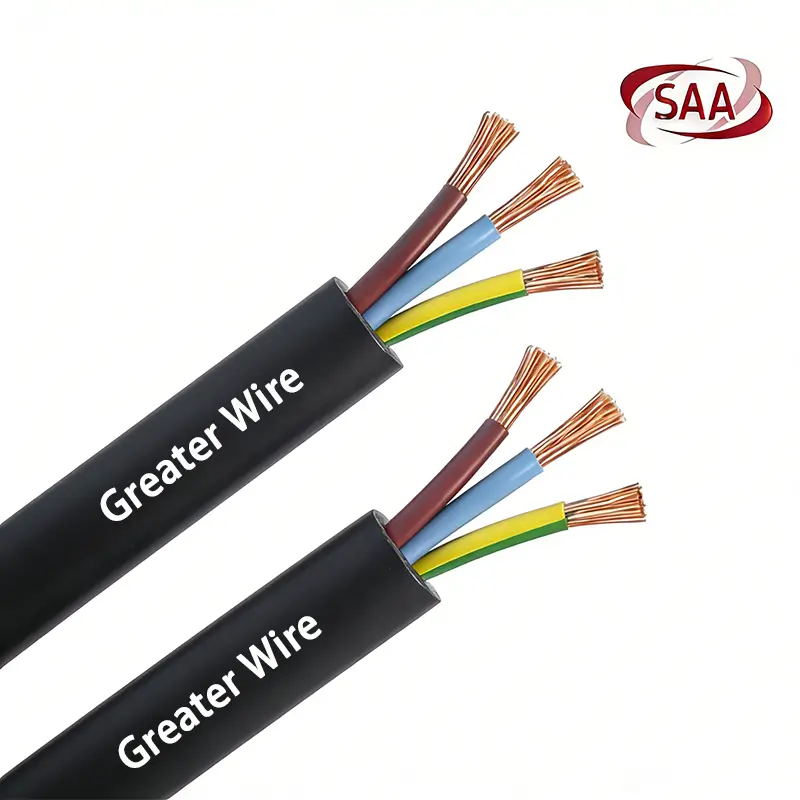

Australia Standard Multicore Flexible Ordinary Duty Cable
Conductor material：
Copper
Conductor flexibility：
Class 5
Insulation：
V-90
Outer sheath：
PVC
Rated Voltage Uo/U (Um)：
250/440 V
Standards：
AS/NZS 3191
Description
Download
Copper Conductor
Class 5 copper conductor
Insulation and Sheath
V-90 Insulation, PVC Sheath
No. of Cores
2C+E and 3C+E
Continuous Operating Temperature
Maximum 75°C
Ordinary Duty Cable
Ordinary duty multi-core flexible cable is manufactured using highly flexible copper conductors and high-quality PVC insulation and sheath materials. It possesses excellent flexibility and bending performance, making it suitable for frequent relocation or temporary wiring applications. The cable operates stably under rated voltages of 250/440V, exhibiting reliable electrical insulation performance and mechanical strength, meeting daily power connection requirements.
Flexible Cable
Multi core flexible cables are widely used in ordinary load and non-heavy machinery environments, suitable for various applications requiring flexible power connections.

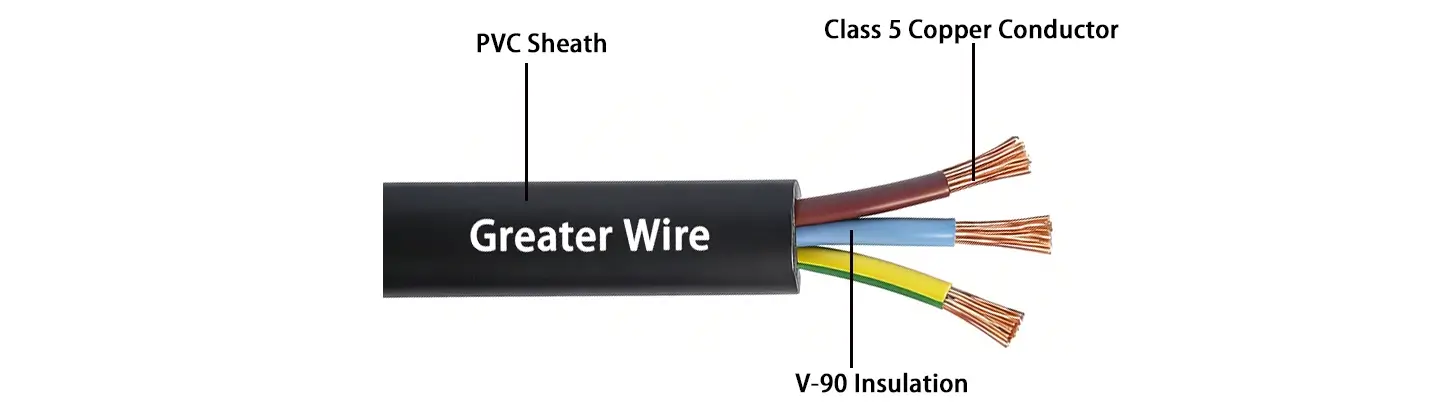

Class 5 Copper Conductors
Rated Voltage Uo/U (Um) 250/440 V
V-90 Insulation
Standards AS/NZS 3191
PVC Sheath
Maximum Operating Temperature 75 °C
Advantages of Ordinary Duty Cable
The ordinary duty cable uses multi-strand finely stranded Class 5 soft copper conductors, providing excellent overall flexibility and conductivity. It employs a V-90 PVC insulation layer, effectively providing electrical isolation and ensuring heat resistance. The outer layer is a one-piece extruded PVC sheath, with a compact structure and smooth appearance, facilitating installation and wiring. The multi-core design allows for configurations with 2, 3 (including ground) or more cores to meet different application requirements, complying with relevant AS/NZS standards.
| Conductor Area | Nominal Overall Diameter | Approx. Mass |
| mm2 | mm | Kg/100 M2 |
| 2C CIRCULAR | ||
| 0.75 | 6.6 | 6 |
| 1 | 6.8 | 6.6 |
| 1.5 | 7.8 | 8.9 |
| 2.5 | 9.6 | 13.6 |
| 4 | 10.6 | 18.2 |
| 2C+E CIRCULAR | ||
| 0.75 | 6.9 | 7 |
| 1 | 7.2 | 7.9 |
| 1.5 | 8.5 | 11 |
| 2.5 | 10.4 | 17 |
| 4 | 11.5 | 22.9 |
| 3C+E CIRCULAR | ||
| 0.75 | 7.6 | 8.5 |
| 1 | 8.1 | 9.9 |
| 1.5 | 9.5 | 13.8 |
| 2.5 | 11.3 | 20.6 |
| 4 | 12.5 | 28 |
| 4C+E CIRCULAR | ||
| 0.75 | 8.5 | 10.3 |
| 1 | 8.8 | 11.6 |
| 1.5 | 10.6 | 16.9 |
| 2.5 | 12.6 | 25.8 |
| 4 | 14.1 | 35.7 |
Certification
Multicore flexible cable is SAA certified (certification numbers: SAA241267 & SAA-241266-EA) that these cables fully comply with Australian and New Zealand electrical standards, facilitating legal use by importers, distributors, and end-users, ensuring project compliance and reducing audit risks.
High Flexibility
Heavy Duty Design
Stable Power Transmission
SAA Certified
APPLICATIONS
Ordinary duty cables are commonly used for power connections in portable appliances, power tools, power extension cords, temporary power supply devices, and light industrial and commercial equipment. Due to their good flexibility and ease of installation, they are also suitable for internal equipment wiring, auxiliary power connections in control cabinets, and electrical applications requiring frequent movement or bending.
Commercial
Suitable for power supply applications requiring flexible wiring in shops, exhibitions, schools, and public facilities.

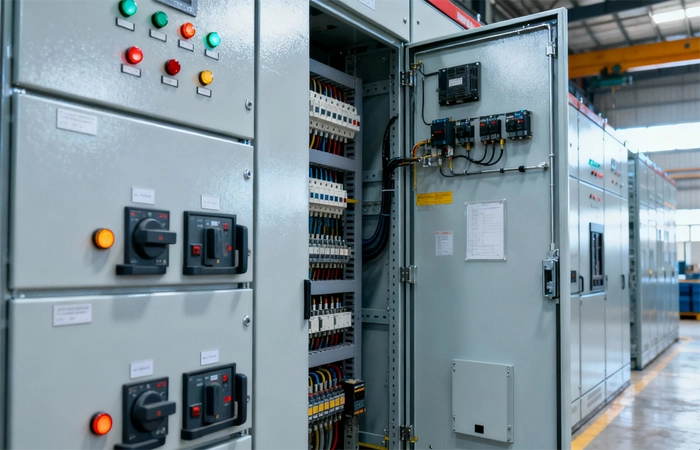

Control Cabinet
Can be used as flexible power connection cables within control cabinets or equipment, facilitating wiring and maintenance.
Temporary Power Supply
Suitable for temporary power supply locations, such as temporary lighting at construction sites, temporary equipment power supply, or maintenance and repair connections.
Portable Power Equipment
Widely used for handheld drills, cutting machines, grinders, and other light power tools. The cable is flexible, facilitating movement and operation.
Customer Photos
Exporting to 80+ countries and regions, we bring proven global export experience and trusted wires & cables to customers worldwide.
plant equipment
We are a multicore flexible cable manufacturer. Our flexible cables possess superior abrasion resistance, high-temperature resistance, and excellent flexibility, making them suitable for various complex environments. Each cable uses high-quality copper conductors and environmentally friendly insulation materials, offering excellent conductivity and a long service life, meeting the diverse needs of industrial machinery, construction engineering, and the energy sector.

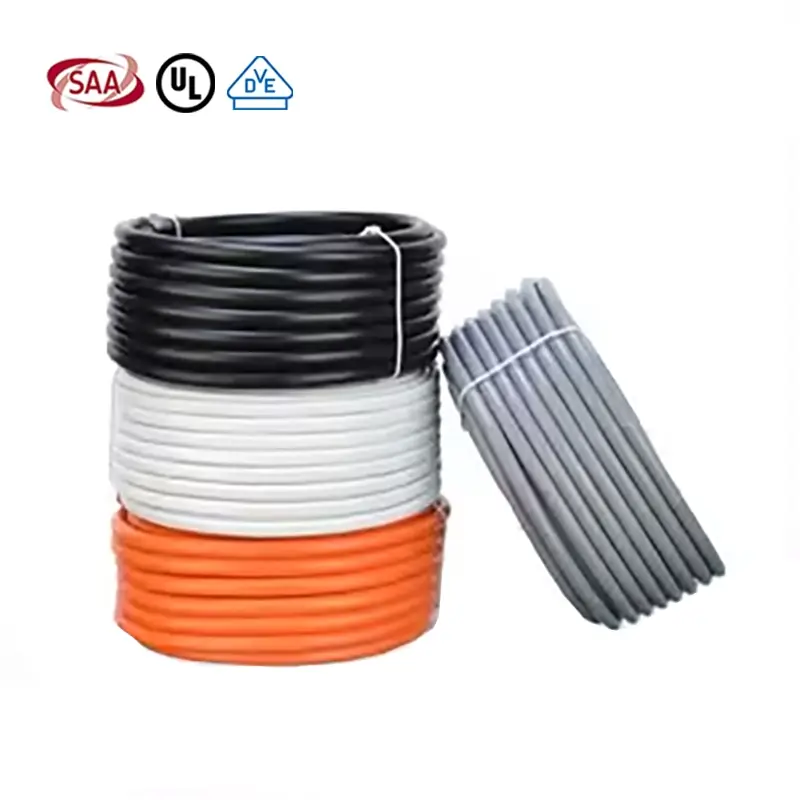

Packaging Information
SAA multicore flexible cable is typically available in coiled packaging, plastic reels, and wooden reels. Coiled cables can be unwound manually, suitable for small-scale projects or short-distance cabling. Plastic reels can be used with cable reel equipment to reduce manual cable pulling. Wooden reel packaging is suitable for large-scale projects and can be used directly on hoisting or reeling equipment, meeting the needs of high-intensity and long-distance construction. Specific packaging methods will depend on the length and specifications ordered. Custom packaging is also available.

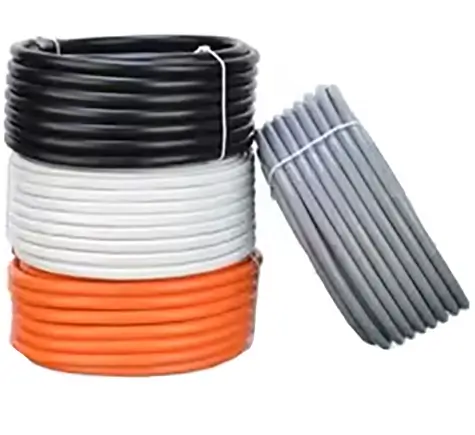

Coiling Packaging

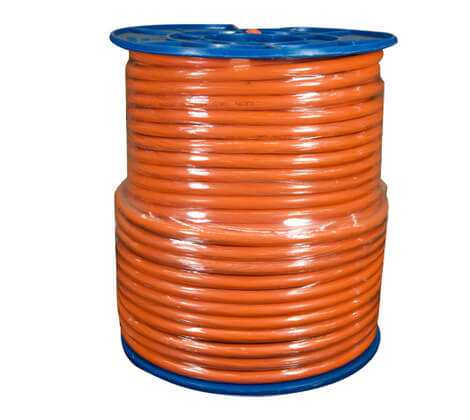

Plastic Reel Packaging

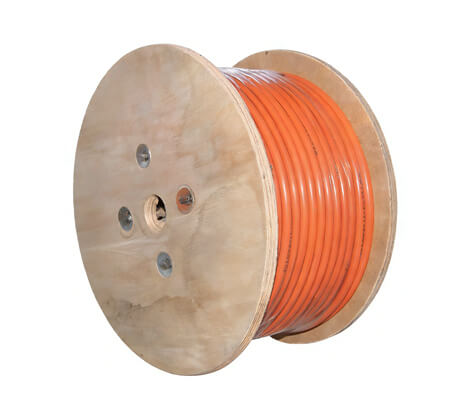

Wooden Reel Packaging
