Australia Standard Type 440 1.1 to 22KV Mining Cable

Geritel Wire is a professional Australian cables manufacturer with SAA certification. We supply wire and cable to projects across Oceania, including universities, airports, commercial buildings, hospitals, and more.

3×Conductors:：

Flexible stranded tinned annealed copper conductor

Conductor Screen：

Semiconductive compound (for cables having a voltage rating of 3.3/3.3kV and above).

Insulation：

EPR

Insulation Screen：

Semiconductive elastomer

Cradle Separator：

Semiconductive PCP

Composite Screen (earth conductor)：

Tinned annealed copper braiding interwoven with polyester yarn

Cradle Separator：

Semiconductive PCP

3×Interstitial Pilot：

EPR covered flexible stranded tinned copper conductor

Sheath：

Heavy duty PCP sheath. Heavy duty CPE/CSP sheath can be offered upon request

Standard：

AS/NZS 2802:2000 ; AS/NZS 1125 ; AS/NZS 3808 ; AS/NZS 5000.1

Whatsapp: +86 13510784550

manager01@greaterwire.com

Add To Inquiry

Description

Download

Mining Cable Manufacturer

Copper Conductor

Flexible stranded tinned annealed copper conductor

Insulation & Sheath

EPR Insulation & Heavy Duty PCP Sheath

Number of Cores

3×Conductors + 3×Interstitial Pilot

Temperature Range

–25 °C to +90 °C

mining power cable

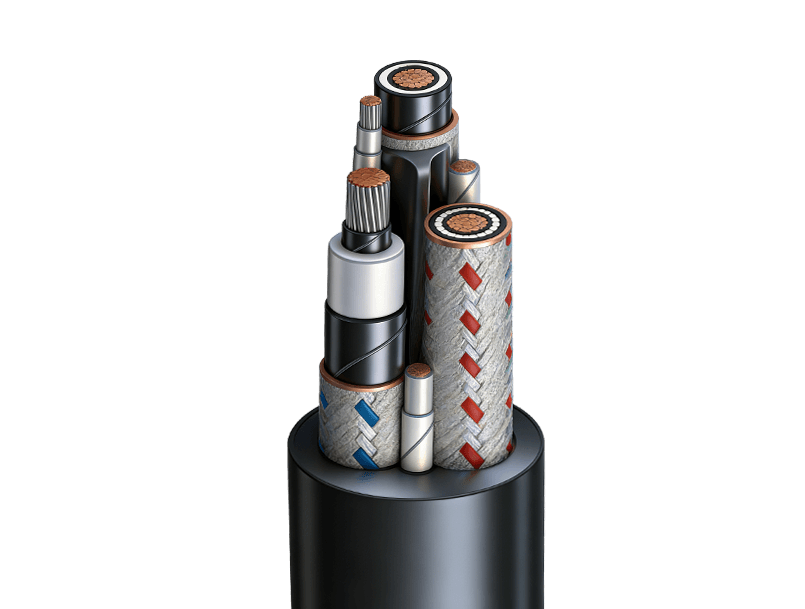

Type 440 1.1 to 22 kV mining reeling & trailing cable is a high-performance flexible power cable designed and manufactured according to Australian and New Zealand mining cable standards such as AS/NZS 2802. It is used for power supply to mobile equipment in mining and heavy industrial sites. This cable covers a rated voltage range from 1.1 kV to 22 kV, suitable for low to medium voltage levels.

Mining Cable

mining cable

For power transmission systems in mining and large industrial sites where the equipment needs to move with the machine .

Flexible Stranded Tinned Annealed Copper Conductor

Rated Voltage Uo/U (Um) 1.1 to 22KV

EPR (Ethylene Propylene Rubber) Insulation

Standards AS/NZS 5000.1

Heavy-Duty PCP Outer Sheath Sheath

Operating Temperature –25 °C to +90 °C

Advantages of mining wire

Type 440 mining cable conductors are made of multi-strand tin-plated annealed copper strands, which ensure good conductivity and provide excellent flexibility and fatigue resistance, making it suitable for use in scenarios requiring frequent traction and winding.

trailing cable mining

Nominal Conductor Area	Strand Size	Insulation Thickness	Core Screen		Pilot Conductor		Thickness of Sheath Including SC PCP Layer	Nominal Overall Diameter	Nominal Weight
Nominal Conductor Area	Strand Size	Insulation Thickness	Strand Size	Thickness of Covering	Strand Size	Thickness of Covering	Thickness of Sheath Including SC PCP Layer	Nominal Overall Diameter	Nominal Weight
mm²	No/mm	mm	No/mm	mm	No/mm	mm	mm	mm	kg/100m
Type 440.1 Class 2
6	84/0.30	1.5	7/0.25	7.2	18/0.30	1	3.8	30	135
10	77/0.40	1.5	7/0.25	8.6	27/0.30	1	3.8	32.6	166
16	126/0.40	1.6	7/0.25	9.6	42/0.30	1	4	35.8	204
25	209/0.40	1.6	7/0.25	11.3	66/0.30	1.2	4.3	39.7	269
35	285/0.40	1.6	7/0.25	12.4	90/0.30	1.2	4.6	43.1	324
50	380/0.40	1.7	7/0.25	14.1	120/0.30	1.2	5	47.7	403
70	203/0.67	1.8	7/0.25	16.5	39/0.67	1.2	5.4	53.9	539
95	259/0.67	2	7/0.30	21.8	39/0.67	1.2	6	59.3	659
120	336/0.67	2.1	7/0.30	24.7	42/0.67	1.4	6.4	65.1	802
150	427/0.67	2.3	7/0.40	36.1	54/0.67	1.4	6.9	72.1	1018
185	518/0.67	2.5	7/0.40	40.5	63/0.67	1.4	7.4	78.6	1198
240	672/0.67	2.8	7/0.50	57.7	77/0.67	1.6	8.2	88.6	1549
300	854/0.67	3	7/0.50	63.2	98/0.67	1.6	8.8	96.3	1870
Type 440.3 Class 2
16	126/0.40	3	7/0.25	13.1	42/0.30	1.4	5.3	46.2	304
25	209/0.40	3	7/0.25	14.8	66/0.30	1.4	5.6	50.1	379
35	285/0.40	3	7/0.25	15.8	90/0.30	1.4	5.9	53.5	446
50	380/0.40	3	7/0.25	17.2	120/0.30	1.4	6.3	57.6	524
70	203/0.67	3	7/0.25	18.6	39/0.67	1.4	6.6	62.5	659
95	259/0.67	3	7/0.25	20.3	39/0.67	1.6	7.1	66.2	754
120	336/0.67	3	7/0.30	27.2	42/0.67	1.6	7.4	72	914
150	427/0.67	3	7/0.40	39.6	54/0.67	1.6	7.8	78	1119
185	518/0.67	3	7/0.40	42.2	63/0.67	1.6	8.2	83.4	1289
240	672/0.67	3	7/0.40	46.6	77/0.67	1.6	8.8	90.3	1559
300	854/0.67	3	7/0.50	63.2	98/0.67	1.6	9.4	98.4	1920
Type 440.6 Class 2
16	126/0.40	5	7/0.25	17.2	42/0.30	1.4	6.4	57.3	444
25	209/0.40	5	7/0.25	18.6	66/0.30	1.6	6.7	61.2	523
35	285/0.40	5	7/0.25	18.6	90/0.30	1.6	7	64.6	599
50	380/0.40	5	7/0.25	21.3	120/0.30	1.6	7.3	68.5	689
70	203/0.67	5	7/0.25	23.4	39/0.67	1.6	7.7	73.7	834
95	259/0.67	5	7/0.30	29.2	39/0.67	1.8	8.1	77.8	964
120	336/0.67	5	7/0.30	31.7	42/0.67	1.8	8.5	83.1	1119
150	427/0.67	5	7/0.40	45.7	54/0.67	1.8	8.9	89.1	1349
185	518/0.67	5	7/0.40	48.4	63/0.67	1.8	9.3	94.5	1529
240	672/0.67	5	7/0.40	52.8	77/0.67	1.8	9.9	101.4	1810
300	854/0.67	5	7/0.50	71.5	98/0.67	1.8	10.4	109.3	2190
Type 440.11 Class 2
25	209/0.40	7.6	7/0.25	23.7	66/0.30	2	8.1	75.6	759
35	285/0.40	7.6	7/0.30	30.2	90/0.30	2	8.4	79.7	869
50	380/0.40	7.6	7/0.30	31.7	120/0.30	2	8.7	83.6	974
70	203/0.67	7.6	7/0.30	34.1	39/0.67	2	9.1	88.8	1139
95	259/0.67	7.6	7/0.40	47.5	39/0.67	2.2	9.6	93.7	1319
120	336/0.67	7.6	7/0.40	51	42/0.67	2.2	9.9	98.8	1489
150	427/0.67	7.6	7/0.40	53.7	54/0.67	2.2	10.3	103.5	1679
185	518/0.67	7.6	7/0.40	57.2	63/0.67	2.2	10.7	108.8	1880
Type 440.22 Class 2
35	285/0.40	10.5	7/0.40	53.2	90/0.30	2.5	10	105	1270
50	380/0.40	10.5	7/0.40	54.1	120/0.30	2.5	10.3	108.9	1392
70	203/0.67	10.5	7/0.40	58	39/0.67	2.5	10.7	111.2	1558

Certification

Type 440 mining cable is fully certified to AS/NZS standards, compliance with Australian and New Zealand electrical safety and performance regulations, giving customers confidence in reliable and safe operation across mining sites .

Type 241 Mining Cable

Mechanical Durability

High Flexibility

High Thermal Endurance

SAA Certified

Mining Cable certification

SAA approval Mining Cable certification

APPLICATIONS

Type 440 1.1 to 22 kV mining reeling cables are primarily used in mining and heavy industrial sites where high power supply requirements are placed on mobile equipment and under variable operating conditions. Type 440 cables are also suitable for reeling applications, such as long-distance power supply for mobile equipment, stacker-reclaimers, and large construction machinery, and can withstand continuous bending, tension, and mechanical impact during operation.

Mining Cable for Continuous Mining Machine

Continuous Mining Machine

Provides medium-voltage power to continuous mining machines in underground mines, withstanding repeated dragging during frequent forward, backwards, and turning movements.

Cable Mine for Mine Drainage Pump

Mine Drainage Pump

Provides power cables for mobile or semi-mobile conveyors, meeting the power supply needs for long-distance operation and localized relocation.

mining cable for Mine Drilling Rig

Mine Drilling Rig

Used for equipment such as rotary drilling rigs and blasting drilling rigs in open-pit mines, adaptable to high mechanical stress, dust, and complex terrain environments.

trailing cable mining for Mobile Mine Crusher

Mobile Mine Crusher

Used in underground or open-pit mine drainage systems, providing stable medium-voltage power to high-power pump sets, adaptable to humid and corrosive environments.
