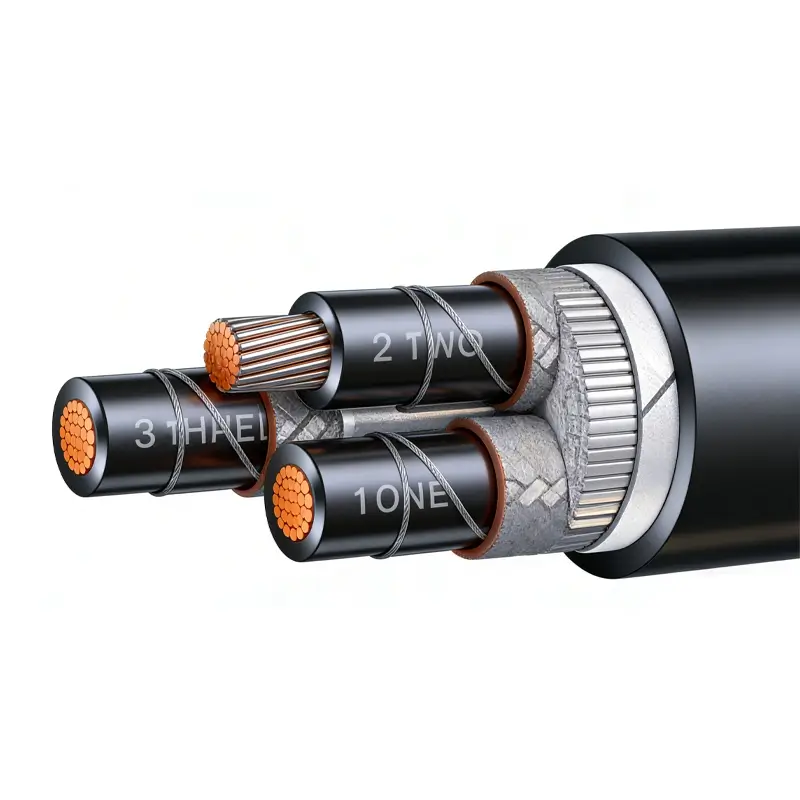

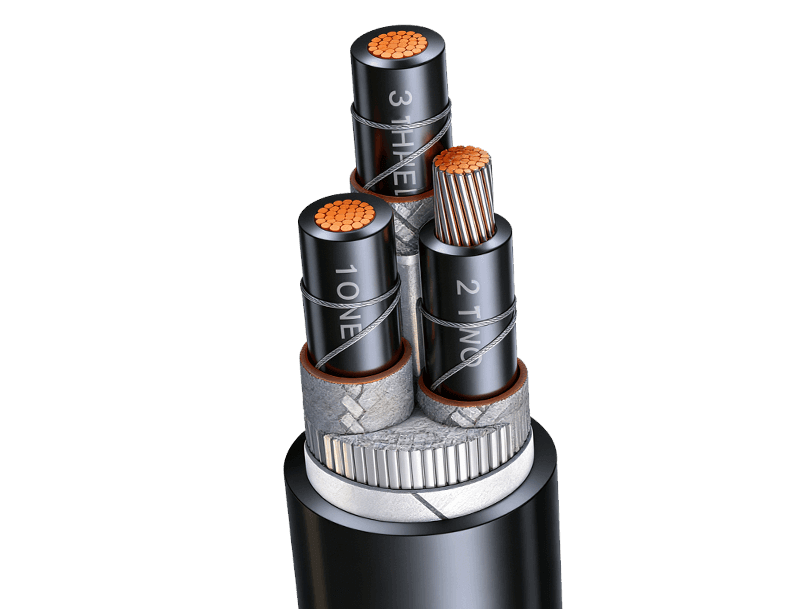

Australia Standard Type 1 1.1/1.1KV Individually Screened Mining Cable

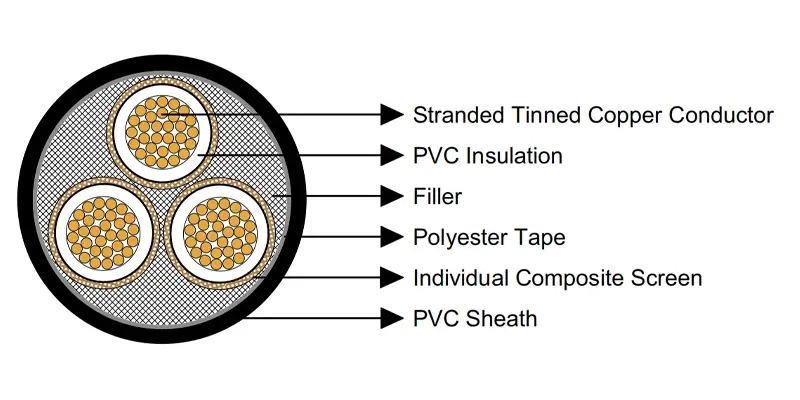

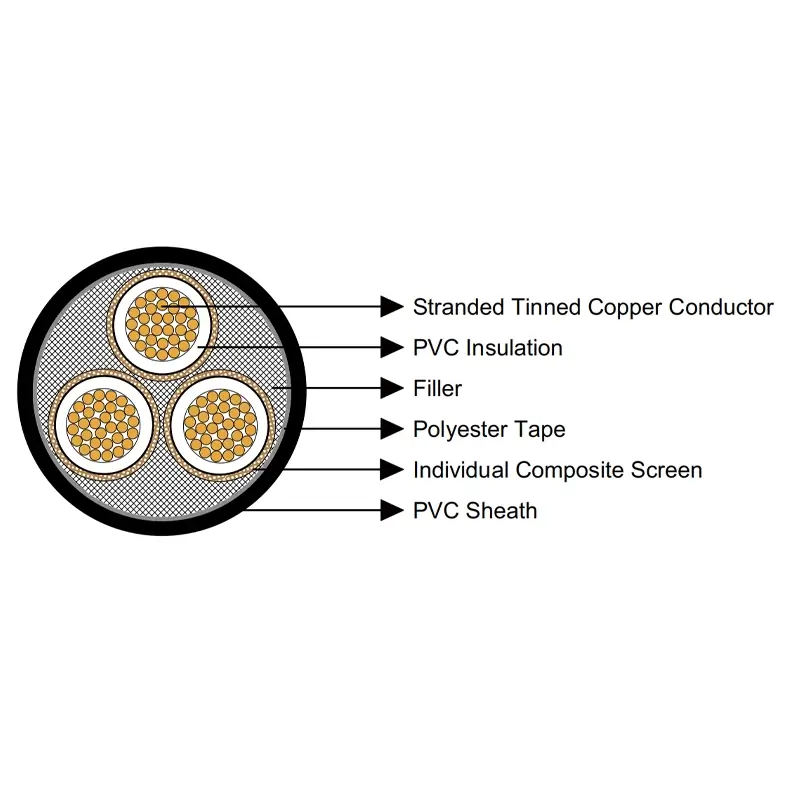

Conductors:：
Stranded copper conductor
Insulation：
PVC
Individual Composite Screen (earth conductor)：
Tinned annealed copper braiding interwove with polyester yarn.
Binding：
Polyester tape
Sheath：
PVC sheath
Description
Download
Copper Conductor
Flexible stranded tinned annealed copper conductor
Insulation & Sheath
PVC Insulation & Sheath
Number of Cores
3×Conductors
Temperature Range
-5℃ to +50℃
mining power cable
Type 1 1.1/1.1kV individually screened mining cable can be used long-term in humid, dusty, or slightly corrosive environments. This cable complies with AS/NZS 1972 and relevant mining cable standards, ensuring safety and reliability.
mining cable
These individually screened cables are ideal for connecting machinery and equipment, providing reliable power and signal transmission where PVC-insulated cables are suitable .
Stranded copper conductor
Rated Voltage Uo/U (Um) 1.1/1.1 kV
PVC Insulation
Standards AS/NZS 5000.1
PVC Sheath
Operating Temperature –25 °C to +90 °C
Advantages of mining wire
The cable utilizes highly flexible stranded copper conductors, providing stable conductivity and withstanding long-term thermal and mechanical stresses. Each conductor is independently shielded, effectively suppressing electromagnetic interference and ensuring reliable signal transmission. Furthermore, the PVC insulation and sheath materials offer excellent abrasion resistance, corrosion resistance, and chemical resistance.
| Number of Cores |
Nominal Conductor Area |
Strand Size | Insulation Thickness | Core Screen | Thickness of Sheath |
Nominal Overall Diameter | Nominal Weight |
|
| Strand Size | Thickness of Covering | |||||||
| mm² | No/mm | mm | mm | mm² | mm | mm | kg/100m | |
| Type 1 - Individually Screened | ||||||||
| 3 | 1.5 | 30/0.25 | 0.8 | 0.2 | 3.5 | 0.8 | 10.1 | 16 |
| 4 | 1.5 | 30/0.25 | 0.8 | 0.2 | 4.6 | 0.8 | 11.1 | 21 |
| 3 | 10 | 77/0.40 | 1 | 0.2 | 6.8 | 1 | 18.6 | 59 |
| 4 | 10 | 77/0.40 | 1 | 0.2 | 9 | 1 | 20.5 | 75 |
| 3 | 16 | 126/0.40 | 1 | 0.2 | 7.9 | 1.3 | 21.6 | 84 |
| 4 | 16 | 126/0.40 | 1 | 0.2 | 10.6 | 1.3 | 23.7 | 110 |
Certification
Our mining cables meet international standards and are widely recognized in medium-voltage applications worldwide. We guarantee that every cable undergoes rigorous electrical, mechanical, and thermal performance testing.
Mechanical Durability
High Flexibility
High Thermal Endurance
SAA Certified
APPLICATIONS
Type 1 1.1/1.1kV individually screened mining cable offers excellent electrical and mechanical properties, making it suitable for power transmission and control systems in mining, tunnel, and industrial environments.

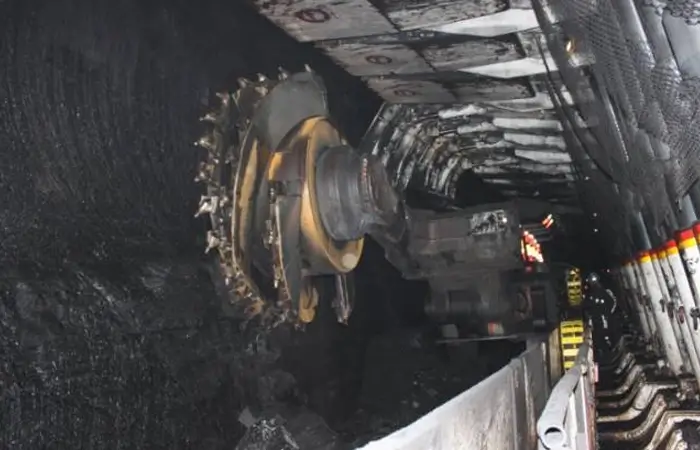

Continuous Mining Machine
Provides medium-voltage power to continuous mining machines in underground mines, withstanding repeated dragging during frequent forward, backwards, and turning movements.

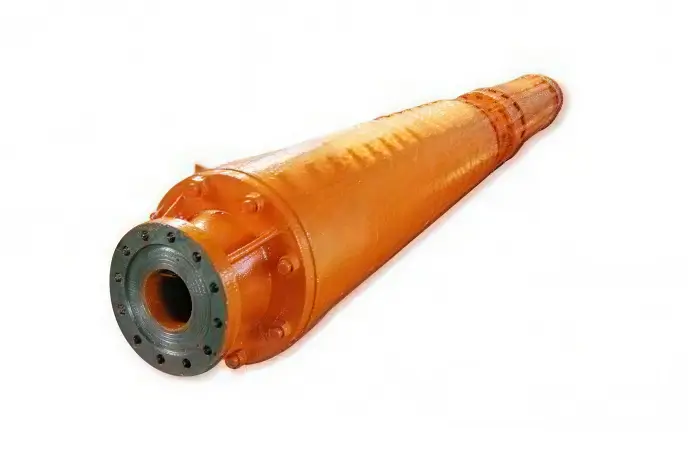

Mine Drainage Pump
Provides power cables for mobile or semi-mobile conveyors, meeting the power supply needs for long-distance operation and localized relocation.

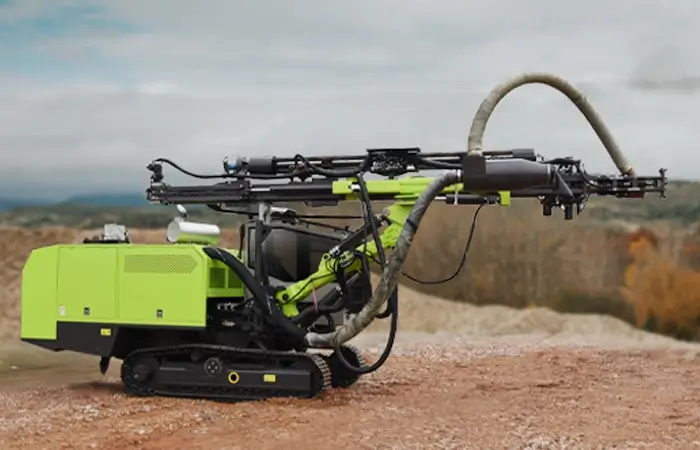

Mine Drilling Rig
Used for equipment such as rotary drilling rigs and blasting drilling rigs in open-pit mines, adaptable to high mechanical stress, dust, and complex terrain environments.

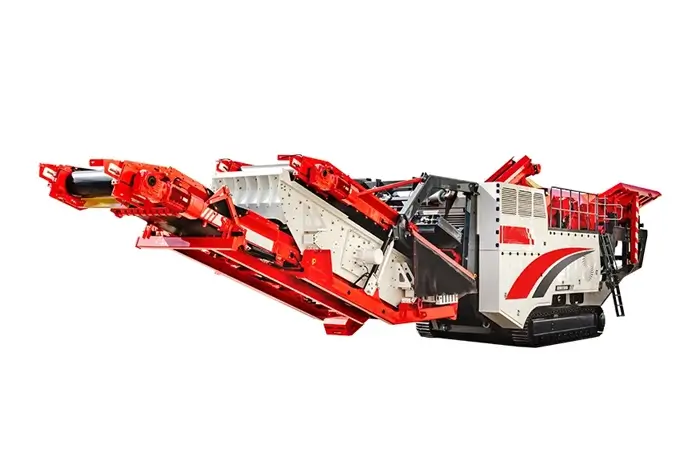

Mobile Mine Crusher
Used in underground or open-pit mine drainage systems, providing stable medium-voltage power to high-power pump sets, adaptable to humid and corrosive environments.
Customer Photos
Exporting to 80+ countries and regions, we bring proven global export experience and trusted wires & cables to customers worldwide.
plant equipment
Dongguan Greater Wire & Cable Co., Ltd. is a specialized mining cable manufacturer with 30+ years of experience. We deeply understand the high requirements of mine sites for cables in terms of safety, durability, and continuous operation. From raw material selection and structural design to finished product testing, everything is optimized around actual working conditions. For mining towed, reeled, and medium-voltage power supply scenarios, we can provide mining cable solutions with optimized structures and customized parameters based on the voltage level, mechanical stress, and environmental conditions of different mining areas. Furthermore, relying on a mature production management system and stable production capacity, we can support batch delivery and long-term supply needs for mining projects, helping customers reduce risks and costs during construction, operation, and maintenance phases, ensuring the continuous, safe, and efficient operation of mining equipment.
Packaging Information
Mining cables are typically packaged in two ways: wooden reels and large wooden reels.
Wooden Drum Packaging
Large Wooden Drum Packaging
