Single Ciore Copper 6.35/11 (12) KV Medium Voltage Cable

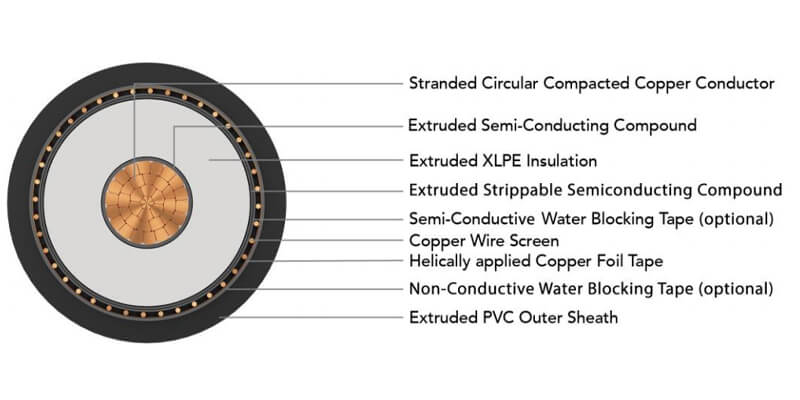

Conductor：
Stranded Compacted Circular Copper conductor as per AS/NZS 1125
Conductor Screen：
Extruded Semi-conductive compound
Insulation：
XLPE
Insulation Screen：
Extruded Strippable Semi-conductive compound
Longitudinal Water blocking：
Water blocking tape above and below copper screen (Optional)
Metallic Insulation Screen：
Copper Wire Screen + helically applied copper tape (E/F current capacity – Based on requirement)
Metallic Sheath：
Lead Alloy (optional)
Termite Protection：
Polyamide (Nylon -12) (optional)
Outer Sheath：
PVC+HDPE Composite Sheath or PVC + Nylon + HDPE , or LSZH
Standard：
AS/NZS 1429.1 ；AS/NZS 1125 ；AS/NZS 3808
Description
Download
Conductor
Insulation & Sheath
XLPE Insulation & LSZH Outer Sheath
Number of Cores
Single Core
Temperature Range
-25°C to +90°C
medium voltage cable
Single core 6.35/11 (12) kV copper MV cable utilizes high-purity stranded and compacted copper conductors, providing lower conductor resistance and higher current carrying capacity in medium-voltage distribution systems. Compared to aluminum conductors, medium-voltage copper conductors at the 6.35/11 (12) kV level offer more stable electrical performance and superior short-circuit withstand capability, effectively reducing line losses and improving system operational reliability. The single-core structure, combined with a uniform shielding system, results in a more symmetrical electric field distribution, significantly reducing the risk of partial discharge, making it particularly suitable for medium-voltage networks requiring high operational safety and long-term stability.
medium cable
6.35/11 KV XLPE insulated with Copper conductor single core MV cable is suitable to use for power supply to wide networks i.e. Commercial, Industrial and Urban / Residential.
Stranded Compacted Circular Copper conductor
Rated Voltage Uo/U (Um) 6.35/11 (12) KV
XLPE Insulation
Standards AS/NZS 1429.1
LSZH Sheath
Temperature Range -25°C to +90°C
Advantages of medium voltage cable
Medium voltage cable features a single-core design with a core conductor made of stranded and compacted circular copper conductors conforming to AS/NZS 1125, possessing excellent mechanical strength and conductivity. The single-core copper conductor is extruded with a semiconducting conductor shield, which, along with the XLPE insulation layer and a peelable semiconducting insulation shield, forms a stable and uniform medium-voltage insulation system. The metal shielding layer, composed of copper wires and copper tape, provides a reliable grounding path for the single-core medium-voltage cable, meeting the stringent requirements for fault current and electromagnetic shielding in 6.35/11 kV systems.
| No. of Cores | Core Cross Sectional Area | Nominal Diameter | ||
| Under Metallic Screen | Under Metallic Screen | Overall | ||
| No. | mm2 | mm | mm | mm |
| 1 | 16 | 14.7 | 16.6 | 21 |
| 1 | 25 | 15.9 | 17.8 | 22 |
| 1 | 35 | 16.9 | 18.8 | 23 |
| 1 | 50 | 18 | 19.9 | 24 |
| 1 | 70 | 19.7 | 21.6 | 26 |
| 1 | 95 | 21.2 | 23.1 | 27 |
| 1 | 120 | 22.8 | 24.7 | 29 |
| 1 | 150 | 24.2 | 26.1 | 30 |
| 1 | 185 | 25.9 | 27.8 | 32 |
| 1 | 240 | 28.2 | 30.1 | 34 |
| 1 | 300 | 30.2 | 32.1 | 37 |
| 1 | 400 | 33 | 34.9 | 40 |
| 1 | 500 | 36.4 | 38.3 | 43 |
| 1 | 630 | 40 | 41.9 | 47 |
| 1 | 800 | 43.7 | 45.6 | 51 |
| 1 | 1000 | 48 | 49.9 | 55 |
Certification
Medium voltage cables are SAA certified, The cables' insulation performance, withstand voltage rating, temperature rise control, flame retardant properties, and long-term operational reliability have all undergone rigorous testing.
Long life
UV resistant
Resistant to chemical exposure
SAA Certified
APPLICATIONS
Single core copper 6.35/11 (12) kV MV cable is widely used in main power supply circuits and ring network systems of 6.35/11 kV distribution networks. The single-core copper conductor structure makes it particularly suitable for substation outgoing lines, underground cable laying, and medium-voltage power connections in commercial and industrial projects, including urban power distribution, residential areas, industrial plants, and public infrastructure.
Commercial Complexes
Suitable for 11 kV main power supply lines in commercial buildings such as shopping malls, hospitals, airports, and data centers, the single-core copper conductor structure provides higher current carrying capacity in limited spaces, ensuring stable power supply to critical loads.
Industrial Plants
In 6.35/11 (12) kV distribution systems within industrial parks, single core copper medium voltage cable is used to connect main transformers, motor control centers, and large equipment. The copper conductor is particularly suitable for high-load and frequent start-stop industrial conditions.
Residential Areas
Single core 6.35/11 kV copper MV cable is commonly used in underground medium voltage main lines in residential areas, supplying power to multiple distribution transformers. The single core structure improves installation flexibility, and the copper conductor ensures long-term, low-maintenance operation.
Tunnel
6.35/11 (12) kV single core copper medium voltage cable is suitable for direct burial or conduit installation, providing stable medium-voltage power transmission in underground power projects, and is ideal for projects requiring high mechanical strength and electrical performance.
Customer Photos
Exporting to 80+ countries and regions, we bring proven global export experience and trusted wires & cables to customers worldwide.
plant equipment
We are a professional medium voltage cable manufacturer. Relying on mature production lines and a stable supply chain system, we can ensure continuous and stable supply while maintaining quality. Whether for standard specifications or bulk orders, we can provide reliable delivery support to our customers, reducing project risks.
Packaging Information
Medium voltage cables are typically packaged in two ways: wooden reels and large wooden reels.
Wooden Drum Packaging
Large Wooden Drum Packaging
Global Certification
Geritel Wire Manufacturer holds 50+ international certifications, including UL, cUL, SAA, TUV, CE, VDE, ISO, and others. Our cables meet the highest global quality and safety standards.
VDE
UL
SAA
TUV
ISO
