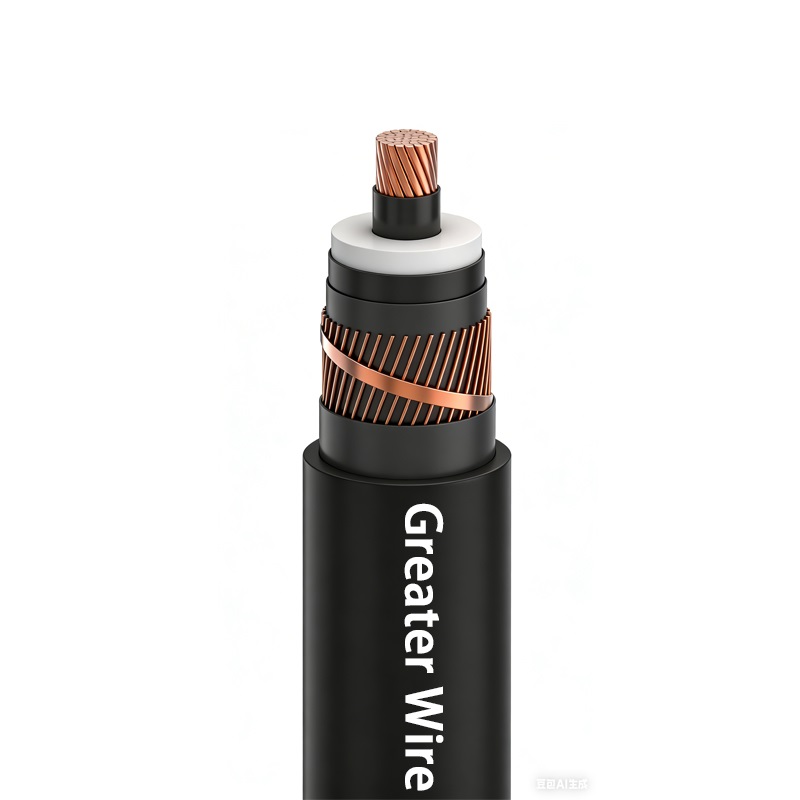

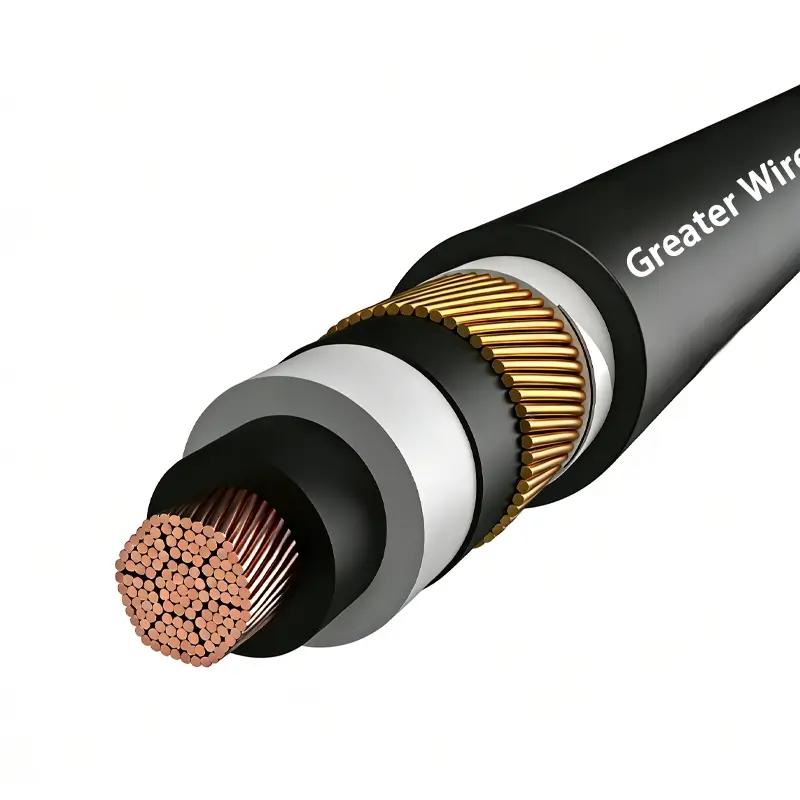

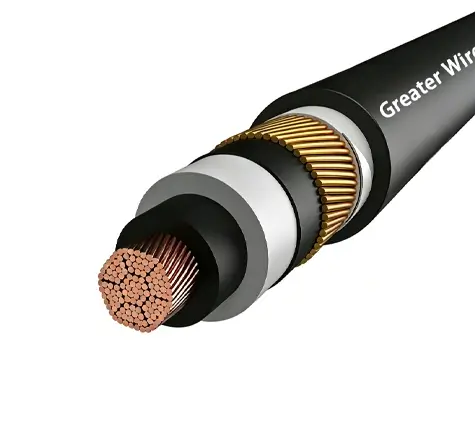

Single Ciore Copper 3.8/6.6 (7.2)KV Medium Voltage Cable

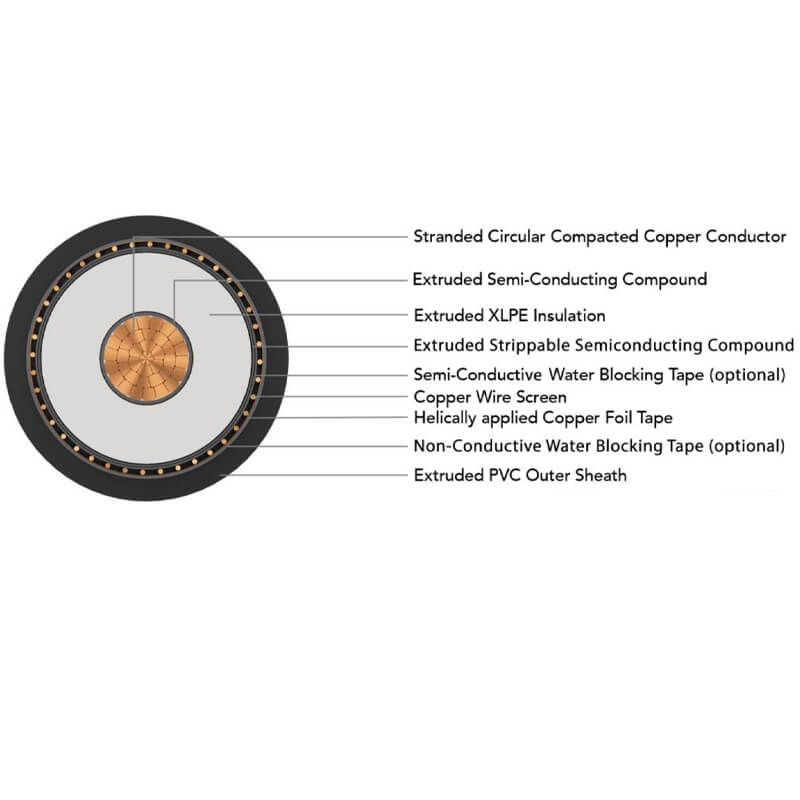

Conductor：
Stranded Compacted Circular Copper conductor as per AS/NZS 1125
Conductor Screen：
Extruded Semi-conductive compound
Insulation：
XLPE
Insulation Screen：
Extruded Strippable Semi-conductive compound
Longitudinal Water blocking：
Water blocking tape above and below copper screen (Optional)
Metallic Insulation Screen：
Copper Wire Screen + helically applied copper tape (E/F current capacity – Based on requirement)
Metallic Sheath：
Lead Alloy (optional)
Outer Sheath：
Extruded Polyvinyl Chloride, Colour: Black
Termite Protection：
Polyamide (Nylon -12) (optional)
Standard：
AS/NZS 1429.1 ；AS/NZS 1125 ；AS/NZS 3808
Description
Download
Conductor
Insulation & Sheath
XLPE Insulation & Extruded Polyvinyl Chloride Outer Sheath
Number of Cores
Single Core
Temperature Range
-25°C to +90°C
medium voltage cable
3.8/6.6 (7.2) kV medium-voltage XLPE single-core copper conductor cable offers stable electrical performance and high operational reliability. The high-conductivity copper conductor ensures low resistance and excellent current-carrying capacity, suitable for continuous load operation.
medium cable
MV 3.8/6.6 kV XLPE insulated single core copper cable is used for medium voltage power supply in commercial, industrial, and urban or residential applications.
Stranded Compacted Circular Copper conductor
Rated Voltage Uo/U (Um) 3.8/6.6 (7.2)KV
XLPE Insulation
Standards AS/NZS 1429.1
Extruded Polyvinyl Chloride Outer Sheath
Temperature Range -25°C to +90°C
Advantages of medium voltage cable

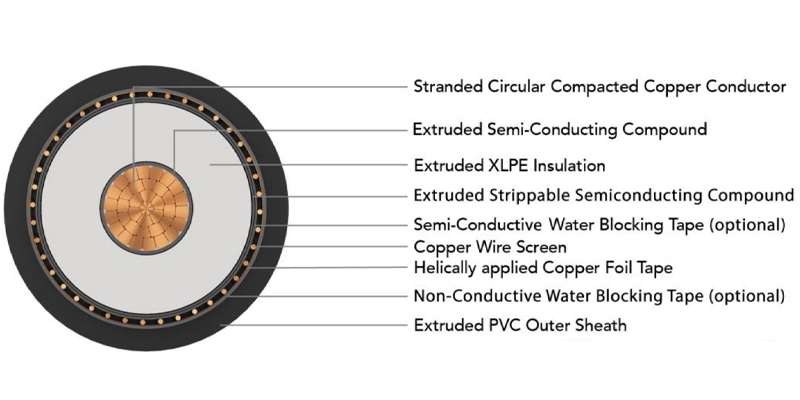

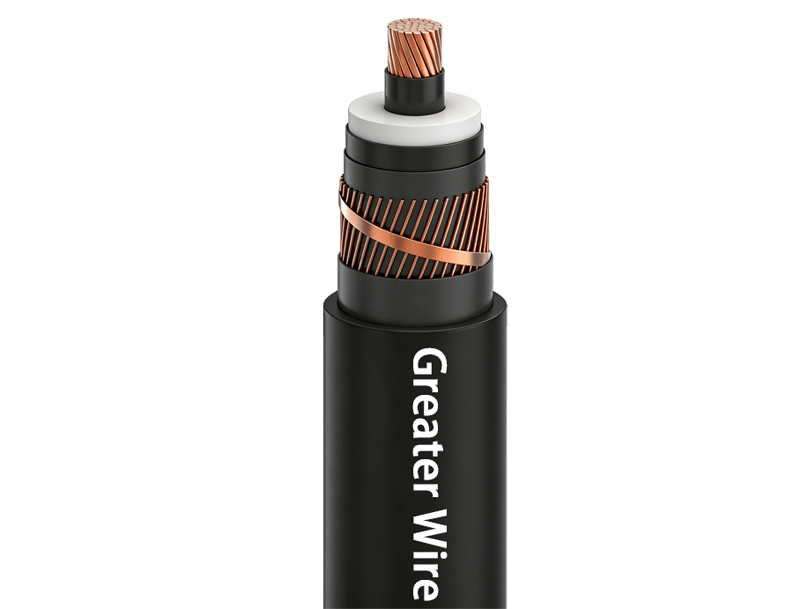

Medium voltage cable features a single-core design with a stranded, compacted circular copper conductor conforming to AS/NZS 1125 standards. The conductor is extruded with a semi-conductive conductor shield, followed by an XLPE insulation layer and a strippable semi-conductive insulation shield, forming a complete medium-voltage insulation and shielding system. A copper wire shield is placed outside the insulation shield, supplemented by spirally wrapped copper tape, allowing for grounding and fault current capacity design according to engineering requirements. The outer sheath is made of black PVC material, providing good mechanical and environmental resistance. The cable structure can also be optionally equipped with longitudinal water blocking, lead alloy metal sheathing, and a nylon anti-termite layer to adapt to different laying conditions.
| No. of Cores | Core Cross Sectional Area | Nominal Diameter | ||
| Under Metallic Screen | Under Metallic Screen | Overall | ||
| 1 | 16 | 12.9 | 14.8 | 19 |
| 1 | 25 | 14.1 | 16 | 20 |
| 1 | 35 | 15.1 | 17 | 21 |
| 1 | 50 | 16.2 | 18.1 | 22 |
| 1 | 70 | 17.9 | 19.8 | 24 |
| 1 | 95 | 19.4 | 21.3 | 25 |
| 1 | 120 | 21 | 22.9 | 27 |
| 1 | 150 | 22.4 | 24.3 | 28 |
| 1 | 185 | 24.1 | 26 | 30 |
| 1 | 240 | 26.6 | 28.5 | 33 |
| 1 | 300 | 29 | 30.9 | 35 |
| 1 | 400 | 32.2 | 34.1 | 39 |
| 1 | 500 | 36 | 37.9 | 43 |
| 1 | 630 | 39.6 | 41.5 | 47 |
| 1 | 800 | 43.3 | 45.2 | 50 |
| 1 | 1000 | 47.6 | 49.5 | 55 |
Certification
Medium-voltage cables are SAA-certified and fully comply with relevant electrical safety standards in Australia and New Zealand in terms of design, material selection, manufacturing process, and electrical and mechanical performance.
Long life
UV resistant
Resistant to chemical exposure
SAA Certified
APPLICATIONS
3.8/6.6 (7.2) kV XLPE insulated single-core copper medium-voltage cable is widely used in commercial, industrial, and urban and residential distribution networks, suitable for medium-voltage power transmission and distribution applications. This cable is commonly used in factory distribution systems, commercial building medium-voltage feeders, connections between small substations and distribution equipment, and urban underground distribution networks. The single-core structure facilitates phase-by-phase installation and system maintenance, and is suitable for fixed installation in cable trenches, conduits, or tunnels, providing safe, stable, and long-term reliable power support for medium-voltage power systems.
Commercial Complexes
It is also widely used in medium-voltage power distribution systems of public buildings such as office buildings, shopping malls, hospitals, and airports, undertaking the task of stable and reliable medium-voltage power transmission.
Industrial Plants
Used in medium-voltage power distribution systems within factories, this cable serves as the main power supply cable between transformers and medium-voltage distribution cabinets or large electrical equipment, meeting the requirements for continuous, high-load operation.
Residential Areas
Used for medium-voltage connections between residential community substations and various distribution nodes, ensuring the safety and stability of power supply to the community.
Tunnel
Suitable for installation in urban underground cable trenches, conduits, or tunnels, used for medium-voltage power transmission and regional distribution, supporting the long-term safe operation of urban power grids.
Customer Photos
Exporting to 80+ countries and regions, we bring proven global export experience and trusted wires & cables to customers worldwide.
plant equipment
We are a professional medium voltage cable manufacturer. Whether it's the voltage level, conductor cross-section, shielding method, or sheath material, we can provide customized designs based on the customer's operating conditions, installation methods, and environmental conditions to meet the actual needs of the project.
Packaging Information

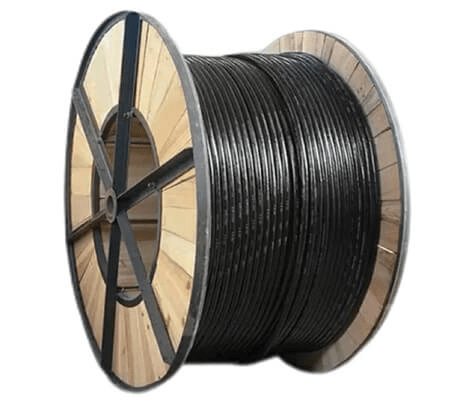

Medium voltage cables are typically packaged in two ways: wooden reels and large wooden reels.
Wooden Drum Packaging
Large Wooden Drum Packaging
