19/33(36)KV Copper Medium Voltage Power Cable Single Ciore

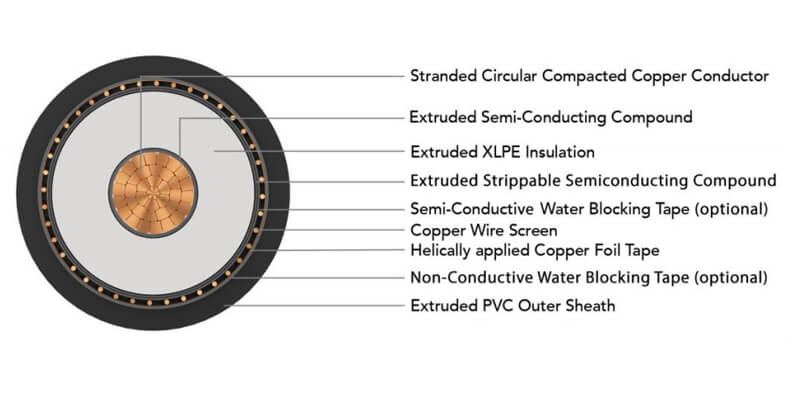

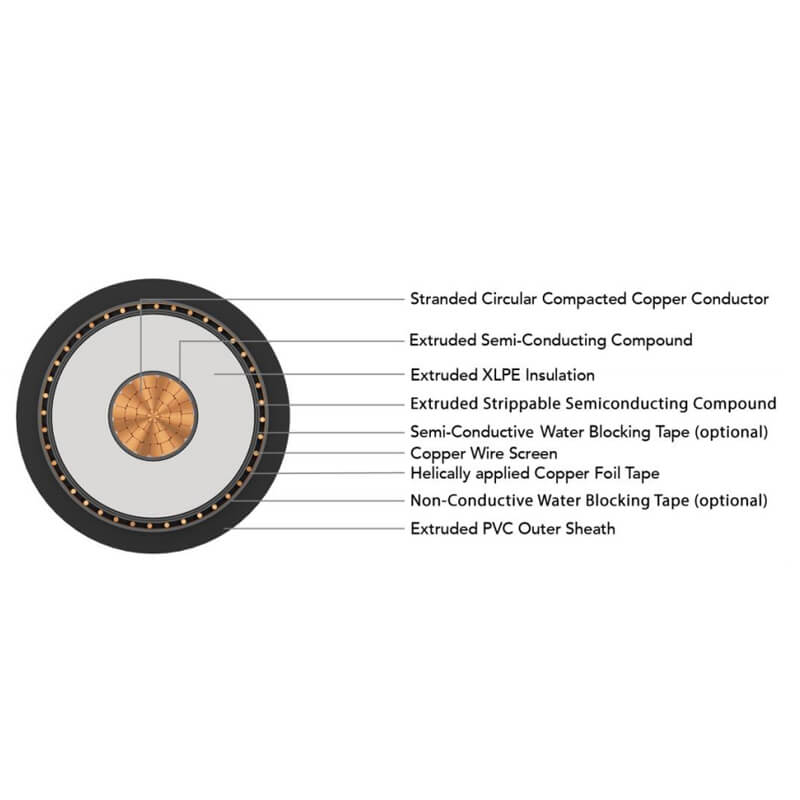

Conductor：
Stranded Compacted Circular Copper conductor as per AS/NZS 1125
Conductor Screen：
Extruded Semi-conductive compound
Insulation：
XLPE
Insulation Screen：
Extruded Strippable Semi-conductive compound
Longitudinal Water blocking：
Water blocking tape above and below copper screen (Optional)
Metallic Insulation Screen：
Copper Wire Screen + helically applied copper tape (E/F current capacity – Based on requirement)
Metallic Sheath：
Lead Alloy (optional)
Termite Protection：
Polyamide (Nylon -12) (optional)
Outer Sheath：
PVC+HDPE Composite Sheath or PVC + Nylon + HDPE , or LSZH
Standard：
AS/NZS 1429.1 ; AS/NZS 1125 ; AS/NZS 3808
Description
Download
Conductor
Stranded Compacted Circular Copper conductor as per AS/NZS
1125
Insulation & Sheath
XLPE Insulation & LSZH Outer Sheath
Number of Cores
Single Core
Temperature Range
-25°C to +90°C
medium voltage cable
19/33 (36) kV single core MV cable employs a high quality XLPE insulation system, providing excellent electrical performance and long-term operational stability. The cable has passed conductor resistance, insulation resistance, and withstand voltage tests according to AS/NZS 1429.1 standards.
medium cable
MV 19/33 (36) kV XLPE insulated single core cable with copper conductor is designed for reliable power transmission across commercial, industrial, and urban or residential distribution networks.
Stranded Compacted Circular Copper conductor
Rated Voltage Uo/U (Um) 19/33(36)KV
XLPE Insulation
Standards AS/NZS 1429.1
PVC+HDPE Composite Sheath or PVC + Nylon + HDPE , or LSZH Sheath
Temperature Range -25°C to +90°C
Advantages of medium voltage cable
19/33 (36) kV single-core medium-voltage cable uses multi-strand stranded compacted round copper conductors conforming to AS/NZS 1125 standards, balancing high conductivity with good flexibility. An extruded semi-conductive conductor shielding layer is applied to the outer layer of the conductor, forming a compact structure with the XLPE insulation layer, resulting in a uniform electric field distribution. The outer insulation features a peelable semi-conductive insulation shielding layer, and is equipped with copper wire shielding and spiral-wound copper tape, allowing for the design of grounding and fault current carrying capacity according to requirements.
| No. of Cores | Core Cross Sectional Area | Nominal Diameter | ||
| Under Metallic Screen | Under Metallic Screen | Overall | ||
| No. | mm2 | mm | mm | mm |
| 1 | 50 | 27.2 | 29.1 | 33 |
| 1 | 70 | 28.9 | 30.8 | 35 |
| 1 | 95 | 30.4 | 32.3 | 37 |
| 1 | 120 | 32 | 33.9 | 38 |
| 1 | 150 | 33.4 | 35.3 | 40 |
| 1 | 185 | 35.1 | 37 | 42 |
| 1 | 240 | 37.4 | 39.3 | 44 |
| 1 | 300 | 39.4 | 41.3 | 46 |
| 1 | 400 | 42.2 | 44.1 | 49 |
| 1 | 500 | 45.6 | 47.5 | 53 |
| 1 | 630 | 49.2 | 51.1 | 57 |
| 1 | 800 | 52.9 | 54.8 | 61 |
| 1 | 1000 | 57.2 | 59.1 | 65 |
Certification
Medium voltage cables are SAA certified. The cable's certification not only enhances its recognition in the Australian and international markets but also strengthens customer trust in the brand's technological capabilities and product quality, laying a solid foundation for global power engineering project cooperation.
Long life
UV resistant
Resistant to chemical exposure
SAA Certified
APPLICATIONS
19/33 (36) kV single core MV cable is widely used in commercial buildings, industrial facilities, and urban and residential power distribution networks as a medium-voltage trunk or branch power supply cable. This cable is particularly suitable for substation incoming and outgoing lines, power transmission in industrial parks, large commercial complexes, urban underground cable tunnels, and high-load public infrastructure projects.
Commercial & High-Rise Building
Installed to supply medium voltage power to large commercial complexes, shopping malls, hospitals, and high-rise buildings where stable and continuous power distribution is critical.
Industrial Plants
Applied in industrial power systems to connect substations with production equipment, motors, and switchgear, ensuring safe operation under high load and elevated temperature conditions.
Urban Underground Distribution
Used as underground feeder cables in city power grids, providing reliable medium voltage electricity transmission between substations and local distribution points in densely populated urban areas.
Renewable Energy
Applied in solar farms, wind power stations, and power plants for medium voltage power collection and transmission from generation units to substations or grid connection points.
Customer Photos
Exporting to 80+ countries and regions, we bring proven global export experience and trusted wires & cables to customers worldwide.
plant equipment
We are a professional medium voltage cable manufacturer. We not only focus on the product itself, but also place great emphasis on pre-sales technical communication and after-sales support services. From technology selection to project execution, we consistently provide professional and responsive services to help our clients smoothly advance medium voltage power projects.
Packaging Information
Medium voltage cables are typically packaged in two ways: wooden reels and large wooden reels.
Wooden Drum Packaging
Large Wooden Drum Packaging
