1.9/3.3 (3.6) KV Copper Medium Voltage Cable

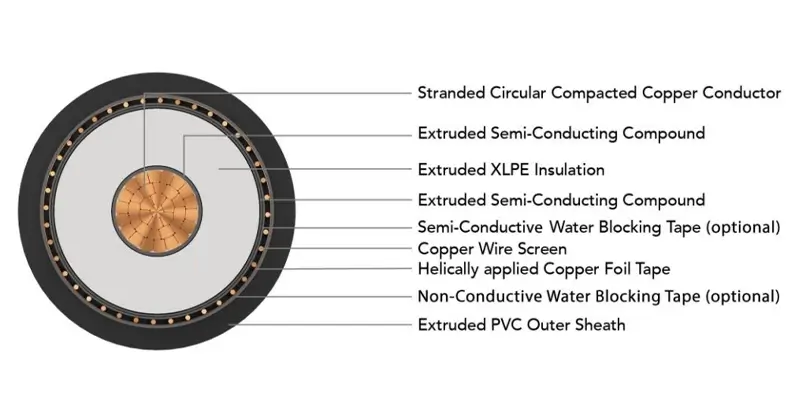

Conductor：
Stranded Compacted Circular Copper conductor as per AS/NZS 1125
Conductor Screen：
Extruded Semi-conductive compound
Insulation：
XLPE
Insulation Screen：
Extruded Semi-conductive compound
Longitudinal Water blocking：
Water blocking tape above and below copper screen (Optional)
Metallic Insulation Screen：
Copper Wire Screen + helically applied copper tape (E/F current capacity – Based on requirement)
Metallic Sheath：
Lead Alloy (optional)
Outer Sheath：
Extruded Polyvinyl Chloride
Termite Protection：
Polyamide (Nylon -12) (optional)
Standard：
AS/NZS 1429.1 & AS/NZS 1125 & AS/NZS 3808
Description
Download
Conductor
Stranded Compacted Circular Copper conductor as per AS/NZS 1125
Insulation & Sheath
XLPE Insulation & Extruded Polyvinyl Chloride Outer Sheath
Number of Cores
Single Core
Temperature Range
-25°C to +90°C
medium voltage cable
1.9/3.3 kV medium voltage single-core power cable utilises a high-conductivity copper conductor, offering excellent current-carrying capacity and stable electrical performance, enabling safe and reliable operation under rated voltage conditions for extended periods.
medium cable
MV 1.9/3.3 kV XLPE insulated copper conductor single core cables are widely used for power supply in commercial facilities, industrial plants, and urban/residential distribution systems.
Stranded Compacted Circular Copper conductor
Rated Voltage Uo/U (Um) 1.9/3.3 (3.6) KV
XLPE Insulation
Standards AS/NZS 1429.1
Extruded Polyvinyl Chloride Outer Sheath
Temperature to 110 ℃
Advantages of medium voltage cable

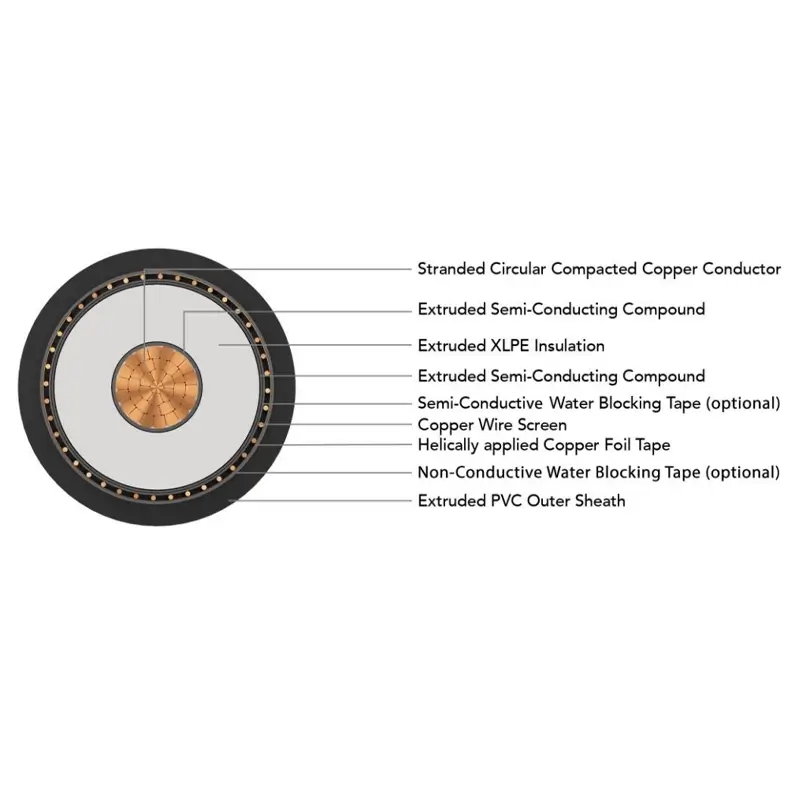

MV cable has a single-core structure, with the conductor using stranded, compacted circular copper conductors conforming to AS/NZS 1125 standards, providing low resistance and good mechanical strength. The conductor is successively extruded with a semiconducting conductor shield, XLPE insulation layer, and semiconducting insulation shield, forming a complete and continuous medium-voltage insulation system. A copper wire shield is configured outside the insulation shield, supplemented by spirally wrapped copper tape, allowing for the design of grounding/fault current capacity as needed. The outer sheath is made of black PVC, providing good mechanical protection and environmental resistance.
| No. of Cores | Core Cross Sectional Area | Nominal Diameter | ||
| Under Metallic Screen | Under Metallic Screen | Overall | ||
| No. | mm2 | mm | mm | mm |
| 1 | 16 | 11.9 | 13.8 | 18 |
| 1 | 25 | 13.1 | 15 | 19 |
| 1 | 35 | 14.1 | 16 | 20 |
| 1 | 50 | 15.2 | 17.1 | 21 |
| 1 | 70 | 16.9 | 18.8 | 23 |
| 1 | 95 | 18.4 | 20.3 | 24 |
| 1 | 120 | 20 | 21.9 | 26 |
| 1 | 150 | 21.4 | 23.3 | 27 |
| 1 | 185 | 23.1 | 25 | 29 |
| 1 | 240 | 25.4 | 27.3 | 31 |
| 1 | 300 | 27.4 | 29.3 | 34 |
| 1 | 400 | 30.2 | 32.1 | 37 |
| 1 | 500 | 34 | 35.9 | 41 |
| 1 | 630 | 38 | 39.9 | 45 |
| 1 | 800 | 42.1 | 44 | 49 |
| 1 | 1000 | 46.8 | 48.7 | 54 |
Certification
Medium voltage cables are SAA certified, fully complying with relevant electrical safety regulations and technical standards in Australia and New Zealand. SAA certification is a crucial prerequisite for entering the Australian and South Pacific power markets. SAA-certified medium-voltage cables can be legally used in public power grids, industrial projects, and large-scale infrastructure projects, effectively reducing project compliance risks and ensuring smooth project acceptance for our customers.
Long life
UV resistant
Resistant to chemical exposure
SAA Certified
APPLICATIONS
1.9/3.3 kV copper conductor single core medium voltage cables are widely used in commercial buildings, industrial facilities, and urban and residential power distribution networks. They are suitable for medium-voltage distribution circuits, power transmission and distribution systems, and fixed installations. The single-core structure offers greater flexibility in cable trenches, conduits, or tunnels, facilitating phase-by-phase installation and system maintenance.
Commercial Complexes
1.9/3.3 kV single-core copper conductor medium-voltage cable is commonly used in the medium-voltage power distribution systems of commercial complexes, office buildings, hospitals, and public facilities, serving as a medium-voltage feeder between transformers and low-voltage distribution rooms to ensure a stable and continuous power supply.
Industrial Plants
In manufacturing plants, processing workshops, and industrial parks, this cable is used in medium-voltage distribution circuits and equipment power supply lines. The copper conductor offers high current carrying capacity, and the single-core structure facilitates multi-circuit laying, making it suitable for fixed installation in industrial power environments.
Residential Areas
1.9/3.3 kV medium voltage cable is widely used in urban residential areas, community substations, and underground distribution networks for medium-voltage power distribution and regional power supply, meeting the safety and long-term reliability requirements of residential electricity consumption.
Tunnel
With its single-core structure and good bending performance, this cable is suitable for underground conduit, cable trench, or tunnel laying projects, commonly found in medium-voltage power transmission projects in urban infrastructure and industrial parks.
Customer Photos
Exporting to 80+ countries and regions, we bring proven global export experience and trusted wires & cables to customers worldwide.
plant equipment
We are a professional medium voltage cable manufacturer. With over thirty years of experience in the wire and cable industry, we have long focused on the research and manufacturing of medium-voltage power cables. Leveraging our extensive project experience, our medium-voltage cables are widely used in industrial, power, infrastructure, and public utility sectors, reliably serving the power system construction needs of various countries and regions.
Packaging Information
Medium voltage cables are typically packaged in two ways: wooden reels and large wooden reels.
Wooden Drum Packaging
Large Wooden Drum Packaging
