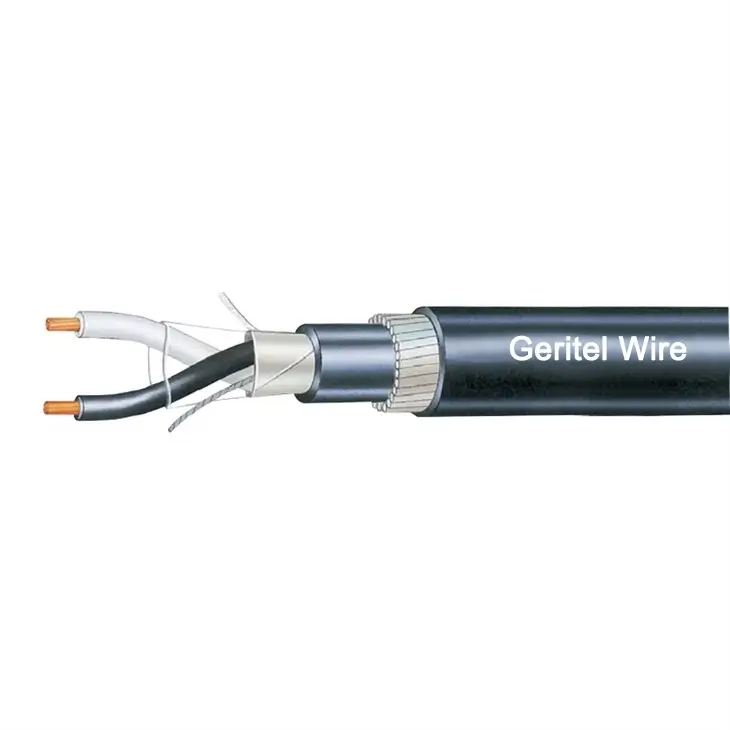

SAA Overall Screened Instrumentation Cable

Geritel Wire is a professional Australian cables manufacturer with SAA certification. We supply wire and cable to projects across Oceania, including universities, airports, commercial buildings, hospitals, and more.

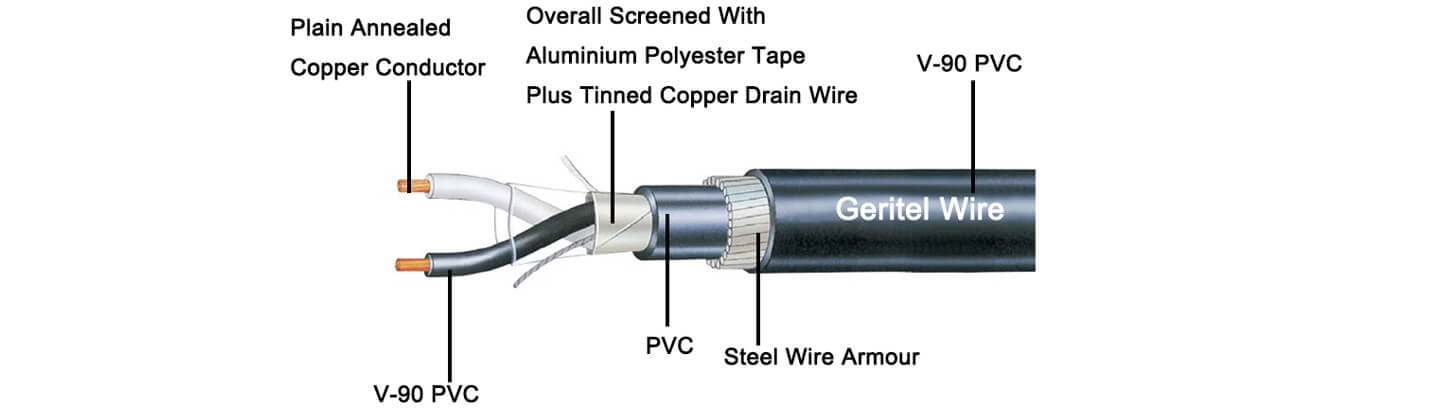

Conductor：

Plain Annealed Copper Conductor

Insulation：

V-90 PVC Insulated

Screen：

Overall Screened with Aluminium Polyester Tape Plus Tinned Copper Drain Wire

Bedding：

PVC Bedding

Armour：

Steel Wire Armour

Sheath：

V-90 PVC Sheathed

Whatsapp: +86 13510784550

manager01@greaterwire.com

Add To Inquiry

Description

Download

Instrumentation Cable Manufacturer

Copper Conductor

Plain Annealed Copper Conductor

Insulation & Sheath

V-90 PVC Insulated & Sheath

Armour

Steel Wire Armour

Voltage

300 V

Instrumentation Cable

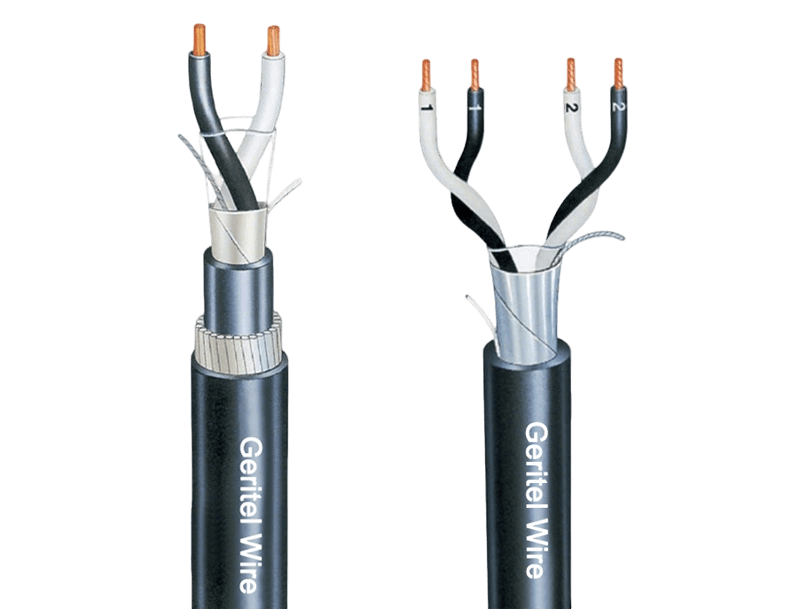

Instrumentation cable is a high-quality twisted-pair cable with optional overall or individual screening, effectively resisting electromagnetic interference (EMI) and ensuring long-term durability and signal stability in harsh industrial environments.

Instrumentation Cable

Screened Instrumentation Cable

Instrumentation cables are high-performance twisted-pair cables designed specifically for precision signal transmission in industrial control and instrumentation systems.

Copper Conductors

Rated Voltage Uo/U (Um) 300V

V-90 Insulated

Standards AS/NZS

V-90 Sheathed

Temperature Range: -20 °C ～ +90 °C

Advantages of Instrumentation Cables

Instrumentation cables utilize multi-strand annealed copper conductors and V-90RP PVC insulation, with a rated voltage of 300V. They are available in both full-pair shielding and single-pair + full-pair shielding configurations, effectively resisting electromagnetic interference (EMI) and ensuring signal stability and accuracy in complex industrial environments.

SAA Instrumentation Cable

Pairs	Nom. Diam.Over Bed.	Nom. Diam Over Armour	Nominal Overall Diameter	Minimum Bending Radius	Max. Pulling Tension	Approx.Mass
Pairs	mm	mm	mm	mm	kN	kg/100m
Conductor 0.5mm2(7/0.30mm)
2	7.4	9.2	11.4	137	2.3	25
4	8	9.8	12	144	2.4	28
6	9.4	11.2	13.6	164	2.8	36
8	10.6	12.4	14.8	178	3.1	42
10	11.7	13.5	16.1	193	3.4	48
12	12.6	14.4	17	204	3.6	54
16	14.3	16.1	18.9	227	4.2	65
20	15.8	18.3	21.1	253	6.4	86
24	17.1	19.6	22.7	272	6.9	97
36	20.5	23	26.3	316	8.2	127
50	23.9	26.4	29.9	259	9.5	160
Conductor 1.5mm2(7/0.50mm)
1	6.2	8	10.2	123	2	22
2	9.4	11.2	13.6	163	34	2.8
4	10.3	12.1	14.5	174	3.1	42
6	12.2	14	16.6	199	3.6	55
8	13.8	15.6	18.2	219	4	65
10	15.2	17.7	20.6	247	6.2	87
12	16.5	19	22.12	65	6.7	99
20	20.8	23.3	26.6	319	8.3	140
24	22.6	25.1	28.6	344	9	161
36	27.7	30.2	34.4	413	11	223
50	32.3	35.5	39.7	477	16.4	307

Certification

Instrumentation cable has successfully obtained SAA certification. It complies with strict international and regional standards, enabling secure low-voltage signal transmission, and possesses excellent electromagnetic interference (EMI) immunity and long-term durability.

Instrumentation Cable

EMI Resistant

Low-Voltage

Overall/Individual Screening

Industrial-Grade

Instrumentation Cable certification

SAA approval Instrumentation Cable

APPLICATIONS

Suitable for various applications including sensors, transmitters, control cabinets, and monitoring systems, instrumentation cables comply with stringent standards such as UL 13, CSA C22.2, and AS/NZS 3808, making them a reliable choice for industrial instrumentation wiring.

Instrumentation Cable for Industrial Control Systems

Industrial Control Systems

Used in factory automation and process control systems to stably transmit control and feedback signals, ensuring precise equipment operation.

Instrumentation Cable for Sensors and Transmitters

Sensors and Transmitters

Connect pressure, temperature, flow, and other sensors and transmitters, ensuring low-noise, high-precision signal transmission.

Instrumentation Cable for Control Panels

Control Panels

Used within control cabinets and in cabinet-to-cabinet wiring to reduce electromagnetic interference and improve system reliability.

Instrumentation Cable for Automation Plants

Automation Plants

Widely used in chemical, petroleum, and manufacturing industries to achieve continuous and stable process signal monitoring.

Customer Photos

Exporting to 80+ countries and regions, we bring proven global export experience and trusted wires & cables to customers worldwide.

Instrumentation Cable manufacturer

plant equipment

We are a professional Australia cable manufacturer, our company is equipped with a full range of modernized manufacturing and quality control equipment, including high-speed extrusion lines, precision stranding machines, automatic winding systems, and advanced electrical performance testing instruments.

Instrumentation Cable Manufacturer

Packaging Information

Instrumentation cable are available in three packaging methods: coiled, plastic reel, and wooden reel.

Instrumentation Cable Coiled Package

Coiled

Instrumentation Cable Plastic Reel Package

Plastic Reel

Instrumentation Cable Package

Wooden Reel
