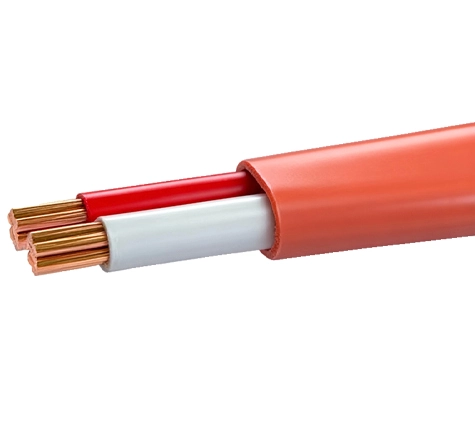

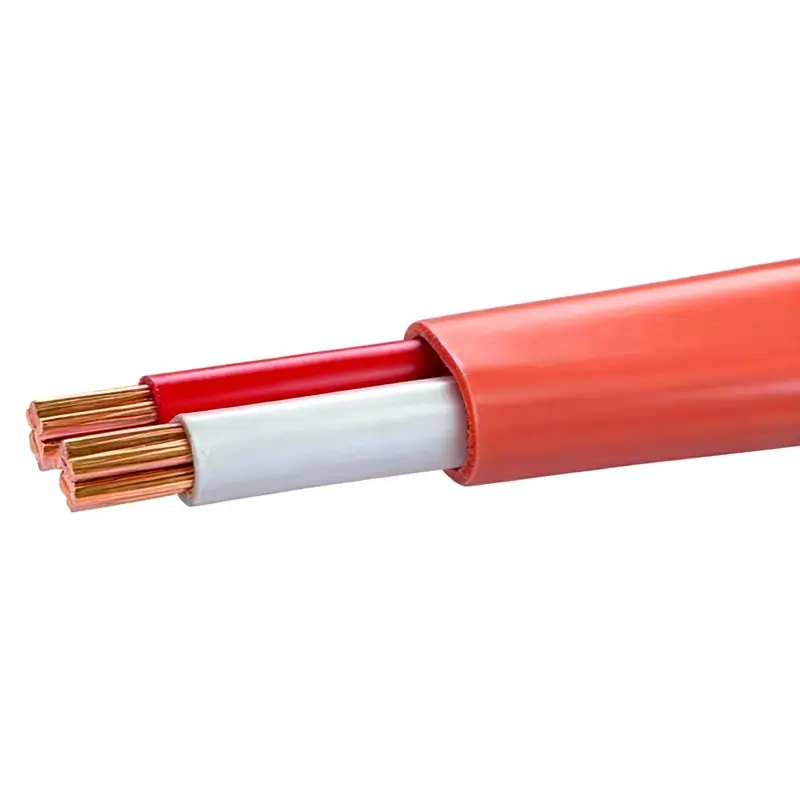

SAA TPS Fire Alarm Halogen Free Cables
Conductor l：
Stranded Annealed Copper
Insulation：
HFI-90-TP
Sheath：
HFS-90-TP
Rated Voltage Uo/U (Um)：
250/250V
Operating Temperature：
-25ºC to +90ºC
Description
Download
Copper Conductor
Stranded Annealed Copper
Insulation & Sheath
HFI-90-TP Insulation & HFS-90-TP Sheath
Number of Core
2 Core
Temperature Range
-25ºC to +90ºC
2HR Fire Alarm Cables
TPS halogen free 2 core twisted cable is designed for high-performance fire alarm and security systems, minimizing toxic emissions during a fire to enhance the safety of people and property.
Fire Rated Cable
Suitable for indoor, underground, or enclosed environments with stringent fire safety and environmental compliance requirements.
Stranded Annealed Copper
Rated Voltage Uo/U (Um) 250/250 V
HFI-90-TP Insulation
Standards AS/NZS 3013
HFS-90-TP Sheath
Temperature from -25ºC to +90ºC
Advantages of fire rated cable
Twisted TPS halogen free cable provides superior signal integrity, reduces interference, and maintains reliable communication between fire alarm control panels and equipment. The cable features a robust LSZH sheath, offering high mechanical strength and flame retardancy.
| Cross Section (mm2) |
Cores | No. of Conductors x diameter (mm) |
Overall Size | Resistance (Ω / km) |
Capacitance (pF/m) |
Inductance (uH/m) |
Core Lay Up |
| 1.5mm | 2 | 7 x 0.52 | 7.2 x 4.5 | 12.8 | 75 | 0.68 | Flat |
| 1.5mm | 2 | 7 x 0.52 | 7.2 x 5.0 | 12.5 | 88 | 0.65 | Twisted |
Certification
TPS halogen free 2 Core Twisted Cable is fully certified to Australian and international standards, ensuring reliable performance and safety. It meets AS/NZS 1670.1:2018 for fire detection and alarm systems, AS/CA S008 for communications cabling, and AS/NZS 3013 WSX1 for fire-resistant and flame-retardant performance..
Fire Resistant
2 Hour Fire Survival
Mechanical Durability
SAA Certified
APPLICATIONS
TPS halogen free 2 core twisted cable is specifically designed for fire alarm and safety system installations where low-smoke, zero-halogen performance is critical.
Fire Alarm System
Reliably connects address-based fire alarm control panels to detectors, sensors, and alarm devices, ensuring rapid transmission of fire alarm signals within the building and improving overall fire safety performance.
Buildings
Meets the certification requirements of Australian Standards AS/NZS 1670.1:2018, AS/CA S008, AS/NZS 3013 WSX1, etc., and is suitable for use in new construction or renovation projects with strict fire safety requirements.
Signal Transmission
Suitable for ELV systems with lower rated voltages, ensuring stable signals and strong anti-interference capabilities for fire alarm, monitoring, and communication equipment.
Tunnel
Specifically designed for underground or semi-enclosed spaces, such as subways, underground parking lots, and tunnels, LSZH low-smoke halogen-free material reduces toxic fumes and corrosive gases during fires.
Customer Photos
Exporting to 80+ countries and regions, we bring proven global export experience and trusted wires & cables to customers worldwide.
plant equipment
We are a professional fire rated cable manufacturer, integrating R&D, production, and quality control. We have long focused on manufacturing low-smoke halogen-free cables for fire protection and safety systems. Our factory is equipped with advanced drawing, stranding, insulation, and sheathing production lines. We strictly select high-purity copper conductors and environmentally compliant LSZH materials, ensuring consistent and stable electrical performance, flame retardancy, and safety in our cables. With mature production experience, stable capacity, and a rigorous quality system, we can continuously provide customers with reliable and compliant fire rated cable solutions.
Packaging Information
Fire cables are typically packaged in coils, plastic reel, or wooden reel. We also offer custom packaging services.
Coiled
Plastic Reel
Wooden Reel
Global Certification
Geritel Wire Manufacturer holds 50+ international certifications, including UL, cUL, SAA, TUV, CE, VDE, ISO, and others. Our cables meet the highest global quality and safety standards.
VDE
UL
SAA
TUV
ISO
