SAA Approval Australia 2HR Fire Alarm Cables
Conductor l：
Stranded Annealed Copper
Flame Barrier：
Mica Tape
Insulation：
PVC Free - Low Smoke Zero Halogen (LSZH)
Rated Voltage Uo/U (Um)：
450/750V
Operating Temperature：
-25ºC to +110ºC
Description
Download
Copper Conductor
Stranded Annealed Copper
LSZH Insulation & Sheath
PVC Free - Low Smoke Zero Halogen
Multi-Core Power Cable
1 Core/ 2 Core / 3 Core / 4 Core
Temperature Range
-25ºC to +110ºC
2HR Fire Alarm Cables
2HR fire alarm cable utilizes high-performance fire-resistant materials and a structural design, providing two hours of circuit integrity maintenance to ensure continuity of signal and control circuits during a fire.
Fire alarm Cable
2HR fire rated cable is widely used in all critical systems with extremely high requirements for fire safety and continuous power supply.
Stranded Annealed Copper
Rated Voltage Uo/U (Um) 450/750V
Flame Barrier Mica Tape
Standards AS/NZS 5000.2
X-HF-110 Sheath
Temperature from -25℃ to 110 ℃
Advantages of fire rated cable

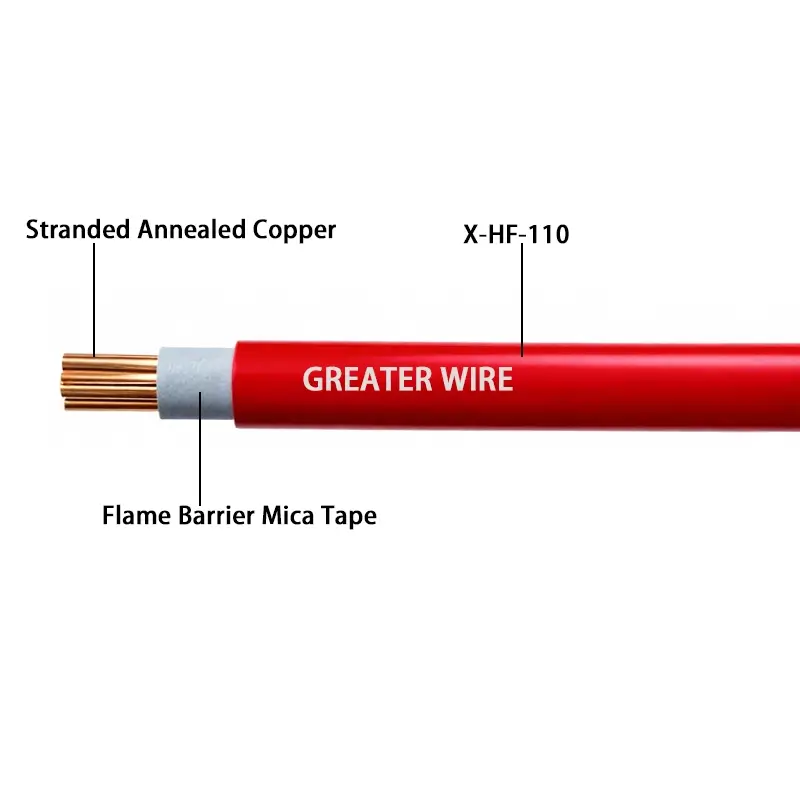

2HR fire rated cable features a multi-layer fire-resistant structure design. Internally, it uses multi-strand annealed copper conductors, which are covered with a layer of high-temperature resistant mica tape as the main fire barrier. The mica layer is reinforced with low-smoke halogen-free (LSZH) insulation material to further enhance its heat resistance, flame retardancy, and environmental performance.
| Cross Section (mm²) |
No. of Cores |
Copper Wire Diameter (mm) |
Approx Overall Diameter (mm) |
| 1.5 mm | 1 core | 0.52 | 3.9 |
| 0.75mm | 2 core | 0.37 | 9.8 |
| 1.0mm | 2 core | 0.42 | 10 |
| 1.5mm | 2 core | 0.52 | 10.3 |
| 2.5mm | 2 core | 0.67 | 11.8 |
| 4mm | 2 core | 0.85 | 13.7 |
| 6mm | 2 core | 1.04 | 16.2 |
| 0.75mm | 3 core | 0.37 | 10.8 |
| 1.5mm | 4 core | 0.52 | 12.0 |
| 1.5mm | 4 Core Screened | 0.52 | 13.8 |
Certification
2 hour fire alarm cable has passed SAA certification testing and auditing; its use in fire alarm systems complies with building and fire safety regulations. This certification not only demonstrates the cable's compliance with fire resistance and electrical safety standards but also provides crucial assurance for successful project acceptance.
Fire Resistant
2 Hour Fire Survival
Mechanical Durability
SAA Certified
APPLICATIONS
2HR fire rated cable is a high-reliability cable specifically designed for building fire alarm systems and Emergency Wi-Fi Systems (EWIS). In the event of a fire, the core alarm circuit must continue to transmit signals normally in high-temperature environments, ensuring alarms, speakers, and control equipment can continuously respond to the fire. This requires the cable to have at least 2 hours of fire protection performance, maintaining its electrical integrity under extreme conditions and meeting the stringent testing requirements of AS/NZS 3013 standard.
Fire Alarm System
The cable is widely used in fire alarm systems to connect fire detectors, manual alarm buttons, and fire alarm control panels. During a fire, the cable maintains line integrity for at least 2 hours in high-temperature environments.
Buildings
In office buildings, shopping malls, and mixed-use projects, this cable is used for main or branch fire alarm and broadcast lines, adapting to complex wiring paths and long-distance laying requirements, while meeting mandatory regulatory requirements for fire resistant cables.
Schools
This cable is suitable for fire alarm and emergency broadcast systems in densely populated places such as schools, hotels, theaters, and convention centers, providing reliable wiring protection for public safety in accordance with relevant Australian building and fire protection codes.
Subways
In enclosed or semi-enclosed environments such as subway stations, underground passages, tunnels, and parking lots, this cable is commonly used for fire alarm and voice evacuation systems. Its high-temperature resistance and low-smoke performance help maintain communication and improve visibility under fire conditions.
Customer Photos
Exporting to 80+ countries and regions, we bring proven global export experience and trusted wires & cables to customers worldwide.
plant equipment
We are a professional fire rated cable manufacturer, we have established a comprehensive and mature production and supply management system, enabling it to provide the market with high-quality wire and cable products on a long-term and stable basis. Relying on multiple continuous production lines and a scientific production scheduling mechanism, the company can maintain stable production capacity even during peak project cycles, meeting the stringent requirements of large-scale engineering projects for delivery time and bulk supply. On the raw material side, the company maintains long-term cooperative relationships with several high-quality copper and insulation material suppliers, effectively reducing the impact of raw material fluctuations on delivery and ensuring controllable production plans and stable delivery cycles.
Packaging Information
Fire cables are typically packaged in coils, plastic reel, or wooden reel. We also offer custom packaging services.
Coiled
Plastic Reel
Wooden Reel
Global Certification
Geritel Wire Manufacturer holds 50+ international certifications, including UL, cUL, SAA, TUV, CE, VDE, ISO, and others. Our cables meet the highest global quality and safety standards.
