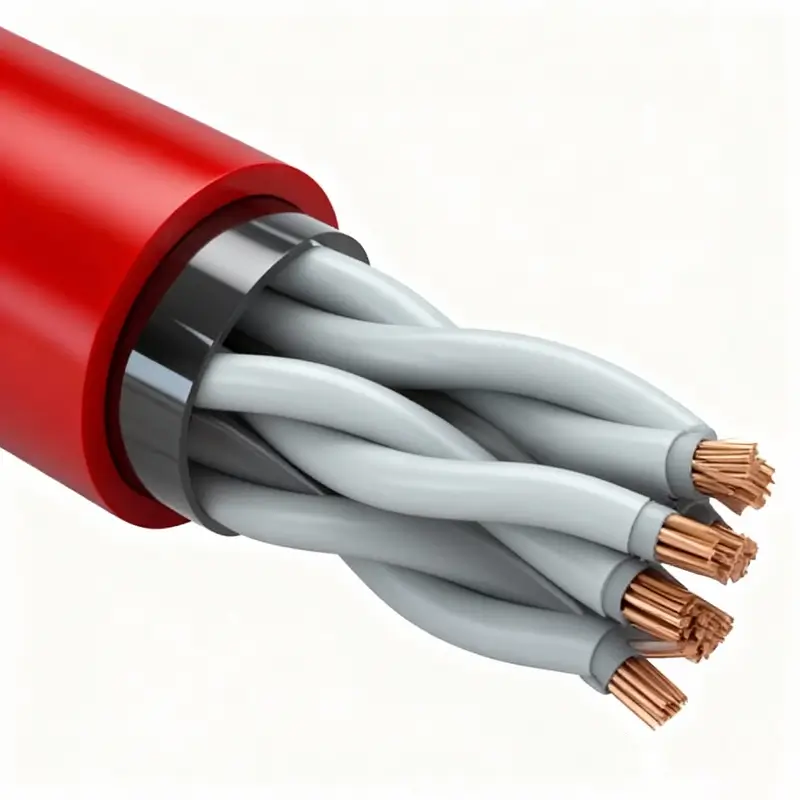

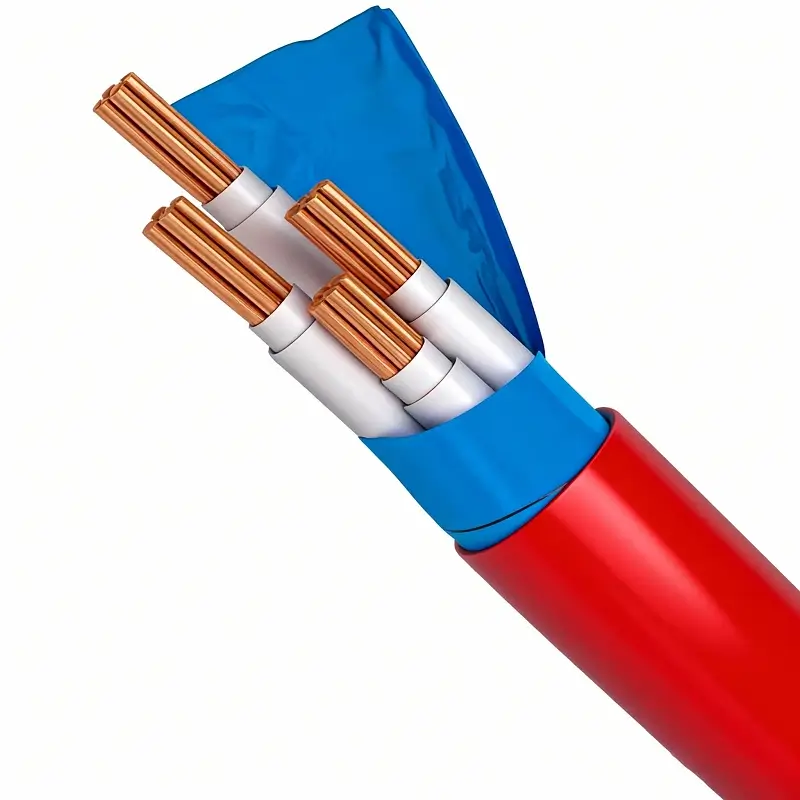

Australia Multicore 2HR Fire Rated Control Cable
Conductor l：
Stranded Annealed Copper
Flame Barrier：
Mica Tape
Insulation：
X-HF-110
Outer sheath：
HFS-110-TP
Rated Voltage Uo/U (Um)：
450/750V
Description
Download
Copper Conductor
Stranded Annealed Copper
LSZH Insulation & Sheath
PVC Free - Low Smoke Zero Halogen
Multi-Core Power Cable
4 Core Screened / 6 Core / 8 Core Screened / 10 core
Temperature Range
-25ºC to +110ºC
2HR Fire Rated Control Cable
Fire rated control cables offer stable electrical performance, enhanced fire resistance, and low-smoke, halogen-free safety features. Screened fire cables provide excellent noise suppression, maintaining reliable signal and power transmission even under extreme temperatures or emergency conditions.
Fire Rated Control Cable
For signalling, switching, and power-related circuits in essential building systems, providing reliable performance and reduced electrical interference to protect stable operation during both normal and fire conditions.
Stranded Annealed Copper
Rated Voltage Uo/U (Um) 450/750V
X-HF-110 Insulation
Standards AS/NZS 5000.2
HFS-110-TP Sheath
Temperature from -25℃ to 110 ℃
Advantages of fire rated control cable
Fire-rated control cables use stranded copper conductors and low-smoke halogen-free flame-retardant insulation. They feature a multi-core configuration and can be equipped with aluminum/polyester foil shielding and twisted-pair structure. All components are protected by a robust low-smoke halogen-free outer sheath, ensuring stable signal transmission and circuit integrity for up to 2 hours under fire conditions.
| Cross Section (mm²) |
No. of Cores |
Copper Wire Diameter (mm) |
Approx Overall Diameter (mm) |
| 0.75mm | 4 Core Screened | 0.37 | 13.5 |
| 1.5mm | 6 Core | 0.52 | 16 |
| 0.75mm | 8 Core Screened | 0.37 | 15.8 |
| 1.5mm | 10 core | 0.52 | 18.8 |
| 10 Core (5 Twisted Pairs) | ||||
| Cross Section (mm²) |
No. of Cores |
Copper Wire Diameter (mm) |
Twists per m | Overall Diameter (mm) |
| 0.75mm | 10 (5 twisted pairs) |
0.37 | 8-10 | 22-24 |
Certification
2 HR fire rated cable is fully certified, including SAA approval, compliance with AS/NZS fire-safety standards, and reliable performance for essential service and emergency circuits.
Fire Resistant
2 Hour Fire Survival
Mechanical Durability
SAA Certified
APPLICATIONS
Fire rated control cables are widely used in fire alarm systems, Emergency Wiring Systems (EWIS) and emergency communication systems, building automation control, smoke extraction equipment, sprinkler and pump monitoring circuits, and general signal or switching lines. Their multi-core design supports complex control networks in commercial buildings, hospitals, tunnels, data centres, and high-rise buildings. Shielded and twisted-pair models further enhance signal stability, making them suitable for sensitive communication circuits requiring strong noise immunity.
Emergency Lighting
Emergency lighting and exit sign systems rely on fire-rated control cables to transmit control signals and power commands, ensuring that the lights continue to operate normally in the event of a power outage or fire.
Fire Alarm Control Panels
These cables provide reliable power and signal transmission to fire alarm control panels, triggering early warnings and activating other emergency systems during a fire.
Building Automation Systems
Fire rated control cables are widely used in signal control of automated equipment such as air conditioning, lighting, and security access control. Even in fire conditions, the cables can continue to transmit commands.
Smoke Extraction Systems
During a fire, fire-rated control cables remain operational throughout systems such as smoke exhaust fans, fire dampers, and pressure control devices.
